NEW HOLLAND E70D

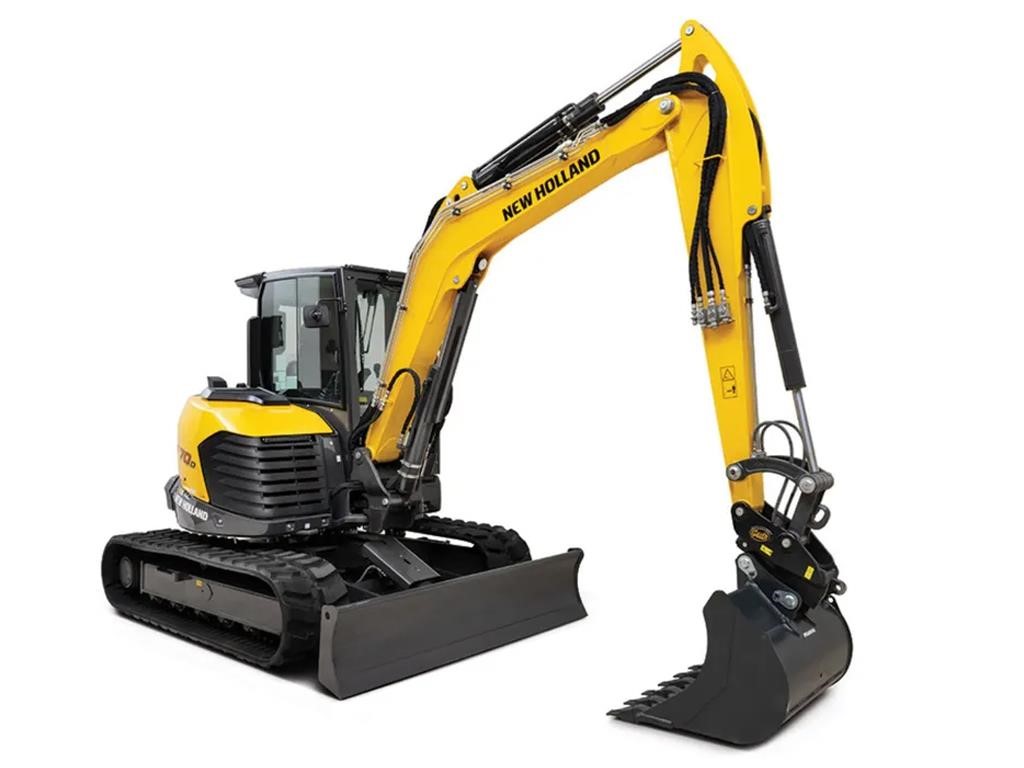

NEW HOLLAND – E70D – MIDI EXCAVATOR
AN EXCAVATOR LINE WITH MORE POWER AND CAPACITY
New Holland Construction enters the midi excavator market with its first model. The midi excavator category combines powerful performance and versatility in a compact design. These machines come with a wide set of features as standard equipment and have mechanical, technological and productivity-related optional equipment. Several segments can benefit from having this new size of excavator such as landscaping, amenity work, agriculture, horticulture, nurseries, vineyards, estate management, water and sewer, municipal projects, and general contracting. Choose this size of midi excavator for a variety of projects from urban settings to outdoor field projects.

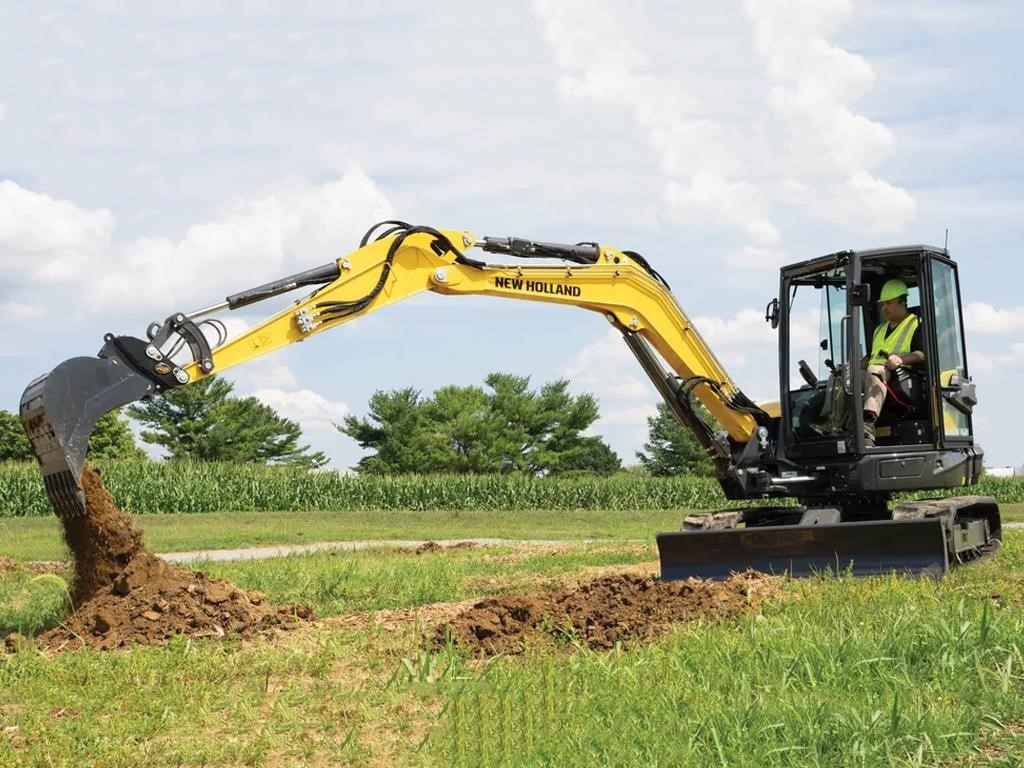

Operators are going to find a machine uniquely built for them and their needs with the powerful performance within E70D’s compact frame. This excavator is meticulously crafted to excel in confined spaces where larger machines fall short. Ideal for small-to-medium-sized construction companies, landscapers, municipalities, and farmers, the E70D can handle a variety of tasks with ease — from digging and grading to material handling.
FEATURES
GREAT SET OF SPECIFICATIONS
Impressive specifications and versatile design are intrinsic to the E70D making it a standout model. Weighing in at 16,072 lbs (7290 kg), it strikes the perfect balance between strength and agility. It delivers a dig depth of up to 168.1 inches (4269 mm) and a dump height of 180 inches (4572 mm) and is engineered for peak performance in a variety of conditions. Sporting a distinctive monoboom design that ensures superior maneuverability, the machine allows operators to navigate tight spaces and challenging jobsites with ease.
ATTACHMENTS AND OPTIONS
Various attachments are available to suit the E70D for different tasks, including buckets, augers, breakers, grapples and mulchers. Heavy counterweights of 1,102 lbs (499 kg) can be added to the machine to enhance lift performance and stability. Operators can also adjust joystick sensitivity and hydraulic response to match their personal preferences, ensuring a smooth and efficient operation every time.
REMOTE TRACKING AND DIAGNOSTICS
Incorporating the latest technology, the E70D models come standard with telematics and a five-year advanced subscription to provide real-time tracking, diagnostics, and performance monitoring. This connectivity enables owners and operators to stay informed about the machine’s status, schedule maintenance and address any issues promptly. The machine also features adjustable controls and an auto-lubrication system, simplifying maintenance and reducing the need for manual intervention.
STANDARD EQUIPMENT
• Tiltable Cab (ROPS/TOPS – FOPS Level 1)
• Automatic Air Conditioning and Heating
• Automatic Courtesy light
• Radio, Bluetooth, USB, Memory card SD/SDHC, Aux-in
• Electric socket on the roof for Rotating Beacon
• Windshield washer
• Rear-view mirrors (left, right, rear)
• Standard arm
• Boom Lift cylinder and dozer blade cylinder protection
• Standard counterweight
• Air Filter with drain valve and electric anti-clogging indicator
• Hydraulic Reversable Fan Drive with automatic functionality
• Servo-assisted hydraulic joysticks with Electro-Hydraulic proportional controls
• Electro-Hydraulic proportional Swing control
• 1st Auxiliary (AUX1) circuit with Electro- Hydraulic proportional control
• 2nd Auxiliary (AUX2) circuit with Electro-Hydraulic proportional control
• Digital cluster with AUX1, AUX2 and AUX3 flow settings
• Block valves on swing cylinder
• Electric diverter between Single effect and Double effect AUX1
• 2 speed travel with Automatic Shift Down (from 2nd to 1st gear if more traction is required) and Shift-up
• Electronic Proportional RPM control with Auto-Idle
• Pattern Changer
• Bucket Linkage with hook
• Rubber tracks
• Standard Dozer Blade
• Operator manual
• Ignition key, which opens everymachine lock
• Standard LED working lights(boom, right-front hood and cab-front)
• Battery disconnect switch
• Variable Volume Pump
• Standard Hydraulic oil and Lubricants
• New Holland FleetForce™ Telematicswith 5-Year Advanced Subscription
• Direct Drainage to tank
• Fabric seat with Pneumatic suspension and Heating
• Rear view camera
• Travel alarm
• Extra LED working lights (cab-rear)
OPTIONAL EQUIPMENT
• Anti-Theft
• Long arm
• Additional counterweight – Heavy
• 3rd Auxiliary (AUX3) circuit with Electro-Hydraulic proportional control
• Steel tracks
• 6×1 (Angle/Tilt) Dozer Blade
• Dozer Float
• Rotating LED Beacon
• Bio Hydraulic oil and Lubricants
• Automatic Centralized Lubrication
• High Flow provision (i.e. for Mulcher):max constant flow of 15.9 GPM at 2610 PSI (60 l/min at 180 bar)
• Hydraulic quick coupler provision (Single or Double Effect)
• Mechanical and Hydraulic quick couplers
• Buckets
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
General Dimensions
| Maximum width in (mm) | 82.7 (2100) |
|---|---|
| Digging arm length standard (optional) in (mm) | 82.7 (2100) |
| Tracks width in (mm) | 17.7 (450) |
| Total height in (mm) | 105.5 (2680) |
| Rear rotation radius in (mm) | 41.4 (1050) |
| Rollers number (for each side) n° | 51 |
Performance Data
| Max. digging depth | |
|---|---|
| Standard arm — 74.8 in (1900 mm) lbf (daN) | 6519 (2900) |
| Standard arm - 74.8 in (1900 mm) (in (mm) | 160.2 (4070) |
| Bucket breaking force ISO 6015 lbf (daN) | 10,903 (4850) |
| Ground bearing pressure with rubber tracks psi (kg/cm2 | 4.8 (0.34) |
| Max. slope (60%) degrees | 30 |
| Optional arm - 82.7 in (2100 mm) in (mm) | 168.1 (4270) |
| Max. dumping height | |
| Optional arm - 82.7 in (2100 mm) (in (mm) | 180.7 (4590) |
| Arm breaking force ISO 6015 | |
| Optional arm — 82.7 in (2100 mm) lbf (daN) | 6070 (2700) |
| Traction force lbf (daN) | 16,074 (7150) |
Circuit And Component Capacities
| Cooling system capacity gal (l) | 3.2 (12) |
|---|---|
| Engine oil gal (l) | 2.7 (10.2) |
| Hydraulic oil tank gal (l) | 15.8 (60) |
| Hydraulic circuit capacity gal (l) | 21.1 (80) |
| Fuel tank gal (l) | 22.5 (85) |
Engine
| Displacement in3 (cm3 | 160 (2615) |
|---|---|
| Type | KUBOTA V2607-CR-T - STAGE 5 |
| Consumption GPH (l/h) | 2 (7.6) |
| Alternator V | 12 (60A) |
| Max. Power (2300 rpm) hp (kW) 6 | 60.2 (44.3) |
| Cooling | Liquid |
| Number of cylinders n° | 4 |
| Battery V (Ah) | 12 (95) |
Hydraulic System
| Pump displacement - 2 pumps in3 (cm3) | 4.3 + .86 (71 + 14) |
|---|---|
| Pump type | 1 LS hydraulic variable pump with electronic control + 1 gear pump |
| AUX 1 single or double effect with priority GPM (l/min) | 22.5 - 53 bar (85 - 200 bar |
| AUX 2 double effect GPM (l/min) | 17.2/23.8 - 74 bar (65/90 - 280 bar) |
| Max. circuit calibration pressure PSI (bar | 4061 (280) |
| Circuit type | Load Sensing closed center system with “Flow Sharing” control valve |
| Auxiliary system (max pressure): | |
| AUX 3 double effect optional GPM (l/min) | 12 - 74 bar (45 - 280 bar) |
| Pump capacity - 2 pumps GPM (l/min | 37 + 7.3 (141 + 27.8) |
Controls
| Low priority auxiliary system AUX 3 (double effect) | Electro-proportional switch on left joystick |
|---|---|
| Dozer blade | pilot lever |
| Boom, dipper stick, bucket and turret swing | 2 pilot joysticks |
| Track movements (included counter rotation) | 2 pilot levers |
| Auxiliary system AUX 2 (double effect) | Electro-proportional switch on right joystick |
| Boom swing | Electro-proportional switch on left joystick |
| Priority auxiliary system with holding function AUX 1 (single or double effect) | Electro-proportional switch on right joystick |
Weights
| Transport weight with cab lb (kg) | 15,476 (7020) |
|---|---|
| Operating weight with cab (with rubber tracks) ISO 6016 lb (kg) | 16,072 (7290) |
Slewing & Travel Speed
| Slew speed rpm | 11 |
|---|---|
| Traveling speed (AUTO TWO SPEED) mph (km/h) | 1st : 0 ÷ 1.3 / 2nd : 0 ÷ 2.6 (1st : 0 ÷ 2.1 / 2nd : 0 ÷ 4.2) |
