NEW HOLLAND E60C
NEW HOLLAND – E60C – MINI EXCAVATOR
THE RIGHT TOOL FOR THE JOB
New Holland mini excavators have a capacity range from 1.7 to 6.0 tons (1542 to 5443 kg). With canopy, cab, and zero tail swing versions to choose from, there is a model suited for any job. Leverage a New Holland mini excavator for landscaping, amenity work, agriculture, horticulture, nurseries, vineyards, estate management, and general contracting. Other applications include irrigation and drainage construction, fence work, temporary building construction, and crop support.
Designed to work long days, each model has class-leading excavation performance with the flexibility to power a wide range of attachments, including hydraulically powered attachments like soil augers, hammers and compactors. New Holland mini excavators display powerful versatility with the strength of a larger machine.
All models have three separate pumps to deliver enhanced performance, perfect for traveling between job sites, using the dozer blade, or working with the excavator. Need more? For the most demanding auxiliary attachments, a fourth pump option is available on the largest E57C and E60C models.
New Holland’s E60C compact dimensions and digging capabilities combine power and versatility to seize every moment of your work day. Designed for day-long performance, this mini excavator has class-leading excavation talent with the adaptability to support a wide range of attachments.
FEATURES
MINI EXCAVATOR, BIG POWER
The 64.7 HP (48.3 kW) engine provides plenty of power to the load-sensing hydraulics for a smooth and efficient operation in this compact and easily transportable package, measuring 8 ft 4 in (2550 mm) in height and 18 ft 3 in (5600 mm) in overall transport length.
Slim frame posts ensure excellent all-round visibility, with good views of the boom and dipper. When working in a confined area, in urban areas, or between valuable crops such as in a vineyard, nursery or an orchard, you can operate a New Holland compact excavator with absolute precision for minimal disruption.
ARMED TO DIG
Specify your C Series compact excavator with the arm length to best suit your requirements. Length on the E60C standard digging arm measures up to 4 ft 10 in (1.48 m) and 6 ft 3 in (1.9 m) with the long arm.
The standard arm yields 11 ft 9 in (3570 mm) of maximum digging depth and gets a maximum 13 ft 1 in (3990 mm) below surface with the long arm. With all this muscle, plus 5950 lbf (26.46 kN) of standard arm digging force, the E60C will quickly become your partner in productivity.
DESIGNED TO DUMP

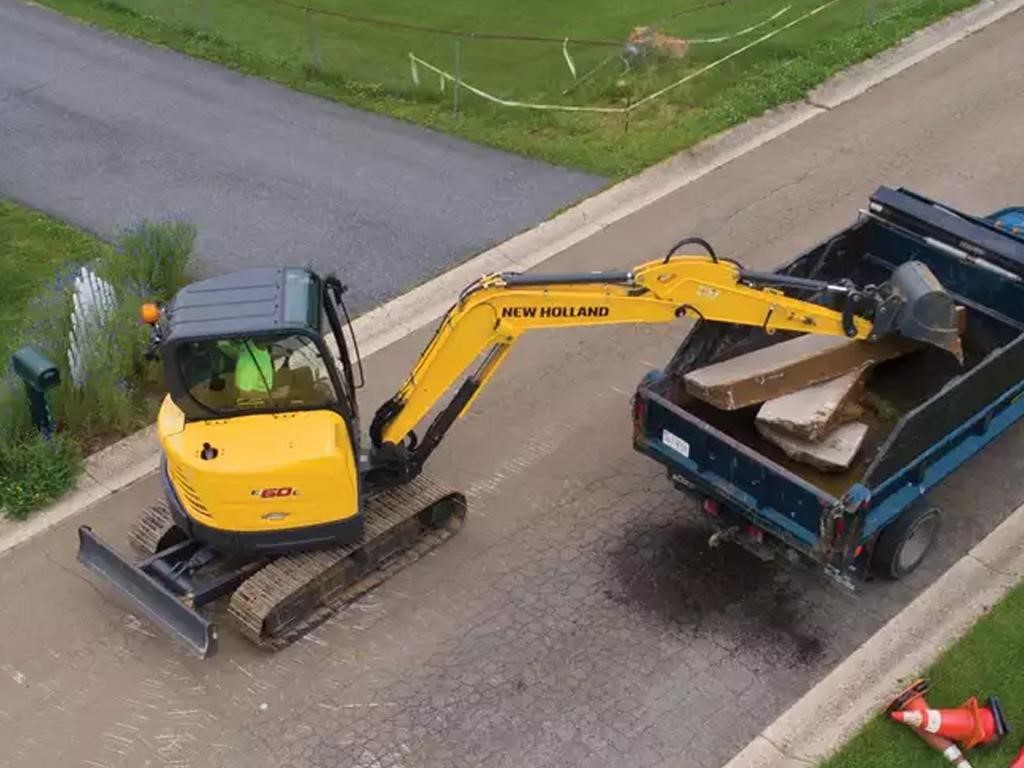

The standard arm on the E60C provides a maximum 12 ft 11 in (3930 mm) of dump height and 9190 lbf (40.87 kN) in bucket breakout force. If your operation requires a greater dump height, opt for the optional long arm that gets up to 13 ft 5 in (4100 mm) in maximum dump height. In addition, the available Object Handling Kit allows you to raise heavy, suspended loads using a lifting hook on the bucket linkage.
AMPLE BOOM SWING ANGLES
The E60C has a left swing angle of 75 degrees and a right swing angle of 50 degrees. A larger left swing angle improves visibility to the side of the door for a more precise operation. Ample boom swing angles allow for efficient parallel digging, good for working alongside obstacles. Plus, forgoing the need to reposition the machine means you can complete the job faster.
Boom pivot pins are secured by plate and bolt to reduce lateral movement and provide reliable performance in tough conditions. Plus, the pins give way to a long service life and lower whole-life operating costs.
EFFICIENT, POWERFUL, DEPENDABLE
New Holland mini-excavators are compliant with Tier 4 Final emission regulations and employ different after-treatment technologies to achieve this. Each model has a power unit selected to match the excavator’s size and capacity. This ensures optimized performance and fuel economy. To further enhance economy, the E60C is fitted with Auto-idle.
When the hydraulics or traction motors are not demanding oil, the engine speed is reduced to idle with no input required from the operator. This feature can be turned on or off via a simple switch on the main console. Auto-idle works to reduce wear, fuel consumption and engine noise.
ATTACHMENTS FOR DEDICATED EFFICIENCY
Powering demanding attachments is a key New Holland advantage. With the right attachment, New Holland’s excavators can be used for a diverse range of jobs from fence installation to concrete breaking. Job site versatility is bound to soar with the added advantage of high constant hydraulic flow and quick coupler.
The Hydraulic Quick Coupler allows for hands-free coupling and release of buckets. Plus, safely swap between large, heavy attachments. Mechanical quick lock attachment brackets are also available.
DESIGNED FOR AND AROUND YOU
New Holland’s E60C compact excavator is fitted with a cab and carries a 12,940 lb (5870 kg) operating weight with a full fuel tank, operator and bucket. Additionally, the E60C is TOPS (tip-over), FOPS (falling-object) and ROPS (roll-over) compliant to protect the precious cargo inside. Low noise and vibration levels, an adjustable suspension seat, adaptable wrist rests and Bluetooth® radio ensure you can work for extended periods in comfort with no compromise in operator safety.
Standard digital color LCD monitor provides easy battery management and access to machine settings. The 5.7 in (14.5 cm) touchscreen helps to keep your operation in motion when key machine details are easily accessible – such as engine speed, coolant and hydraulic oil temperature and maintenance information including fault codes and diagnostics. Further improve productivity and reduce downtime with simplified daily checks when all key check and service points are grouped together.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Dimensions
| Tail swing radius Standard counterweight ft. in. (mm) | 3’ 7” (1080) |
|---|---|
| Arm (standard length) | 4 ft. 10 in. (1.48 m) A |
| Boom swing degrees | 70 left/50 right |
| Upper structure ground clearance ft. in. (mm) | 2’ 2” (660) |
| Track overall length ft. in. (mm) | 8’ 4” (2550) |
| Minimum ground clearance ft. in. (mm) | 1’ 3” (380) |
| Track shoe width ft. in. (mm) | 15 (380) |
| Tail swing radius Heavy counterweight ft. in. (mm) | 3’ 9” (1138) |
| Width of upper structure | 6’ 4” (1940) |
| Center to center – idler to sprocket ft. in. (mm) | 6’ 6” (1990) |
| Overall transport length ft. in. (mm) | 18’ 3” (5600) |
| Track gauge ft. in. (mm) | 5’ 3” (1600) |
| Overall height ft. in. (mm) | 8’ 4” (2550) |
| Track overall width ft. in. (mm) | 6’ 6” (1990) |
Other Specifications
| Arm: Standard length | Long arm length | 4 ft. 10 in. (1.48 m) | 6 ft. 3 in. (1.9 m) |
|---|---|
| Swing speed | 0 – 8.8 RPM |
| Boom: Swing | Length | 70° left/50° right | 9 ft. 6 in. (2.9 m) |
| Undercarriage: Track rollers | 1 upper / 5 lower each |
Blade Specs
| Backfill blade rise above ground ft. in. (mm) | 8 (200) |
|---|---|
| Backfill blade dig depth ft. in. (mm) | 2’ 4” (700) |
| Backfill blade width ft. in. (mm) | 6’ 7” (2010) |
| Backfill blade height ft. in. (mm) | 1’ 2” (350) |
Drivetrain
| Gradeability | 35° (70%) |
|---|---|
| Maximum traction force | 11,680 lb. (5300 kg) |
| Travel speeds - 2nd | 2.5 mph (4.0 kph) |
| Travel speeds - 1st | 1.4 mph (2.2 kph) |
| Ground pressure | 5.12 psi (0.36 kgf/cm2) |
Performance Specs
| Arm digging force – ISO lbf (kfg/kN) | 5950 (2700/26.5) |
|---|---|
| Maximum dig depth ft. in. (mm) | 11’ 9” (3570) |
| Overall reach height ft. in. (mm) | 18’ 8” (5680) |
| Dump height ft. in. (mm) | 12’ 11” (3930) |
| Dig radius at groundline ft. in. (mm) | 19’ 9” (6010) |
| Bucket digging force – ISO lbf (kfg/kN) | 9190 (4170/40.9) |
| Bucket rotation degrees | 180 |
| Maximum dig radius ft. in. (mm) | 20’ 2” (6150) |
| Vertical straight wall dig depth ft. in. (mm) | 10’ 0” (3040) |
Hydraulics
| 1st aux 2-way circuit: Flow | Pressure | 14.5 gpm (55L/min) | 3132 psi (216 bar) |
|---|---|
| Max rated flow | 2 x 14.5 gpm (2 x 55 L/min) |
| Pilot control hydraulic system: Pump | Gear pump |
| Swing motor | Fixed displacement axial piston motor Automatic spring applied hydraulic released brake |
| Auxiliary flow | |
| 2nd aux 2-way circuit: Flow | Pressure | 14.5 gpm (55L/min) | 3132 psi (216 bar) |
| Control valves: | Pilot control for left/right track travel, boom, arm, bucket and swing Manual control for breaker and backfill blade |
| Travel motor: | Variable displacement axial piston 2-stage planetary Automatic spring applied hydraulic released brake |
| Pilot control hydraulic system: Maximum capacity | 2.4 gpm (9 L/min) |
| Main pumps: | Variable displacement tandem axial piston pump |
| Hammer circuit 1-way: Flow | Pressure | 14.5 gpm (55L/min) | 3132 psi (216 bar) |
Engine
| Emissions Certification | Tier 4 Final |
|---|---|
| Cylinders | 4 |
| Model | Yanmar 4TNV98C |
| Net horsepower SAE J1349 @ 2200 RPM | 63 hp (47 kW) |
| Displacement | 203 in3 (3319 cc) |
| Fuel | Diesel |
| Cooling | Water-cooled |
| Gross horsepower SAE J1995 @ 2200 RPM | 64.7 hp (48.3 kW) |
| Maximum engine torque @ 1560 RPM | 173.7 lb. ft. (235.4 Nm) |
| Fuel injection | Electronic common rail |
Service Capacities
| Radiator | 2.9 gal. (11 L) |
|---|---|
| Engine oil w/ filter change | 3.1 gal. (11.6 L) |
| Fuel tank | 21.7 gal. (82 L) |
| Hydraulic tank - Refill capacity | 15.9 gal. (60 L) |
| Hydraulic tank - Total system | 29.1 gal. (110 L) |
Electrical
| Voltage | 12 Volts |
|---|---|
| Battery | 1 x 12 V x 100 Ah 850 CCA |
| Alternator rating | 80 amp |
Operator Weight
| Canopy operating weight Long arm w/additional counterweight | |
|---|---|
| Cab operating weight: Long arm w/additional counterweight | 13,430 lb. (6090 kg) |
| Canopy operating weight Short arm | |
| Cab operating weight: Short arm | 12,940 lb. (5870 kg) |
Operator Environment
| Enclosed cab w/heat and air conditioning; ISO 6396 | 2008 sound pressure level LpA=77bB (A); Pilot operated hand controls and foot pedals; Adjustable seat w/seat belt and seat heater; Arm rests; 12V socket; 5.7 in color LCD display; cup holder; Cell phone holder; Bluetooth radio with USB input, 2 speakers and remote control. |
|---|---|
| Display includes: | Hydraulic oil temp warning lamp; Air cleaner warning lamp; Engine stop warning lamp; Check engine warning lamp; Water in fuel warning lamp; Battery charging warning lamp; Emergency warning lamp; Engine coolant temp warning lamp; Engine oil pressure warning lamp; DPF regeneration inhibit warning lamp; DPF regeneration acknowledge warning lamp; DPF warning lamp; High Exhaust Temperature warning lamp; Low fuel level warning lamp Engine coolant temperature gauge; Hydraulic oil temperature guage; Fuel gauge; Engine RPM and Hour meter. |
