NEW HOLLAND E57C
NEW HOLLAND – E57C- MINI EXCAVATOR
THE RIGHT TOOL FOR THE JOB
New Holland mini excavators have a capacity range from 1.7 to 6.0 tons (1542 to 5443 kg). With canopy, cab, and zero tail swing versions to choose from, there is a model suited for any job. Leverage a New Holland mini excavator for landscaping, amenity work, agriculture, horticulture, nurseries, vineyards, estate management, and general contracting. Other applications include irrigation and drainage construction, fence work, temporary building construction, and crop support.
Designed to work long days, each model has class-leading excavation performance with the flexibility to power a wide range of attachments, including hydraulically powered attachments like soil augers, hammers and compactors. New Holland mini excavators display powerful versatility with the strength of a larger machine.
All models have three separate pumps to deliver enhanced performance, perfect for traveling between job sites, using the dozer blade, or working with the excavator. Need more? For the most demanding auxiliary attachments, a fourth pump option is available on the largest E57C and E60C models.
New Holland’s E57C compact dimensions and digging capabilities combine power and versatility to seize every moment of your work day. Designed for day-long performance, this mini excavator has class-leading excavation talent with the adaptability to support a wide range of attachments.
FEATURES
MINI EXCAVATOR, BIG POWER

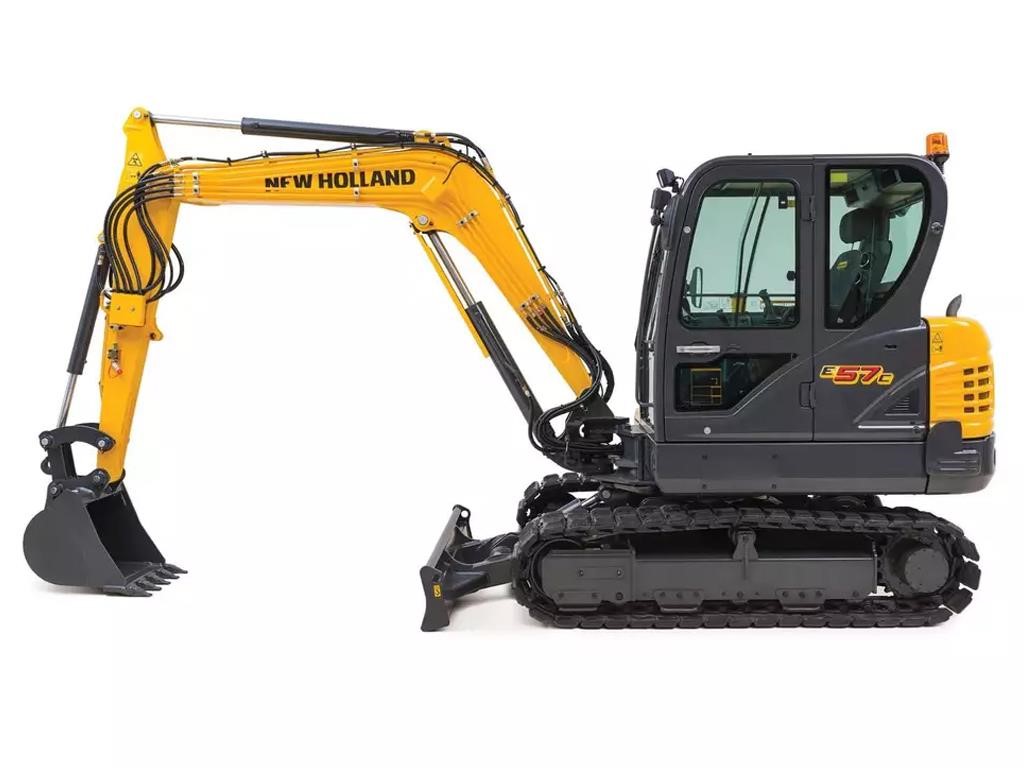

The 66.9 HP (49.9 kW) engine provides plenty of power to the load-sensing hydraulics for a smooth and efficient operation in this compact and easily transportable package, measuring 8 ft 4 in (2550 mm) in height and 19 ft 4 in (5900 mm) in overall transport length.
Slim frame posts ensure excellent all-round visibility, with good views of the boom and dipper. When working in a confined area, in urban areas, or between valuable crops such as in a vineyard, nursery or an orchard, you can operate a New Holland compact excavator with absolute precision for minimal disruption.
ARMED TO DIG
Specify your C Series compact excavator with the arm length to best suit your requirements. Length on the E57C standard digging arm measures up to 5 ft 3 in (1.6 m) and 6 ft 3 in (1.9 m) with the long arm.

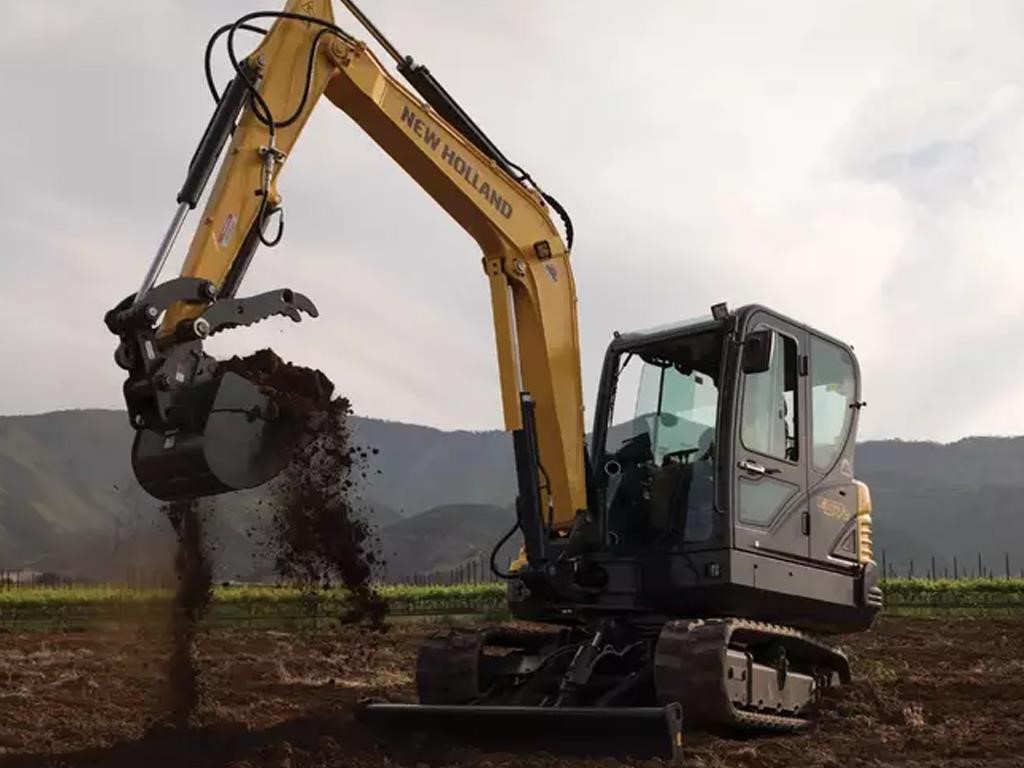

The standard arm yields 12 ft 6 in (3820 mm) of maximum digging depth and gets a maximum 13 ft 4 in (4060 mm) below surface with the long arm. With all this muscle, plus 7190 lbf (31.98 kN) of standard arm digging force, the E57C will quickly become your partner in productivity.
DESIGNED TO DUMP

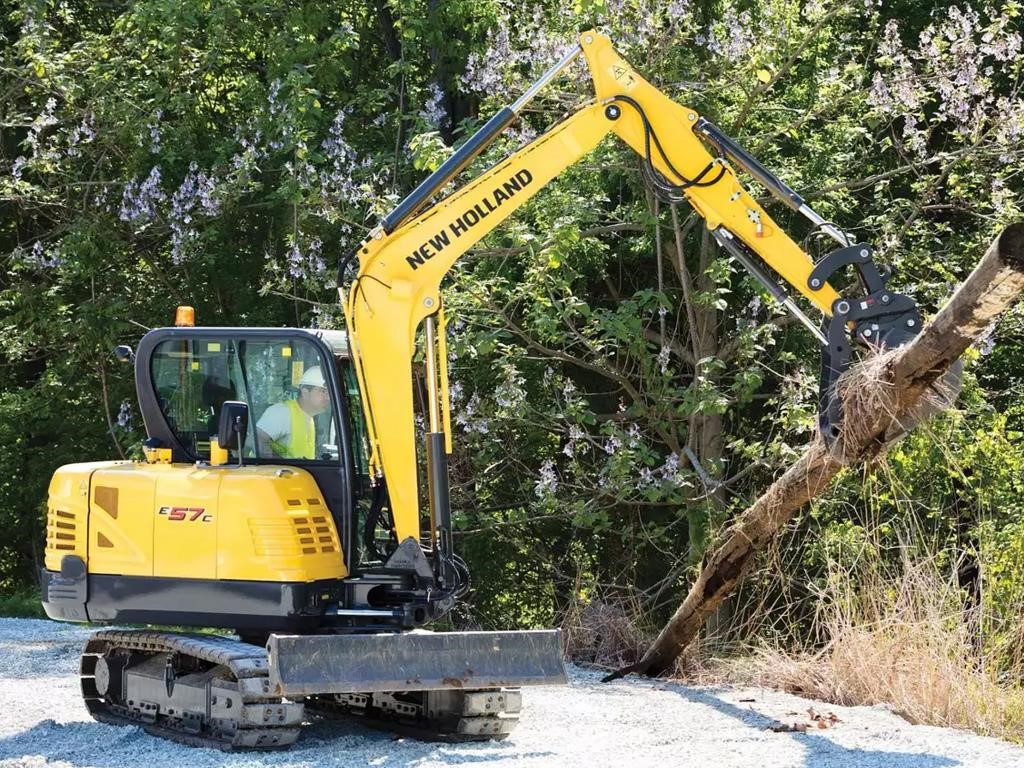

The standard arm on the E57C provides a maximum 13 ft 3 in (4050 mm) of dump height and 9550 lbf (42.48 kN) in bucket breakout force. If your operation requires a greater dump height, opt for the optional long arm that gets up to 13 ft 9 in (4180 mm) in maximum dump height. In addition, the available Object Handling Kit allows you to raise heavy, suspended loads using a lifting hook on the bucket linkage.
AMPLE BOOM SWING ANGLES
The E57C has a left swing angle of 75 degrees and a right swing angle of 50 degrees. A larger left swing angle improves visibility to the side of the door for a more precise operation. Ample boom swing angles allow for efficient parallel digging, good for working alongside obstacles. Plus, forgoing the need to reposition the machine means you can complete the job faster.
Boom pivot pins are secured by plate and bolt to reduce lateral movement and provide reliable performance in tough conditions. Plus, the pins give way to a long service life and lower whole-life operating costs.
EFFICIENT, POWERFUL, DEPENDABLE
New Holland mini-excavators are compliant with Tier 4 Final emission regulations and employ different after-treatment technologies to achieve this. Each model has a power unit selected to match the excavator’s size and capacity. This ensures optimized performance and fuel economy. To further enhance economy, the E57C is fitted with Auto-idle.
When the hydraulics or traction motors are not demanding oil, the engine speed is reduced to idle with no input required from the operator. This feature can be turned on or off via a simple switch on the main console. Auto-idle works to reduce wear, fuel consumption and engine noise.

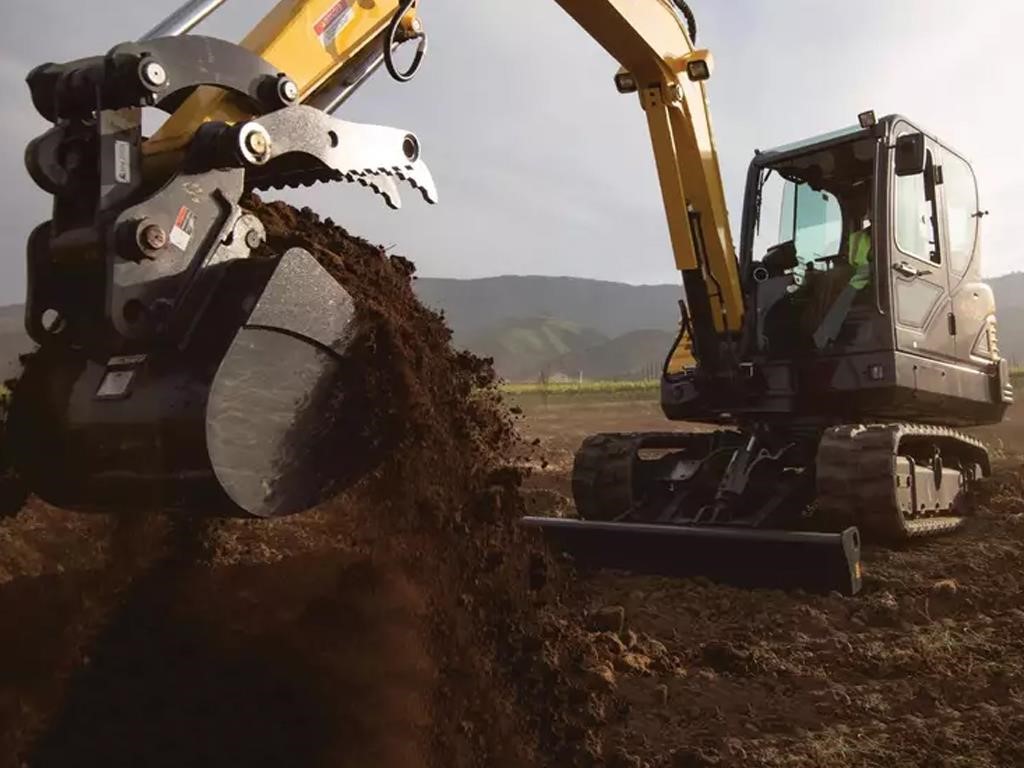

ATTACHMENTS FOR DEDICATED EFFICIENCY
Powering demanding attachments is a key New Holland advantage. With the right attachment, New Holland’s excavators can be used for a diverse range of jobs from fence installation to concrete breaking. Job site versatility is bound to soar with the added advantage of high constant hydraulic flow and quick coupler.
The Hydraulic Quick Coupler allows for hands-free coupling and release of buckets. Plus, safely swap between large, heavy attachments. Mechanical quick lock attachment brackets are also available.
DESIGNED FOR AND AROUND YOU

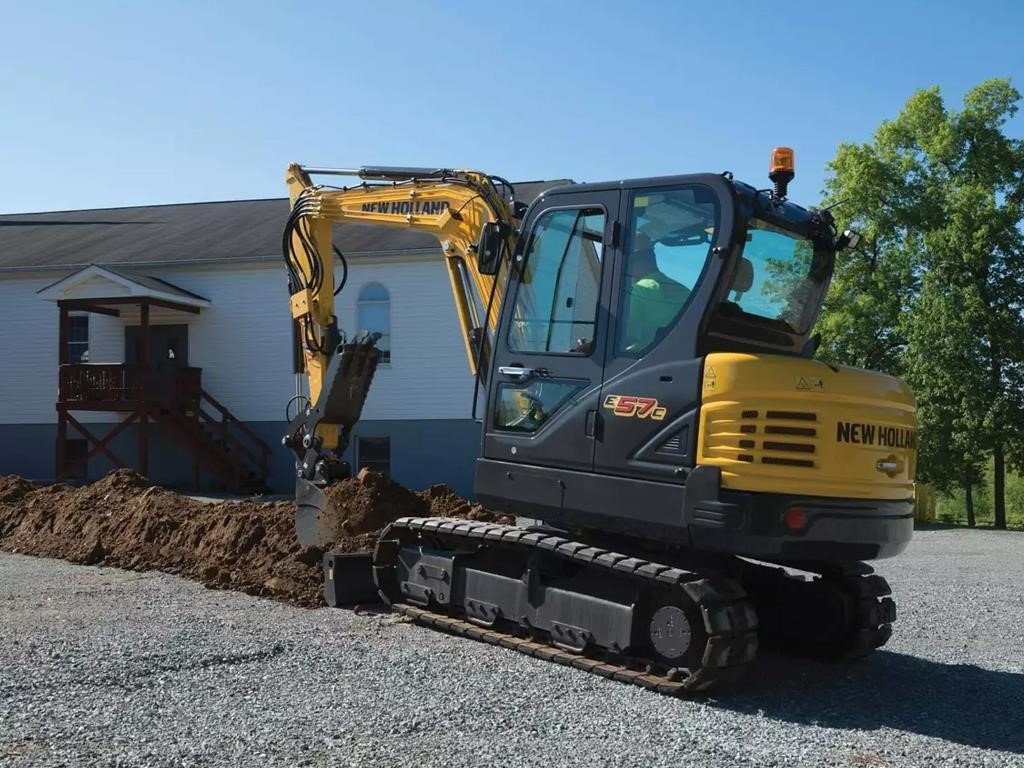

New Holland’s E57C compact excavator is fitted with a cab and carries a 12,050 lb (5465 kg) operating weight with a full fuel tank, operator and bucket. Additionally, the E57C is TOPS (tip-over), FOPS (falling-object) and ROPS (roll-over) compliant to protect the precious cargo inside. Low noise and vibration levels, an adjustable suspension seat, adaptable wrist rests and Bluetooth® radio ensure you can work for extended periods in comfort with no compromise in operator safety.

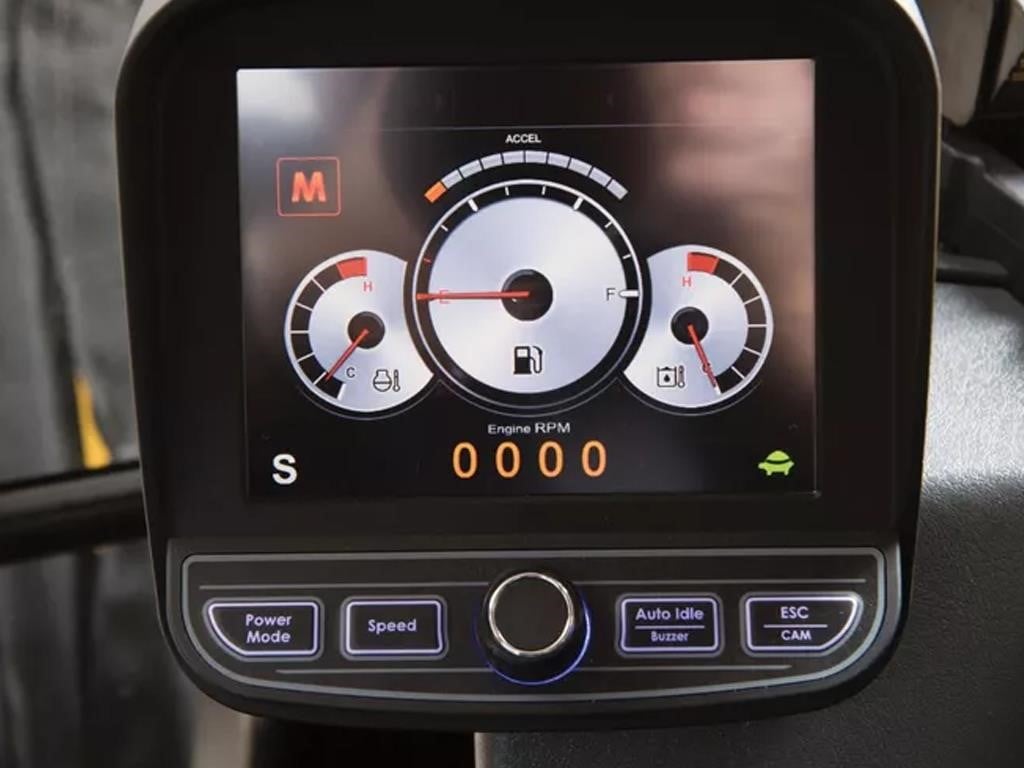

Standard digital color LCD monitor provides easy battery management and access to machine settings. The 5.7 in (14.5 cm) touchscreen helps to keep your operation in motion when key machine details are easily accessible – such as engine speed, coolant and hydraulic oil temperature and maintenance information including fault codes and diagnostics. Further improve productivity and reduce downtime with simplified daily checks when all key check and service points are grouped together.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
| Other Specifications - Undercarriage: Track rollers: | 1 upper / 4 lower each |
|---|---|
| Hydraulics - Main pumps:: | Variable displacement tandem axial piston pump |
| Engine - Model: | Yanmar 4TNV98C |
| Engine - Cooling: | Water-cooled |
| Operator Weight - Cab operating weight: Short arm: | 12,050 lb. (5465 kg) |
| Hydraulics - 1st aux 2-way circuit: Flow | Pressure: | 15.3 gpm (57.7 L/min) | 3132 psi (216 bar) |
| Operator Environment - Display includes:: | Hydraulic oil temp warning lamp; Air cleaner warning lamp; Engine stop warning lamp; Check engine warning lamp; Water in fuel warning lamp; Battery charging warning lamp; Emergency warning lamp; Engine coolant temp warning lamp; Engine oil pressure warning lamp; DPF regeneration inhibit warning lamp; DPF regeneration acknowledge warning lamp; DPF warning lamp; High Exhaust Temperature warning lamp; Low fuel level warning lamp Engine coolant temperature gauge; Hydraulic oil temperature guage; Fuel gauge; Engine RPM and Hour meter. |
| Hydraulics - 2nd aux 2-way circuit: Flow | Pressure: | 15.3 gpm (57.7 L/min) | 3132 psi (216 bar) |
| Blade Specs - Backfill blade rise above ground ft. in. (mm): | 1’ 3” (380) |
| Electrical - Alternator rating: | 60 amp |
| Engine - Net horsepower SAE J1349 @ 2400 RPM: | 65.1 hp (48.5 kW) |
| Electrical - Voltage: | 12 Volts |
| Drivetrain - Travel speeds - 2nd: | 2.5 mph (4.1 kph) |
| Hydraulics - Max rated flow x 2: | 15.3 gpm (57.7 L/min) |
| Engine - Cylinders: | 4 |
| Hydraulics - Hammer circuit 1-way: Flow | Pressure: | 15.3 gpm (57.7 L/min) | 3132 psi (216 bar) |
| Service Capacities - Hydraulic tank - Refill capacity: | 18.5 gal. (70 L) |
| Dimensions - Width of upper structure: | 6’ 1” (1850) |
| Performance Specs - Bucket digging force – ISO lbf (kfg/kN): | 9550 (4330/42.4) |
| Performance Specs - Bucket rotation degrees: | 180 |
| Dimensions - Minimum ground clearance ft. in. (mm): | 1’ 3” (380) |
| Engine - Gross horsepower SAE J1995 @ 2400 RPM: | 66.9 hp (49.9 kW) |
| Operator Weight - Canopy operating weight Long arm w/additional counterweight: | |
| Operator Weight - Canopy operating weight Short arm: | |
| Drivetrain - Ground pressure : | 4.8 psi (0.34 kgf/cm2) |
| Engine - Fuel injection: | Electronic common rail |
| Dimensions - Center to center – idler to sprocket ft. in. (mm): | 6’ 6” (1990) |
| Hydraulics - Swing motor: | Fixed displacement orbit axial piston motor |
| Dimensions - Track overall width ft. in. (mm): | 6’ 4” (1920) |
| Dimensions - Tail swing radius Heavy counterweight ft. in. (mm): | 5’ 5” (1650) |
| Dimensions - Upper structure ground clearance ft. in. (mm): | 2’ 3” (690) |
| Dimensions - Track shoe width ft. in. (mm): | 15 (380) |
| Operator Weight - Cab operating weight: Long arm w/additional counterweight: | 12,320 lb. (5590 kg) |
| Other Specifications - Boom: Swing | Length: | 75° left/50° right | 8 ft. 2 in. (2.5 m) |
| Engine - Fuel: | Diesel |
| Hydraulics - Travel motor:: | Variable displacement axial piston 2-stage planetary Automatic spring applied hydraulic released brake |
| Blade Specs - Backfill blade width ft. in. (mm): | 6’ 4” (1920) |
| Hydraulics - Auxiliary flow : | |
| Drivetrain - Gradeability: | 35° (70%) |
| Other Specifications - Arm: Standard length | Long arm length: | 4 ft. 3 in. (1.3 m) | 5 ft. 3 in. (1.6 m) |
| ropstype: | Open |
| Dimensions - Track gauge ft. in. (mm): | 4’ 11” (1500) |
| Performance Specs - Arm digging force – ISO lbf (kfg/kN): | 7190 (3260/31.9) |
| Service Capacities - Fuel tank: | 31.7 gal. (120 L) |
| Operator Environment - Enclosed cab w/heat and air conditioning; ISO 6396: | 2008 sound pressure level LpA=76bB (A); Pilot operated hand controls and foot pedals; Adjustable seat w/seat belt and seat heater; Arm rests; 12V socket; 5.7 in color LCD display; cup holder; Cell phone holder; Bluetooth radio with USB input, 2 speakers and remote control. |
| Dimensions - Track overall length ft. in. (mm): | 8’ 4” (2530) |
| Performance Specs - Dig radius at groundline ft. in. (mm): | 19’ 9” (6010) |
| Performance Specs - Vertical straight wall dig depth ft. in. (mm): | 10’ 6” (3200) |
| Engine - Emissions Certification: | Tier 4 Final |
| Performance Specs - Overall reach height ft. in. (mm): | 19’ 0” (5780) |
| Hydraulics - Pilot control hydraulic system: Pump: | Gear pump |
| Hydraulics - Control valves: : | Pilot control for left/right track travel, boom, arm, bucket and swing Manual control for breaker and backfill blade |
| Hydraulics - Pilot control hydraulic system: Maximum capacity: | 2.5 gpm (9.5 L/min) |
| Engine - Maximum engine torque @ 1550 RPM: | 173.7 lb. ft. (235.4 Nm) |
| Blade Specs - Backfill blade height ft. in. (mm): | 1’ 2” (350) |
| Dimensions - Arm (standard length): | 5 ft. 3 in. (1.6 m) |
| Blade Specs - Backfill blade dig depth ft. in. (mm): | 1’ 11” (590) |
| Engine - Displacement: | 203 in3 (3319 cc) |
| Service Capacities - Engine oil w/ filter change: | 3.1 gal. (11.6 L) |
| Other Specifications - Swing speed: | 0 – 9.5 RPM |
| Dimensions - Overall height ft. in. (mm): | 8’ 4” (2550) |
| Drivetrain - Maximum traction force: | 11,680 lb. (5300 kg) |
| Dimensions - Tail swing radius Standard counterweight ft. in. (mm): | 5’ 5” (1650) |
| Dimensions - Boom swing degrees: | 80 left/50 right |
| Service Capacities - Radiator: | 2.5 gal. (9.5 L) |
| Performance Specs - Dump height ft. in. (mm): | 13’ 3” (4050) |
| Service Capacities - Hydraulic tank - Total system: | 31.7 gal. (120 L) |
| Drivetrain - Travel speeds - 1st: | 1.3 mph (2.1 kph) |
| Dimensions - Overall transport length ft. in. (mm): | 19’ 4” (5900) |
| Performance Specs - Maximum dig radius ft. in. (mm): | 20’ 2” (6150) |
| Performance Specs - Maximum dig depth ft. in. (mm): | 12’ 6” (3820) |
| Electrical - Battery: | 1 x 12 V x 100 Ah 850 CCA |
