NEW HOLLAND E30C
NEW HOLLAND – E30C – MINI EXCAVATOR
THE RIGHT TOOL FOR THE JOB
New Holland mini excavators have a capacity range from 1.7 to 6.0 tons (1542 to 5443 kg). With canopy, cab, and zero tail swing versions to choose from, there is a model suited for any job. Leverage a New Holland mini excavator for landscaping, amenity work, agriculture, horticulture, nurseries, vineyards, estate management, and general contracting. Other applications include irrigation and drainage construction, fence work, temporary building construction, and crop support.
Designed to work long days, each model has class-leading excavation performance with the flexibility to power a wide range of attachments, including hydraulically powered attachments like soil augers, hammers and compactors. New Holland mini excavators display powerful versatility with the strength of a larger machine.
All models have three separate pumps to deliver enhanced performance, perfect for traveling between job sites, using the dozer blade, or working with the excavator. Need more? For the most demanding auxiliary attachments, a fourth pump option is available on the largest E57C and E60C models.
New Holland’s E30C compact dimensions and digging capabilities combine power and versatility to seize every moment of your work day. Designed for day-long performance, this mini excavator has class-leading excavation talent with the adaptability to support a wide range of attachments.
FEATURES
MINI EXCAVATOR, BIG POWER
The 23.2 HP (18.5 kW) engine provides plenty of power to the load-sensing hydraulics for a smooth and efficient operation in this compact and easily transportable package, measuring 8 ft 2 in (2500 mm) in height and 13 ft 9 in (4180 mm) in overall transport length.

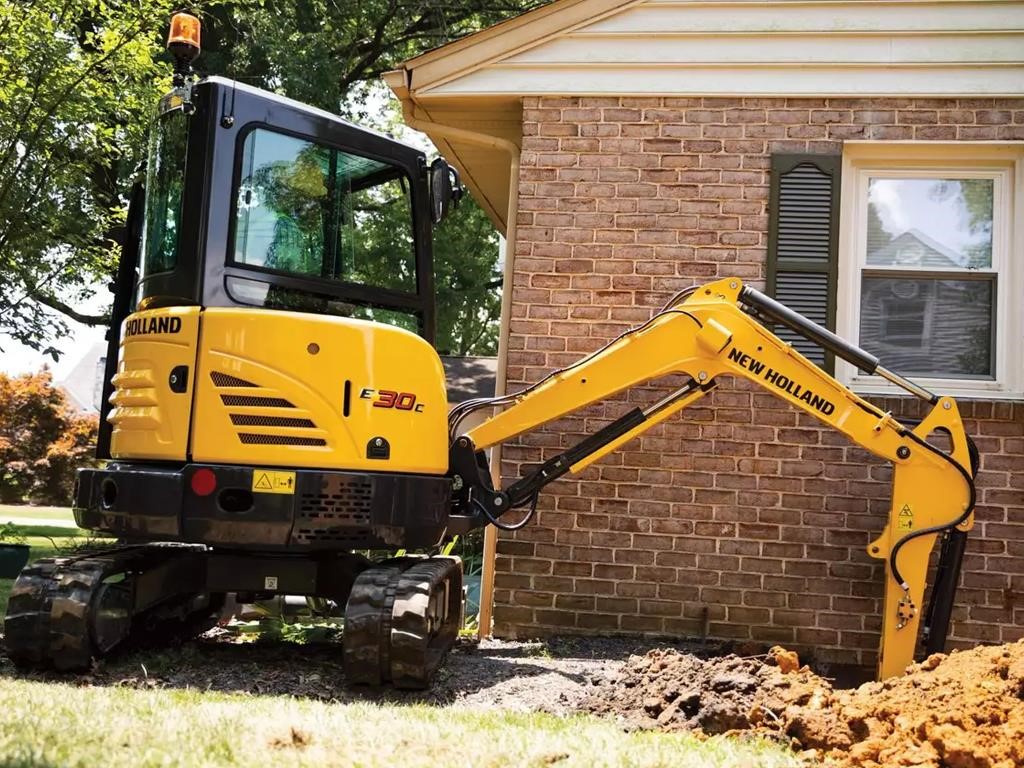

Slim frame posts ensure excellent all-round visibility, with good views of the boom and dipper. When working in a confined area, in urban areas, or between valuable crops such as in a vineyard, nursery or an orchard, you can operate a New Holland compact excavator with absolute precision for minimal disruption.
ARMED TO DIG
Specify your C Series compact excavator with the arm length to best suit your requirements. Length on the E30C standard digging arm measures up to 3 ft 8 in (1.12 m).
The standard arm yields 8 ft 2 in (2500 mm) of maximum digging depth and shoots right back up with 9 ft 7 in (2930 mm) in dump height. With all this muscle, plus 3080 lbf (13.7 kN) of standard arm digging force, the E30C will quickly become your partner in productivity.
DESIGNED TO DUMP

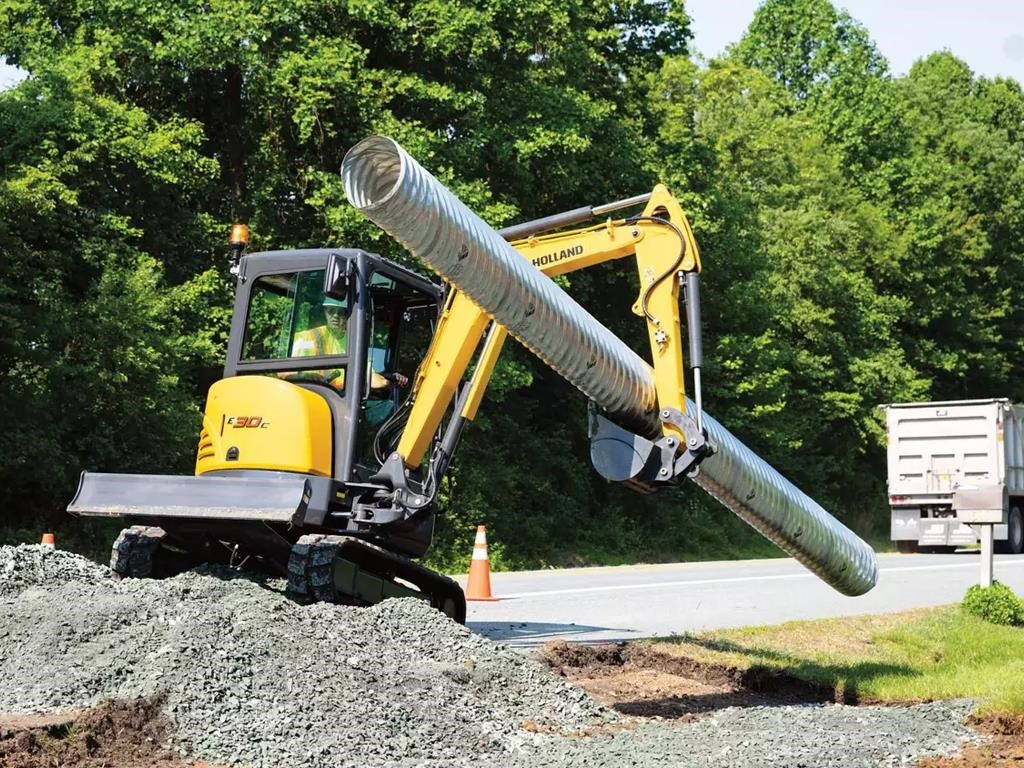

The standard arm on the E30C provides a maximum 9 ft 7 in (2930 mm) of dump height and 4520 lbf (20.1 kN) in bucket breakout force. With 14 ft (4270 mm) of overall reach height, this machine is ready to prove the power it brings to your jobsite. In addition, the available Object Handling Kit allows you to raise heavy, suspended loads using a lifting hook on the bucket linkage.
AMPLE BOOM SWING ANGLES
The E30C has a left swing angle of 75 degrees and a right swing angle of 50 degrees. A larger left swing angle improves visibility to the side of the door for a more precise operation. Ample boom swing angles allow for efficient parallel digging, good for working alongside obstacles. Plus, forgoing the need to reposition the machine means you can complete the job faster.
Boom pivot pins are secured by plate and bolt to reduce lateral movement and provide reliable performance in tough conditions. Plus, the pins give way to a long service life and lower whole-life operating costs.
EFFICIENT, POWERFUL, DEPENDABLE
A variety of Control Modes allows you to operate a New Holland compact excavator with absolute precision for minimal disruption.
Control Modes (joystick sensitivity):
• Precision – Slower ramp rate for slow and precise movements
• Normal – Standard joystick sensitivity for normal operations
• Productivity – Faster ramp rate for rapid/dynamic movements
• Individual – Sensitivity fully customizable to operator’s preferences
ATTACHMENTS FOR DEDICATED EFFICIENCY
Powering demanding attachments is a key New Holland advantage. With the right attachment, New Holland’s excavators can be used for a diverse range of jobs from fence installation to concrete breaking. Job site versatility is bound to soar with the added advantage of high constant hydraulic flow and quick coupler.
The Hydraulic Quick Coupler allows for hands-free coupling and release of buckets. Plus, safely swap between large, heavy attachments. Mechanical quick lock attachment brackets are also available.
DESIGNED FOR AND AROUND YOU

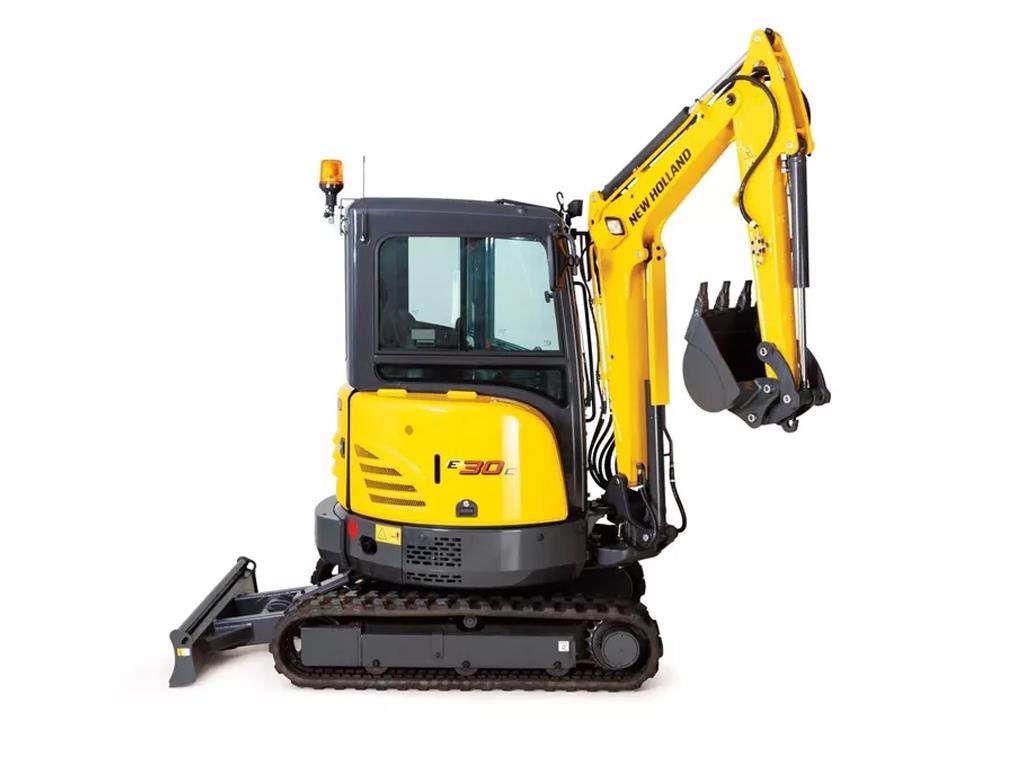

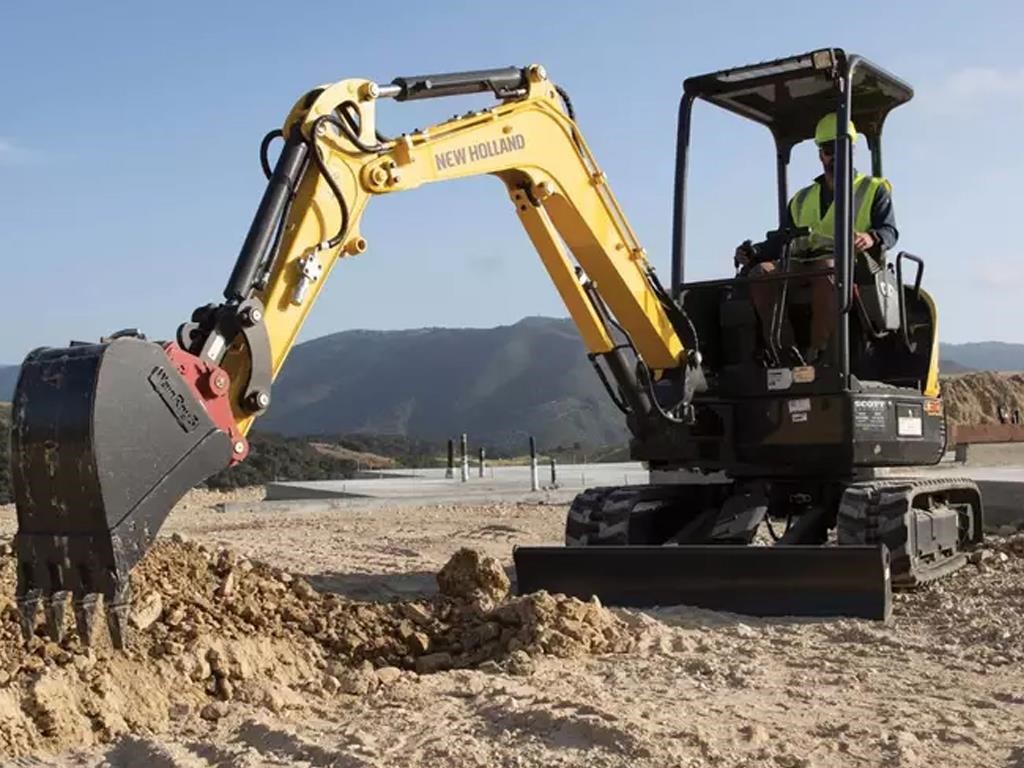

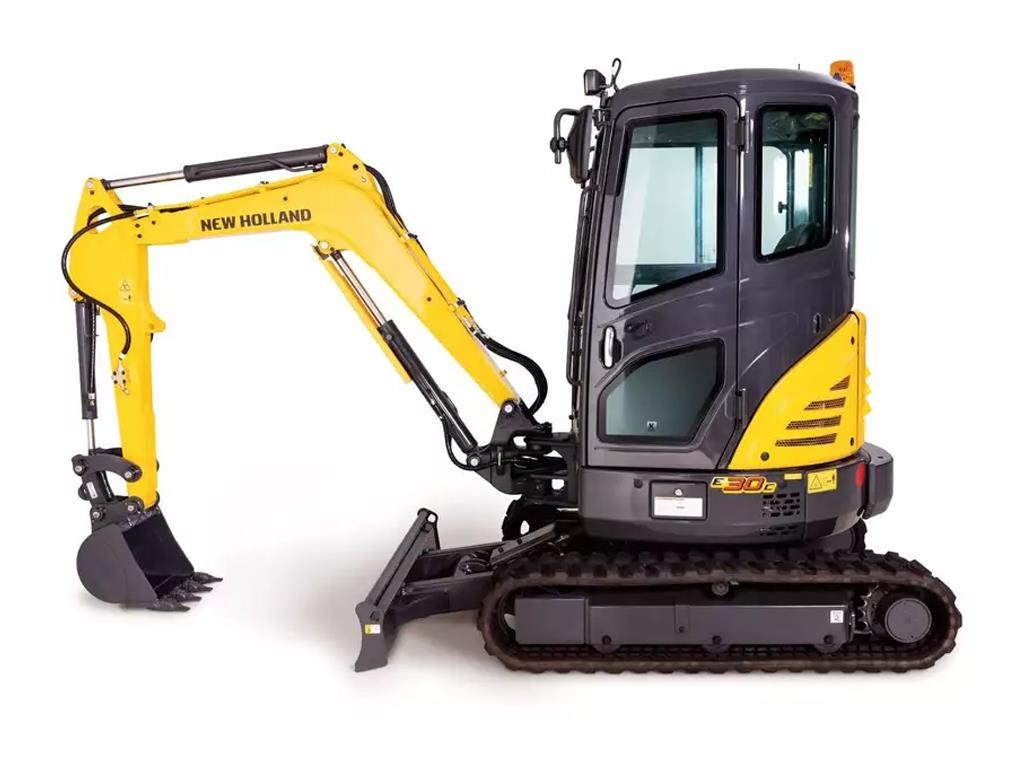

New Holland’s E30C compact excavator can be fitted with either a canopy or full cab. The cab carries a 6,922 lb (3140 kg) operating weight and a 6,592 lb (2990 kg) operating weight on the canopy with rubber tracks, full fuel tank, operator and bucket. Additionally, the E30C is TOPS (tip-over), FOPS (falling-object) and ROPS (roll-over) compliant to protect the precious cargo inside. Low noise and vibration levels, an adjustable suspension seat, adaptable wrist rests and Bluetooth® radio* ensure you can work for extended periods in comfort with no compromise in operator safety. Further improve productivity and reduce downtime with simplified daily checks when all key check and service points are grouped together.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
| Service Capacities - Engine oil w/ filter change: | 1.6 gal. (5.9 L) |
|---|---|
| Hydraulics - Pilot control hydraulic system: Pump: | Gear pump |
| Drivetrain - Ground pressure Canopy | Cab: | 3.8 psi (0.27 kgf/cm2) | 4.1 psi (0.29 kgf/cm2) |
| Other Specifications - Undercarriage: Track rollers: | 1 upper / 4 lower each |
| Operator Weight - Canopy operating weight: | 6306 lb. (2860 kg) |
| Engine - Net horsepower SAE J1349 @ 2300 RPM: | 23.2 hp (17.3 kW) |
| Dimensions - Track gauge ft. in. (mm): | 4’ 1” (1250) |
| Drivetrain - Maximum traction force: | 4800 lb. (2177kg) |
| Performance Specs - Vertical straight wall dig depth ft. in. (mm): | 6’ 10” (2085) |
| Performance Specs - Arm digging force – ISO lbf (kfg/kN): | 3080 (1397/13.7) |
| Blade Specs - Backfill blade width ft. in. (mm): | 5’ 1” (1550) |
| Dimensions - Width of upper structure: | 4’ 10” (1485) |
| Hydraulics - Auxiliary flow @ 3132 (216 bar): Primary: | 12.2 gpm (46L/min) |
| Hydraulics - Swing motor: | Fixed displacement orbit axial piston motor |
| Service Capacities - Hydraulic tank - Refill capacity: | 7.1 gal. (27 L) |
| Performance Specs - Bucket rotation degrees: | 177 |
| Operator Environment - ROPS/FOPS two post canopy; ISO 6396:: | 2008 sound pressure level LpA=73.5 bB (A); Pilot operated hand controls and foot pedals; Adjustable seat w/seat belt; Arm rests; 12V socket. |
| Engine - Fuel injection: | Mechanical |
| Engine - Cylinders: | 3 |
| Dimensions - Overall transport length ft. in. (mm): | 13’ 9” (4180) |
| Operator Environment - Display includes:: | Engine oil pressure lamp; Water temperature lamp; Low fuel warning lamp; Battery charge lamp; Engine preheat lamp; Travel speed lamp; Air cleaner warning lamp; Hyd. quick coupler lock lamp; High travel speed lamp; Water temperature gauge; Fuel gauge; and Hour meter. |
| Dimensions - Track overall length ft. in. (mm): | 6’ 6” (1970) |
| Other Specifications - Boom: Swing | Length: | 75° left/50° right | 6 ft. 8 in. (2.03 m) |
| Dimensions - Tail swing radius Additional counterweight ft. in. (mm): | 2’ 10” (875) |
| Dimensions - Track shoe width ft. in. (mm): | 11.8 (300) |
| Engine - Gross horsepower SAE J1995 @ 2300 RPM: | 24.8 hp (18.5 kW) |
| Drivetrain - Travel speeds - 2nd: | 2.7 mph (4.3 kph) |
| Dimensions - Upper structure ground clearance ft. in. (mm): | 1’ 8” (510) |
| Blade Specs - Backfill blade rise above ground ft. in. (mm): | 1’ 7” (482) |
| Performance Specs - Maximum dig depth ft. in. (mm): | 8’ 2” (2500) |
| Hydraulics - Main pumps:: | Variable displacement tandem axial piston pump |
| Engine - Emissions Certification: | Tier 4 Final |
| Hydraulics - Control valves: : | Pilot control for left/right track travel, boom, arm, bucket and swing Manual control for breaker and backfill blade |
| Performance Specs - Dig radius at groundline ft. in. (mm): | 14’ 10” (4515) |
| Engine - Displacement: | 77.0 in.3 (1261 cc) |
| Hydraulics - System relief pressure: Overload relief valve pressure: | 3430 psi (240 bar) |
| Performance Specs - Overall reach height ft. in. (mm): | 14’ 0” (4270) |
| Engine - Model: | Kubota D1305 |
| Service Capacities - Fuel tank: | 7.9 gal. (30 L) |
| Hydraulics - Pilot control hydraulic system: Maximum capacity: | 2.7 gpm (10.4 L/min) |
| Blade Specs - Backfill blade dig depth ft. in. (mm): | 1’ 6” (450) |
| Electrical - Alternator rating: | 40 amp |
| Electrical - Battery: | 1 x 12 V x 80 Ah 630 CCA |
| Engine - Maximum engine torque @ 1600 RPM: | 60.00 lb. ft. (81.4 Nm) |
| Electrical - Voltage: | 12 Volts |
| ropstype: | Open |
| Hydraulics - System relief pressure: Standard: | 3130 psi (220 bar) |
| Hydraulics - Auxiliary flow @ 3132 (216 bar): Secondary: | 12.2 gpm (46L/min) |
| Performance Specs - Bucket digging force – ISO lbf (kfg/kN): | 4520 (2050/20.1) |
| Hydraulics - Max rated flow x 2: | 7.3 gpm (27.6 L/min) |
| Service Capacities - Radiator: | 1.3 gal. (5 L) |
| Performance Specs - Dump height ft. in. (mm): | 9’ 7” (2930) |
| Dimensions - Tail swing radius Standard counterweight ft. in. (mm): | 2’ 6” (750) |
| Dimensions - Arm (standard length): | 3 ft. 8 in. (1.12 m) |
| Dimensions - Minimum ground clearance ft. in. (mm): | 11 (290) |
| Service Capacities - Hydraulic tank - Total system: | 14.5 gal. (55 L) |
| Blade Specs - Backfill blade height ft. in. (mm): | 1’ 1” (330) |
| Other Specifications - Swing speed: | 0 – 9.1 RPM |
| Engine - Fuel: | Diesel |
| Dimensions - Overall height ft. in. (mm): | 8’ 2” (2500) |
| Dimensions - Boom swing degrees: | 75 left/50 right |
| Dimensions - Center to center – idler to sprocket ft. in. (mm): | 4’ 11” (1490) |
| Engine - Cooling: | Water-cooled |
| Drivetrain - Travel speeds - 1st: | 1.5 mph (2.4 kph) |
| Other Specifications - Arm: Standard length | Long arm length: | 3 ft. 8 in. (1.12 m) |
| Hydraulics - Travel motor:: | Variable displacement axial piston 2-stage planetary Automatic spring applied hydraulic released brake |
| Performance Specs - Maximum dig radius ft. in. (mm): | 15’ 3” (4650) |
| Drivetrain - Gradeability: | 30° (58%) |
| Dimensions - Track overall width ft. in. (mm): | 5’ 1” (1550) |
