CASE CX37C

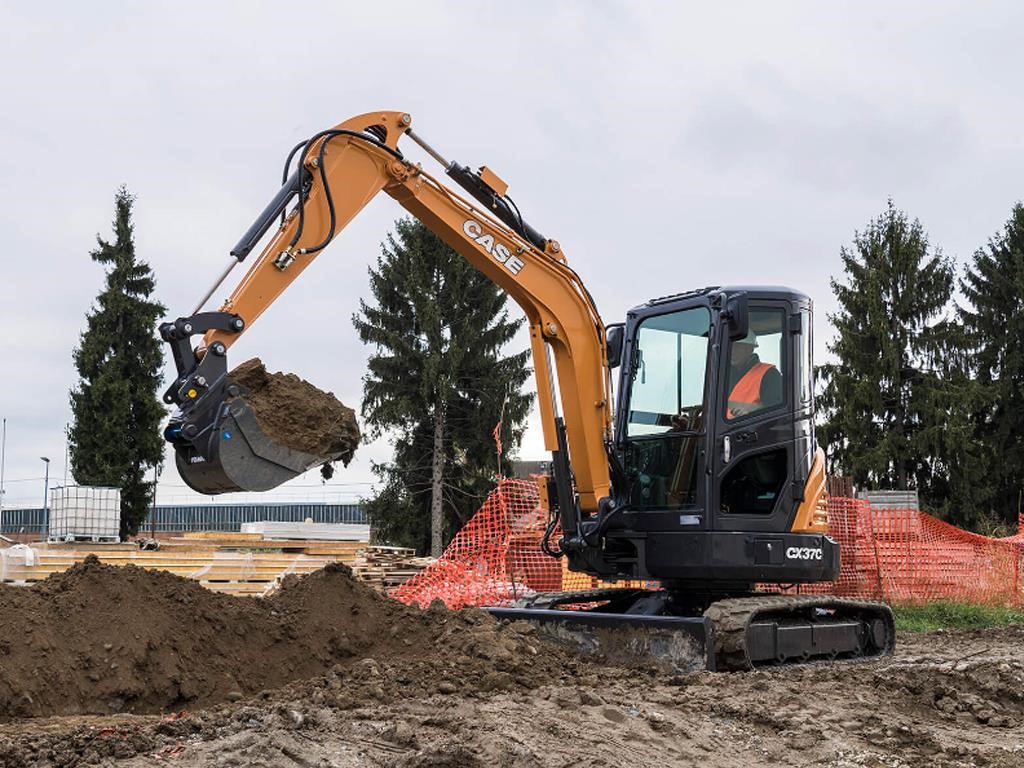

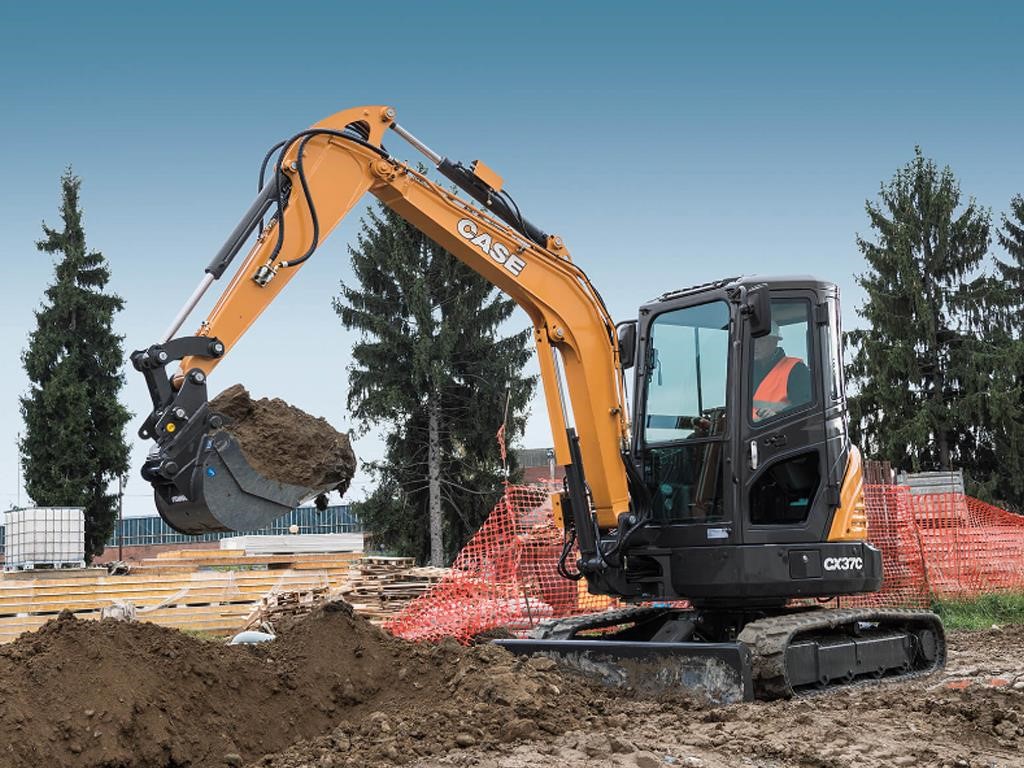

CASE CX37C − MINI EXCAVATOR
The CX37C provides excellent value and performance in a compact footprint. With bucket forces of 6,900 lbf., a dig depth of 10 ft. 3 in. and an operating weight of 7,990 lb., it delivers the greatest power and performance of any CASE mini excavator that can be towed behind a 1/2-ton pickup truck*. An adjustable boom and minimum tailswing design allow for work in confined applications, and standard features such as auxiliary hydraulics and backfill blade (or optional angled blade) help owners get the most out of their investment.
*Always check vehicle capacities and state or local laws for applicable roading regulations and requirements.
Diesel or electrified. Zero tailswing or conventional. Cab or canopy. Two-way, 4-way or six-way blades. 1.5 up to 6 metric tons. CASE now delivers one of the most comprehensive mini excavator lineups in the industry — delivering you swift, smooth and smart solutions designed to work on any jobsite profile. If you have a truck and a trailer and big dreams of compact equipment: there is a CASE mini excavator for you.
Whether it’s the all-new and powerful CX42D, the clean-running go anywhere flexibility of the all-new electrified CX15EV, or the tried and true CASE C Series lineup, CASE mini excavators are built to outwork the competition and deliver serious business gains for you.
FEATURES
PURPOSE-BUILT PRODUCTIVITY
The standard backfill blade, auxiliary hydraulics, proportional controls and Automatic 2-Speed Travel system, along with a nimble design, makes the CX37C a powerful multi-use platform ready for use with a wide variety of attachments. Its adjustable boom can be offset to the left or right and with a zero tailswing design, the counterweight won’t protrude over the tracks, making this compact excavator ideal for working in residential construction applications or alongside structures. A long-reach configuration, thumb bracket and optional steel tracks further improve performance in specialty applications. The CX37C also offers an optional 4-way hydraulic blade that can be angled 25 degrees in either direction.
COMMON-SENSE FUEL EFFICIENCY
The CX37C uses Cooled Exhaust Gas Recirculation (CEGR) to meet Tier 4 Final regulations. This zero-effort solution has no particulate filter to maintain, no exhaust fluid to add and doesn’t require fuel-burning regeneration. Along with the standard auto-idle, the 24-hp engine delivers excellent power and fuel economy.
CASE COMFORT AND VISIBILITY
The CX37C is available with a ROPS/FOPS four-post canopy or an enclosed cab with heat, A/C and radio. Both operator environments have outstanding all-around visibility and feature an adjustable seat and ergonomic joysticks with proportional controls for greater feel and responsiveness of attachments.
SIMPLE SERVICEABILITY
C Series mini excavators maintain the CASE hallmark of maintenance made easy. All fill ports, filters, gauges, grease points, and main service items are grouped together and easily accessible from the ground.
STANDARD EQUIPMENT
ENGINE
• Yanmar 3TNV88F-ESHYB
• Glow plug starting aid
• Dry type air cleaner with restriction indicator
ELECTRICAL
• 12-volt electrical starting system
• Heavy-duty battery
• Battery Master Switch
• Key Start
• Anti-Theft-Engine starting passwords
• Front working light
• Auto-idle feature with on/off switch
• Horn
• Pre-wired – Telematics ready
HYDRAULICS
• Auxiliary hydraulics – single/bi-directional – and plumbing to arm
• Large hydraulic oil cooler
• Control pattern selector valve
• Cylinder rod protection covers – Backfill blade and Boom
OPERATOR ENVIRONMENT
• ROPS/FOPS four post canopy or enclosed cab
• ISO 6396:2008 sound pressure level LpA=75bB (A)
• Pilot operated hand controls and foot pedals
• Adjustable seat w/seat belt
• Arm rests
• 12V socket
• Display includes: Engine oil pressure lamp; Water temperature lamp; Low fuel warning lamp; Battery charge lamp; Engine preheat lamp; Travel speed lamp; Air cleaner warning lamp; Hyd. quick coupler lock lamp; High travel speed lamp; Water temperature gauge; Fuel gauge; Hour meter
TRACK DRIVE
• Rubber tracks
• Automatic 2-speed travel
• Fully hydrostatic drive system
• Sealed and lubricated track rollers
• Track tension adjustment – grease type
UPPER STRUCTURE
• Zero tail swing
• Standard arm: 4 ft 3 in (1.3 m)
• Bucket linkage with lifting hook
• Thumb bracket
OTHER
• Swing boom – 75° left /50° right
• Hydraulic backfill blade
WARRANTY
• Base warranty coverage: 2-Year/3,000-Hour Full Machine Limited Warranty
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
• Cab with Heat and air conditioning and radio with USB and 2 speakers
• Travel alarm
TRACK OPTIONS
• Tracks: Steel tracks 12 in (300 mm)
OTHER
• Additional counterweight: 330 lb (150 kg)
• Optional long arm: 5 ft 3 in (1.6 m)
• Hydraulic quick coupler provision
• Hydraulic coupler
• Klac coupler
• Mechanical coupler
• Hydraulic hammer
• Beacon
• 2nd auxiliary circuit
• 4-way angle blade with 25 degree left and 25 degree right angle offset: adds 220 lb (100kg)
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
| Hydraulics - Control valves: | Pilot control for boom, arm, bucket, and swing | Mechanical control for left/right travel and backfill blade |
|---|---|
| Dimensions - Tail swing radius - Additional counterweight: | 3 ft 3 in (985 mm) |
| Hydraulics - System relief pressure - Standard: | 3,271 psi (226 bar) |
| Hydraulic Tank - Refill capacity: | 9.8 gal (37 L) |
| Dimensions - Operating weight: | |
| Other Specifications - Undercarriage - Track rollers: | 1 upper/4 lower each |
| Hydraulics - System relief pressure - Overload relief valve pressure: | 3,556 psi (245 bar) |
| Dimensions - Track overall width: | 5 ft 9 in (1 740 mm) |
| Performance Specs - Maximum dig depth: | 10 ft 3 in (3 135 mm) | 11 ft 3 in (3 440 mm) |
| Performance Specs - Vertical straight wall dig depth: | 7 ft 2 in (2 190 mm) | 8 ft 5 in (2 565 mm) |
| Operating Weight - Canopy operating weight - Short arm: | 7,990 lb (3 625 kg) |
| Blade Specs - Blade type: | Standard Blade | Angled Blade |
| Performance Specs - Dig radius at groundline: | 17 ft 1 in (5 200 mm) | 18 ft 0 in (5 495 mm) |
| Dimensions - Tail swing overhang - Additional counterweight: | 5 in (115 mm) |
| Hydraulics - Pilot control hydraulic system - Pump: | Gear Pump |
| Hydraulics - Travel motor: | Variable displacement axial piston | 2-stage planetary | Automatic spring applied hydraulic released brake |
| Hydraulics - Swing motor: | Fixed displacement axial piston motor | Automatic spring applied hydraulic released brake |
| Operator Environment - General: | ROPS/FOPS four post canopy or enclosed cab; ISO 6396:2008 sound pressure level LpA=75bB (A); Pilot operated hand controls and foot pedals; Adjustable seat w/seat belt; Arm rests; 12V socket. |
| Other Specifications - Swing speed: | 0 – 9.5 RPM |
| Hydraulic Tank - Total system: | 15.9 gal (60 L) |
| Electrical - Battery: | 1 x 12 V x 70 Ah | 750 CCA |
| Dimensions - Overall height: | 8 ft 2 in (2 500 mm) |
| Performance Specs - Maximum dig radius: | 17 ft 5 in (5 315 mm) | 18 ft 5 in (5 605 mm) |
| Engine - Fuel injection: | Mechanical w/electronic governor |
| Performance Specs - Arm digging force – ISO: | 4,390 lbf (1 990 kgf/19.5 kN) | 3,800 lbf (1 720 kgf/16.9 kN) |
| Engine - Cylinders: | 3 |
| Engine - Emissions Certification: | Tier 4 Final |
| Service Capacities - Engine oil w/ filter change: | 1.8 gal (6.7 L) |
| Hydraulics - Pilot control hydraulic system - Maximum capacity: | 2.6 gpm (9.9 L/min) |
| Drivetrain - Gradeability: | 30° (58%) |
| Dimensions - Boom swing: | 75° left /50° right |
| Drivetrain - Travel speed - 1st: | 1.6 mph (2.5 kph) |
| Service Capacities - Fuel tank: | 10.5 gal (40 L) |
| Drivetrain - Maximum traction force: | 6,835 lb (3 100 kg) |
| Engine - Model: | Yanmar 3TNV88F-ESHYB |
| Engine - Cooling: | Water-cooled |
| Dimensions - Center to center – idler to sprocket: | 5 ft 7 in (1 700 mm) |
| Hydraulics - Max. rated flow: | 2 x 9.9 + 6.1 gpm (2 x 37.4 + 23.1 L/min) |
| Hydraulics - Main pumps: | Variable displacement tandem axial piston pump + gear pump |
| Dimensions - Width of upper structure: | 5 ft 0 in (1 530 mm) |
| Service Capacities - Radiator: | 1.5 gal (5.5 L) |
| Other Specifications - Boom - Swing: | 75° left/50° right |
| Dimensions - Upper structure ground clearance: | 1 ft 9 in (540 mm) |
| Dimensions - Arm: | 4 ft 3 in (1.3 m) Arm |
| Blade Specs - Backfill blade height: | 1 ft 3 in (370 mm) | 1 ft 4 in (407 mm) |
| Blade Specs - Backfill blade width: | 5 ft 9 in (1 740 mm) | 5 ft 9 in (1 740 mm) |
| Engine - Gross horsepower – SAE J1995 @ 2200 RPM: | 24.4 hp (18.2 kW) |
| Drivetrain - Ground pressure: | Cab 4.83 psi (0.34 kgf/cm²) |
| Dimensions - Minimum ground clearance: | 11 in (290 mm) |
| Performance Specs - Arm: | 4 ft 3 in (1.3 m) Arm | 5 ft 3 in (1.6 m) Arm |
| Dimensions - Track gauge: | 4 ft 9 in (1 440 mm) |
| Dimensions - Track shoe width: | 12 in (300 mm) |
| Engine - Maximum Engine Torque @ 1200 RPM: | 69.4 lb ft (94.1 Nm) |
| Operating Weight - Note: | w/rubber tracks/no quick coupler/bucket/fluids/full of fuel/165 lb operator. |
| Dimensions - Track overall length: | 7 ft 0 in (2 130 mm) |
| Operating Weight - Canopy operating weight - Long arm w/additional counterweight: | 8,350 lb (3 790 kg) |
| Drivetrain - Travel speed - 2nd: | 2.6 mph (4.2 kph) |
| Other Specifications - Arm - Long arm length: | 5 ft 3 in (1.6 m) |
| Performance Specs - Bucket digging force – ISO: | 6,900 lbf (3 130 kgf/30.7 kN) | 6,900 lbf (3 130 kgf/30.7 kN) |
| Performance Specs - Bucket rotation: | 180° | 180° |
| Engine - Displacement: | 100.2 in³ (1 642 cc) |
| Operating Weight - Cab operating weight - Short arm: | 8,300 lb (3 765 kg) |
| Dimensions - Tail swing radius - Standard counterweight: | 2 ft 10 in (870 mm) |
| Engine - Fuel: | Diesel |
| Other Specifications - Boom - Length: | 8 ft 2 in (2.5 m) |
| Hydraulics - Auxiliary flow @ 3,278 psi (226 bar) - Primary: | 16.0 gpm (60.5 L/min) |
| Dimensions - Tail swing overhang - Standard counterweight: | 0 in (0 mm) |
| Blade Specs - Backfill blade rise above ground: | 1 ft 3 in (375 mm) | 1 ft 5 in (428 mm) |
| Electrical - Alternator rating: | 55 amp |
| Hydraulics - Auxiliary flow @ 3,278 psi (226 bar) - Secondary: | 16.0 gpm (60.5 L/min) |
| ropstype: | Open |
| Performance Specs - Overall reach height: | 15 ft 9 in (4 810 mm) | 16 ft 7 in (5 010 mm) |
| Operating Weight - Cab operating weight - Long arm w/additional counterweight: | 8,660 lb (3 930 kg) |
| Electrical - Voltage: | 12 Volts |
| Dimensions - Overall transport length: | 15 ft 9 in (4 790 mm) |
| Operator Environment - Display: | Engine oil pressure warning lamp; Battery charging warning lamp; Engine preheat pilot lamp; Engine coolant temp warning lamp; Air cleaner warning lamp; Overload warning lamp; Travel speed pilot lamp; Fuel low level warning lamp; Air cleaner warning lamp; Hyd. quick coupler lock lamp; Engine coolant temp gauge; Fuel gauge and Hour meter. |
| Performance Specs - Dump height: | 11 ft 3 in (3 425 mm) | 11 ft 10 in (3 615 mm) |
| Engine - Net horsepower – SAE J1349 @ 2200 RPM: | 23.7 hp (17.7 kW) |
| Other Specifications - Arm - Standard length: | 4 ft 3 in (1.3 m) |
| Blade Specs - Backfill blade dig depth: | 1 ft 3 in (390 mm) | 1 ft 5 in (440 mm) |
