NEW HOLLAND E17C
NEW HOLLAND – E17C — MINI EXCAVATOR
THE RIGHT TOOL FOR THE JOB
New Holland mini excavators have a capacity range from 1.7 to 6.0 tons (1542 to 5443 kg). With canopy, cab, and zero tail swing versions to choose from, there is a model suited for any job. Leverage a New Holland mini excavator for landscaping, amenity work, agriculture, horticulture, nurseries, vineyards, estate management, and general contracting. Other applications include irrigation and drainage construction, fence work, temporary building construction, and crop support.
Designed to work long days, each model has class-leading excavation performance with the flexibility to power a wide range of attachments, including hydraulically powered attachments like soil augers, hammers and compactors. New Holland mini excavators display powerful versatility with the strength of a larger machine.
All models have three separate pumps to deliver enhanced performance, perfect for traveling between job sites, using the dozer blade, or working with the excavator. Need more? For the most demanding auxiliary attachments, a fourth pump option is available on the largest E57C and E60C models.

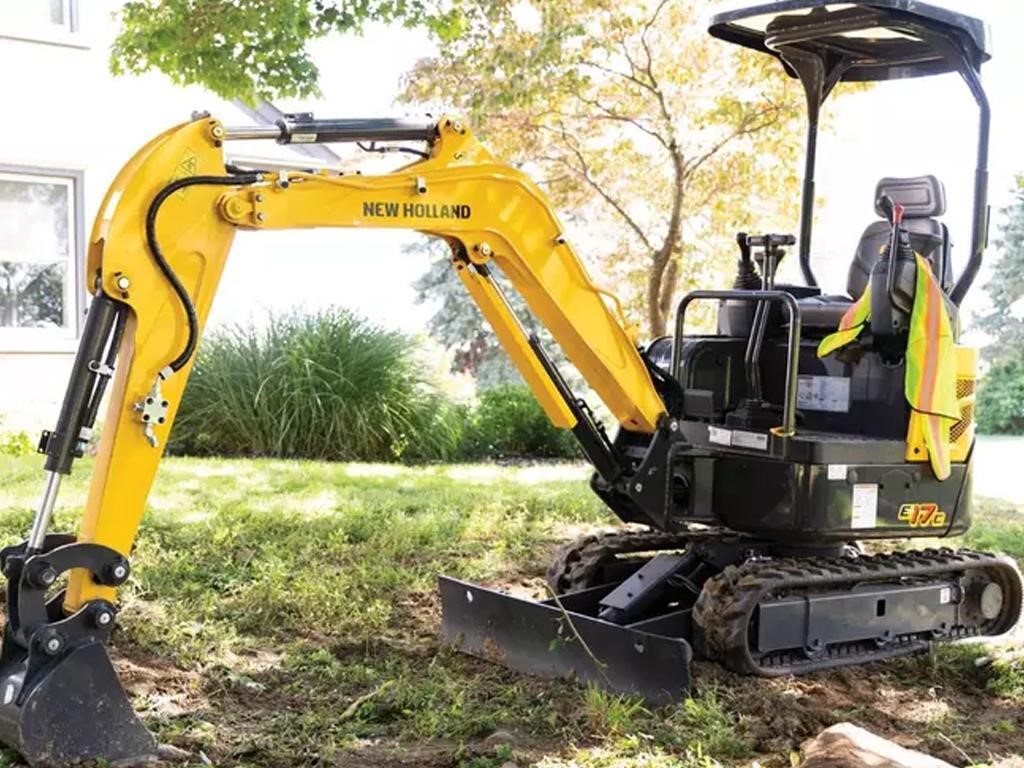

New Holland’s E17C compact dimensions and digging capabilities combine power and versatility to seize every moment of your work day. Designed for day-long performance, this mini excavator has class-leading excavation talent with the adaptability to support a wide range of attachments.
FEATURES
MINI EXCAVATOR, BIG POWER

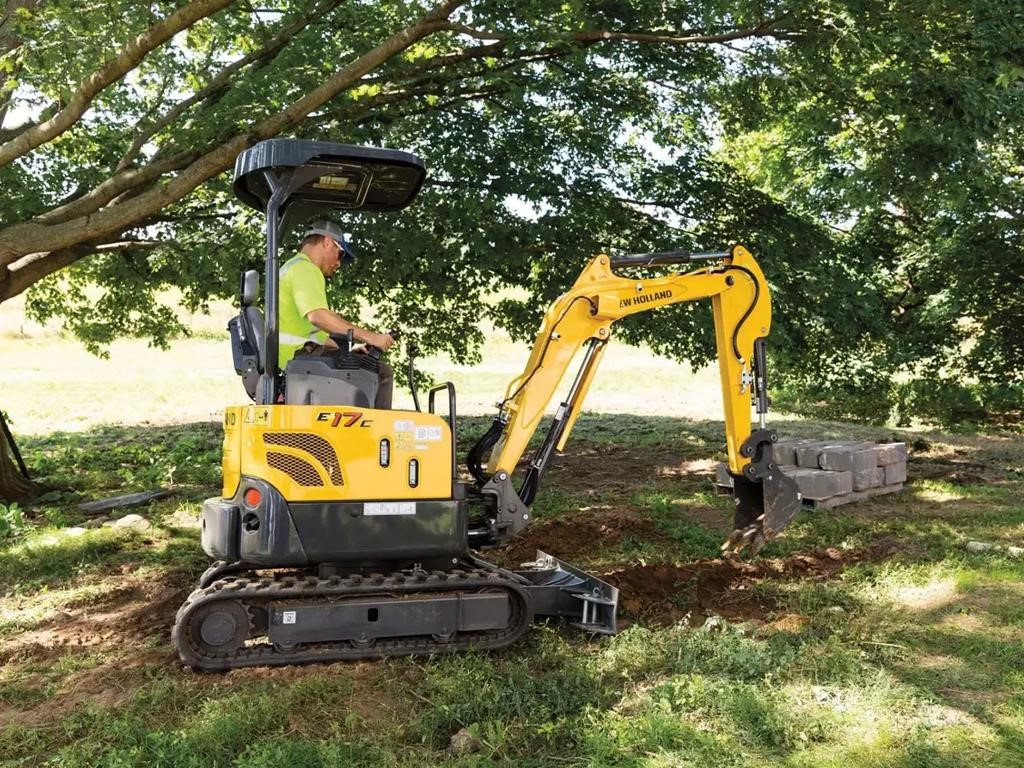

The 16.8 HP (12.5 kW) provides plenty of power to the load-sensing hydraulics for a smooth and efficient operation in this compact and easily transportable package, measuring 7 ft 7 in (2320 mm) in height and 11 ft 5 in (3480 mm) in length. Slim frame posts ensure excellent all-round visibility, with good views of the boom and dipper. When working in a confined area, in urban areas, or between valuable crops such as in a vineyard, nursery or an orchard, you can operate a New Holland compact excavator with absolute precision for minimal disruption.
ARMED TO DIG

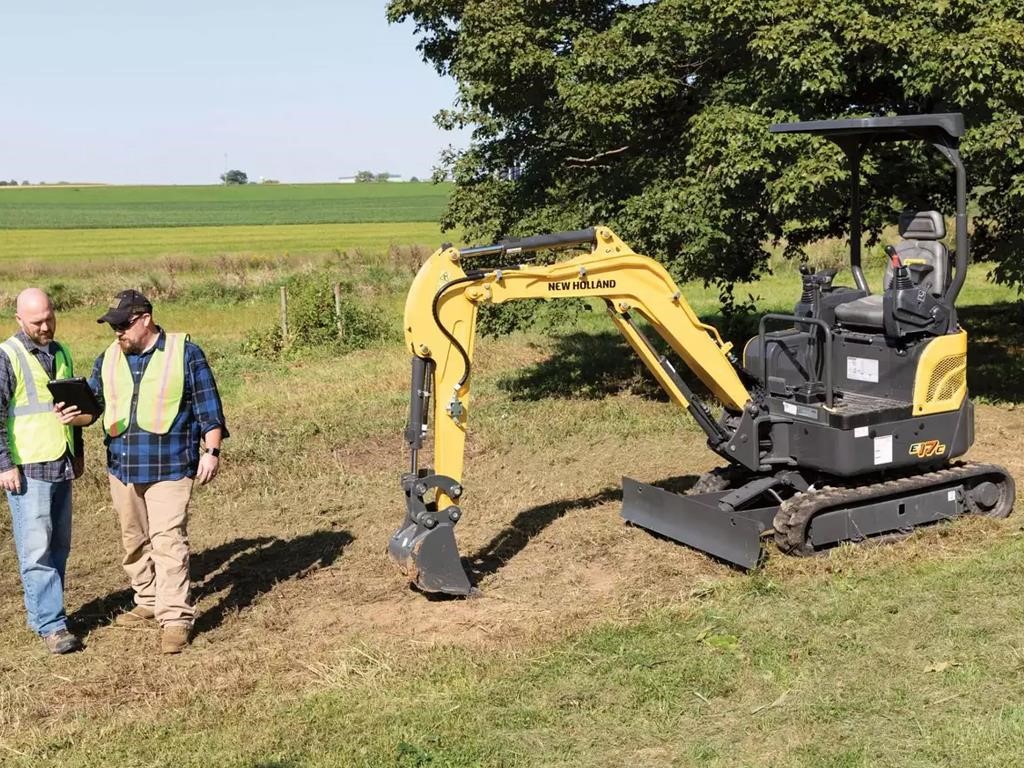

Specify your C Series compact excavator with the arm length to best suit your requirements. Length on the E17C standard digging arm measures up to 3.2 ft (965 mm) and 3.8 ft (1117 mm) with the long arm. The standard arm yields 7.3 ft (2200 mm) of maximum digging depth and gets a maximum 7.9 ft (2350 mm) below surface with the long arm. With all this muscle, plus 1920 lbf (8.5 kN) of standard arm breaking force, the E17C will quickly become your partner in productivity.
DESIGNED TO DUMP
The standard arm on the E17C provides a maximum 8 ft 5 in (2570 mm) of dump height and 3490 lbf (15.5 kN) in bucket breakout force. If your operation requires a greater dump height, opt for the optional long arm that gets up to 8 ft 10 in (2670 mm) in maximum dump height. In addition, the available Object Handling Kit allows you to raise heavy, suspended loads using a lifting hook on the bucket linkage.
AMPLE BOOM SWING ANGLES

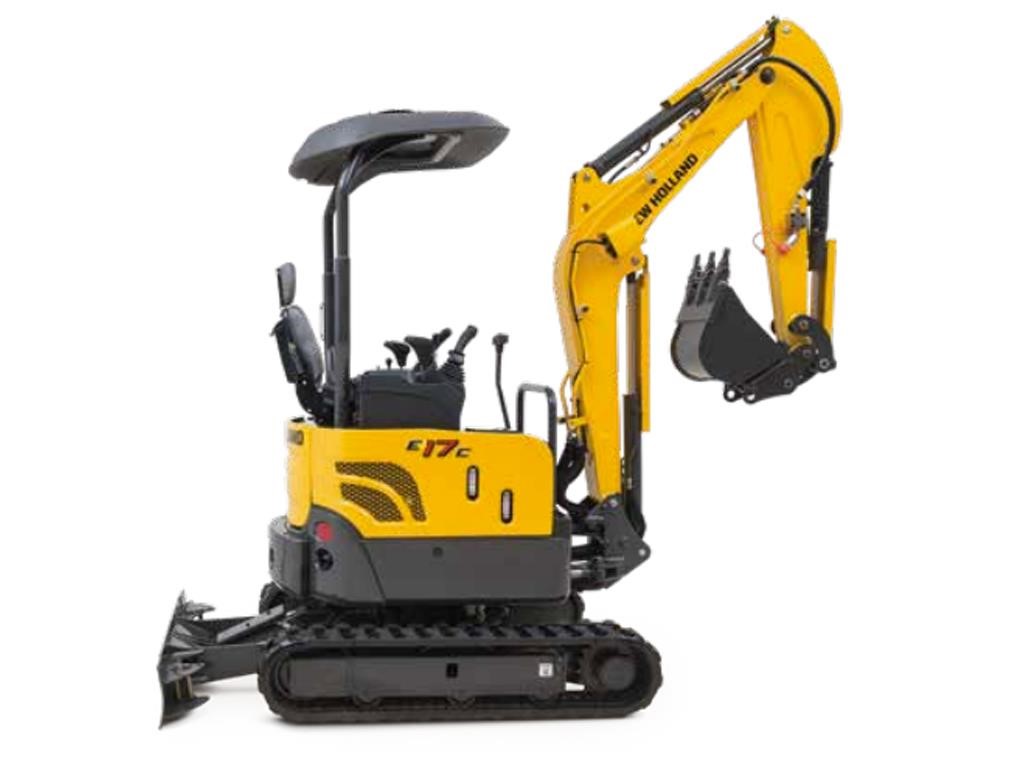

The E17C has a left swing angle of 70 degrees and a right swing angle of 54 degrees. A larger left swing angle improves visibility to the side of the door for a more precise operation. Ample boom swing angles allow for efficient parallel digging, good for working alongside obstacles. Plus, forgoing the need to reposition the machine means you can complete the job faster. Boom pivot pins are secured by plate and bolt to reduce lateral movement and provide reliable performance in tough conditions. Plus, the pins give way to a long service life and lower whole-life operating costs.
EFFICIENT, POWERFUL, DEPENDABLE

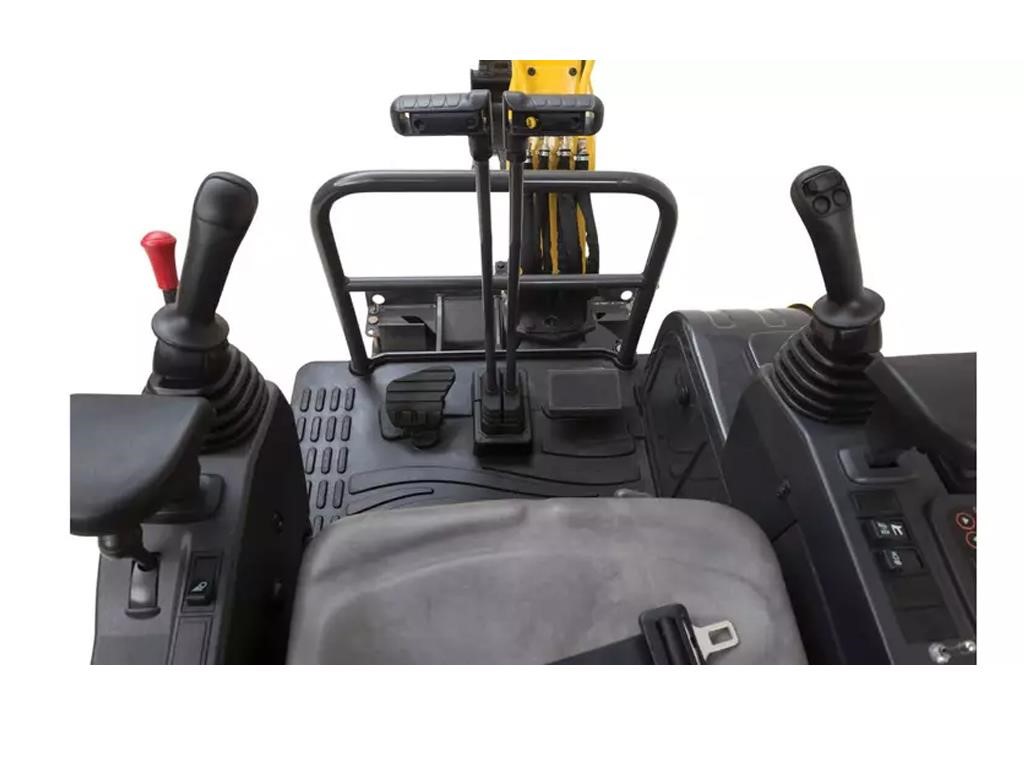

A variety of Control Modes allows you to operate a New Holland compact excavator with absolute precision for minimal disruption.
Control Modes (joystick sensitivity):
• Precision – Slower ramp rate for slow and precise movements
• Normal – Standard joystick sensitivity for normal operations
• Productivity – Faster ramp rate for rapid/dynamic movements
• Individual – Sensitivity fully customizable to operator’s preferences
ATTACHMENTS FOR DEDICATED EFFICIENCY
Powering demanding attachments is a key New Holland advantage. With the right attachment, New Holland’s excavators can be used for a diverse range of jobs from fence installation to concrete breaking. Job site versatility is bound to soar with the added advantage of high constant hydraulic flow and quick coupler.
The Hydraulic Quick Coupler allows for hands-free coupling and release of buckets. Plus, safely swap between large, heavy attachments. Mechanical quick lock attachment brackets are also available.
DESIGNED FOR AND AROUND YOU

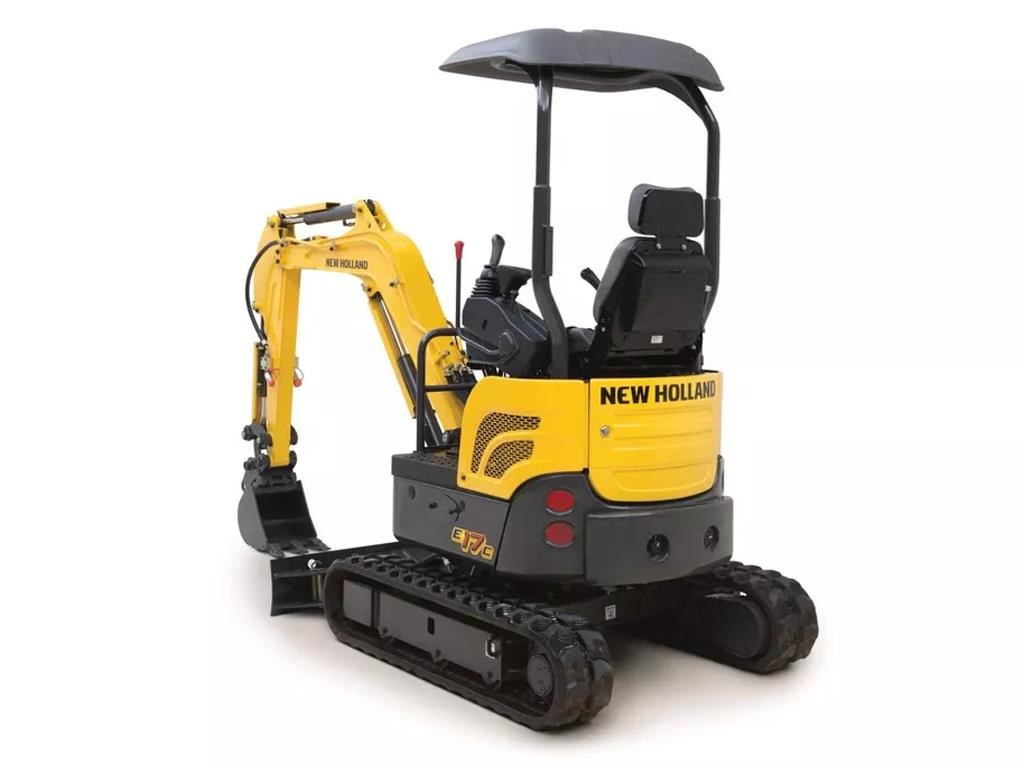

New Holland’s E17C compact excavator is fitted with a canopy and carries a 3,910 lb (1775 kg) operating weight with a full fuel tank, operator and bucket. Additionally, the E17C is TOPS (tip-over) and FOPS (falling-object) compliant to protect the precious cargo inside. Low noise and vibration levels, an adjustable suspension seat and adaptable wrist rests ensure you can work for extended periods in comfort with no compromise in operator safety. Further improve productivity and reduce downtime with simplified daily checks when all key check and service points are grouped together.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
| Engine - Net horsepower SAE J1349 @ 2300 RPM: | 16.8 hp (12.5 kW) |
|---|---|
| Operator Environment - Display includes:: | Engine oil pressure lamp; Water temperature lamp; Low fuel warning lamp; Battery charge lamp; Engine preheat lamp; Travel speed lamp; Air cleaner warning lamp; Hyd. quick coupler lock lamp; High travel speed lamp; Water temperature gauge; Fuel gauge; and Hour meter. |
| Service Capacities - Hydraulic tank - Total system: | 6.1 gal (23 L) |
| Blade Specs - Backfill blade dig depth: | 8.9 in (225 mm) |
| Dimensions - Boom swing: | 70° left/54° right |
| Performance - Vertical straight wall dig depth ft. in. (mm): | 4’ 4” (1320) |
| Drivetrain - Maximum traction force: | 3300 lb. (1420 kg) |
| Blade Specs - Backfill blade rise above ground: | 11.2 in (285 mm) |
| Dimensions - Upper structure ground clearance: | 1 ft 5 in (440 mm) |
| Electrical - Alternator rating: | 40 amp |
| Dimensions - Center to center – idler to sprocket: | 4 ft 0 in (1230 mm) |
| Service Capacities - Engine oil w/ filter change: | 1.0 gal (3.7 L) |
| Dimensions - Track overall width: | 3 ft 3 in (990 mm) |
| Blade Specs - Backfill blade width: | 4’ 3” (1300) |
| Engine - Maximum engine torque @ 1900 RPM : | 39.49 lb. ft. (53.54 Nm) |
| Engine - Gross horsepower SAE J1995 @ 2300 RPM: | 64.7 hp (48.3 kW) |
| Hydraulics - Pilot control hydraulic system: Pump: | Gear pump |
| Hydraulics - System relief pressure: Overload relief valve pressure: | 3270 psi (230 bar |
| Service Capacities - Hydraulic tank - Refill capacity: | 3.4 gal (13 L) |
| Performance - Dump height ft. in. (mm): | 8’ 5” (2570) |
| Performance - Maximum dig radius ft. in. (mm): | 12’ 10” (3900) |
| Performance - Arm digging force – ISO lbf (kfg/kN): | 1920 (870/8.5) |
| Dimensions - Track overall length: | 5 ft 3 in (1590 mm) |
| Performance - Overall reach height ft. in. (mm): | 11’ 9” (3580) |
| Engine - Cylinders: | 3 |
| Other Specifications - Swing speed: | 0 – 9.5 RPM |
| Dimensions - Overall transport length: | 11 ft 5 in (3480 mm) |
| Performance - Bucket digging force – ISO lbf (kfg/kN): | 3490 (1580/15.5) |
| Operator Weight - Canopy operating weight: Short arm: | 3910 lb. (1775 kg |
| Other Specifications - Undercarriage: Track rollers: | 3 each |
| Dimensions - Arm (standard length): | 3 ft 2 in (0.96 m) |
| Hydraulics - Max rated flow: | 2 x 5 + 3 gpm (2 x 18.8 L/min @ 170 bar |
| Hydraulics - Auxiliary flow: | 7.9 gpm @ psi 2,987 psi (30L/min @ 206 bar) |
| Other Specifications - Boom: Swing | Length: | 70° left/54° right | 5 ft. 11 in. (1.8 m) |
| Drivetrain - Travel speeds - 1st: | 1.4 mph (2.2 kph) |
| Blade Specs - Backfill blade height: | 9.8 in (250 mm) |
| Performance - Dig radius at groundline ft. in. (mm): | 12’ 6” (3800) |
| Performance - Bucket rotation degrees: | 187 |
| Engine - Displacement: | 54.8 in³ (898 cc) |
| Hydraulics - Control valves: : | Pilot control for left/right track travel, boom, arm, bucket and swing Manual control for breaker and backfill blade |
| Hydraulics - Swing motor: | Fixed displacement orbit |
| Service Capacities - Fuel tank: | 5.3 gal (20 L) |
| Drivetrain - Ground pressure: | 3.98 psi (0.25 kgf/cm2) |
| Hydraulics - Pilot control hydraulic system: Maximum capacity: | 1.8 gpm (6.8 L/min |
| Operator Environment - ROPS/FOPS two post canopy; ISO 6396:: | 2008 sound pressure level LpA=76 bB (A); Pilot operated hand controls and foot pedals; Adjustable seat w/ seat belt; Arm rests; 12V socket. |
| Engine - Emissions Certification: | Tier 4 Final |
| ropstype: | Open |
| Engine - Cooling: | Water-cooled |
| Drivetrain - Travel speeds - 2nd: | 2.5 mph (4.2 kph) |
| Dimensions - Minimum ground clearance: | 6.7 in (170 mm) |
| Operator Weight - Canopy operating weight: Long arm w/additional counterweight: | 4110 lb. (1865 kg) |
| Hydraulics - Travel motor:: | Variable displacement axial piston 2-stage planetary |
| Drivetrain - Gradeability: | 30° (58%) |
| Other Specifications - Arm: Standard length | Long arm length: | 3 ft. 2 in. (0.96 m) | 3 ft. 8 in. (1.12 m) |
| Electrical - Voltage: | 12 Volts |
| Performance - Maximum dig depth ft. in. (mm): | 7’ 3” (2200) |
| Engine - Model: | Kubota D902 |
| Hydraulics - Main pumps:: | Variable displacement tandem axial piston pump + gear pump |
| Dimensions - Track shoe width: | 9.0 in (230 mm) |
| Service Capacities - Radiator: | 0.9 gal (3.5 L) |
| Engine - Fuel: | Diesel |
| Hydraulics - System relief pressure: Standard: | 2420 psi (170 bar) |
| Dimensions - Overall height: | 7 ft 7 in (2320 mm) |
| Dimensions - Tail swing radius: | 2 ft 1 in (645 mm) |
| Engine - Fuel injection: | Mechanical |
| Electrical - Battery: | 1 x 12 V x 45 Ah 420 CCA |
