CASE CX26C

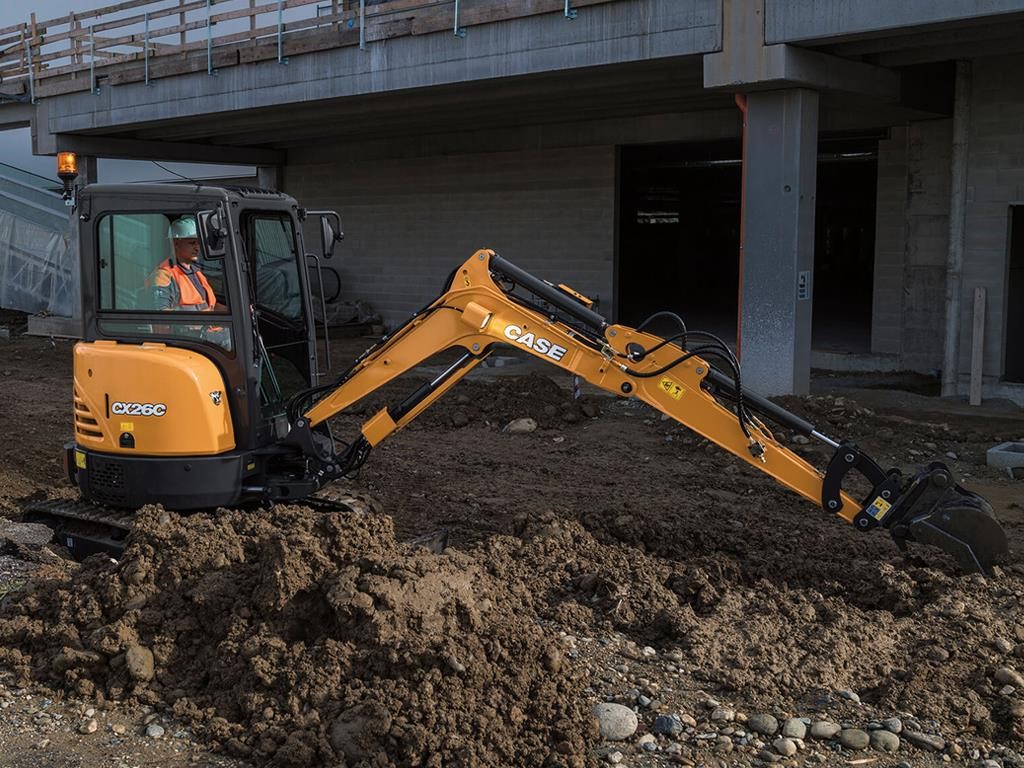

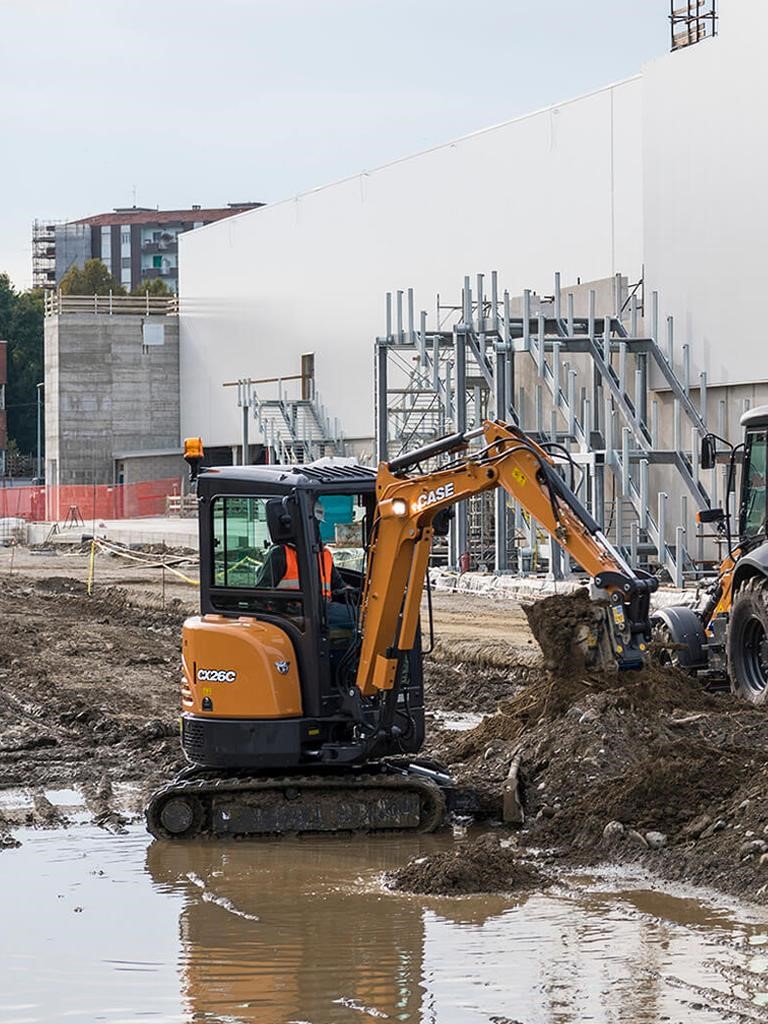

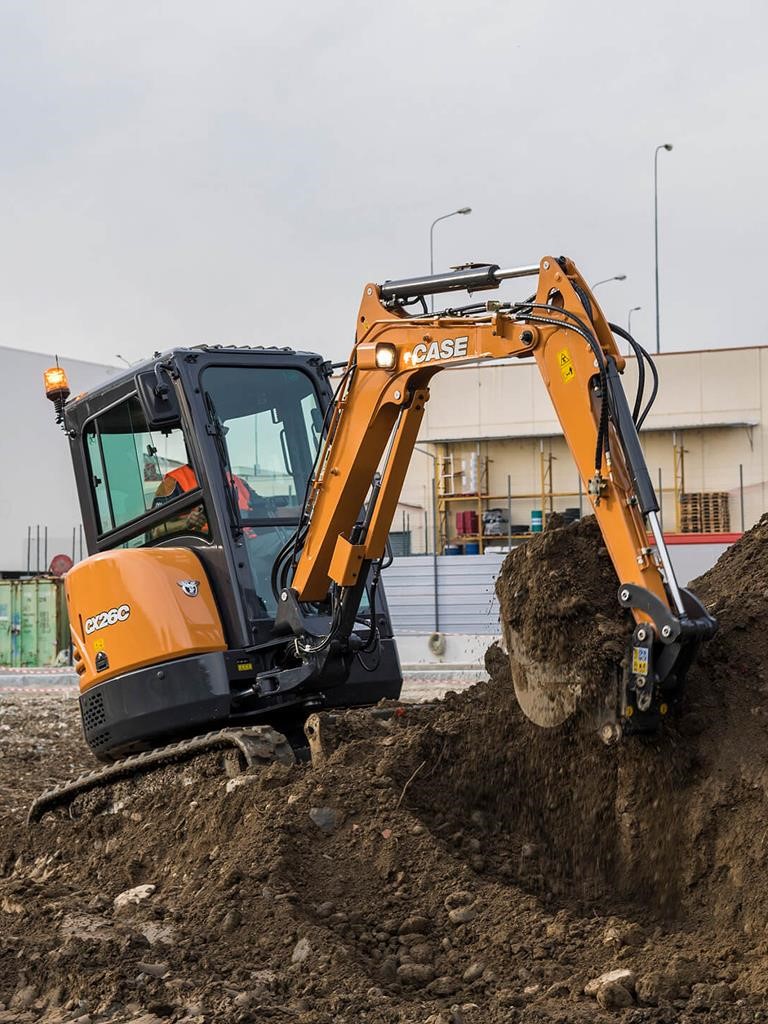

CASE CX26C − MINI EXCAVATOR
The 5,520 lb., Tier 4 Final CX26C provides excellent breakout force in a lightweight, zero tailswing excavator that achieves dig depths of nearly 8 feet. This compact, transport-friendly power makes this mini ideal for landscapers, utility companies and contractors working in developed neighborhoods or trying to minimize yard damage. With standard push blade, auxiliary hydraulics and proportional controls, as well as an available heated cab, the CX26C is a multi-use platform for a wide variety of applications and environments.
Diesel or electrified. Zero tailswing or conventional. Cab or canopy. Two-way, 4-way or six-way blades. 1.5 up to 6 metric tons. CASE now delivers one of the most comprehensive mini excavator lineups in the industry — delivering you swift, smooth and smart solutions designed to work on any jobsite profile.If you have a truck and a trailer and big dreams of compact equipment: there is a CASE mini excavator for you.
Whether it’s the all-new and powerful CX42D, the clean-running go anywhere flexibility of the all-new electrified CX15EV, or the tried and true CASE C Series lineup, CASE mini excavators are built to outwork the competition and deliver serious business gains for you.
FEATURES
PURPOSE-BUILT PRODUCTIVITY
Thanks to its compact design, the 2.6-metric ton CX26C can be towed by a conventional pickup truck without the need for a CDL*, making it an easy addition to any fleet. And with the zero tailswing design, the rear counterweight doesn’t extend past the tracks, reducing the risk of damage to the machine, environment or workers. Combined with an adjustable boom that can be offset to either side, this allows for operation alongside walls or obstacles. Several standard features boost performance, including auxiliary hydraulics for greater attachment utility, Automatic 2-Speed Travel for smoother shifting, and a push blade for backfilling and improved digging stability. An additional counterweight, long-arm configuration and thumb bracket are also available.
*Always check vehicle capacities and state or local laws for applicable roading regulations and requirements.
COMMON-SENSE FUEL EFFICIENCY
The CX26C features a fuel-efficient, naturally aspirated 25-hp engine, providing excellent power and performance with minimal fuel use while meeting Tier 4 Final regulations without any operator inconvenience.
CASE COMFORT AND VISIBILITY
The standard four-post ROPS/FOPS canopy provides a spacious operator environment with excellent visibility all around the machine and features ergonomic joysticks with fingertip controls and an adjustable seat. The enclosed cab option is designed with floor-to-ceiling windows to maintain sightlines and features heat, radio and a USB port for improved operator comfort throughout the workday.
SIMPLE SERVICEABILITY
Maintenance can be done in a matter of minutes thanks to the CX26C’s ground-level serviceability. Two locking access panels provide quick, adjacent access to site gauges, fill ports, grease points, filters and main service components.
STANDARD EQUIPMENT
ENGINE
• Kubota D1305 diesel
• Engine access under rear hood
• Glow plug starting aid
• Dry type air cleaner with restriction indicator
ELECTRICAL
• 12-volt electrical starting system
• Heavy-duty battery
• Battery Master Switch
• Key Start
• Anti-Theft-Engine starting passwords
• Front working light
• 12 V power outlet
• Horn
• Pre-wired – Telematics ready
HYDRAULICS
• Auxiliary hydraulics – single/bi-directional – and plumbing to arm
• Large hydraulic oil cooler
• Control pattern selector valve
• Cylinder rod protection covers – Backfill blade and Boom
OPERATOR ENVIRONMENT
• ROPS/FOPS four post canopy
• ISO 6396:2008 sound pressure level LpA=76 bB (A)
• Pilot operated hand controls and foot pedals
• Adjustable seat w/seat belt
• Arm rests
• 12V socket
• Display includes: Engine oil pressure lamp; Water temperature lamp; Low fuel warning lamp; Battery charge lamp; Engine preheat lamp; Travel speed lamp; Air cleaner warning lamp; Hyd. quick coupler lock lamp; High travel speed lamp; Water temperature gauge; Fuel gauge; Hour meter
TRACK DRIVE
• Rubber tracks
• Automatic 2-speed travel
• Fully hydrostatic drive system
• Sealed and lubricated track rollers
• Track tension adjustment – grease type
UPPER STRUCTURE
• Zero tail swing
• Standard arm: 3 ft 8 in (1.12 m)
• Bucket linkage with lifting hook
OTHER
• Swing boom – 75° left /50° right
• Hydraulic backfill blade
WARRANTY
• Base warranty coverage: 2-Year/3,000-Hour Full Machine Limited Warranty
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
• Cab with Heat and Radio with USB and 2 speakers
• Travel alarm
OTHER
• Additional counterweight: 286 lb (130 kg)
• Optional long arm: 4 ft 5 in (1.35 m)
• Thumb bracket
• Hydraulic quick coupler provision
• Hydraulic coupler
• Klac coupler
• Mechanical coupler
• Hydraulic hammer
• Beacon
• 2nd auxiliary circuit
• Hydraulic thumb
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
| Blade Specs - Backfill blade dig depth: | 1 ft 3 in (380 mm) |
|---|---|
| Engine - Model: | Kubota D1305 |
| Engine - Displacement: | 77.0 in³ (1 261 cc) |
| Dimensions - Track Gauge: | 4 ft 1 in (1 250 mm) |
| Engine - Fuel: | Diesel |
| Dimensions - Track overall width - Extended: | |
| Performance Specs - Maximum dig radius: | 14 ft 8 in (4 480 mm) | 15 ft 4 in (4 680 mm) |
| Dimensions - Operating weight: | |
| Hydraulic Tank - Total system: | 14.5 gal (55 L) |
| Hydraulics - Auxiliary flow @ 3,133 psi (216 bar) - Secondary: | 12.2 gpm (46 L/min) |
| Dimensions - Width of upper structure: | 4 ft 7 in (1 400 mm) |
| Dimensions - Tail swing overhang - Additional counterweight: | 5 in (125 mm) |
| Dimensions - Track overall width: | 4 ft 11 in (1 500 mm) |
| Engine - Maximum Engine Torque @ 1600 RPM: | 60.0 lb ft (81.4 Nm) |
| Performance Specs - Arm digging force – ISO: | 3,280 lbf (1 490 kgf/14.6 kN) | 2,880 lbf (1 300 kgf/12.8 kN) |
| ropstype: | Open |
| Blade Specs - Backfill blade height: | 1 ft 0 in (300 mm) |
| Drivetrain - Travel speed - 1st: | 1.5 mph (2.4 kph) |
| Hydraulics - Swing motor: | Fixed displacement axial piston motor | Automatic spring applied hydraulic released brake |
| Dimensions - Center to center – idler to sprocket: | 4 ft 11 in (1 490 mm) |
| Dimensions - Overall transport length: | 13 ft 3 in (4 030 mm) |
| Service Capacities - Fuel tank: | 7.9 gal (30 L) |
| Engine - Fuel injection: | Mechanical |
| Performance Specs - Dump height: | 9 ft 7 in (2 930 mm) | 9 ft 11 in (3 030 mm) |
| Electrical - Alternator rating: | 40 amp |
| Dimensions - Upper structure ground clearance: | 1 ft 8 in (510 mm) |
| Engine - Cooling: | Water-cooled |
| Performance Specs - Overall reach height: | 13 ft 7 in (4 150 mm) | 13 ft 11 in (4 235 mm) |
| Drivetrain - Maximum traction force: | 3,300 lb (1 420 kg) |
| Operating Weight - Cab operating weight - Short arm: | 5,850 lb (2 655 kg) |
| Engine - Gross horsepower – SAE J1995 @ 2300 RPM: | 24.8 hp (18.5 kW) |
| Hydraulics - Auxiliary flow @ 3,133 psi (216 bar) - Primary: | 12.2 gpm (46 L/min) |
| Dimensions - Track overall width - Retracted: | |
| Dimensions - Track overall length: | 6 ft 3 in (1 910 mm) |
| Other Specifications - Arm - Long arm length: | 4 ft 5 in (1.35 m) |
| Engine - Emissions Certification: | Tier 4 Final |
| Hydraulic Tank - Refill capacity: | 7.1 gal (27 L) |
| Hydraulics - Travel motor: | Variable displacement axial piston | 2-stage planetary | Automatic spring applied hydraulic released brake |
| Engine - Cylinders: | 3 |
| Hydraulics - Main pumps: | Variable displacement tandem axial piston pump + gear pump |
| Dimensions - Tail swing overhang - Standard counterweight: | 0 in (0 mm) |
| Hydraulics - Pilot control hydraulic system - Pump: | Gear Pump |
| Operating Weight - Canopy operating weight - Short arm: | 5,520 lb (2 505 kg) |
| Dimensions - Boom swing: | 75° left /50° right |
| Hydraulics - Auxiliary flow: | |
| Dimensions - Minimum ground clearance: | 11 in (290 mm) |
| Drivetrain - Travel speed - 2nd: | 2.7 mph (4.3 kph) |
| Electrical - Battery: | 1 x 12 V x 58 Ah 680 CCA |
| Dimensions - Tail swing radius - Additional counterweight: | 2 ft 10 in (875 mm) |
| Other Specifications - Arm - Standard length: | 3 ft 8 in (1.12 m) |
| Dimensions - Arm: | 3 ft 8 in (1.12 m) Arm |
| Operator Environment - General: | ROPS/FOPS four post canopy; ISO 6396: 2008 sound pressure level LpA=77bB (A); Pilot operated hand controls and foot pedals; Adjustable seat w/seat belt; Arm rests; 12V socket. |
| Operator Environment - Display: | Engine oil pressure lamp; Water temperature lamp; Low fuel warning lamp; Battery charge lamp; Engine preheat lamp; Travel speed lamp; Air cleaner warning lamp; Hyd. quick coupler lock lamp; High travel speed lamp; Water temperature gauge; Fuel gauge and Hour meter. |
| Performance Specs - Vertical straight wall dig depth: | 4 ft 10 in (1 460 mm) | 5 ft 3 in (1 605 mm) |
| Performance Specs - Maximum dig depth: | 7 ft 11 in (2 420 mm) | 8 ft 8 in (2 645 mm) |
| Performance Specs - Bucket rotation: | 168° | 168° |
| Engine - Net horsepower – SAE J1349 @ 2300 RPM: | 23.2 hp (17.3 kW) |
| Performance Specs - Bucket digging force – ISO: | 4,740 lbf (2 150 kgf/21.1 kN) | 4,740 lbf (2 150 kgf/21.1 kN) |
| Blade Specs - Backfill blade width: | 5 ft 0 in (1 500 mm) |
| Hydraulics - Max. rated flow: | 2 x 7.3 + 5.2 gpm (2 x 27.6 + 19.6 L/min) |
| Hydraulics - Pilot control hydraulic system - Maximum Capacity: | 2.7 gpm (10.4 L/min) |
| Service Capacities - Radiator: | 1.3 gal (5 L) |
| Electrical - Voltage: | 12 Volts |
| Other Specifications - Undercarriage - Track rollers: | 1 upper/3 lower each |
| Dimensions - Tail swing radius - Standard counterweight: | 2 ft 6 in (750 mm) |
| Performance Specs - Dig radius at groundline: | 14 ft 3 in (4 340 mm) | 14 ft 11 in (4 540 mm) |
| Drivetrain - Gradeability: | 30° (58%) |
| Other Specifications - Swing speed: | 0 – 9.1 RPM |
| Dimensions - Track shoe width: | 9.8 in (250 mm) |
| Drivetrain - Ground pressure: | Canopy 4.3 psi (0.3 kgf/cm²) | Cab 4.6 psi (0.32 kgf/cm²) |
| Hydraulics - System relief pressure - Overload relief valve pressure: | 3,410 psi (240 bar) |
| Blade Specs - Backfill blade rise above ground: | 1 ft 1 in (330 mm) |
| Other Specifications - Boom - Swing: | 75° left/50° right |
| Service Capacities - Engine oil w/ filter change: | 1.5 gal (5.7 L) |
| Other Specifications - Boom - Length: | 6 ft 5 in (1.95 m) |
| Operating Weight - Cab operating weight - Long arm w/additional counterweight: | 6,160 lb (2 795 kg) |
| Hydraulics - System relief pressure - Standard: | 3,130 psi (220 bar) |
| Dimensions - Overall height: | 8 ft 2 in (2 500 mm) |
| Operating Weight - Canopy operating weight - Long arm w/additional counterweight: | 5,830 lb (2 645 kg) |
| Performance Specs - Arm: | 3 ft 8 in (1.12 m) Arm | 4 ft 5 in (1.35 m) Arm |
| Hydraulics - Max rated flow x 2: | |
| Hydraulics - Control valves: | Pilot control for boom, arm, bucket, and swing Mechanical control for left/right travel and backfill blade |
