CASE CX42D

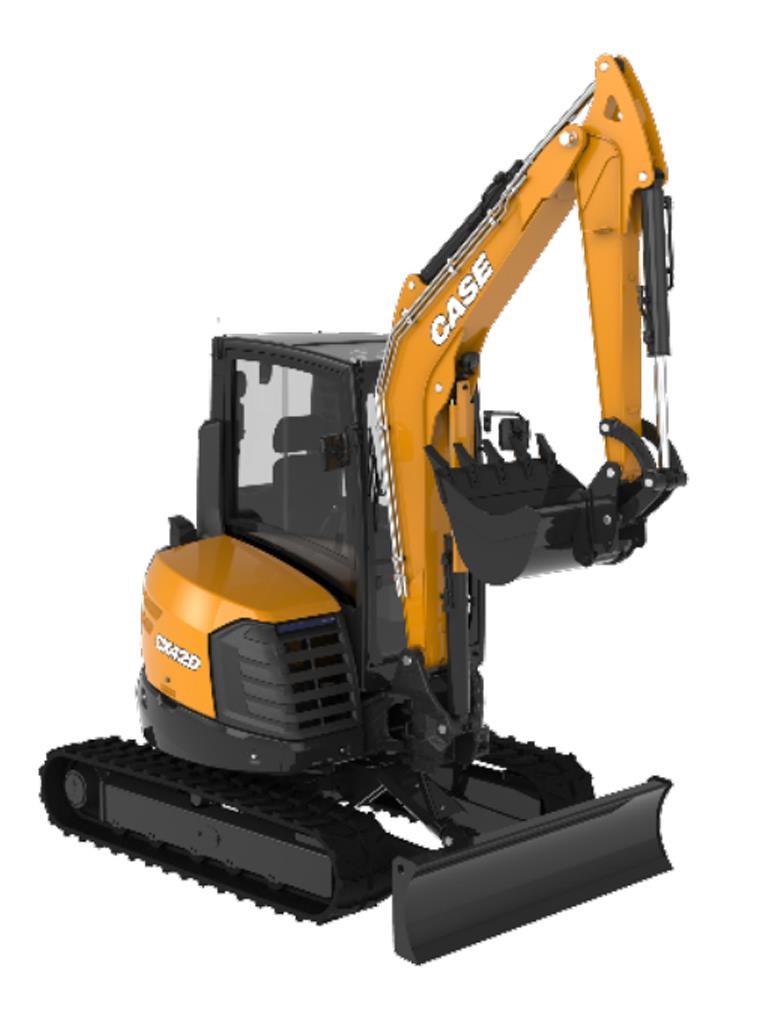

CASE CX42D − MINI EXCAVATOR
The all-new 4.2 metric ton CX42D mini excavator is the only zero tailswing mini excavator in its size class — allowing it to get more up close and personal to its work than any other comparable mini excavator. It also delivers a high level of feature standardization with excellent options to further improve performance, and an automotive-style experience in the cab to make this a truly operator-first machine. All with standard auxiliary hydraulics that makes this a powerful platform for attachments so that you can expand your services and pump up your profitability.
Diesel or electrified. Zero tailswing or conventional. Cab or canopy. Two-way, 4-way or six-way blades. 1.5 up to 6 metric tons. CASE now delivers one of the most comprehensive mini excavator lineups in the industry — delivering you swift, smooth and smart solutions designed to work on any jobsite profile. If you have a truck and a trailer and big dreams of compact equipment: there is a CASE mini excavator for you.
Whether it’s the all-new and powerful CX42D, the clean-running go anywhere flexibility of the all-new electrified CX15EV, or the tried and true CASE C Series lineup, CASE mini excavators are built to outwork the competition and deliver serious business gains for you.
FEATURES
GET UP CLOSE AND PERSONAL
The all-new D Series mini excavators deliver massive performance in a true zero tailswing design, allowing operators to get extremely up close and personal to buildings and obstacles without sacrificing any excavator performance. The CX42D is the only mini in its size class with zero overhang during the swing.
ALL THE CONTROL. ALL THE INFO.
From three power modes and proportional hydraulic controls to attachment settings and critical machine data, the large seven-inch color LCD monitor makes it easy to operate the CX42D while allowing the operator to dial it in to their preferences.
PERFECT ATTACHMENT PLATFORM
Standard multifunction auxiliary hydraulics and a standard 2nd auxiliary circuit + an optional 3rd auxiliary circuit puts a whole world of attachments at your fingertips — turning your mini excavator into an all-purpose beast.
STANDARD STABILITY & BACKFILLING
Whether backfilling a trench or adding stability to a challenging dig, the standard two-way and optional six-way blade gives the operator the confidence needed to make all the moves needed to get the job done.
INTELLIGENCE COMES STANDARD
CASE SiteWatch telematics are standard with CASE D Series mini excavators, giving you deeper insights into machine performance, utilization and service schedules — and allowing you to connect with your local CASE dealer to collaborate on fleet management.
STANDARD EQUIPMENT
ENGINE
• KUBOTA D1803
• Glow Plugs for cold weather starting
• Dry air filter with clogged filter warning on control panel
• Variable Speed Hydraulic cooling fan with reverse function
ELECTRICAL
• 12-volt electrical system
• Heavy-duty battery
• Battery disconnect switch
• Auxiliary Power Socket (left console, right-hand upright)
• USB type A power socket
• Key Start Switch
• Auxiliary Power socket on roof for beacon
• Auto-idle feature with on/off switch
• Horn
• Pre-wired – Telematics ready
HYDRAULICS
• Standard 1st auxiliary hydraulics. 1 or 2 way operation. Set in control panel
• 2nd auxiliary hydraulics – 2-way
• Large hydraulic oil cooler
• Control pattern selector valve
• Cylinder guard on boom and dozer blade cylinder
TRACK DRIVE
• Rubber belt tracks
• 2-speed travel (turtle & rabbit) with auto-shift
• Fully hydrostatic drive system
• Sealed and lubricated track rollers
• Track Tensioner Hydraulic adjustment with grease
LIGHTING
• LED light under boom
• LED strip lights on right hand side engine cover
• Courtesy Light with 3 settings: Always on, Always off, Automatic when door is open (cab only)
UPPER STRUCTURE
• Zero Tail Swing (with standard counterweight)
• Standard arm: 4 ft 7 in (1.40 m)
• Linkage with lifting hook
• Thumb bracket
• Backfill blade with float
OTHER
Swing boom – 71° left /56° right
WARRANTY
Base warranty coverage: 2-Year/3,000-Hour Full Machine Limited Warranty
OPERATOR ENVIRONMENT
• ROPS/FOPS Four Post Canopy: Adjustable Vinyl mechanical suspension seat w/ automatic weight control
• ROPS/FOPS Enclosed Cab:
• Overhead opening front window
• Sliding right side window
• Heat & A/C – automatic climate control or manual w/ 6 adjustable vents
• Radio & Speakers
• Adjustable Cloth mechanical suspension seat w/ automatic weight control
• Front wiper and washer
• Hammer for emergency exit
• Rear view mirrors – left and right
• Tipping cab/canopy for servicing
• Height adjustable arm rests
• Controls cut-out lever (safety lever)
• Auto-idle/manual idle button
• Engine rpm hand dial
• 2 in (51 mm) Seat belt
• Bottle/cup holder
• Keyed locks common w/ starting key
• Foot rests
• 2- 12V auxiliary socket
• USB type power socket 7 in LCD Control Panel
• Display Navigation console
• Controls:
• Travel Levers
• Foldable travel foot pedals
• Pilot controlled joysticks for boom, arm, bucket, and swing
• Operation joysticks
• Blade control lever
• Display includes:
• Coolant Temp
• Hydraulic Oil Temp
• Fuel Level
• Machine hours
• Time
• Climate Control
• Engine
• RPM
• Warning Indicators
• Message area
• DPF Regeneration request
• Function Indicators
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
• Fabric Pneumatic Seat with automatic weight control (cab only)
• Travel Alarm
TRACK OPTIONS
Tracks:Steel Tracks
VISIBILITY
• Rear view camera
• LED lights on top of cab/canopy, front and rear
• Beacon
HYDRAULICS
• 3rd auxiliary hydraulics – 2-way
• Direct drain to tank
• Load holding valves on boom and arm
• Mulcher hydraulics package
• Bio hydraulic oil
OTHER
• 6-way backfill blade
• Additional counterweight adds: 617 lb (280 kg
• Additional counterweight – heavy: 926 lb (420 kg)
• Optional long arm: 5 ft 5 in (1.65 m)
ATTACHMENTS
• Mechanical quick coupler
• Hydraulic quick coupler
• Digging buckets
• Thumb
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
| Operating Weight - Canopy operating weight - Long arm w/additional counterweight: | 9,921 lb (4 500 kg) |
|---|---|
| Engine - Fuel injection: | Electronic common rail |
| ropstype: | Open |
| Hydraulics - Aux. 2 – 2-way circuit: Max. Pressure: | 4,061 psi (280 bar |
| Drivetrain - Gradeability: | 30° (60%) |
| Dimensions - Track shoe width: | 1 ft 2 in (350 mm) |
| Electrical - Battery: | 1 x 12 V x 74 Ah |
| Dimensions - Arm: | 4 ft 7 in (1.40 m) Arm |
| Dimensions - Tail swing overhang - Additional counterweight: | 3.5 in (90 mm) |
| Dimensions - Tail swing radius - Additional counterweight: | 3 ft 2 in (965 mm) |
| Performance Specs - Dump height: | 12 ft 0 in (3 660 mm) | 12 ft 6 in (3 820 mm) |
| Hydraulics - Auxiliary flow: Aux. 1 – 1 or 2-way circuit: Max. Pressure: | 2,900 psi (200 bar |
| Engine - Cooling Fan: | Variable Speed Hydraulic cooling fan w/ reverse function |
| Engine - Model: | Kubota D1803 |
| Electrical - Alternator rating: | 70 amp |
| Electrical - Voltage: | 12 Volts |
| Hydraulics - Operating Pressures: | Boom, bucket, blade, travel motors: 4,061 psi (280 bar) | Slewing Gear Motor 2,828 psi (195 bar) | Pilot controls 493 psi (34 bar) |
| Hydraulics - Aux. 3 – 2-way circuit: Max. Flow: | 10.6 gpm (40 L/min) |
| Dimensions - Operating weight: | 5.5 in (140 mm) |
| Hydraulics - Swing motor: | Hydraulic drive units w/ axial pistons and hydraulic released brake |
| Dimensions - Boom swing: | 71° left/56° right |
| Dimensions - Upper structure ground clearance: | 1 ft 10 in (550 mm) |
| Performance Specs - Maximum dig radius: | 17 ft 9 in (5 400 mm) | 18 ft 6 in (5 640 mm) |
| Hydraulics - Pump displacement: | 3.3 + 0.7 in3 (53.7 + 11.2 cc) |
| Hydraulics - Pump type: | 1 Electronic control Load Sensing pump w/ variable flow rate + 1 gear pump |
| Hydraulics - Auxiliary flow: Aux. 1 – 1 or 2-way circuit: Max. Flow: | 18.5 gpm (70 L/min) |
| Dimensions - Overall transport length: | 17 ft 5 in (5 300 mm) |
| Service Capacities - Engine oil: | 1.8 gal (7 L) |
| Engine - Displacement: | 111.4 in3 (1 826 cc) |
| Other Specifications - Boom - Swing: | 71° left/56° right |
| Performance Specs - Maximum dig depth: | 10 ft 1 in (3 085 mm) | 10 ft 11 in (3 335 mm) |
| Engine - Cylinders: | 3 |
| Performance Specs - Arm: | 4 ft 7 in (1.40 m) Arm | 5 ft 5 in (1.65 m) Arm |
| Dimensions - Overall height: | 8 ft 3 in (2 510 mm) |
| Drivetrain - Maximum traction force: | 9,577 lbf (42.6 kN) |
| Dimensions - Center to center – idler to sprocket: | 5 ft 11 in (1 810 mm) |
| Other Specifications - Rubber tracks dimensions: | 13.8 x 2.2 x 3.5 in | (350 x 55 x 88 mm) |
| Blade Specs - Backfill blade rise above ground: | 1 ft 3 in (380 mm) |
| Other Specifications - Boom - Length: | 8 ft 2 in (2.5 m) |
| Operating Weight - Note: | w/rubber tracks/no quick coupler/bucket/fluids/full of fuel/165 lb operator. |
| Dimensions - Width of upper structure: | 5 ft 7 in (1 716 mm) |
| Operator Environment - Controls: | Travel Levers; Foldable travel foot pedals; Pilot controlled joysticks for boom, arm, bucket, and swing; Operation joysticks; Blade control lever. |
| Hydraulics - Aux. 3 – 2-way circuit: Max. Pressure: | 4,061 psi (280 bar) |
| Other Specifications - Arm - Long arm length: | 5 ft 5 in (1.65 m) |
| Drivetrain - Travel speeds – 2-speed travel w/ auto-shift: 2nd: | 2.8 mph (4.5 kph) |
| Engine - Fuel: | Diesel |
| Dimensions - Track gauge: | |
| Operating Weight - Counterweights:: | Standard 110 lb (50 kg) | Additional 617 lb (280 kg) | Additional – heavy 925 lb (420 kg) |
| Dimensions - Track overall width: | 5 ft 9 in (1 750 mm) |
| Service Capacities - Cooling system: | 2.4 gal (9 L) |
| Engine - Maximum RPM : | 2,400 |
| Engine - Maximum Engine Torque @ 1600 RPM:: | 110.6 lb ft (150 Nm) |
| Other Specifications - Vibrations ISO 2631 – hand : | 0.98 m/s2 |
| Performance Specs - Arm digging force – ISO: | 4,946 lbf (22 kN) | 4,406 lbf (19.6 kN) |
| Other Specifications - Arm - Standard length: | 4 ft 7 in (1.4 m) |
| Operating Weight - Cab operating weight - Long arm w/additional counterweight: | 10,251 lb (4 650 kg) |
| Engine - Emissions Certification: | Tier 4 Final |
| Performance Specs - Bucket rotation: | 195° 195° |
| Hydraulics - Travel motor: | Hydraulic drive units w/ axial pistons, Auto-Shift 2-speed transmission, and hydraulic released parking brake |
| Hydraulic Tank - Total system: | 17.2 gal (65 L) |
| Other Specifications - Sound Power External – LwA: | 96 dBA |
| Blade Specs - Blade type: | |
| Operator Environment - Display: | Coolant Temp; Hydraulic Oil Temp; Fuel Level; Machine hours; Time; Climate Control; Engine; RPM; Warning Indicators; Message area; DPF Regeneration request; Function Indicators. |
| Operating Weight - Cab operating weight - Short arm: | 9,590 lb (4 350 kg) |
| Dimensions - Track overall length: | 7 ft 5 in (2 260 mm) |
| Operating Weight - Canopy operating weight - Short arm: | 9,259 lb (4 200 kg) |
| Other Specifications - Sound Pressure Internal – ISO6396 – LpA: | Canopy 81 dBA | Cab 74 dBA |
| Dimensions - Tail swing radius - Standard counterweight: | 2 ft 10 in (875 mm) |
| Hydraulics - Aux. 2 – 2-way circuit: Max. Flow: | 10.6 gpm (40 L/min) |
| Blade Specs - Backfill blade height: | 1 ft 4 in (410 mm) |
| Other Specifications - Swing speed: | 10.5 RPM |
| Dimensions - Tail swing radius - Additional counterweight – heavy: | 3 ft 4 in (1 015 mm) |
| Drivetrain - Ground pressure: | Canopy 4.1 psi (0.29 kgf/cm2) | Cab 4.3 psi (0.3 kgf/cm2) |
| Dimensions - Minimum ground clearance: | 11.4 in (290 mm) |
| Blade Specs - Backfill blade width: | 5 ft 9 in (1 750 mm) |
| Performance Specs - Dig radius at groundline: | 17 ft 3 in (5 270 mm) | 18 ft 1 in (5 515 mm) |
| Operator Environment - General: | ROPS/FOPS Four Post Canopy: Adjustable Vinyl mechanical suspension seat w/ automatic weight control; ROPS/FOPS Enclosed Cab: Overhead opening front window, Sliding right side window, Heat & A/C – automatic climate control or manual w/ 6 adjustable vents, Radio & Speakers, Adjustable Cloth mechanical suspension seat w/ automatic weight control, Front wiper and washer, Hammer for emergency exit, Rear view mirrors – left and right; Tipping cab/canopy for servicing; Height adjustable arm rests; Controls cut-out lever (safety lever); Auto-idle/manual idle button; Engine rpm hand dial; 2 in (51 mm) Seat belt; Bottle/cup holder; Keyed locks common w/ starting key; Foot rests; 2- 12V auxiliary socket; USB type power socket 7 in LCD Control Panel; Display Navigation console. |
| Engine - Gross horsepower – SAE J1995 @ 2300 RPM: | 43.3 hp (32.3 kW) |
| Blade Specs - Backfill blade dig depth: | 1 ft 1 in (330 mm) |
| Drivetrain - Travel speeds – 2-speed travel w/ auto-shift: 1st: | 1.6 mph (2.6 kph) |
| Engine - Cooling: | Liquid |
| Performance Specs - Vertical straight wall dig depth: | 7 ft 10 in (2 380 mm) | 8 ft 7 in (2 620 mm) |
| Hydraulics - Total flow rate : | 28.3 + 5.9 gpm (107 + 22.3 L/min) |
| Engine - Minimum RPM: | 1,000 |
| Hydraulic Tank - Refill capacity: | 13.2 gal (50 L) |
| Service Capacities - Fuel tank: | 15.9 gal (60 L) |
| Other Specifications - Undercarriage - Track rollers: | 1 upper/5 lower each |
| Performance Specs - Overall reach height: | 16 ft 5 in (5 010 mm) | 17 ft 0 in (5 170 mm) |
| Dimensions - Tail swing overhang - Standard counterweight: | 0 in (0 mm) |
| Hydraulics - Main pumps: | Load Sensing closed center w/ “Flow Sharing” control valve |
| Other Specifications - Vibrations ISO 2631 – whole body : | 0.45 m/s2 |
| Performance Specs - Bucket digging force – ISO: | 9,667 lbf (43 kN) | 9,667 lbf (43 kN) |
