CASE CX30C

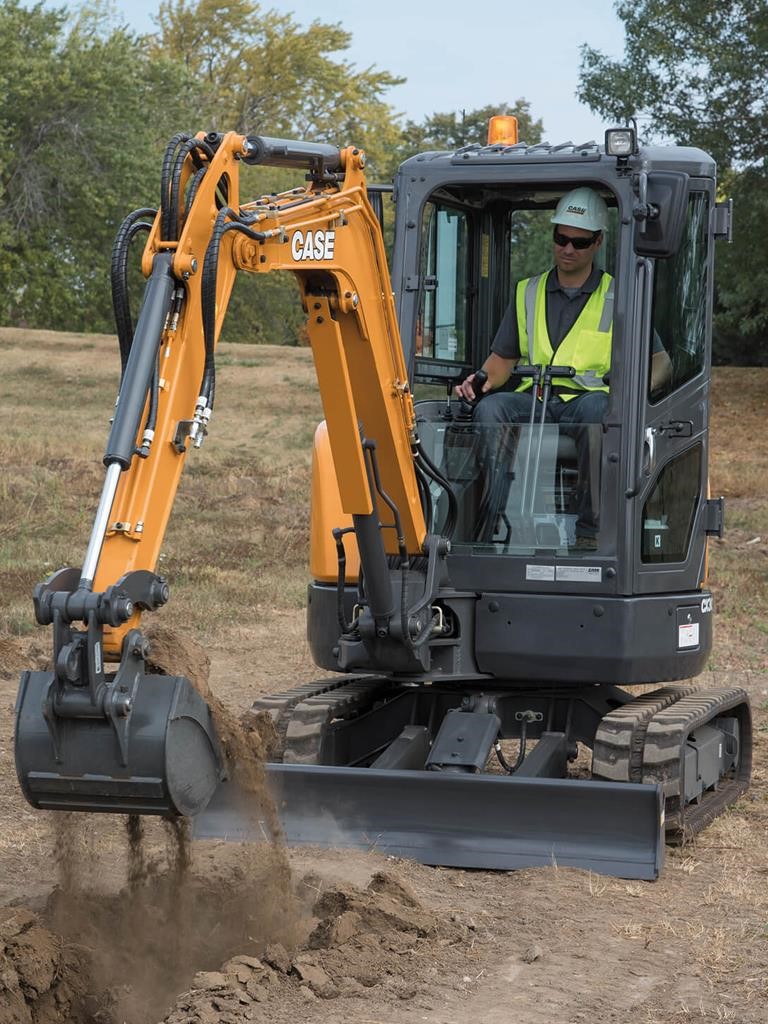

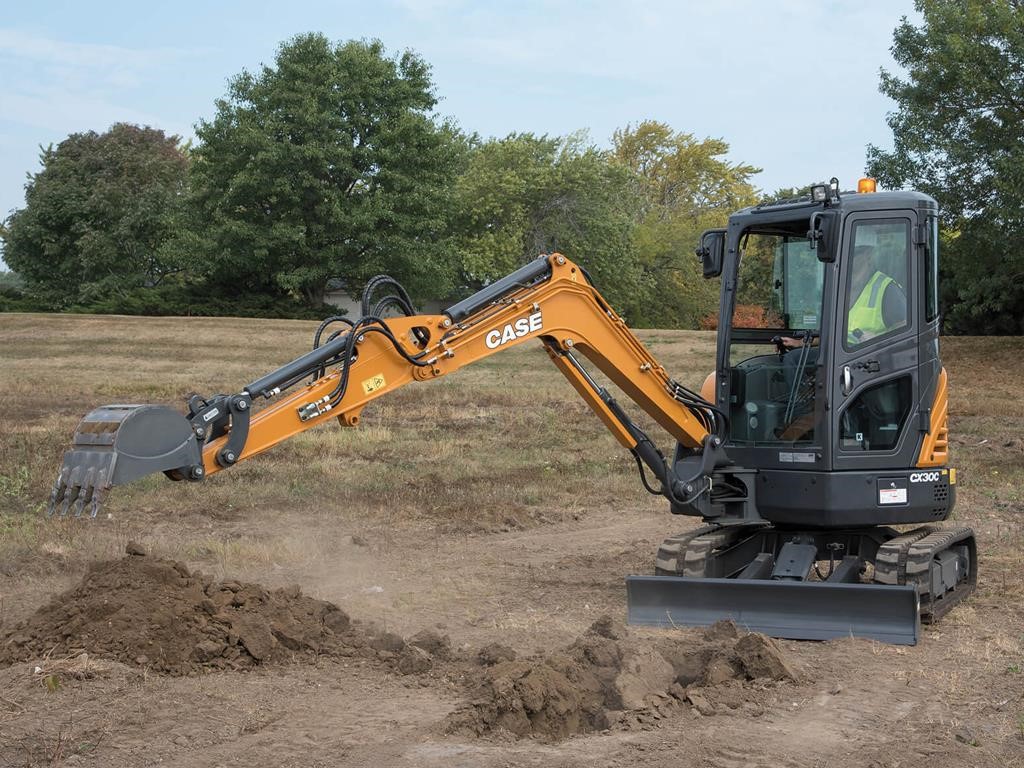

CASE CX30C − MINI EXCAVATOR
An operating weight of three metric tons, digging forces of more than 4,500 lb., yet still in a transport-friendly size that can be towed with a pickup truck* – compact power is what the CX30C mini excavator is all about. A zero-tailswing design, powered by a 25-hp Tier 4 Final engine, is complemented by performance-enhancing standard features such as proportional controls, Automatic 2-Speed Travel and an adjustable offset boom. It all comes together to give contractors the nimble strength needed for demanding, close-quarter jobs.
*Always check vehicle capacities and state or local laws for applicable roading regulations and requirements.
Diesel or electrified. Zero tailswing or conventional. Cab or canopy. Two-way, 4-way or six-way blades. 1.5 up to 6 metric tons. CASE now delivers one of the most comprehensive mini excavator lineups in the industry — delivering you swift, smooth and smart solutions designed to work on any jobsite profile. If you have a truck and a trailer and big dreams of compact equipment: there is a CASE mini excavator for you.
Whether it’s the all-new and powerful CX42D, the clean-running go anywhere flexibility of the all-new electrified CX15EV, or the tried and true CASE C Series lineup, CASE mini excavators are built to outwork the competition and deliver serious business gains for you.
FEATURES
PURPOSE-BUILT PRODUCTIVITY
As with all CASE C Series mini excavators, standard features include auxiliary hydraulics for attachment versatility, a push blade for backfilling and added stability in digging applications, an Automatic 2-Speed Travel system that adjusts torque as ground conditions change, and a control pattern selector that lets operators choose between SAE or ISO setups. A zero tailswing design prevents the counterweight from protruding past the tracks, and when combined with the adjustable boom that can be offset to the left or the right, this nimble machine is able to work against or around structures and obstacles. The CX30C is also available with a hydraulic thumb and additional counterweight.
COMMON-SENSE FUEL EFFICIENCY
The CX30C uses a fuel-efficient diesel engine, with a maintenance-free Tier 4 Final emissions solution. There’s no regeneration required, no exhaust filter to maintain or replace and no Diesel Exhaust Fluid (DEF) to add. Just get in and go.
CASE COMFORT AND VISIBILITY
The CX30C comes standard with a four-post ROPS/FOPS canopy or with a heated cab option that includes a radio and USB input. Both environments provide excellent visibility of the bucket, into the trench and all around the machine, and feature standard proportional controls for responsive attachment operation and an adjustable seat for added comfort.
SIMPLE SERVICEABILITY
Maintenance points are grouped together and easily accessible from the ground, as are main service items such as filters and fill ports. The CX30C also features spacious, wide-opening compartments for excellent access to the engine, control valves and radiator. It all helps you more easily maintain and maximize the performance of your machine.
STANDARD EQUIPMENT
ENGINE
• Kubota D1305 diesel
• Engine access under rear hood
• Glow plug starting aid
• Dry type air cleaner with restriction indicator
ELECTRICAL
• 12-volt electrical starting system
• Heavy-duty battery
• Battery Master Switch
• Key Start
• Anti-Theft-Engine starting passwords
• Front working light
• 12 V power outlet
• Horn
• Pre-wired – Telematics ready
HYDRAULICS
• Auxiliary hydraulics – single/bi-directional – and plumbing to arm
• Large hydraulic oil cooler
• Control pattern selector valve
• Cylinder rod protection covers – Backfill blade and Boom
TRACK DRIVE
• Rubber belt tracks
• Automatic 2-speed travel
• Fully hydrostatic drive system
• Sealed and lubricated track rollers
• Track tension adjustment – grease type
UPPER STRUCTURE
• Zero tail swing
• Standard arm: 3 ft 8 in (1.12 m)
• Bucket linkage with lifting hook
OPERATOR ENVIRONMENT
• ROPS/FOPS four post canopy
• ISO 6396:2008 sound pressure level LpA=73.5bB (A)
• Pilot operated hand controls and foot pedals
• Adjustable seat w/seat belt
• Armrests
• 12V socket
• Display includes: Engine oil pressure lamp; Water temperature lamp; Low fuel warning lamp; Battery charge lamp; Engine preheat lamp; Travel speed lamp; Air cleaner warning lamp; Hyd. quick coupler lock lamp; High travel speed lamp; Water temperature gauge; Fuel gauge; Hour meter
OTHER
• Swing boom – 75° left /50° right
• Hydraulic backfill blade
• Additional counterweight adds 286 lb (130 kg)
• Thumb bracket
WARRANTY
• Base warranty coverage: 2-Year/3,000-Hour
• Full Machine Limited Warranty
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
• Cab with Heat and Radio with USB and 2 speakers
• Travel alarm
OTHER
• Hydraulic quick coupler provision
• Hydraulic coupler
• Klac coupler
• Mechanical coupler
• Hydraulic hammer
• Beacon
• 2nd auxiliary circuit
• Hydraulic thumb
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
| Operator Environment - Display: | Engine oil pressure lamp; Water temperature lamp; Low fuel warning lamp; Battery charge lamp; Engine preheat lamp; Travel speed lamp; Air cleaner warning lamp; Hyd. quick coupler lock lamp; High travel speed lamp; Water temperature gauge; Fuel gauge and Hour meter. |
|---|---|
| Hydraulics - Swing motor: | Fixed displacement axial piston motor | Automatic spring applied hydraulic released brake |
| Hydraulics - Max. rated flow: | 2 x 7.3 + 5.2 gpm (2 x 27.6 + 19.6 L/min) |
| Hydraulics - System relief pressure - Standard: | 3,130 psi (216 bar) |
| Dimensions - Overall transport length: | 13 ft 9 in (4 180 mm) |
| Engine - Cylinders: | 3 |
| ropstype: | Open |
| Operating Weight - Note: | w/rubber tracks/no quick coupler/bucket/fluids/full of fuel/165 lb operator. |
| Service Capacities - Fuel tank: | 7.9 gal (30 L) |
| Operating Weight - Canopy operating weight - Long arm w/additional counterweight: | |
| Dimensions - Track gauge: | 4 ft 1 in (1 250 mm) |
| Engine - Net horsepower – SAE J1349 @ 2300 RPM: | 23.2 hp (17.3 kW) |
| Dimensions - Minimum ground clearance: | 11 in (290 mm) |
| Drivetrain - Ground pressure: | Canopy 3.8 psi (0.27 kgf/cm²) | Cab 4.1 psi (0.29 kgf/cm²) |
| Operating Weight - Cab operating weight - Short arm: | |
| Dimensions - Center to center – idler to sprocket: | 4 ft 11 in (1 490 mm) |
| Dimensions - Tail swing radius - Additional counterweight: | 2 ft 10 in (875 mm) |
| Performance Specs - Bucket rotation: | 177° |
| Drivetrain - Maximum traction force: | 4,800 lb (2 177 kg) |
| Drivetrain - Travel speed - 2nd: | 2.7 mph (4.3 kph) |
| Electrical - Battery: | 1 x 12 V x 80 Ah | 630 CCA |
| Engine - Emissions Certification: | Tier 4 Final |
| Other Specifications - Undercarriage - Track rollers: | 1 upper/4 lower each |
| Dimensions - Width of upper structure: | 4 ft 10 in (1 485 mm) |
| Backfill Blade Rise Above Ground - Backfill blade width: | 5 ft 1 in (1 550 mm) |
| Electrical - Voltage: | 12 Volts |
| Hydraulics - Auxiliary flow: | |
| Other Specifications - Swing speed: | 0 – 9.1 RPM |
| Engine - Fuel injection: | Mechanical |
| Performance Specs - Dump height: | 9 ft 7 in (2 930 mm) |
| Hydraulics - System relief pressure - Overload relief valve pressure: | 3,410 psi (235 bar) |
| Hydraulics - Travel motor: | Variable displacement axial piston | 2-stage planetary | Automatic spring applied hydraulic released brake |
| Performance Specs - Arm digging force – ISO: | 3,080 lbf (1 397 kgf/13.7 kN) |
| Engine - Gross horsepower – SAE J1995 @ 2300 RPM: | 24.8 hp (18.5 kW) |
| Hydraulics - Main pumps: | Variable displacement tandem axial piston pump + gear pump |
| Drivetrain - Travel speed - 1st: | 1.5 mph (2.4 kph) |
| Operator Environment - General: | ROPS/FOPS four post canopy; ISO 6396: 2008 sound pressure level LpA=73.5bB (A); Pilot operated hand controls and foot pedals; Adjustable seat w/seat belt; Arm rests; 12V socket. |
| Operating Weight - Canopy operating weight: | 6,306 lb (2 860 kg) |
| Dimensions - Track overall width - Retracted: | |
| Performance Specs - Vertical straight wall dig depth: | 6 ft 10 in (2 085 mm) |
| Operating Weight - Cab operating weight - Long arm w/additional counterweight: | |
| Hydraulic Tank - Refill capacity: | 7.1 gal (27 L) |
| Hydraulics - Control valves: | Pilot control for boom, arm, bucket, and swing | Mechanical control for left/right travel and backfill blade |
| Hydraulics - Pilot control hydraulic system - Maximum capacity: | 2.7 gpm (10.4 L/min) |
| Hydraulics - Max rated flow x 2: | |
| Other Specifications - Boom - Length: | 6 ft 8 in (2.03 m) |
| Performance Specs - Maximum dig radius: | 15 ft 3 in (4 650 mm) |
| Operating Weight - Cab operating weight: | 6,636 lb (3 010 kg) |
| Dimensions - Track overall width: | 5 ft 1 in (1 550 mm) |
| Engine - Cooling: | Water-cooled |
| Performance Specs - Maximum dig depth: | 8 ft 2 in (2 500 mm) |
| Hydraulics - Pilot control hydraulic system - Pump: | Gear Pump |
| Engine - Maximum Engine Torque @ 1600 RPM: | 60.0 lb ft (81.4 Nm) |
| Dimensions - Tail swing radius - Standard counterweight: | 2 ft 6 in (750 mm) |
| Dimensions - Upper structure ground clearance: | 1 ft 8 in (510 mm) |
| Engine - Model: | Kubota D1305 |
| Engine - Fuel: | Diesel |
| Dimensions - Arm: | 3 ft 8 in (1.12 m) Arm |
| Service Capacities - Radiator: | 1.3 gal (5 L) |
| Hydraulics - Auxiliary flow @ 3,133 psi (216 bar) - Secondary: | 12.2 gpm (46 L/min) |
| Other Specifications - Boom - Swing: | 75° left/50° right |
| Performance Specs - Overall reach height: | 14 ft 0 in (4 270 mm) |
| Service Capacities - Engine oil w/ filter change: | 1.6 gal (5.9 L) |
| Backfill Blade Rise Above Ground - Backfill blade height: | 1 ft 1 in (330 mm) |
| Other Specifications - Arm - Standard length: | 3 ft 8 in (1.12 m) |
| Dimensions - Track shoe width: | 11.8 in (300 mm) |
| Dimensions - Tail swing overhang - Standard counterweight: | 0 in (0 mm) |
| Performance Specs - Dig radius at groundline: | 14 ft 10 in (4 515 mm) |
| Hydraulic Tank - Total system: | 14.5 gal (55 L) |
| Dimensions - Track overall width - Extended: | |
| Dimensions - Boom swing: | 75° left /50° right |
| Dimensions - Overall height: | 8 ft 2 in (2 500 mm) |
| Dimensions - Operating weight: | |
| Drivetrain - Gradeability: | 30° (58%) |
| Performance Specs - Arm: | 3 ft 8 in (1.12 m) Arm |
| Dimensions - Track overall length: | 6 ft 6 in (1 970 mm) |
| Hydraulics - Auxiliary flow @ 3,133 psi (216 bar) - Primary: | 12.2 gpm (46 L/min) |
| Performance Specs - Bucket digging force – ISO: | 4,520 lbf (2 050 kgf/20.1 kN) |
| Dimensions - Tail swing overhang - Additional counterweight: | 5 in (125 mm) |
| Electrical - Alternator rating: | 40 amp |
| Operating Weight - Canopy operating weight - Short arm: | |
| Backfill Blade Rise Above Ground - Backfill blade rise above ground: | 1 ft 3 in (370 mm) |
| Backfill Blade Rise Above Ground - Backfill blade dig depth: | 1 ft 6 in (450 mm) |
| Engine - Displacement: | 77.0in³ (1 261 cc) |
