VENTRAC RV602

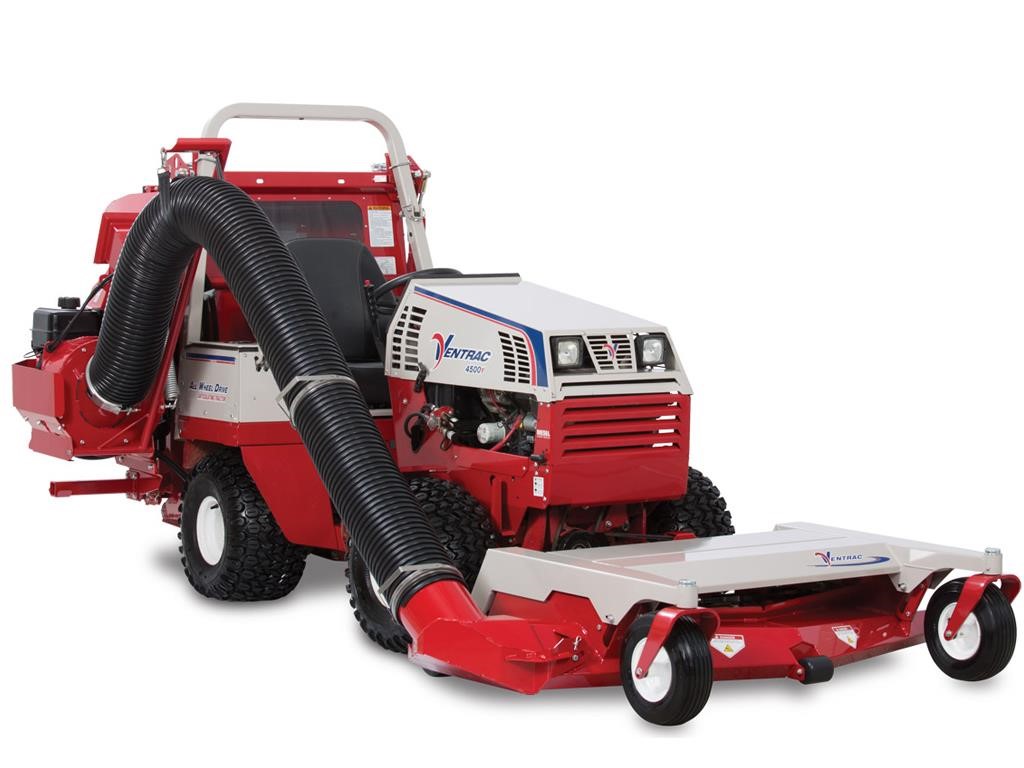

VENTRAC – RV602 – VACUUM COLLECTION SYSTEM

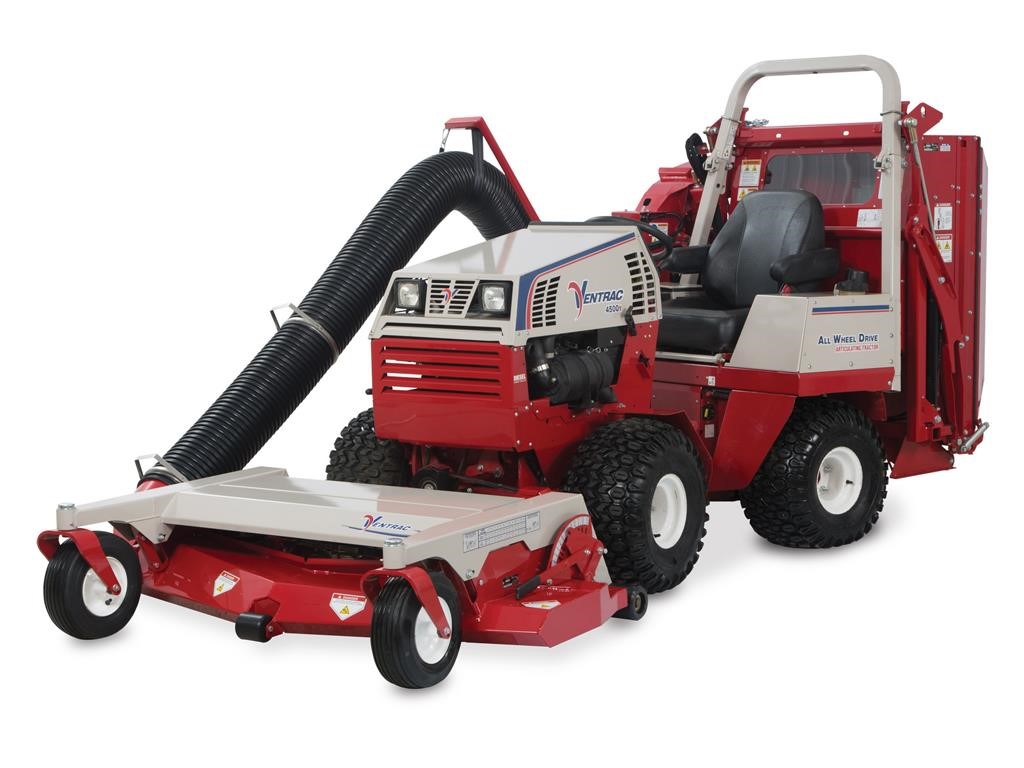

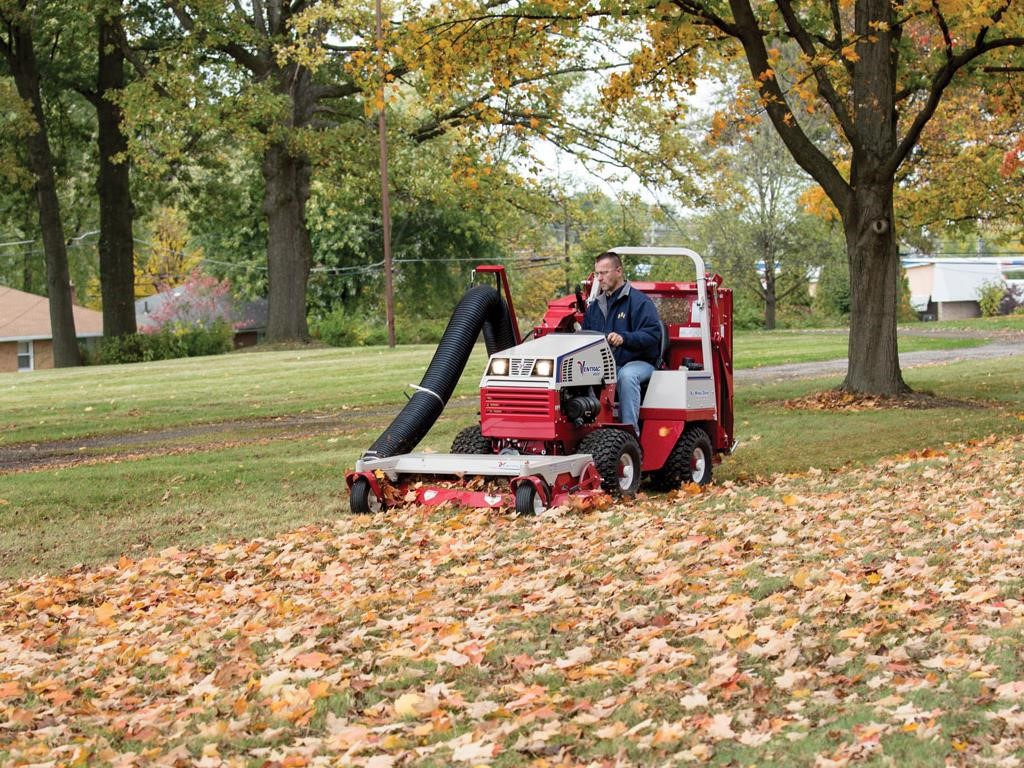

The Ventrac RV602 VACUUM COLLECTION SYSTEM* is for grass and leaf collection, and it consists of three primary components

• The Bin Assembly – mounts to the rear of 4000 series tractors.

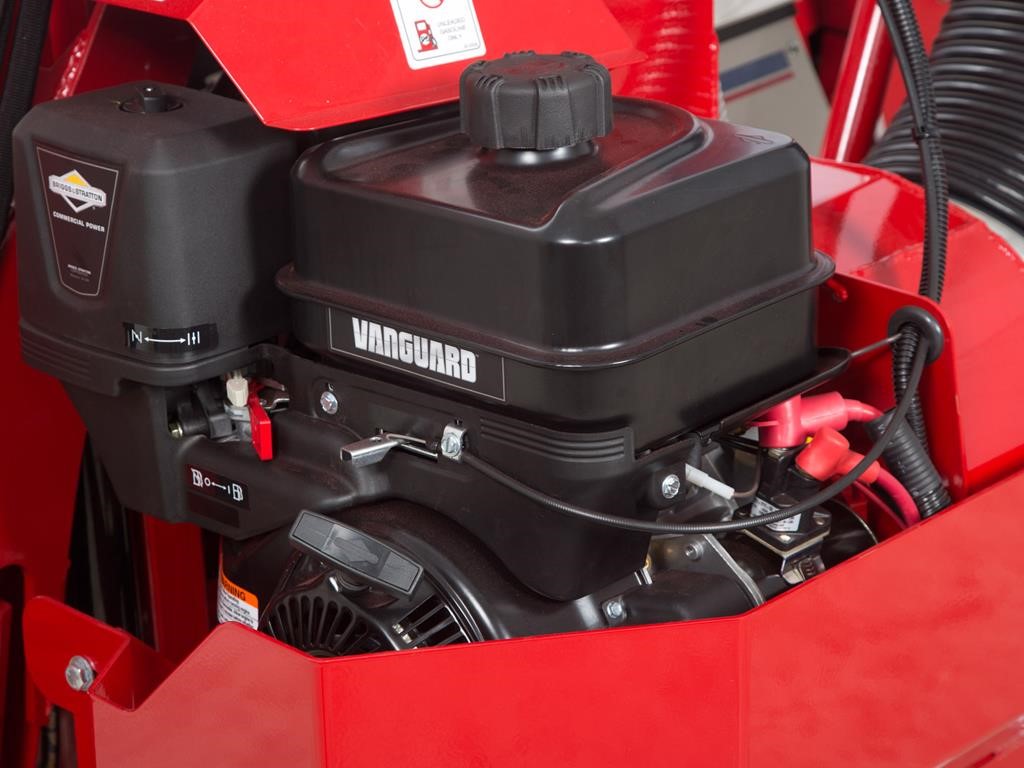

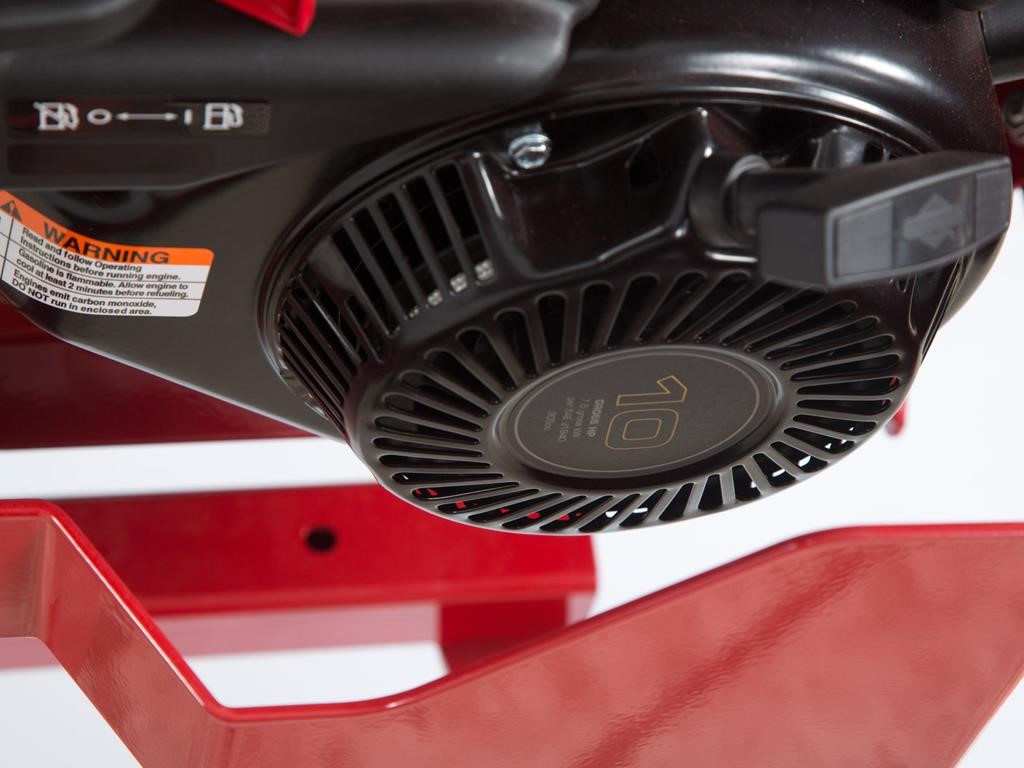

• The Suction/Blower System – powered by a 10HP Vanguard engine with electric start for efficient pickup and superior performance

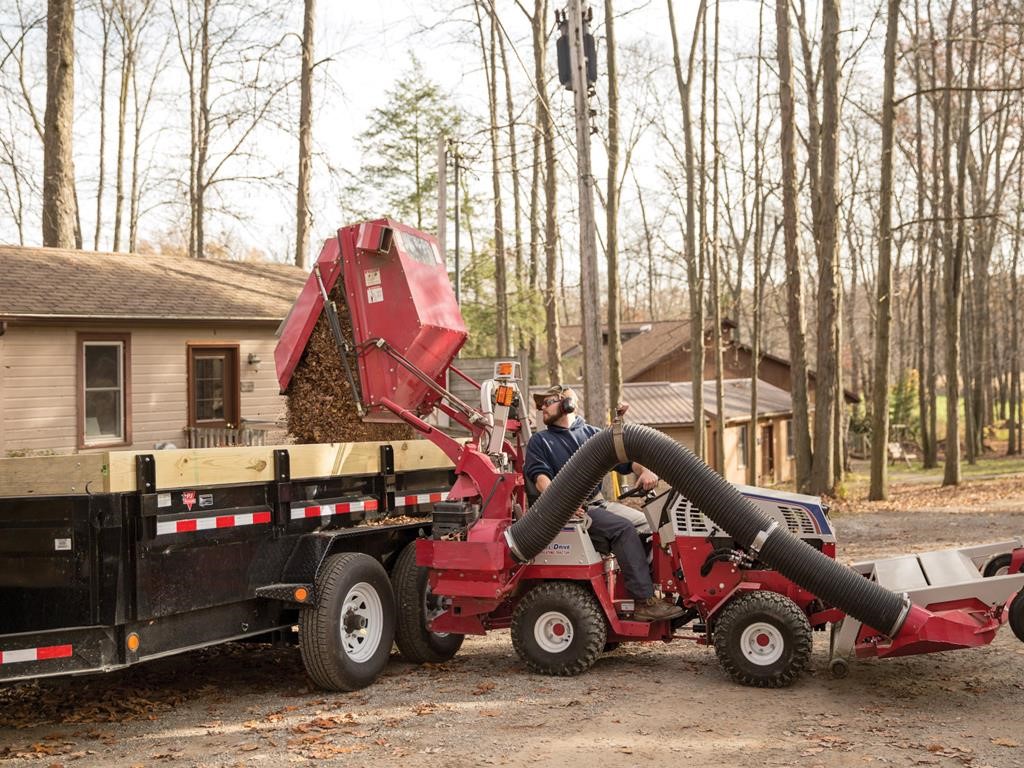

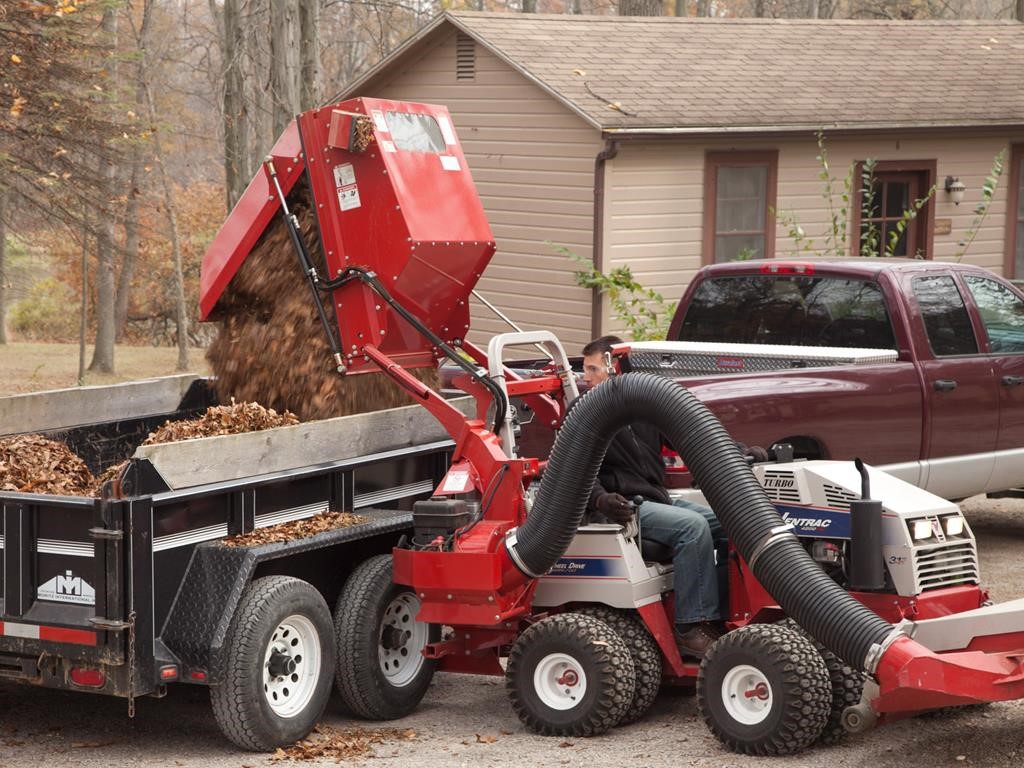

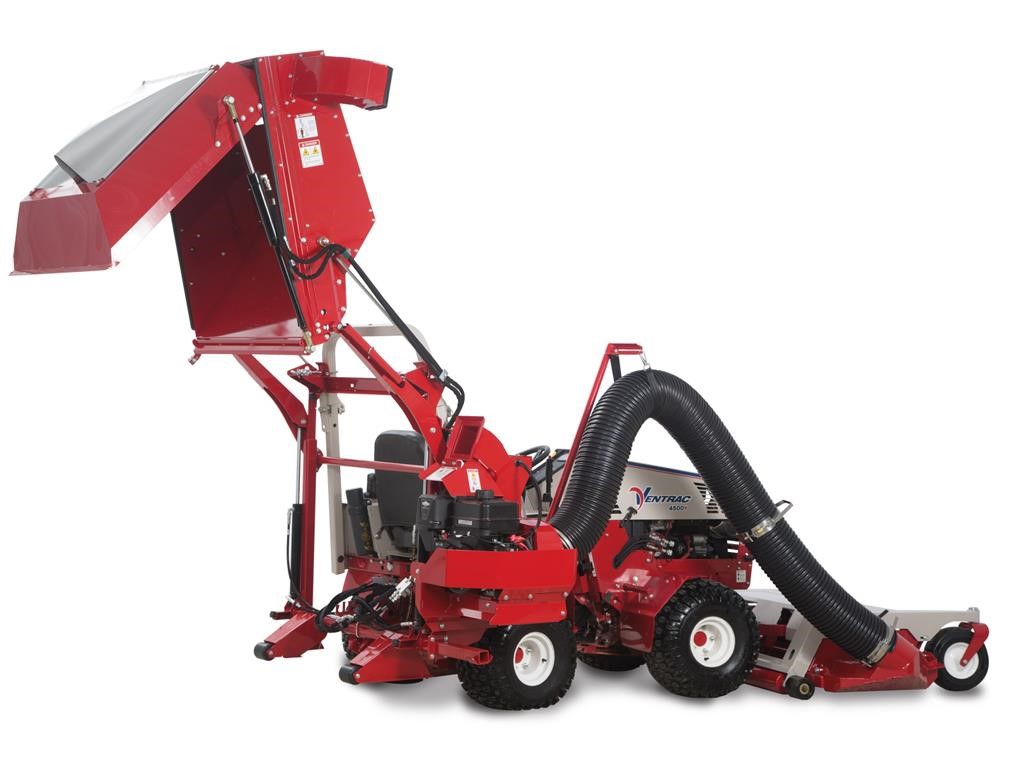

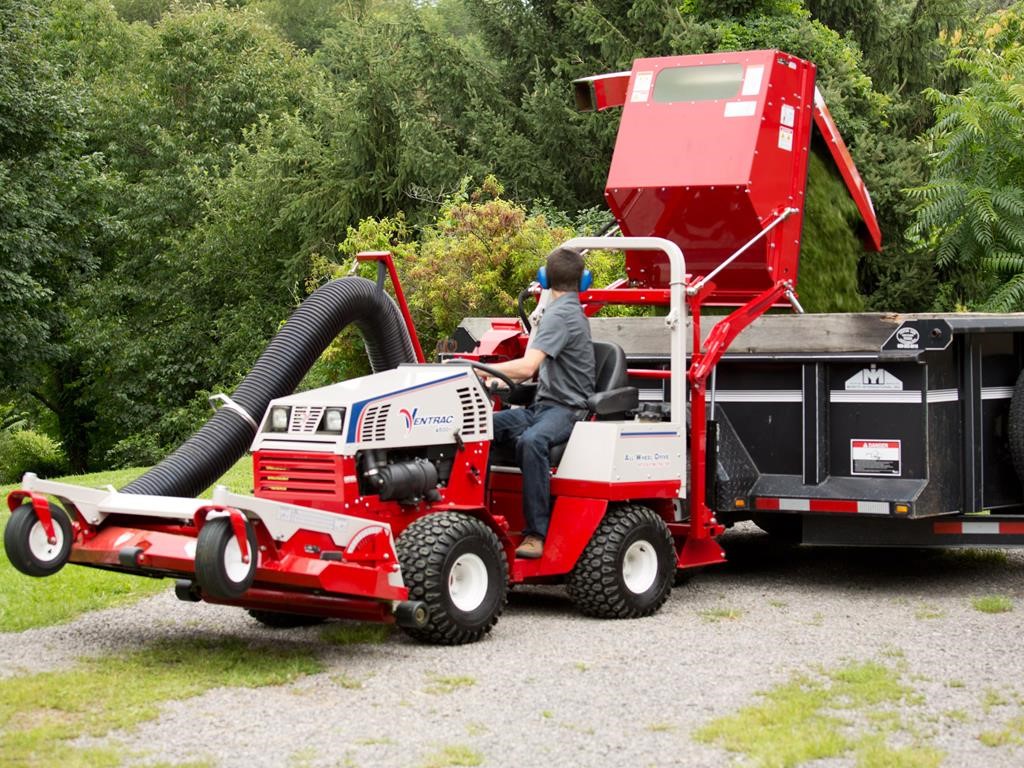

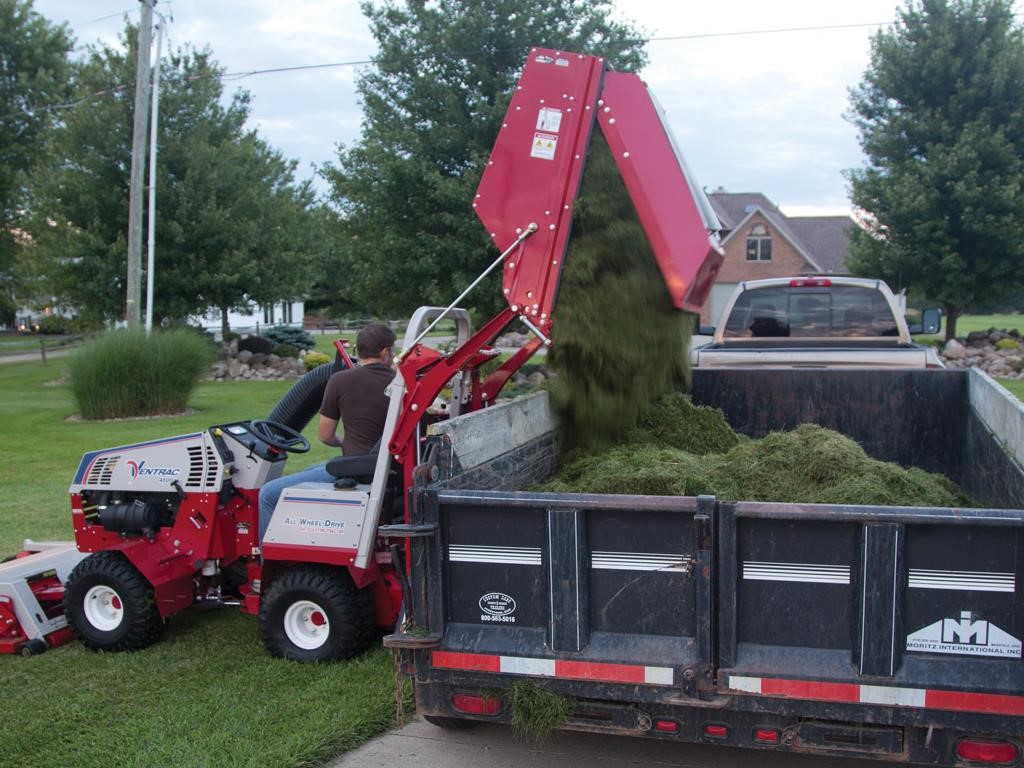

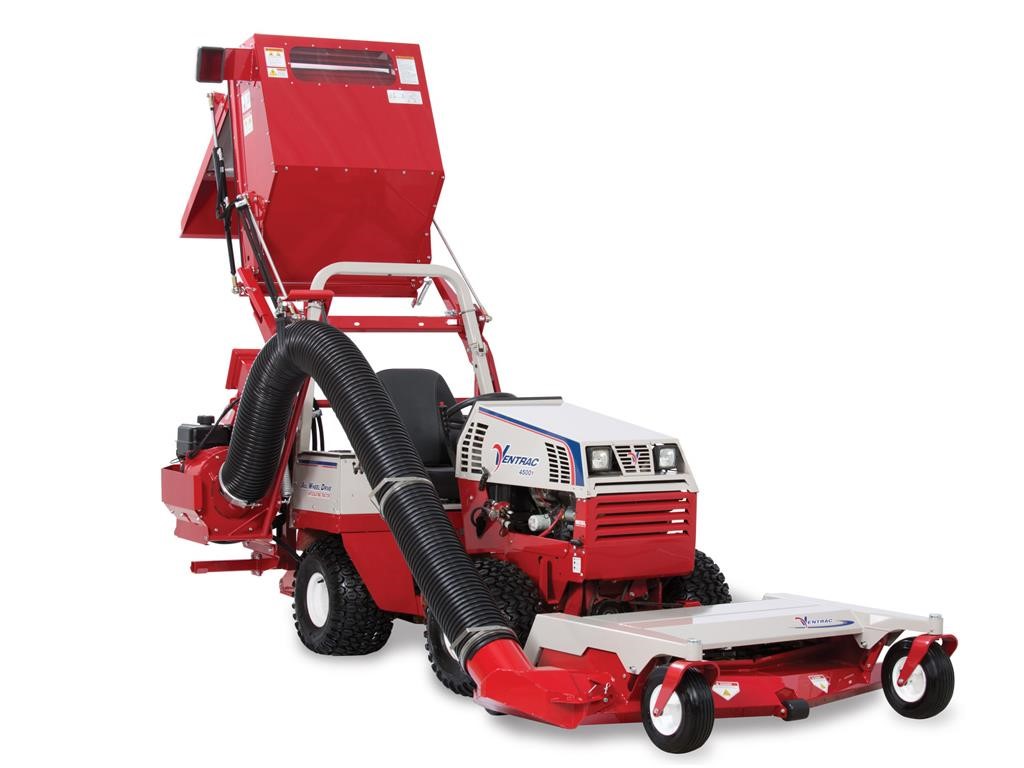

• High Lift Mechanism – hydraulically raise the collection bin up to five feet and dump to unload the contents into a garbage bin or trailer.

The vac requires a docking station when dismounted. A storage stand with caster wheels is used when it is to be parked or moved around on a level floor. When loaded onto truck, a rigid base assembly is anchored to the floor that holds the vac firmly for transport.

FEATURES

• All steel construction

• Hydraulic lift and dump

• Electric start engine

• Collection boot is quickly and easily attached to the mower deck

• Handle on hose and hose end for ease of vacuuming flower beds, etc.

• Hose clamp for attaching hose to collection boot is an over-center clamp for ease of connecting

• Storage stands, complete with caster wheels, for ease of attaching or storage

OPTIONAL ACCESSORY

• Docking Station

*For optimal performance, use with a 60″ deck.

COMPATIBILITY NOTES

The RV602 collection vacuum can not be used on a power unit equipped with a Ventrac cab or canopy.

The RV602 collection vacuum can not be used on a 4500Z power unit equipped with a propane kit.

The RV602 collection vacuum can not be used on a 4500 power unit equipped with directional/hazard lights.

Recommended for use with 4100 power units serial number 4100-*EC1501 and higher, 4200 power units serial number 4200-*EB2555 and higher, and all 4500 power units.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
