VENTRAC HQ682

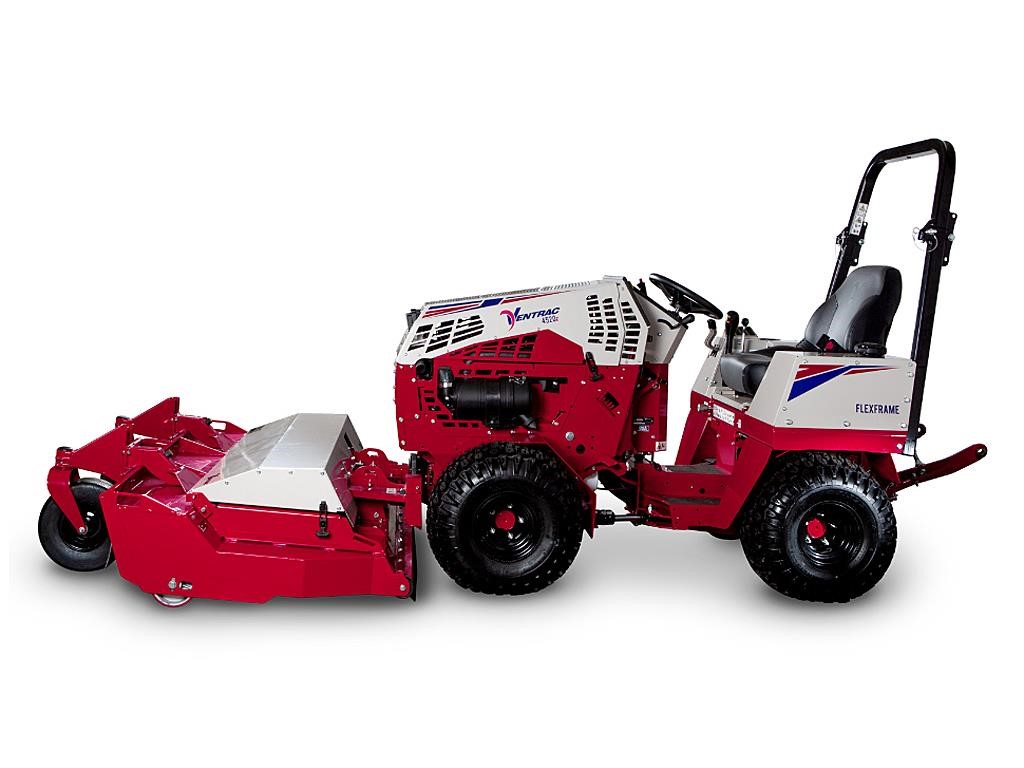

VENTRAC – HQ682 – TOUGH CUT BRUSH MOWER
The HQ682 Tough Cut Mower is the mower of choice for mowing high grass, thick weeds, and heavy brush. A large baffled front opening assists in directing materials into the deck and helps hinder debris from escaping. Three heavy-duty blades counter rotate to cut and deposit waste evenly without windrowing. Capable of tackling saplings and large thorn bushes, the Tough Cut makes short work out of
overgrown thickets.

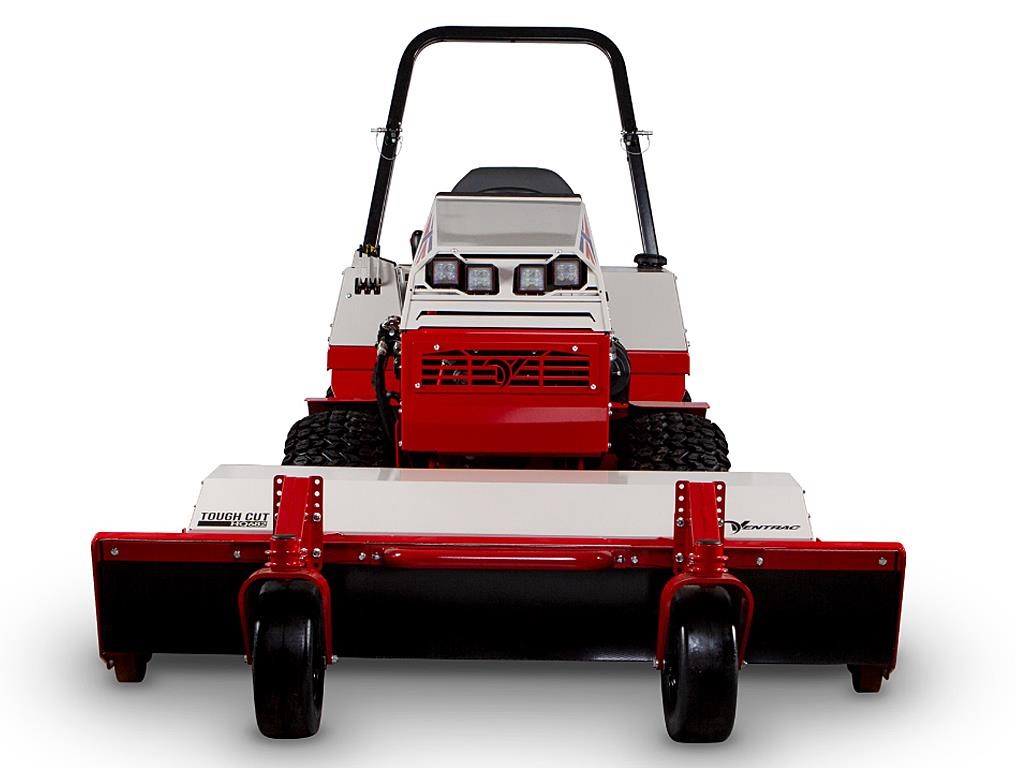

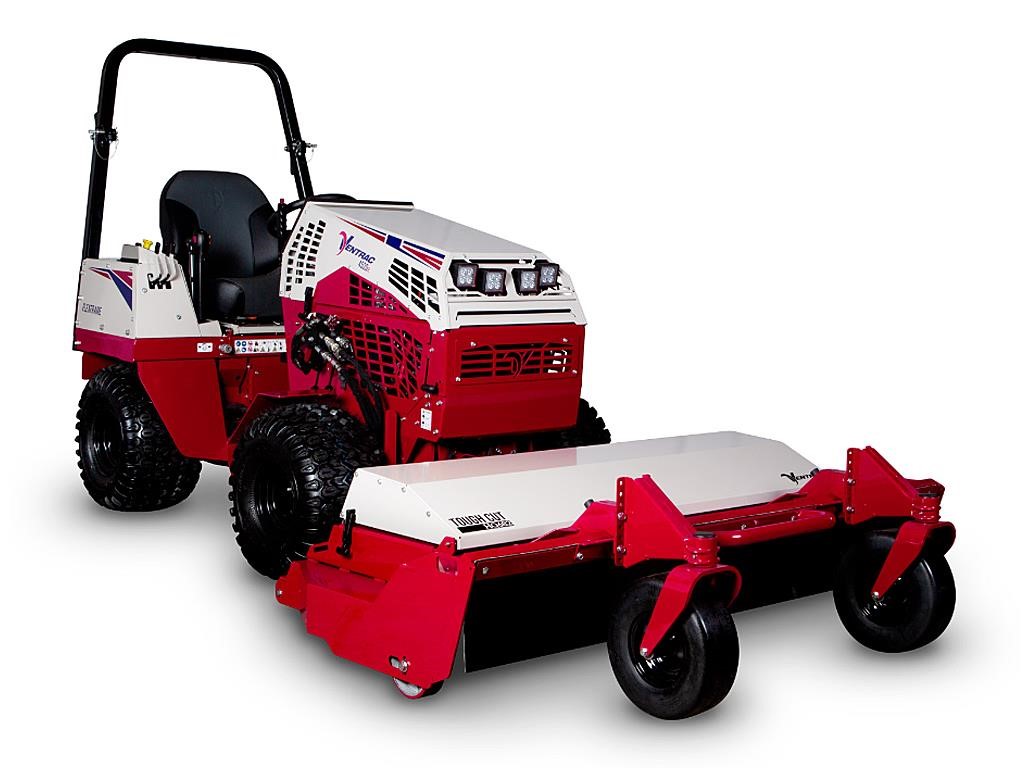

The HQ682 comes with front caster wheels as a standard feature. Four tie-down points have been added for secure trailering.

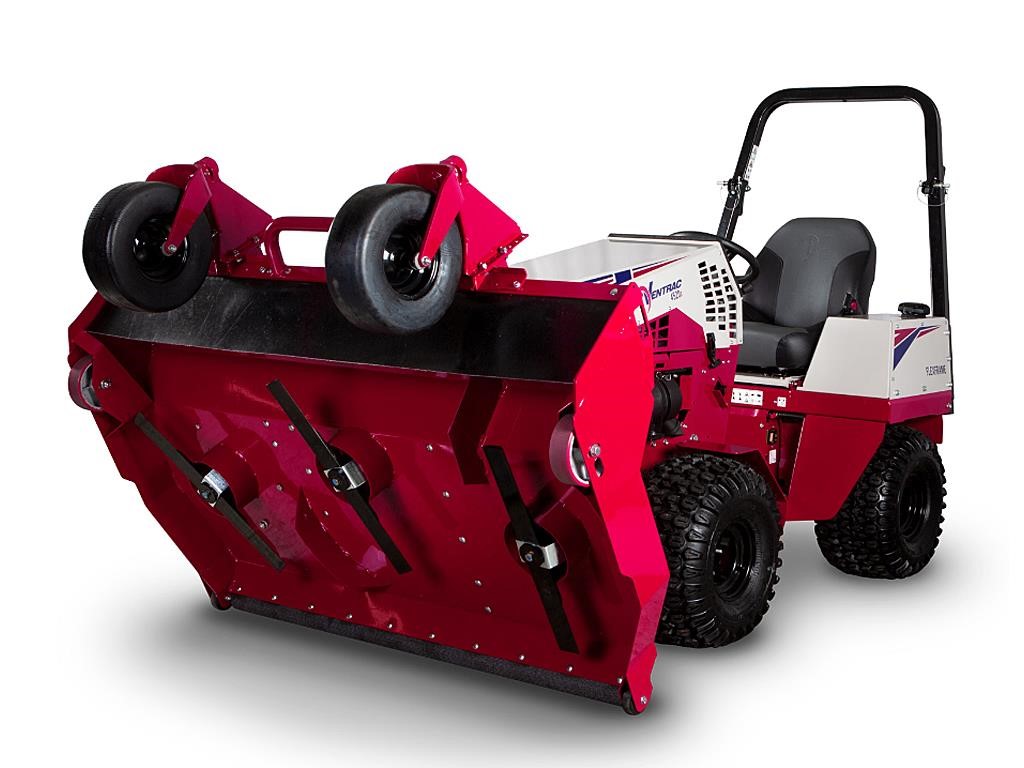

The Tough Cut has three adjustable cutting heights: 3, 3 5/8, and 4¼ inches. Easy servicing of belts and pulleys is provided by the hinged and removable cover. The manual tilt-up deck provides access under the deck. A hydraulic flip-up kit is available as an option for easier access to the underside of the deck for cleaning and blade replacement.
STANDARD FEATURES
• Rear Adjustment for Deck Pitch
• Heavy Duty Blades
• Tilt-Up Deck
• Ventrac Mount System
• Front Castor Wheels
OPTIONAL ACCESSORIES
• Flip Up Kit
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Technical Specifications
| Width of Cut | 68 inches (173 cm) |
|---|---|
| Spindles/Pulleys | Field Serviceable w/ Top Grease Fittings |
| Cutting Height (with Swivel Wheels Removed) | 3 - 4 1⁄2 in |
| Stock Code | 39.55104 |
| Deck Construction | Multi Gauge, 5/16 inch (7.9 mm) at spindle mount |
| Number of Blades/Type | 3 blades | 5/16 x 21/2 x 23 inches (79mm x 6.35cm x 58cm) |
| Cutting Height | 3 1⁄2 - 7 in |
Dimensions
| Overall Width | 69 inches (175 cm) |
|---|---|
| Weight | 475 lbs (215.5 kg) |
| Overall Height | 22 inches (56 cm) |
| Length | 59 inches (150 cm) |
