VENTRAC MJ840

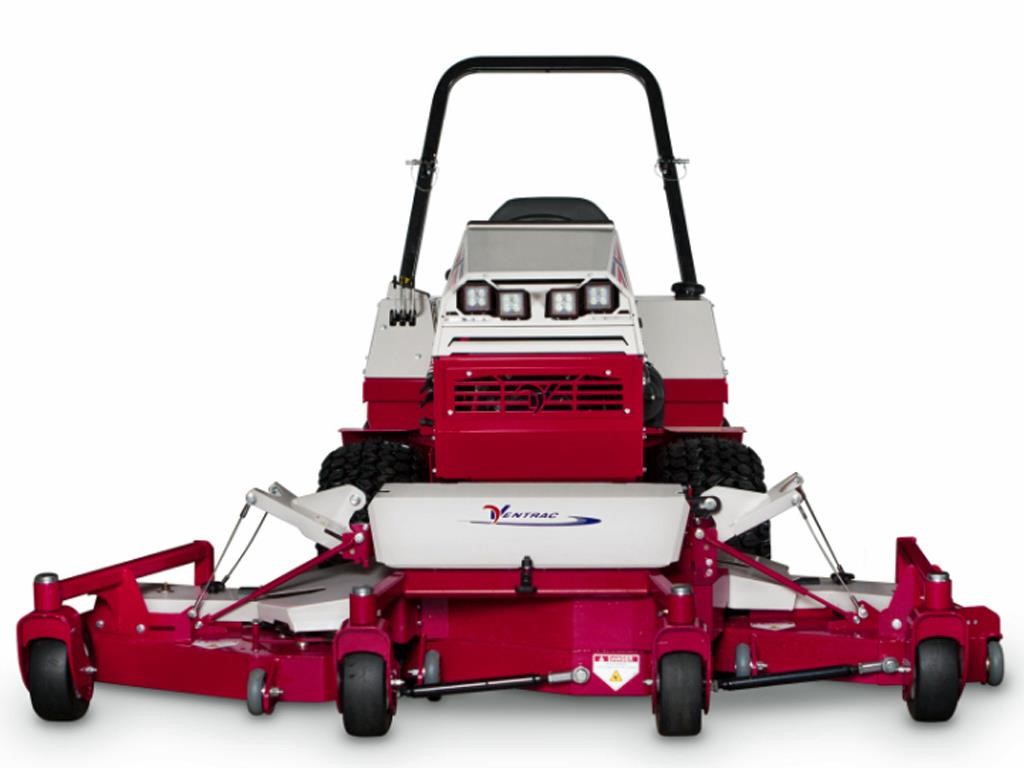

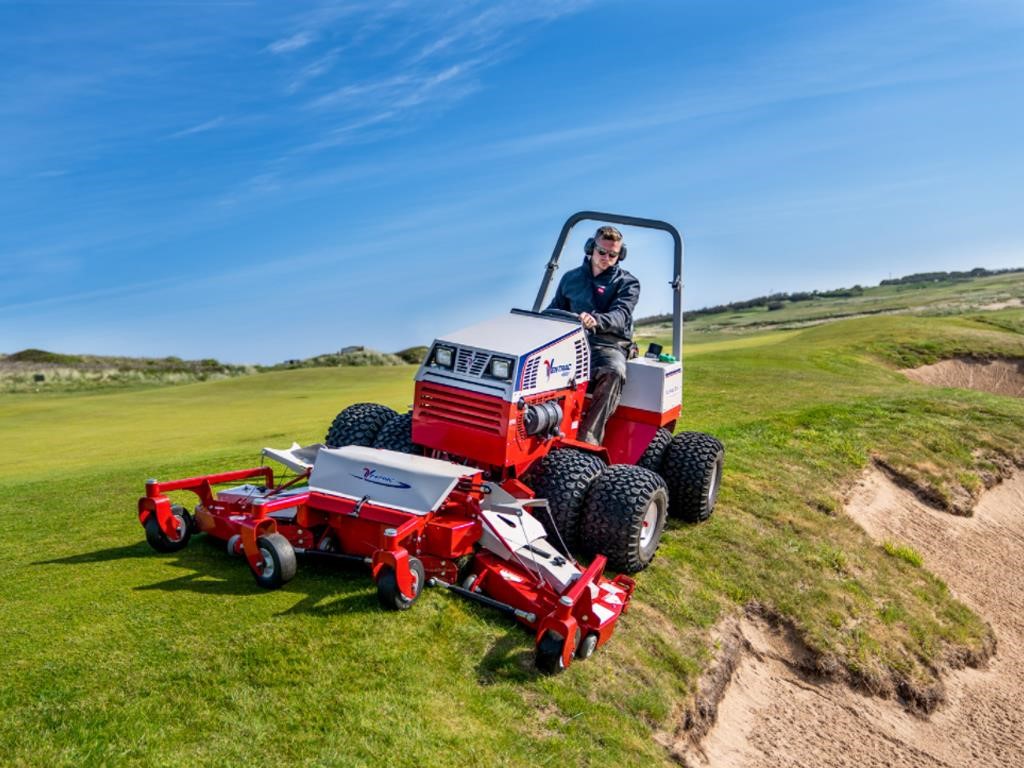

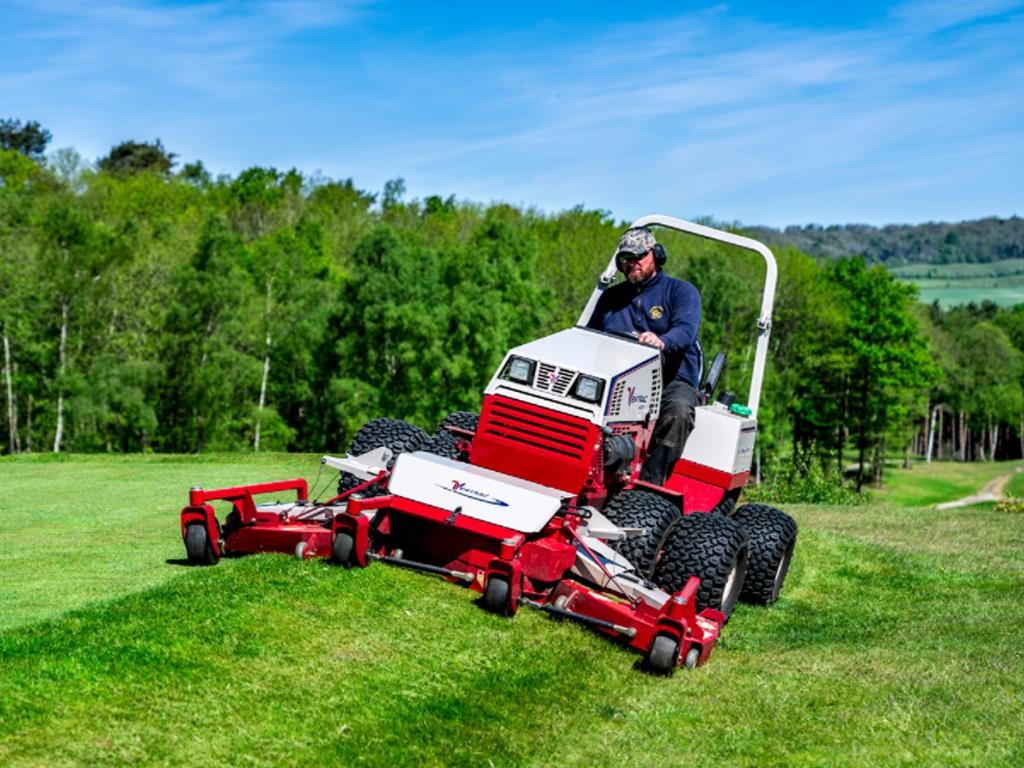

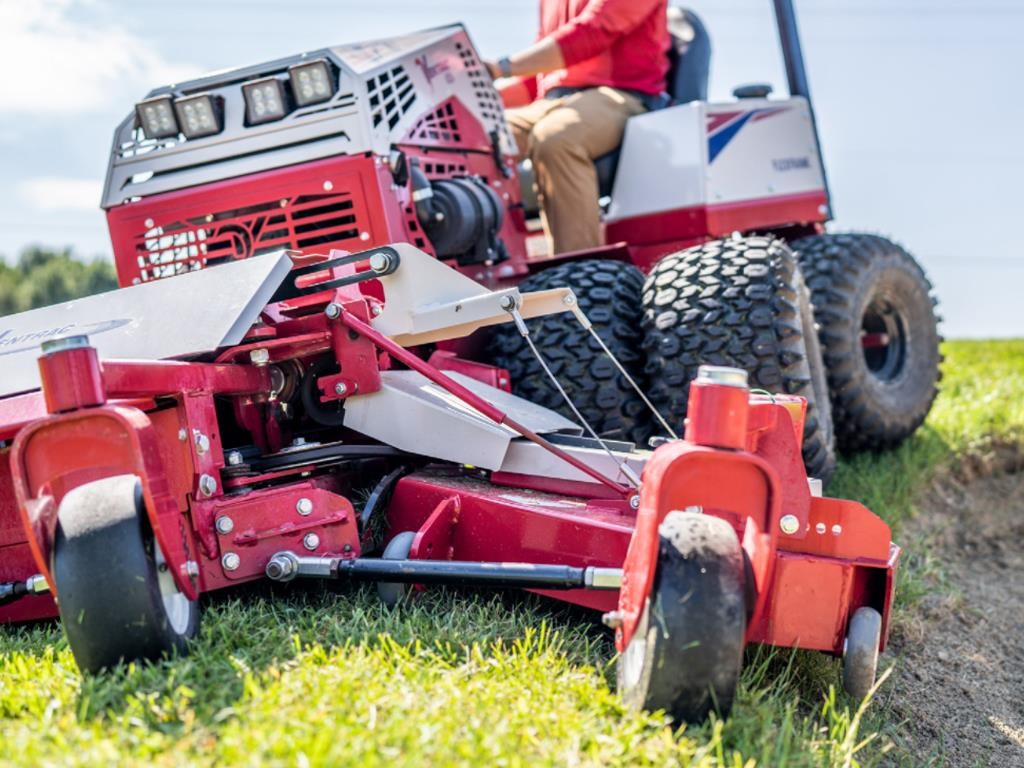

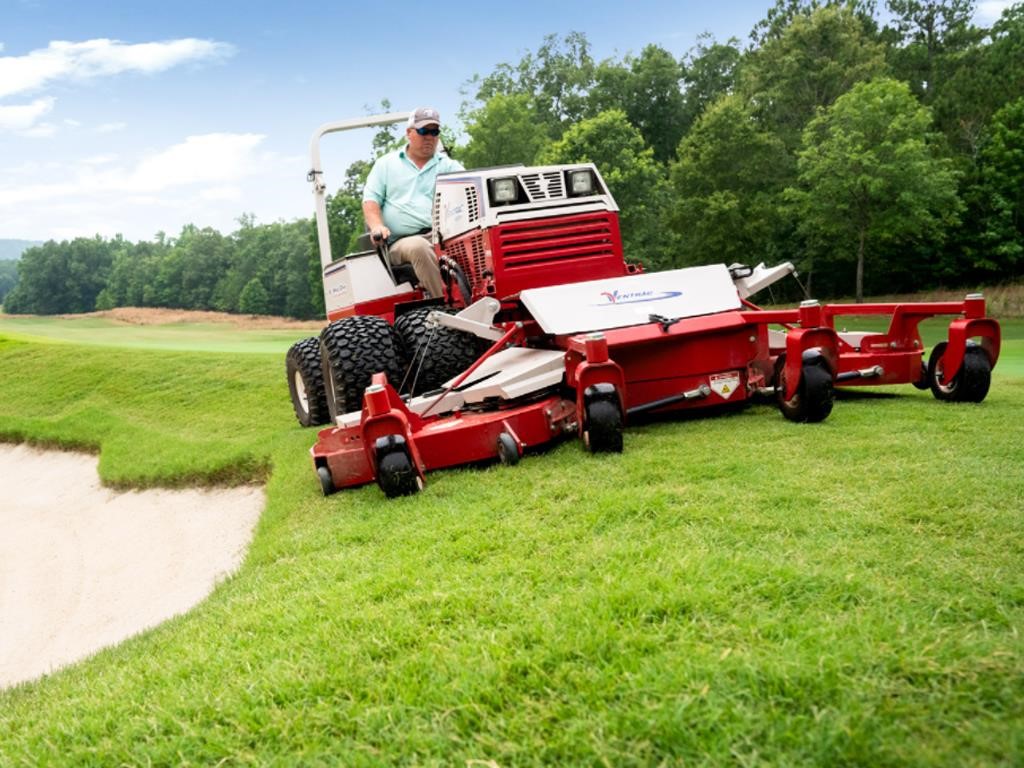

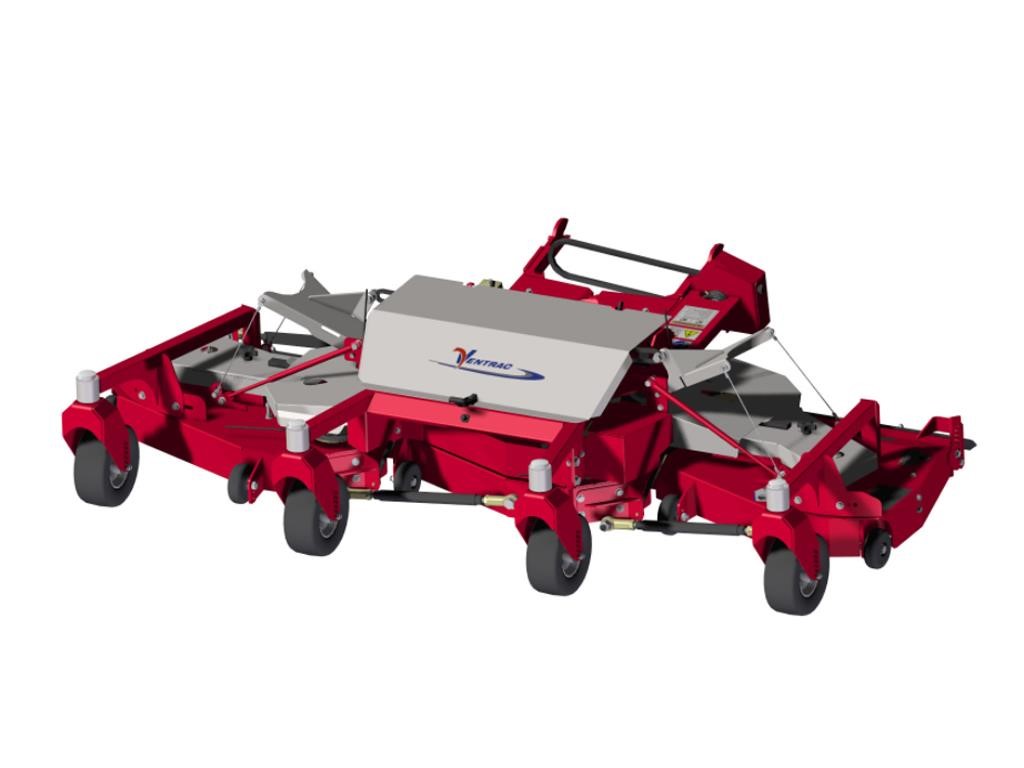

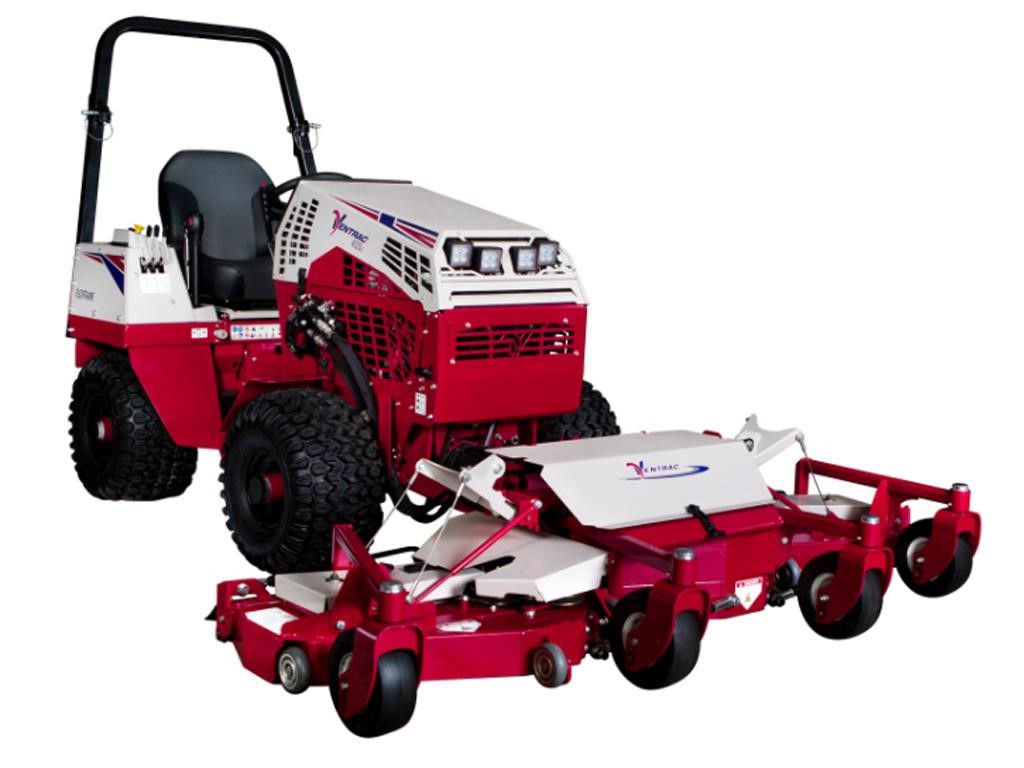

VENTRAC – MJ840 – CONTOUR MOWER
Ventrac’s Contour Mower features a 83 inch working width making quick work of precision mowing on high end properties. Three decks float independently and follow the contour of the terrain with up to 40 degrees of motion for each side deck. The MJ840 also features full rear rollers for even cutting and striping, rear discharge, and a flip-up deck design.
FEATURES
•40 degrees of motion for side decks
•Front-to-back motion for ground variation
•Rear discharge
•Full rear roller for even cutting and striping
•Front rollers for anti-scalping
•Belt drive with gearbox for
mechanical efficiency & reliability
•Flip-up deck design
•Ventrac Mount System
OPTIONAL ACCESSORIES
•Mulching Kit
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Technical Specifications
| Stock Code | 39.55160 |
|---|---|
| Cutting Height Range | 3/4 inch | 20 mm to 3.5 inch | 89 mm |
| Width of Cut | 83 inches | 211 cm |
| Deck Suspension | 4 front flat-free tires with 3 full rear rollers |
| Anti Scalp Rollers | 5, 3 position adjustable |
| Cutting Positions | 12 |
| Deck Type | Front mount | 3 deck system |
| Spindles/Pulleys | Field serviceable with top grease fittings |
| Discharge Type | Rear discharge with flexible deflector |
| Number of blades/type | (3) 15” | 38cm right hand low lift / (3) 15” | 38cm left hand low lift |
| Cutting Height Adjustment | Multi-point | 1/4-inch increments |
| Deck Construction | Multi-gauge construction |
Dimensions
| Width | 84 inches | 213 cm |
|---|---|
| Length | 52 inches | 132 cm |
| Weight | 584 lbs | 265 kg |
| Shipping Weight | 680 lbs | 308 kg |
| Height | 22 inches | 56 cm |
| Shipping Dimensions (LWH) | 89 x 57 x 26 inches | 266 x 145 x 66 cm |
