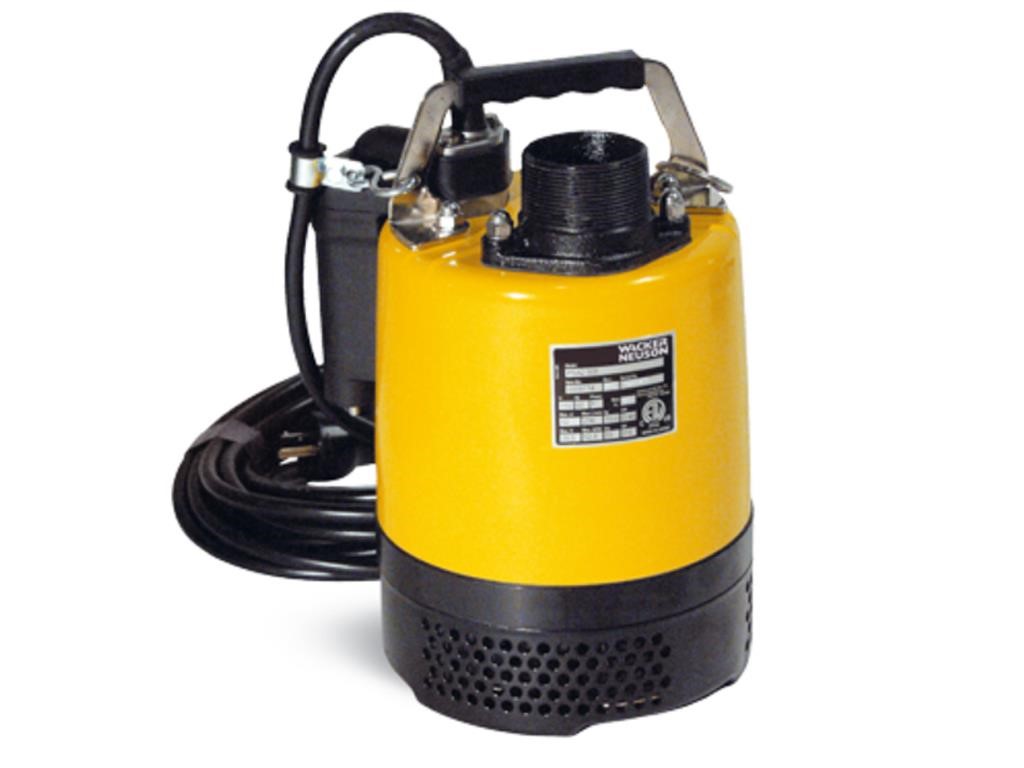

WACKER NEUSON PSA2 500
WACKER NEUSON SUBMERSIBLE PUMPS — PSA2 500
SUBMERSIBLE PUMPS: FLEXIBLE AND DEPENDABLE WATER REMOVAL
Designed for a variety of applications, Wacker Neuson’s large selection of submersible pumps allows you to easily remove water from construction sites, ponds and flooded areas. These single-phase, electric pumps are a cost-effective means to move water containing some solids.
SUBMERSIBLE PUMPS OF THE PSA SERIES — AUTOMATIC, LIGHTWEIGHT PUMPS, PERFECT FOR ANY TASK
No matter how large or small the job, Wacker Neuson’s single-phase submersible pumps offer the versatility and durability contractors need for light dewatering on the job site.
PSA2 500 AND PSA2 800
High performance submersible pump to handle solids up to 0.4 in for fast and reliable dewatering.
FEATURES
LIGHTWEIGHT, COMPACT DESIGN
• The pump is lightweight and small which makes it perfect for any application.
• Easy to store and transport.
BUILT-IN THERMAL PROTECTION PREVENTS MOTOR DAMAGE
• Built-in thermal protection prevents motor damage due to impeller blockage, reducing service repairs.
• Motor protection eliminates worry during operation.
DURABLE MECHANICAL SEALS
• Silicon carbide-faced double mechanical seals run in an isolated oil-filled cavity, allowing for seal lubrications, cooling and overall motor protection.
HEAVY-DUTY STRAIN RELIEF POWER CORD
• Robust power cord stands up to the rigors of the construction site.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Technical Data
| Operating weight | 22.0 lb |
|---|---|
| Intake-/Pressure socket-dia. | |
| Height for shipping | 9.0" |
| Length for shipping | 14.3" |
| Length | 8.7" |
| Cable cross-section | |
| Flow rate max | 62.3 gal/mi |
| Solid diameter max. | 0.2" |
| Delivery height max. | 39.4' |
| Nominal frequency | 60.0 Hz |
| Length Cable | 32.8' |
| Width | 7.3" |
| Height | 12.0" |
| Cable definition | |
| Nominal current | 6.1 A |
| Nominal voltage | 110.0 V |
| Temperature limit borrowed liquid | |
| Shipping weight | 30.0 lb |
| Nominal Engine speed | 3,270.0 1/min |
| Effective power | 0.48 KW |
| Width for shipping | 10.2" |
