WACKER NEUSON PS3 2200

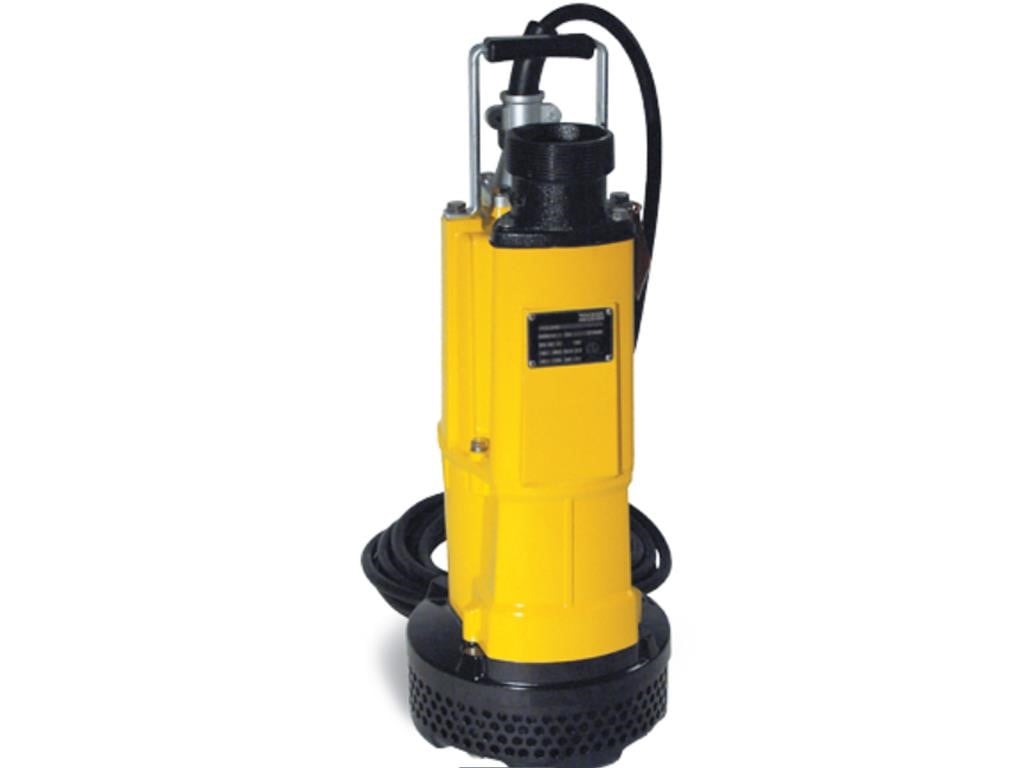

WACKER NEUSON SUBMERSIBLE PUMPS — PS3 2200

SUBMERSIBLE PUMPS: FLEXIBLE AND DEPENDABLE WATER REMOVAL

Designed for a variety of applications, Wacker Neuson’s large selection of submersible pumps allows you to easily remove water from construction sites, ponds and flooded areas. These single-phase, electric pumps are a cost-effective means to move water containing some solids.

SUBMERSIBLE PUMPS OF THE PS SERIES — SINGLE PHASE SUBMERSIBLE PUMP FOR COST EFFECTIVE DEWATERING

Pump can start in low water levels when it is primed through the discharge port. No matter how large or small the job. Wacker Neuson submersible pumps offer the versatility and durability contractors need for light dewatering. Suitable for most outlets, these pumps offer big pump features for small pump investment.

FEATURES

LIGHTWEIGHT, COMPACT DESIGN

• The pump is lightweight and small which makes it perfect for any application.

• Easy to store and transport.

BUILT-IN THERMAL PROTECTION PREVENTS MOTOR DAMAGE

• Built-in thermal protection prevents motor damage due to impeller blockage, reducing service repairs.

• Motor protection eliminates worry during operation.

DURABLE MECHANICAL SEALS

• Silicon carbide-faced double mechanical seals run in an isolated oil-filled cavity, allowing for seal lubrications, cooling and overall motor protection.

HEAVY-DUTY STRAIN RELIEF POWER CORD

• Robust power cord stands up to the rigors of the construction site.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

Technical Data

Height22.4"
Effective power2.20 KW
Solid diameter max.0.3"
Flow rate max130.2 gal/mi
Delivery height max.85.3'
Width for shipping13.0"
Height for shipping28.0"
Length Cable32.8'
Nominal current13.0 A
Nominal voltage220.0 V
Length9.4"
Shipping weight77.2 lb
Width9.4"
Cable definitionPVC Sheath
Temperature limit borrowed liquid104.0-32.0°F
Operating weight63.9 lb
Length for shipping13.6"
Nominal frequency60.0 Hz
Cable cross-section0.0 Inch2
Intake-/Pressure socket-dia.3.1"
Nominal Engine speed3,465.0 1/min
