CASE SV340B

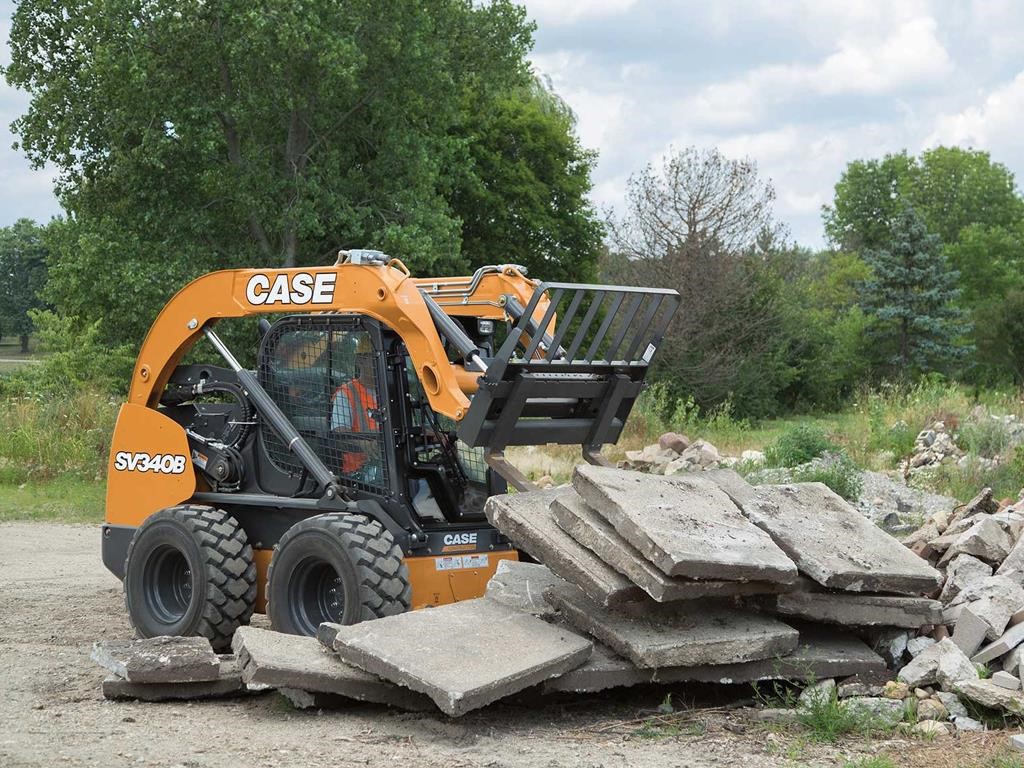

CASE SV340B—SKID STEER LOADER
The largest and most powerful skid steer in the CASE product line, the SV340B is your all-around solution for handling heavy palletized materials, fast and efficient earthmoving, and running powerful attachments such as stump grinders and cold planers. The 3,400-pound rated operating capacity at 90 horsepower matched with powerful auxiliary hydraulics and an extremely comfortable and productive operator platform make the SV340B a powerful addition to any fleet.
B SERIES SKID STEER LOADERS
The CASE B Series skid steers build on more than 50 years of engineering and field experience to provide the most intuitive operator experience and comfortable working environment ever built into a CASE skid steer — including an eight-inch LCD multi-function display and simple electro-hydraulic controls. The design simplifies operation and puts more power and control into the hands of the operator. Match that with productivity-enhancing horsepower and torque, powerful auxiliary hydraulics and industry-leading visibility — and CASE B Series skid steers allow you to get more done every day.
FEATURES
VISIBILITY AND COMFORT
CASE skid steers feature industry-leading visibility with a backup camera (operational in both forward and reverse), cab-wide rearview mirror, large front and side windows, a low entry threshold for easy entry and greater visibility down to the bucket, a low sloping rear hood and 360-degree lighting. CASE vertical-lift skid steers also feature a low-profile H-link that improves rear visibility compared to the competition. Each model features one of the industry’s widest cabs, and control handles provide more comfortable operation throughout the day. Redesigned controls, cupholders and air vents further create more legroom and comfort.
OPTIMAL CONTROL
CASE skid steers are available in electro-hydraulic, mechanical and mechanical hand and foot configurations. Electro-hydraulic models with the 8-inch LCD multi-function display give operators the most control, with easy switching between ISO and H operating patterns, the ability to save operator profiles and application settings, and the flexibility to set total machine responsiveness to low, medium or high — or to independently set loader arm and drive response to meet exact operator preference.
PRODUCTIVITY AND PERFORMANCE
Bucket breakout force of 9,531 pounds and a rated operating capacity of 3,400 pounds (up to 3,650 pounds with optional counterweights) make the SV340B a monster in the field. The machine also offers optional high-flow (38.7 gpm at 3,450 psi) and enhanced high-flow (35 gpm at 4,000 psi) auxiliary hydraulics for excellent power and attachment versatility.
EASE OF OWNERSHIP
All critical checks and service points are grouped at the rear of the machine for easy access, and the 8-inch LCD multi-function display provides the operator with real-time data on machine operation and performance. The SV340B features a selective catalytic reduction (SCR) emissions solution that requires no regular maintenance or filter replacement (no diesel particulate filter) — simply fill the diesel exhaust fluid (DEF) tank as needed!
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
• ROPS/FOPS Level 1 canopy w/ side screens
• Keyed start ignition
• Tilt ROPS/FOPS
• Rear window w/ emergency escape
• Deluxe cloth, air suspension seat, w/ 2 in (51 mm) retractable 3 point lap seat belt, w/ heater and lumbar support
• Hand and foot throttle
• Alarm package – back-up and horn
• Rearview mirror
• Headliner
• Dome Light
• Top window
• Cup holder
• 12V Power plug socket
• Foot rest
• Seat Pocket
• Padded seat bar w/ integral armrests
• Loader control lockout system
• Electric parking brake control
• Operator’s compartment floor cleanout
• Proportional auxiliary hydraulic control – on joystick
• Advanced Instrument Cluster w/ digital hour meter, tachometer, fuel level LCD bar graph w/ alarm, DEF Level, diagnostic features and security lockout
• Mechanical hand controls
WARNING LIGHTS WITH ALARMS
• Engine coolant temperature
• Engine oil pressure
• Engine malfunction
• Hydraulic charge pressure
• Hydraulic filter restriction
• Hydraulic oil temperature:
o Critical system stop
o Engine system
o Hydraulic system
o Electrical and diagnostic system
WARNING ALARMS
• Battery voltage – plus display
• Oil service
INDICATOR LIGHT
• Engine preheat
• Parking brake
• Seat bar reminder
ENGINE
• Charged Air Cooler (CAC)
• Dual element air cleaner
• Organic Acid Technology (OAT)
• Anti-freeze solution to -34º F
• Fuel tank – 25.5 gal (U.S.)
• Over and under radiator and oil cooler
• 3-stack after cooler/radiator/oil cooler configuration
• Glow plugs
• Integral engine oil cooler
• Fuel filter with water trap
• 1,000 CCA 12V battery
• Master electrical disconnect
• Jump start terminal
DRIVETRAIN
• 2-speed hydrostatic four wheel drive
• ASA #100HS drive chain
• SAHR disc parking brake
HYDRAULICS
• Auxiliary hydraulics: @ 3,450 psi (210 bar) – 24.2 gpm (91.5 L/min)
• 6 micron oil filtration system
• 3-spool loader control valve
• Auxiliary hydraulic disconnects, ISO flat-face – connect-under-pressure with case drain
• Hydraulic circuit pedal lock
• Auxiliary function lockout override
• Loader lift lockout override
• Heavy-duty hydraulic oil cooler
• Loader arm float position
• Connect under pressure auxiliary hydraulic disconnects
LOADER
• Auxiliary front electric control
• Heavy duty hydraulic attachment coupler
• Vertical lift geometry
• Loader lift arm support strut
• In-cab loader lock
TIRES
• 14 X 17.5 Heavy duty
OTHER STANDARD FEATURES
• Halogen lights – 2 front, 2 side, 2 rear flood
• Pre-wired for rotating beacon
• Lockable service access hood
• Single-point daily service
• Rear tail lights
• Remote oil drain
• Remote oil and fuel filters
• Block heater
• Debris ingression sealing
• Mounting points for add-on counterweights
• Deluxe cloth, air suspension seat
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
• Enclosed cab:
o Fully sealed and pressurized – FSP
o Glass door with wiper and washer
o Sliding side windows – removable
o Heater and air conditioner
o AM/FM Bluetooth radio with 2 speakers
o Keyless start ignition
• 8 in Color LCD Display
• Economy Mode (auto idle shutdown)
• Auto Engine Protection Shutdown
• Electro-hydraulic controls:
o For drive / steering, loader functions
o Switchable between H and ISO patterns
o Adjustable sensitivity of controls
• Mechanical hand controls
• Hand and foot controls:
o Hand controls the loader drive function and foot controls the bucket and boom
• Air ride seat
• Demolition cab door with polycarbonate
• Ignition Timeout
• Machine Settings User Access Levels
• Operator Security Codes
HYDRAULICS
• High-flow auxiliary hydraulics – combined: @ 3,450 psi (238 bar) – 38.7 gpm (146.5 L/min)
• Enhanced High-Flow auxiliary hydraulics – EHF: @ 4,000 psi (276 bar) – 35.0 gpm (132.5 L/min)
• Second auxiliary hydraulics
• Hydraulic one-way self-leveling
• Ride control
LOADER
• Hydraulic attachment coupler
DRIVETRAIN
• Creep Speed Mode
OTHER
• Language decals
• Buckets
• Bolt-on bucket cutting edges
• Special paint
• Offsite service arrangement
• SiteWatch Telematics
FACTORY SUPPLIED ATTACHMENTS
• Rotating beacon
• Four point lift hook

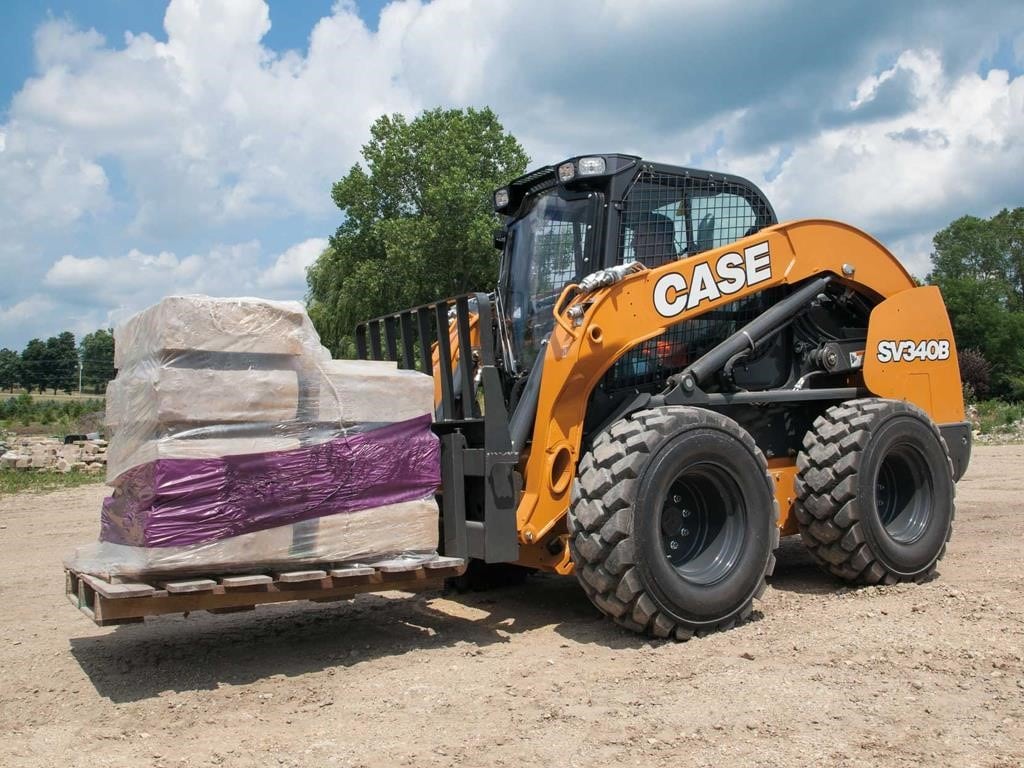

• 48 in (1.22 m) pallet forks
SERVICE PARTS
• Add-on counterweights
• Road lights
• Four-corner LED strobe
• Single point lift hook
• Aspirator
• Precleaner
• FOPS level 2
• 3 inch (76.2 mm) retractable seat belt
• Bolt-on heavy-duty bucket teeth
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
| DRIVETRAIN - Pump to engine ratio: | 1:1 |
|---|---|
| HYDRAULICS - Port relief pressures - Bucket curl: | 3,916 psi (270 bar) |
| DIMENSIONS - Overall length with low profile extended bucket: | 153.4 in (3.89 m) |
| OPERATING WEIGHT - Unit equipped w/ open cab; 165 lb operator; 72 in Low Profile bucket; full of fuel; 12 x 16.5 tires: | |
| DRIVETRAIN - Drive motors - Max. Displacement: | 28.7 in³ (470 cm³) |
| PERFORMANCE SPECS - *Measured using 78 in (1.98 m) dirt and foundry bucket.: | |
| HYDRAULICS - Lift cylinders - Closed length: | 47.4 in (1 205 mm) |
| DRIVETRAIN - Drive motors - Motor torque @ max. displacement and relief pressure, calculated @ 5,220 psi (360 bar): | 1,987 lb·ft (2 694 N·m) |
| HYDRAULICS - Hydraulic oil cooler - Number of fins: | 10 per inch (3.94 per cm) |
| DIMENSIONS - Clearance circle rear: | 71.2 in (1.80 m) |
| DRIVETRAIN - Travel speed - High Range: | 11.5 mph (18.5 kph) |
| DIMENSIONS - Clearance circle with 60 in (1.52 m) foundry/excavating bucket in carry position: | |
| DRIVETRAIN - System relief pressure: | 5,220 psi (360 bar) |
| DRIVETRAIN - Drive motors - Max. torque @ 5,000 psi (345 bar): | |
| ENGINE - Pump operating angle ratings - Bucket up : | 35° |
| ENGINE - Peak torque @ 1400 RPM: | 282 lb·ft (383 N·m) |
| ENGINE - Cooling: | Liquid |
| ENGINE - Horsepower @ 2800 RPM – SAE J1349 - Net: | |
| DIMENSIONS - Wheelbase: | 52.0 in (1.32 m) |
| HYDRAULICS - Displacement - Standard Aux.: | 2.23 in³ (36.6 cm³) |
| DIMENSIONS - Height to Bucket hinge pin : | 131.6 in (3.34 m) |
| ENGINE - Fan - Diameter: | 22 in (560 mm) |
| DRIVETRAIN - Travel speed - Low Range: | 7.7 mph (12.4 kph) |
| HYDRAULICS - Optional high-flow @ rated engine RPM @ 100% efficiency: | 38.7 gpm (146.5 L/min) |
| HYDRAULICS - Loader control valve - Pressure: | 3,450 psi (238 bar) |
| SERVICE CAPACITIES - Fuel tank: | 25.5 gal (96.5 L) |
| DIMENSIONS - Tread over gauge with spec tires: | 60.2 in (1.53 m) |
| DRIVETRAIN - Drive chain - Size: | ASA #100 |
| HYDRAULICS - Hydraulic oil cooler - Number of tube rows x columns: | 9 bar/plate |
| HYDRAULICS - Displacement - High-Flow Aux.: | 1.42 in³ (23.3 cm³) |
| DIMENSIONS - Clearance circle without bucket: | 56.4 in (1.43 m) |
| HYDRAULICS - Hydraulic lines - Tubing: | ORFS + 37° JIC Flare |
| DRIVETRAIN - Drive chain - Tensile strength: | 30,000 lb (133.4 kN) |
| DIMENSIONS - Over the tire width spec tires: | 73.8 in (1.88 m) |
| HYDRAULICS - Lift cylinders - Bore diameter: | 2.75 in (69.85 mm) |
| DRIVETRAIN - Parking brake - Engagement: | Depress on/off brake button on handle or instrument panel, raise seat bar, get off seat or stop engine. |
| LIFT GEOMETRY - Type: | Vertical Lift |
| SERVICE CAPACITIES - Hydraulic system - Total: | 12.0 gal (45.4 L) |
| ENGINE - Horsepower @ 2500 RPM – SAE J1349 - Net: | 84 hp (63 kW) |
| ENGINE - Radiator - Core size area: | 2.21 ft² (0.206 m²) |
| ENGINE - Model: | FPT F5B FL413D*C001 |
| ENGINE - Radiator - Core type: | Aluminum bar and plate |
| ELECTRICAL - Alternator: | 160 amp |
| DIMENSIONS - Ground clearance – bottom of belly pan: | 9.6 in (0.24 m) |
| OPERATING WEIGHT - Unit equipped w/ open cab; 165 lb operator; 66 in Dirt & Foundry bucket; full of fuel; 10 x 16.5 tires: | |
| DRIVETRAIN - Displacement: | Servo-assist mechanical: 2.81 in³ (46 cm³) | Electro-hydraulic: 2.75 in³ (45 cm³) |
| DIMENSIONS - Clearance circle with 60 in (1.52 m) extended low profile on ground: | |
| ENGINE - Radiator - Rows of tubes: | 21 |
| HYDRAULICS - Hydraulic oil cooler - Number of tube rows: | |
| HYDRAULICS - Bucket cylinders - Closed length: | 24.0 in (610 mm) |
| HYDRAULICS - Bucket cylinders - Stroke: | 15.7 in (398 mm) |
| ENGINE - Fan - Ratio: | 1.1:1 |
| DIMENSIONS - Dump reach at maximum height with low profile bucket: | 27.2 in (0.69 m) @ 45° |
| OPERATING WEIGHT - Unit equipped w/ open cab; 165 lb operator; 72 in Dirt & Foundry bucket; full of fuel; 12 x 16.5 tires: | |
| DIMENSIONS - Clearance circle with 72 in (1.83 m) foundry/excavating bucket in carry position: | 85.2 in (2.17 m) |
| HYDRAULICS - Hydraulic filter: | Beta (4) = 75/spin-on |
| DRIVETRAIN - Axles - Torque @ max. displacement and relief pressure: | 5,957 lb·ft (8 077 N·m) |
| ENGINE - Engine speeds RPM - Rated – full load: | 2500 |
| SERVICE CAPACITIES - Engine oil w/ filter: | 8.9 qt (8.5 L) |
| DIMENSIONS - Maximum attachment rollback - Bucket on ground : | 35.0° |
| HYDRAULICS - Lift cylinders - Stroke: | 34.9 in (886.5 mm) |
| ENGINE - Displacement: | 207 in³ (3.4 L) |
| ENGINE - Radiator - Cap pressure: | 16 +/- 2 psi (1.10 +/- 0.14 bar) |
| ENGINE - Fuel filter - Main filter: | Beta (4) = 20/spin-on |
| HYDRAULICS - Hydraulic oil cooler - Area: | 138.7 in² (890 cm²) |
| ENGINE - Water pump - Style: | Centrifugal |
| SERVICE CAPACITIES - Hydraulic system - Reservoir: | 6.0 gal (22.7 L) |
| HYDRAULICS - Displacement: | |
| DIMENSIONS - Clearance circle with 72 in (1.83 m) extended low profile on ground: | 93.4 in (2.37 m) |
| DIMENSIONS - Overall operating height with low profile bucket : | 166.2 in (4.22 m) |
| DIMENSIONS - Maximum attachment rollback - Bucket at full height : | 86.2° |
| DIMENSIONS - Clearance circle with 66 in (1.68 m) foundry/excavating bucket in carry position: | |
| ropstype: | Open |
| DIMENSIONS - Rear axle to bumper: | 42.4 in (1.08 m) |
| ENGINE - Emissions Certification: | Tier 4 Final |
| DIMENSIONS - Clearance circle with 66 in (1.68 m) extended low profile on ground: | |
| PERFORMANCE SPECS - Rated operating capacity – ROC* - 50% of tipping load : | 3,400 lb (1 545 kg) |
| ENGINE - Engine speeds RPM - Low idle: | 1150 +/- 25 |
| ENGINE - Horsepower @ 2500 RPM – SAE J1349 - Gross: | 90 hp (67 kW) |
| ENGINE - Fuel injection: | Direct, high pressure common rail – HPCR |
| ENGINE - Radiator - Rows of tubes x columns: | |
| DRIVETRAIN - Charge pressure: | Servo-assist mechanical: 360 psi (24.5 bar) | Electro-hydraulic: 362 psi (24.5 bar) |
| DIMENSIONS - Overall operating height with foundry/excavating bucket : | 161.9 in (4.11 m) |
| PERFORMANCE SPECS - Breakout forces @ 3,150 psi (217 bar)* - Lift cylinders – tip limit : | 6,816 lb (30.3 kN) |
| DRIVETRAIN - Drive motors - Motor RPM @ high idle and 97% efficiency: | 2-speed 355 |
| ENGINE - Engine speeds RPM - High idle – no load: | 2500 +/- 25 |
| DIMENSIONS - Clearance circle with 66 in (1.68 m) low profile bucket on ground: | |
| DIMENSIONS - Overall operating height with low profile extended bucket : | 171.0 in (4.34 m) |
| OPERATING WEIGHT - Unit equipped w/ open cab; 165 lb operator; 78 in Heavy-Duty bucket; full of fuel; 14 x 17.5 tires: | 9,100 lb (4 136 kg) |
| DRIVETRAIN - Drive motors - High Speed Displacement: | 17.2 in³ (282 cm³) |
| ENGINE - Bore/Stroke: | 3.9 x 4.3 in (99 x 110 mm) |
| ENGINE - Pump operating angle ratings - Bucket Down : | 45° |
| DIMENSIONS - Overall length with low profile bucket: | 148.5 in (3.77 m) |
| PERFORMANCE SPECS - Breakout forces @ 3,150 psi (217 bar)* - Bucket cylinders : | 9,531 lb (42.4 kN) |
| DIMENSIONS - Overall length with foundry/excavating bucket on ground: | 144.3 in (3.67 m) |
| PERFORMANCE SPECS - Rated operating capacity – ROC* - w/ additional counterweight : | 3,650 lb (1 656 kg) |
| PERFORMANCE SPECS - Tipping load*: | 6,800 lb (3 090 kg) |
| PERFORMANCE SPECS - Cycle times - Dump: | 2.6 sec |
| DIMENSIONS - Overall length without attachment with coupler: | 119.1 in (3.02 m) |
| HYDRAULICS - Port relief pressures - Bucket dump: | 3,625 psi (250 bar) |
| DIMENSIONS - Clearance circle with 72 in (1.83 m) low profile bucket on ground: | 89.0 in (2.26 m) |
| DIMENSIONS - Dump height with foundry/excavating bucket: | 105.2 in (2.67 m) @ 45° |
| OPERATING WEIGHT - Unit equipped w/ open cab; 165 lb operator; 60 in Dirt & Foundry bucket; full of fuel; 10 x 16.5 tires: | |
| DIMENSIONS - Dump height with low profile extended bucket: | 102.2 in (2.59 m) @ 45° |
| ENGINE - Air intake: | Turbocharged w/ waste gate and external cooled EGR |
| ENGINE - Engine lubrication pump: | Rotor pump w/ deep sump pan, plate cooler and pressurized under-piston nozzles |
| OPERATING WEIGHT - Shipping weight: | 8,557 lb (3 890 kg) |
| DRIVETRAIN - Flow @ rated engine RPM @ 97% efficiency: | Servo-assist mechanical: 29.4 gpm (111 L/min) | Electro-hydraulic: 28.8 gpm (109 L/min) |
| ENGINE - Exhaust aftertreatment: | Selective Catalytic Reduction – SCR |
| HYDRAULICS - Hydraulic lines - Loop hoses: | SAE 100 R19 |
| ENGINE - Peak torque @ 1800 RPM: | |
| DIMENSIONS - Clearance circle with 60 in (1.52 m) low profile bucket on ground: | |
| DIMENSIONS - Maximum dump angle: | 46.7° |
| ENGINE - Horsepower @ 2800 RPM – SAE J1349 - Gross: | |
| ELECTRICAL - Starter: | 4.29 hp (3.2 kW) |
| DRIVETRAIN - Axles - Diameter: | 2.44 in (62 mm) |
| HYDRAULICS - Lift cylinders - Rod diameter: | 2.0 in (50.8 mm) |
| DIMENSIONS - Height to Top of ROPS: | 80.4 in (2.04 m) |
| SERVICE CAPACITIES - Diesel Exhaust Fluid (DEF) Tank: | 2.8 gal (10.7 L) |
| HYDRAULICS - Standard flow @ rated engine RPM @ 100% efficiency: | 24.2 gpm (91.5 L/min) |
| HYDRAULICS - Bucket cylinders - Bore diameter: | 3.0 in (76.2 mm) |
| ELECTRICAL - Battery: | 12-volt low-maintenance 1,000 cold-cranking amps @ 0° F (-18° C°) |
| PERFORMANCE SPECS - Cycle times - Lower: | 3.5 sec |
| PERFORMANCE SPECS - Cycle times - Raise: | 4.6 sec |
| ENGINE - Fuel: | #2 Diesel |
| DRIVETRAIN - Axles - Torque: | |
| DRIVETRAIN - Final drive: | Single-reduction chain drive |
| DRIVETRAIN - Drive pump controls: | Servo-assist mechanical | Electro-hydraulic |
| SERVICE CAPACITIES - Chain tanks – per side: | 5.9 gal (22.2 L) |
| PERFORMANCE SPECS - Cycle times - Roll back: | 2.0 sec |
| HYDRAULICS - Enhanced high-flow @ rated engine RPM @ 100% efficiency: | 35.0 gpm (132.5 L/min) |
| HYDRAULICS - Bucket cylinders - Rod diameter: | 1.5 in (38.1 mm) |
| HYDRAULICS - Implement pump type: | Gear |
| DRIVETRAIN - Axles - Length: | 15.6 in (396 mm) |
| HYDRAULICS - Port relief pressures - Loader raise: | 3,625 psi (255 bar) |
| DRIVETRAIN - Parking brake - Type: | Spring-applied, hydraulic release multiple disc. |
| ENGINE - Pump operating angle ratings - Side to side : | 45° |
| ENGINE - Water pump - Flow: | 47.8 gpm (181 L/min) |
| HYDRAULICS - Loader control valve - Type: | 3 spool/open center/series - series |
| DIMENSIONS - Height to Bottom of level bucket, fully raised: | 124.8 in (3.17 m) |
| DIMENSIONS - Angle of departure: | 26.5° |
| ENGINE - Type: | Diesel, Turbo – Direct Injection |
| ENGINE - Fuel filter - Pre-filter: | Beta (30) = 200/spin-on |
| ENGINE - Cylinders: | 4 |
