NEW HOLLAND L316

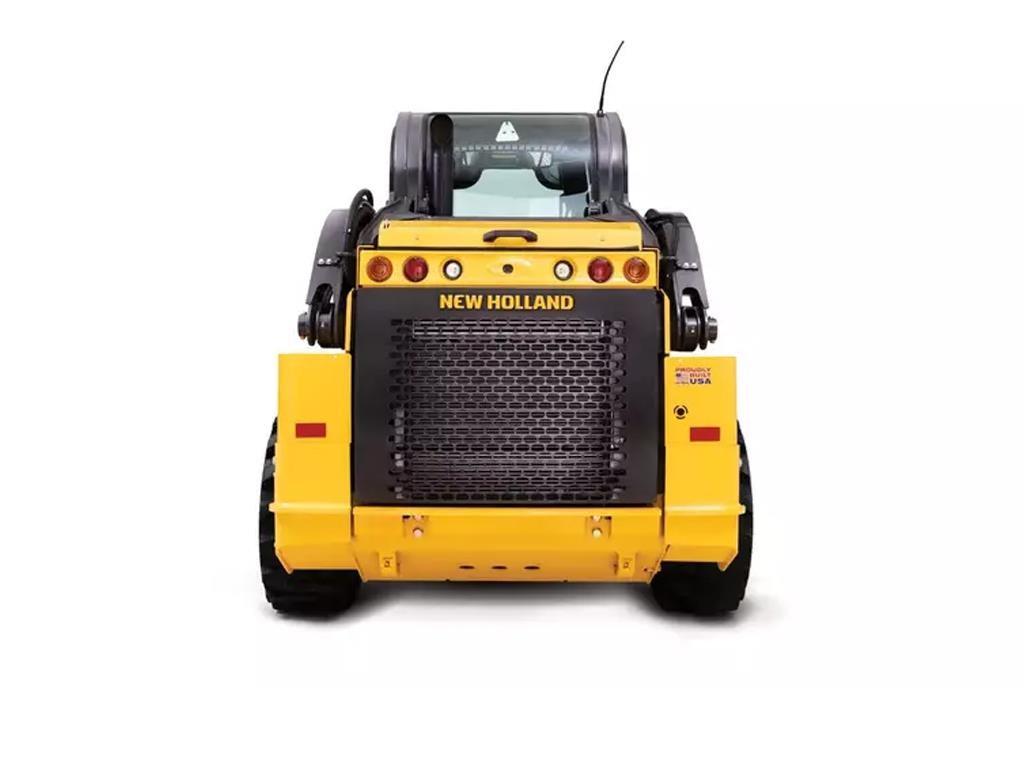

NEW HOLLAND — L316 — SKID STEER LOADER
BEYOND PERFORMANCE
The New Holland 300 Series is built around you with reliable engines that deliver a more powerful performance while using less fuel than previous models. They are durable, easy to maintain and work hard to reduce your operating costs. Three different auxiliary hydraulics packages give maximum versatility. Offering class-leading space, comfort and ergonomics, the cab also provides excellent all-round visibility and reduced blind spots.

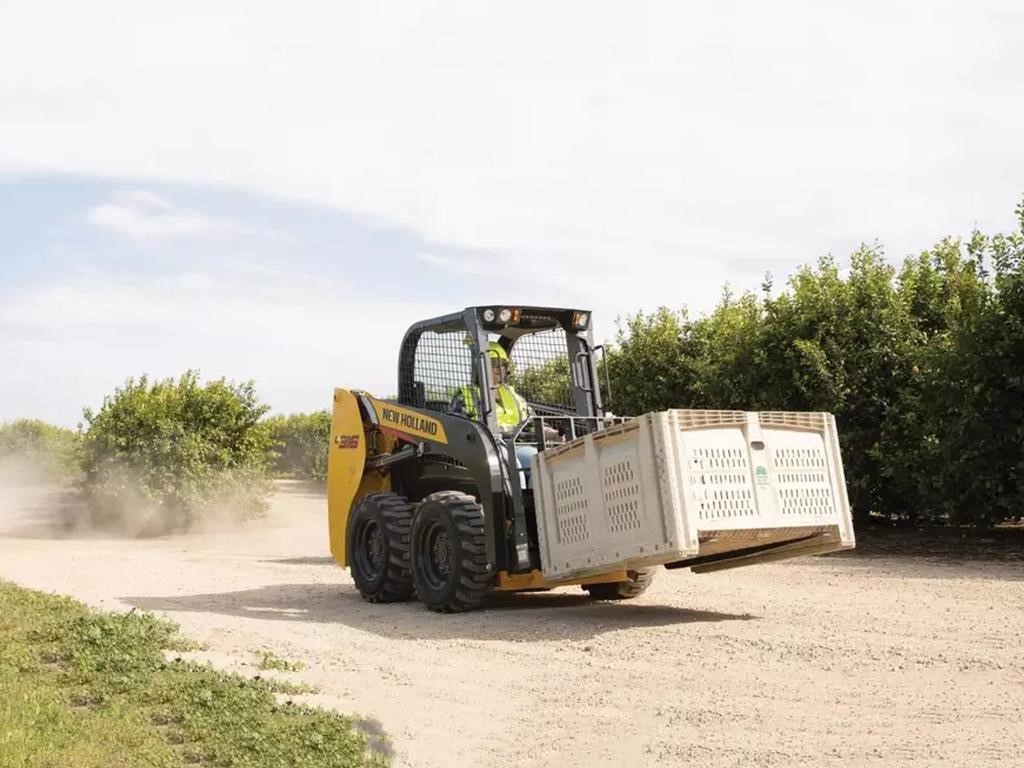

Meet your challenges head-on with 300 Series skid steer loaders from New Holland. The L316 is designed to make your workday more productive and comfortable with noteworthy dump height and reach, swift cycle times, and time-saving travel speeds.
FEATURES
POWERFUL PERFORMANCE, FAST CYCLE TIMES, SMOOTH OPERATION
New Holland Tier 4 Final engines use less fuel while still delivering powerful 60 HP (45 kW) performance to the L316. The reliable hydraulic system delivers fast cycle times, raising in just 3.2 seconds and lowering in only two seconds. In-line hydraulic pumps produce less noise and provide extra-smooth operation. Add the optional Ride Control and Self Level to make those long work days easier and more productive.

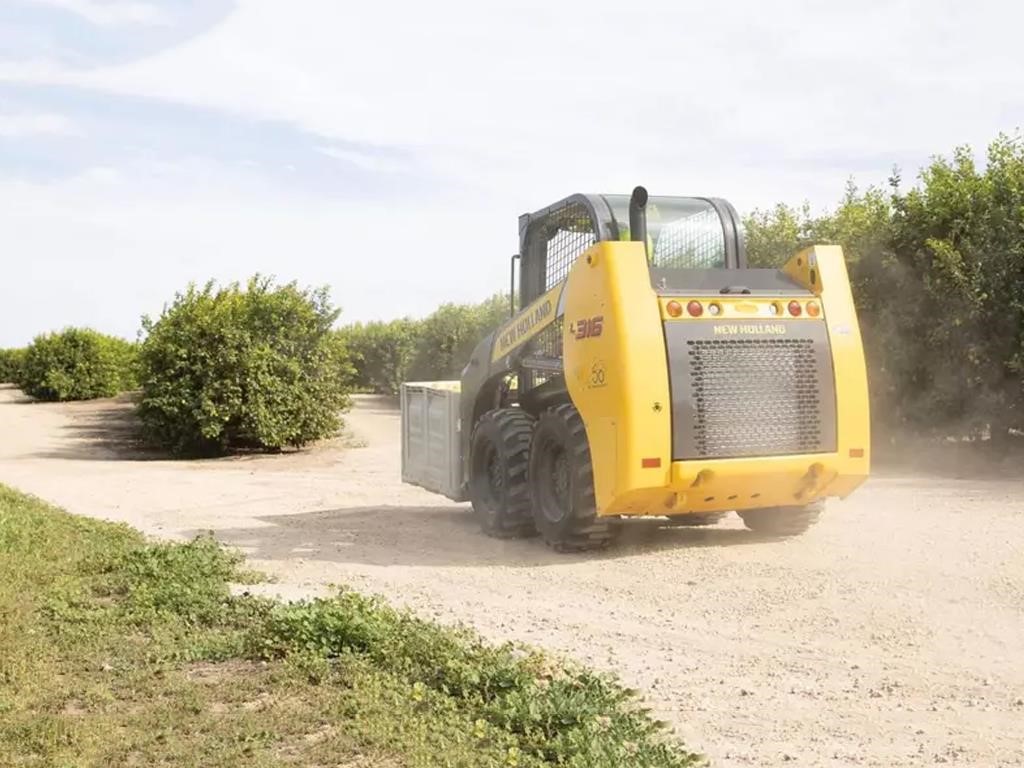

SAVE TIME BETWEEN JOBSITES
The dual-range transmission on the L316 provides standard low-range travel speeds of nearly 8 mph (12.7 kph) and 139 lbs/ft (188 Nm) @1800 RPM of peak torque power to save time on and between job sites. New Holland’s long 37 in (941 mm) wheelbase gives you stability and smooth riding comfort. Newly available creep mode on EH models provides greater control for slow-speed operations like trenching.
DUMP HEIGHT AND REACH
The L316’s radial lift linkage provides a maximum 84.8 in (2154 mm) of dump height and a maximum 18.5 in (469 mm) in dump height reach, allowing you to precisely place loads in the center of high-sided truck boxes or hoppers.
EASY ACCESS, SIMPLIFIED SERVICE
Long service intervals and easy access to maintenance points reduce downtime and lost revenue. All daily service points are grouped together and the rear door and hood make it easy to access without tools. The entire cab and boom assembly tilts forward for unrivaled entry to components and easy cab cleanout.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
| Service Capacities - Fuel tank, gal (L): | 16 (60.5) |
|---|---|
| Dimensions - With low profile bucket on ground in (mm): | 78.5 (1994) |
| Engine - Peak torque, lb-ft (Nm): | 139 (188) @ 1800 rpm |
| Cylinders - Lift Cylinder: | |
| Dimensions - Bucket at full height degrees: | 95 |
| Dimensions - Overall Length: | |
| Dimensions - Overall width, in (mm): | 59.8 (1518) |
| Dimensions - with low profile extended/long bucket in (mm): | 152 (3859) |
| Cylinders - Dump sec: | 1.8 |
| Hydraulic System - Enhanced high flow relief pressure psi (bar): | - |
| Dimensions - with low profile bucket in (mm): | 125 (3175) |
| Power Train - Low range mph (km/h): | 7.9 (12.7) |
| Cylinders - Rated Operating Load: | |
| Power Train - Engagement: | Depress on/off brake button on instrument panel, disconnect lapbelt, get off seat, or stop engine |
| Cylinders - Bucket Cylinders: | |
| Dimensions - Height to: | |
| Cylinders - Type: | |
| Cylinders - Hydraulic filter: | |
| Engine - Fuel injection: | Indirect |
| ropstype: | Enclosed |
| Power Train - Charge pressure psi (bar): | 360 (25) |
| Cylinders - Rod Diameter in (mm): | 1.38 (34.9) |
| Power Train - Effective max displacement in3 (cc): | 19.83 (325) |
| Dimensions - Dump height with foundry/excavating bucket short in (mm: | 88.4 (2246) |
| Cylinders - Lift cylinder lbs. (kN): | 3160 (14.1) Tip Limit |
| Service Capacities - DEF tank, gal (L): | - |
| Cylinders - 35% tip lbs. (kg): | - |
| Cylinders - Breakout Forces: | |
| Cylinders - Cycle Times: | |
| Cylinders - Operating weight lbs (kg): | 5645 (2560) |
| Service Capacities - Engine oil with filter, qt (L): | 7.5 (7.1) |
| Engine - Engine speeds : | |
| Power Train - Type: | Spring applied, hydraulic release multiple disk |
| Power Train - Flow gpm (lpm): | 25.1 (95) |
| Hydraulic System - Type: | Gear |
| Power Train - Drive Motors: | |
| Power Train - Torque @ max displ. and relief pressure: | 1315 (1783) |
| Dimensions - Dump angle, degrees: | 40 |
| Hydraulic System - Hydraulic filter: | 4 microns / spin on |
| Dimensions - Bottom of level bucket, fully raised in (mm): | 105.6 (2682) |
| Dimensions - Top of ROPS in (mm): | 75.5 (1919) |
| Cylinders - Bore diameter in (mm): | 2.25 (57) |
| Dimensions - without attachment with coupler in (mm): | 95.9 (2435) |
| Service Capacities - System Capacity with filter, qt (L): | 30.9 (29.2) |
| Engine - Displacement, in3 (L): | 135.2 (2.216) |
| Dimensions - Angle of departure, degrees: | 22 |
| Cylinders - 50% tip lbs. (kg): | 1600 (725) |
| Dimensions - Bucket hinge pin in (mm): | 112 (2845) |
| Cylinders - Enhanced high flow relief pressure psi (bar): | |
| Cylinders - Loader control valve: | |
| Dimensions - Wheelbase, in (mm): | 37 (941) |
| Power Train - Speed @ optional high speed rpm: | - |
| Dimensions - Without bucket in (mm): | 48.8 (1240) |
| Dimensions - with low profile extended bucket in (mm): | 129.8 (3297) |
| Dimensions - Dump height with low profile/standard bucket in (mm): | 84.8 (2154) |
| Power Train - System relief psi (bar): | 5000 (345) |
| Dimensions - Overall operating height: | |
| Power Train - Parking Brake: | |
| Power Train - Travel Speed: | |
| Power Train - Speed @ high idle engine rpm: | 313 |
| Dimensions - Clearance circle: | |
| Power Train - Final drive mph (km/h): | Single-reduction chain drive |
| Cylinders - Bucket cylinder lbs. (kN): | 4180 (18.6) |
| Hydraulic System - Displacement standard aux. in3 (cc): | 1.52 (24.9) |
| Power Train - High range mph (km/h): | - |
| Dimensions - Track and clearance: | |
| Power Train - Control: | Direct mechanical |
| Engine - High idle - no load rpm: | 2825 +/- 25 |
| Power Train - Displacement in3 (L): | 2.14 (35) |
| Engine - Air intake: | Turbocharged with external EGR |
| Dimensions - Clearance circle rear, in (mm): | 56.4 (1433) |
| Engine - Cylinder: | 4 |
| Dimensions - Dump reach (max height), in (mm): | 18.5 (469) |
| Engine - Fuel filter: | Pre-filter spin on @ 14 microns | Main-filter spin on @ 10 microns |
| Engine - Fuel : | #2 diesel |
| Dimensions - Bucket on ground degrees: | 26 |
| Cylinders - Raise sec: | 3.2 |
| Hydraulic System - Loader control valve: | |
| Dimensions - Maximum attachment rollback : | |
| Dimensions - Ground clearance (bottom of belly pan), in (mm): | 7 (178) |
| Hydraulic System - Pumps: | |
| Power Train - Drive pump electro hydraulic: | |
| Power Train - Effective Displacement opt high speed in3 (cc): | - |
| Dimensions - Dump: | |
| Engine - Type: | Diesel 4-stroke, T, I.D.I. |
| Hydraulic System - Standard pump flow gpm (Lpm): | 18.4 (69.7) |
| Dimensions - With extended low profile bucket on ground in (mm): | 83.1 (2112) |
| Engine - Bore/stroke, in (mm): | 3.31 x 3.94 (84 x 100) |
| Engine - Horsepower per SAE J1349 Net hp (kW): | 57 (42) @ 2800 rpm |
| Hydraulic System - Standard relief pressure psi (bar): | 3046 (210) |
| Dimensions - With foundry bucket in carry position: | 73.3 (1862) |
| Cylinders - Lower sec: | 2.0 |
| Dimensions - with foundry excavation bucket on ground in (mm): | 119.2 (3028) |
| Cylinders - Standard relief pressure psi (bar): | |
| Engine - Horsepower per SAE J1349 Gross hp (kW): | 60 (45) @ 2800 rpm |
| Dimensions - Tread width in (mm): | 49.2 (1248) |
| Cylinders - Roll back sec: | 1.3 |
| Engine - Rated - full load rpm: | 2800 |
| Engine - Cooling: | Liquid |
| Power Train - Pump to engine ratio: | 1:1 |
| Dimensions - with low profile/standard bucket in (mm): | 146.9 (3732) |
| Dimensions - with foundry/excavating bucket short in (mm): | 141.4 (3591) |
| Cylinders - Shipping weight lbs (kg): | 5210 (2370) |
| Cylinders - Closed length in (mm): | 38.9 (989) |
| Cylinders - Stroke in in (mm): | 25.4 (645) |
| Engine - Low idle rpm: | 1200 +/-50 |
| Engine - Manufacturer/model: | ISM / N844LT |
| Cylinders - Rod diameter in (mm): | 1.38 (35) |
| Cylinders - Tipping load lbs. (kg): | 3200 (1455) |
