CASE SV280B

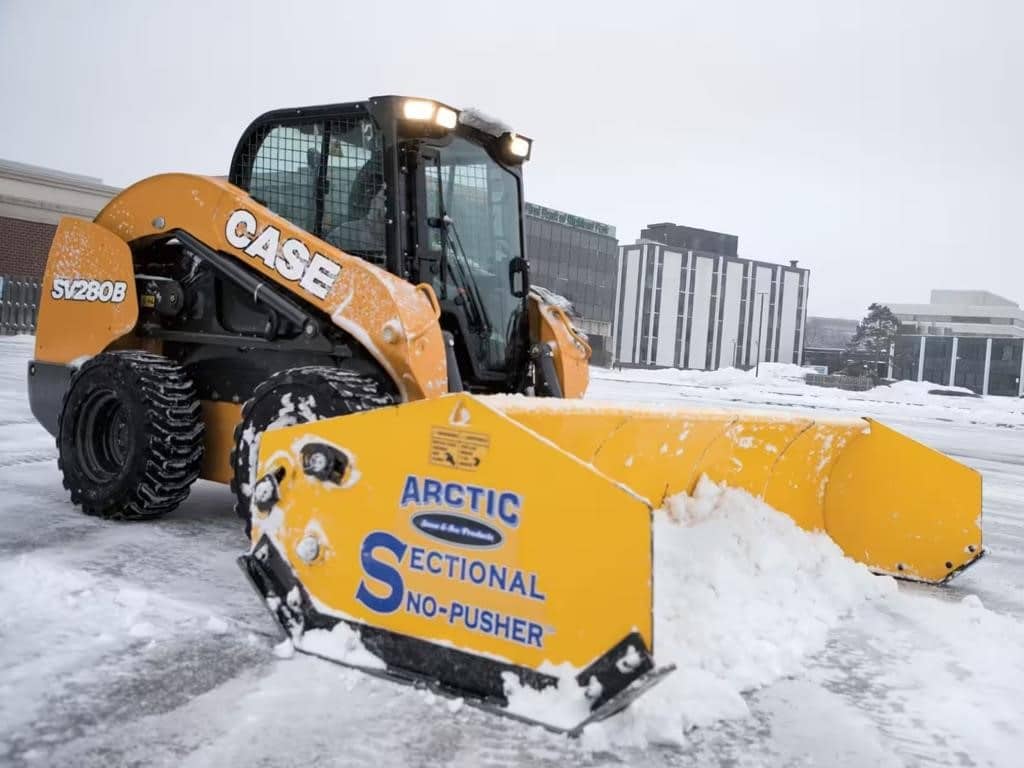

CASE SV280B—SKID STEER LOADER
The SV280B offers large-frame power and performance with the efficiency of a medium-frame machine. Industry-leading visibility and an intuitive operator interface with 8-inch LCD multifunction display improves overall performance, and the 74-horsepower machine features standard (3,050 psi and 24.2 gpm) and high-flow (3,050 psi and 37.6 gpm) auxiliary hydraulics — all while retaining a maintenance-free Tier 4 Final emissions solution that requires no fluids or filter replacement.
B SERIES SKID STEER LOADERS
The CASE B Series skid steers build on more than 50 years of engineering and field experience to provide the most intuitive operator experience and comfortable working environment ever built into a CASE skid steer — including an eight-inch LCD multi-function display and simple electro-hydraulic controls. The design simplifies operation and puts more power and control into the hands of the operator. Match that with productivity-enhancing horsepower and torque, powerful auxiliary hydraulics and industry-leading visibility — and CASE B Series skid steers allow you to get more done every day.
FEATURES
VISIBILITY AND COMFORT
CASE skid steers feature industry-leading visibility with a backup camera (operational in both forward and reverse), cab-wide rearview mirror, large front and side windows, a low entry threshold for easy entry and greater visibility down to the bucket, a low sloping rear hood and 360-degree lighting. CASE vertical-lift skid steers also feature a low-profile H-link that improves rear visibility compared to the competition. Each model features one of the industry’s widest cabs, and control handles provide more comfortable operation throughout the day. Redesigned controls, cupholders and air vents further create more legroom and comfort.
OPTIMAL CONTROL
CASE skid steers are available in electro-hydraulic, mechanical and mechanical hand and foot configurations. Electro-hydraulic models with the 8-inch LCD multi-function display give operators the most control, with easy switching between ISO and H operating patterns, the ability to save operator profiles and application settings, and the flexibility to set total machine responsiveness to low, medium or high — or to independently set loader arm and drive response to meet exact operator preference.
PRODUCTIVITY AND PERFORMANCE
The vertical lift SV280B offers 1,850-pounds rated operating capacity (1,950 pounds with optional counterweights), 60 horsepower, and standard and high-flow auxiliary hydraulics tackling a variety of applications in a simple and efficient machine. Optional electro-hydraulic controls and an 8-inch LCD multi-function display further allow operators to get more out of a compact-yet-powerful platform.
EASE OF OWNERSHIP
All critical checks and service points are grouped at the rear of the machine for easy access, and the 8-inch LCD multi-function display provides the operator with real-time data on machine operation and performance. At 74 horsepower, the SV280B features a maintenance-free Tier 4 Final emissions solution that requires no fluids and no lifetime filter service or replacement (no diesel particulate filter (DPF).
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
• ROPS/FOPS Level 1 canopy w/ side screens
• Keyed start ignition
• Tilt ROPS/FOPS
• Rear window w/ emergency escape
• Deluxe cloth, air suspension seat, w/ 2 in (51 mm) retractable 3 point lap seat belt, w/ heater and lumbar support
• Hand and foot throttle
• Alarm package – back-up and horn
• Rearview mirror
• Headliner
• Dome Light
• Top window
• Cup holder
• 12V Power plug socket
• Foot rest
• Seat Pocket
• Padded seat bar w/ integral armrests
• Loader control lockout system
• Electric parking brake control
• Operator’s compartment floor cleanout
• Proportional auxiliary hydraulic control – on joystick
• Advanced Instrument Cluster w/ digital hour meter, tachometer, fuel level LCD bar graph w/ alarm, diagnostic features and security lockout.
WARNING LIGHTS WITH ALARMS
• Engine coolant temperature
• Engine oil pressure
• Engine malfunction
• Hydraulic charge pressure
• Hydraulic filter restriction
• Hydraulic oil temperature:
o Critical system stop
o Engine system
o Hydraulic system
o Electrical and diagnostic system
WARNING ALARMS
• Battery voltage – plus display
• Oil service
INDICATOR LIGHT
• Engine preheat
• Parking brake
• Seat bar reminder
ENGINE
• Charge Air Cooler (CAC)
• Dual element air cooler
• Organic Acid Technology (OAT)
• Anti-freeze solution to -34º F
• Over and under radiator and oil cooler
• 3-stack after cooler/radiator/ oil cooler configuration
• Glow plugs
• Integral engine oil cooler
• Fuel filter with water trap
• Master electrical disconnect
DRIVETRAIN
• 2-speed hydrostatic four wheel drive
• ASA #100HS drive chain
• SAHR disc parking brake
HYDRAULICS
• Auxiliary hydraulics: @ 3,050 psi (210 bar) – 24.2 gpm (91.5 L/min)
• 6 micron oil filtration system
• 3-spool loader control valve
• Auxiliary hydraulic disconnects, ISO flat-face – connect-under-pressure with case drain
• Hydraulic circuit pedal lock
• Auxiliary function lockout override
• Loader lift lockout override
• Heavy-duty hydraulic oil cooler
• Loader arm float position
• Loader function lockout system
LOADER
• Manual attachment coupler
• Auxiliary front electric control
• Vertical lift geometry
• Loader lift arm lock support pin
TIRES
• 12 X 16.5 Heavy duty
OTHER STANDARD FEATURES
• Halogen lights – 2 front, 2 side, 2 rear flood
• Pre-wired for rotating beacon
• Lockable service access hood
• Single-point daily service
• Rear tail lights
• Remote oil drain
• Remote oil and fuel filters
• Block heater
• Debris ingression sealing
• Mounting points for add-on counterweights
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
• Enclosed cab:
o Fully sealed and pressurized – FSP
o Glass door with wiper and washer
o Sliding side windows – removable
o Heater and air conditioner
o AM/FM Bluetooth radio with 2 speakers
o Keyless start ignition
• 8 in Color LCD Display
• Economy Mode (auto idle shutdown)
• Auto Engine Protection Shutdown
• Electro-hydraulic controls:
o For drive / steering, loader functions
o Switchable between H and ISO patterns
o Adjustable sensitivity of controls
• Mechanical hand controls
• Hand and foot controls:
o Hand controls the loader drive function and foot controls the bucket and boom
• Deluxe cloth, air suspension seat, with heater and lumbar support
• Demolition cab door with polycarbonate
• FOPS level 2
• Ignition Timeout
• Machine Settings User Access Levels
• Operator Security Codes
HYDRAULICS
• High-flow auxiliary hydraulics – combined: @ 3,050 psi (210 bar) – 37.6 gpm (142.5 L/min)
• Second auxiliary hydraulics
• Hydraulic one-way self-leveling
• Ride Control (mechanical controls)
• Auto Ride Control (EH controls)
• Auxiliary flow control within cab
LOADER
• Hydraulic attachment coupler
DRIVETRAIN
• Creep Speed Mode (standard with EH Controls)
OTHER
• Language decals
• Buckets
• Bolt-on bucket cutting edges
• Special paint
• SiteWatch Telematics
SERVICE PARTS
• 3 inch (76.2 mm) retractable seat belt
• Bolt-on heavy-duty bucket teeth
• Add-on counterweights
• Road lights
• Rotating beacon
• Four-corner LED strobe
• Single point lift device
• Four point lift device
• Aspirator
• Precleaner
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
| DIMENSIONS - Overall operating height with low profile bucket : | |
|---|---|
| DRIVETRAIN - Drive motors - Motor RPM @ high idle and 97% efficiency: | 2-speed 355 |
| DRIVETRAIN - Drive chain - Size: | ASA #100 |
| DRIVETRAIN - Drive chain - Tensile strength: | 30,000 lb (133.4 kN) |
| ENGINE - Air intake: | Turbocharged w/ external EGR |
| DIMENSIONS - Over the tire width spec tires: | 69.8 in (1.77 m) |
| ENGINE - Engine lubrication pump: | Rotor pump w/ deep sump pan, plate cooler and pressurized under-piston nozzles |
| ENGINE - Fuel: | #2 Diesel |
| ENGINE - Radiator - Rows of tubes: | |
| HYDRAULICS - Optional high-flow @ rated engine RPM @ 100% efficiency: | 37.6 gpm (142.5 L/min) |
| SERVICE CAPACITIES - Fuel tank: | 25.5 gal (96.5 L) |
| DRIVETRAIN - Drive motors - Motor torque @ max. displacement and relief pressure, calculated @ 5,220 psi (360 bar): | 1,987 lb·ft (2 694 N·m) |
| OPERATING WEIGHT - Unit equipped w/ open cab; 165 lb operator; 72 in Low Profile bucket; full of fuel; 12 x 16.5 tires: | 8,000 lb (3 630 kg) |
| ENGINE - Radiator - Core type: | All aluminum |
| DRIVETRAIN - System relief pressure: | 5,220 psi (360 bar) |
| ENGINE - Peak torque @ 1400 RPM: | 232 lb·ft (314 N·m) |
| ENGINE - Water pump - Flow: | 29 gpm (110 L/min) |
| HYDRAULICS - Lift cylinders - Bore diameter: | 2.75 in (69.9 mm) |
| ENGINE - Horsepower @ 2800 RPM – SAE J1349 - Net: | |
| ENGINE - Radiator - Rows of tubes x columns: | 31 x 4 |
| HYDRAULICS - Hydraulic lines - Loop hoses: | SAE 100 R19 |
| PERFORMANCE SPECS - Breakout forces @ 3,150 psi (217 bar)* - Lift cylinders – tip limit : | 6,030 lb (27.3 kN) |
| HYDRAULICS - Bucket cylinders - Stroke: | 16.4 in (410 mm) |
| DIMENSIONS - Maximum attachment rollback - Bucket at full height : | 84.8° |
| DIMENSIONS - Clearance circle rear: | 70.4 in (1.79 m) |
| DRIVETRAIN - Travel speed - Low Range: | 7.0 mph (11.3 kph) |
| DRIVETRAIN - Charge pressure: | Servo-assist mechanical: 360 psi (24.5 bar) | Electro-hydraulic: 362 psi (24.5 bar) |
| PERFORMANCE SPECS - Cycle times - Lower: | 2.6 sec |
| DRIVETRAIN - Flow @ rated engine RPM @ 97% efficiency: | Servo-assist mechanical: 29.4 gpm (111 L/min) | Electro-hydraulic: 28.8 gpm (109 L/min) |
| DRIVETRAIN - Final drive: | Single-reduction chain drive |
| PERFORMANCE SPECS - Tipping load*: | 5,600 lb (2 540 kg) |
| ENGINE - Engine speeds RPM - Low idle: | 1150 +/- 25 |
| HYDRAULICS - Displacement - High-Flow Aux.: | 1.24 in³ (20.4 cm³) |
| HYDRAULICS - Hydraulic oil cooler - Number of tube rows x columns: | 11 x 2 |
| HYDRAULICS - Port relief pressures - Bucket dump: | 1,160 psi (80 bar) |
| DIMENSIONS - Clearance circle with 60 in (1.52 m) foundry/excavating bucket in carry position: | |
| OPERATING WEIGHT - Unit equipped w/ open cab; 165 lb operator; 72 in Dirt & Foundry bucket; full of fuel; 12 x 16.5 tires: | |
| HYDRAULICS - Lift cylinders - Closed length: | 47.1 in (1 196 mm) |
| ENGINE - Type: | Diesel, Turbo – Direct Injection |
| PERFORMANCE SPECS - Cycle times - Roll back: | 2.0 sec |
| DIMENSIONS - Clearance circle with 60 in (1.52 m) extended low profile on ground: | |
| DIMENSIONS - Height to Bottom of level bucket, fully raised: | 122.6 in (3.12 m) |
| DIMENSIONS - Height to Top of ROPS: | 78.8 in (2.00 m) |
| DIMENSIONS - Tread over gauge with spec tires: | 56.9 in (1.45 m) |
| OPERATING WEIGHT - Unit equipped w/ open cab; 165 lb operator; 60 in Dirt & Foundry bucket; full of fuel; 10 x 16.5 tires: | |
| ENGINE - Fuel filter - Pre-filter: | Beta (30) = 200/spin-on |
| ENGINE - Pump operating angle ratings - Bucket Down : | 45° |
| DRIVETRAIN - Parking brake - Type: | Spring-applied, hydraulic release multiple disc. |
| DRIVETRAIN - Displacement: | Servo-assist mechanical: 2.81 in³ (46 cm³) | Electro-hydraulic: 2.75 in³ (45 cm³) |
| DIMENSIONS - Rear axle to bumper: | 40.7 in (1.03 m) |
| SERVICE CAPACITIES - Hydraulic system - Reservoir: | 6.0 gal (22.7 L) |
| PERFORMANCE SPECS - *Measured using 72 in (1.83 m) foundry/excavating bucket.: | |
| DRIVETRAIN - Drive motors - Max. Displacement: | 28.7 in³ (470 cm³) |
| DRIVETRAIN - Travel speed - High Range: | 10.5 mph (16.9 kph) |
| DIMENSIONS - Wheelbase: | 52.0 in (1.32 m) |
| HYDRAULICS - Lift cylinders - Rod diameter: | 1.75 in (44.45 mm) |
| DRIVETRAIN - Axles - Diameter: | 2.44 in (62 mm) |
| DRIVETRAIN - Pump to engine ratio: | 1:1 |
| PERFORMANCE SPECS - Breakout forces @ 3,150 psi (217 bar)* - Bucket cylinders : | 8,620 lb (38.3 kN) |
| ELECTRICAL - Starter: | 4.29 hp (3.2 kW) |
| DRIVETRAIN - Parking brake - Engagement: | Depress on/off brake button on handle or instrument panel, raise seat bar, get off seat or stop engine. |
| DRIVETRAIN - Drive motors - High Speed Displacement: | 17.2 in³ (282 cm³) |
| DIMENSIONS - Height to Bucket hinge pin : | 129.5 in (3.29 m) |
| ENGINE - Cooling: | Liquid |
| DIMENSIONS - Overall operating height with low profile extended bucket : | 168.8 in (4.29 m) |
| ENGINE - Fuel injection: | Direct, high pressure common rail – HPCR |
| HYDRAULICS - Hydraulic oil cooler - Number of tube rows: | |
| ENGINE - Horsepower @ 2500 RPM – SAE J1349 - Net: | 68 hp (51 kW) |
| DIMENSIONS - Clearance circle with 66 in (1.68 m) extended low profile on ground: | |
| DRIVETRAIN - Axles - Torque @ max. displacement and relief pressure: | 5,957 lb·ft (8 077 N·m) |
| DIMENSIONS - Dump height with foundry/excavating bucket: | 103.1 in (2.62 m) @ 45° |
| SERVICE CAPACITIES - Hydraulic system - Total: | 11.99 gal (45.46 L) |
| SERVICE CAPACITIES - Engine oil w/ filter: | 8.9 qt (8.5 L) |
| ropstype: | Open |
| ENGINE - Radiator - Cap pressure: | 13 +/- 2 psi (0.90 +/- 0.14 bar) |
| DRIVETRAIN - Axles - Torque: | |
| DIMENSIONS - Overall length with foundry/excavating bucket on ground: | 142.8 in (3.63 m) |
| HYDRAULICS - Port relief pressures - Loader raise: | 3,263 psi (225 bar) |
| ENGINE - Emissions Certification: | Tier 4 Final |
| DIMENSIONS - Clearance circle with 66 in (1.68 m) low profile bucket on ground: | |
| DIMENSIONS - Clearance circle with 60 in (1.52 m) low profile bucket on ground: | |
| HYDRAULICS - Bucket cylinders - Closed length: | 24.0 in (610 mm) |
| DIMENSIONS - Overall length with low profile extended bucket: | 151.9 in (3.86 m) |
| HYDRAULICS - Displacement: | |
| PERFORMANCE SPECS - Rated operating capacity – ROC* - 50% of tipping load : | 2,800 lb (1 270 kg) |
| ENGINE - Exhaust aftertreatment: | Diesel Oxidation Catalyst – DOC |
| HYDRAULICS - Bucket cylinders - Rod diameter: | 1.5 in (38.1 mm) |
| ENGINE - Bore/Stroke: | 3.9 x 4.3 in (99 x 110 mm) |
| ENGINE - Model: | FPT F5H FL463 A*G001 |
| ENGINE - Cylinders: | 4 |
| DIMENSIONS - Maximum dump angle: | 54.7° |
| DIMENSIONS - Clearance circle without bucket: | 54.2 in (1.38 m) |
| HYDRAULICS - Hydraulic oil cooler - Area: | 130.7 in² (843.2 cm²) |
| ENGINE - Radiator - Core size area: | 2.05 ft² (0.191 m²) |
| ENGINE - Fuel filter - Main filter: | Beta (4) = 20/spin-on |
| HYDRAULICS - Port relief pressures - Bucket curl: | 3,770 psi (260 bar) |
| DIMENSIONS - Clearance circle with 72 in (1.83 m) foundry/excavating bucket in carry position: | 84.0 in (2.14 m) |
| ENGINE - Fan - Diameter: | 20.4 in (518 mm) |
| OPERATING WEIGHT - Shipping weight: | 7,665 lb (3 475 kg) |
| ENGINE - Engine speeds RPM - High idle – no load: | 2500 +/- 25 |
| SERVICE CAPACITIES - Diesel Exhaust Fluid (DEF) Tank: | |
| DRIVETRAIN - Axles - Length: | 15.6 in (396 mm) |
| ENGINE - Water pump - Style: | Centrifugal |
| OPERATING WEIGHT - Unit equipped w/ open cab; 165 lb operator; 66 in Dirt & Foundry bucket; full of fuel; 10 x 16.5 tires: | |
| HYDRAULICS - Loader control valve - Type: | 3 spool/open center/series - series |
| DIMENSIONS - Maximum attachment rollback - Bucket on ground : | 33.6° |
| ENGINE - Horsepower @ 2800 RPM – SAE J1349 - Gross: | |
| DIMENSIONS - Clearance circle with 72 in (1.83 m) extended low profile on ground: | 92.4 in (2.35 m) |
| HYDRAULICS - Hydraulic lines - Tubing: | 37° JIC Flare |
| ELECTRICAL - Battery: | 12-volt low-maintenance 950 cold-cranking amps @ 0° F (-18° C°) |
| PERFORMANCE SPECS - Rated operating capacity – ROC* - w/ additional counterweight : | 2,900 lb (1 315 kg) |
| HYDRAULICS - Lift cylinders - Stroke: | 33.4 in (847.9 mm) |
| DIMENSIONS - Clearance circle with 72 in (1.83 m) low profile bucket on ground: | |
| DIMENSIONS - Angle of departure: | 23.5° |
| DIMENSIONS - Dump reach at maximum height with low profile bucket: | 38.3 in (0.97 m) @ 45° |
| DIMENSIONS - Overall length without attachment with coupler: | 117.6 in (2.99 m) |
| ENGINE - Pump operating angle ratings - Bucket up : | 35° |
| ENGINE - Peak torque @ 1800 RPM: | |
| HYDRAULICS - Loader control valve - Pressure: | 3,046 psi (210 bar) |
| ENGINE - Pump operating angle ratings - Side to side : | 45° |
| ENGINE - Fan - Ratio: | 0.96:1 standard, 1.1:1 high flow |
| SERVICE CAPACITIES - Chain tanks – per side: | 5.8 gal (22.2 L) |
| HYDRAULICS - Bucket cylinders - Bore diameter: | 3.0 in (76.2 mm) |
| HYDRAULICS - Implement pump type: | Gear |
| HYDRAULICS - Displacement - Standard Aux.: | 2.23 in³ (36.6 cm³) |
| HYDRAULICS - Standard flow @ rated engine RPM @ 100% efficiency: | 24.2 gpm (91.5 L/min) |
| ENGINE - Displacement: | 207 in³ (3.4 L) |
| DIMENSIONS - Dump height with low profile extended bucket: | 96.6 in (2.45 m) @ 45° |
| HYDRAULICS - Enhanced high-flow @ rated engine RPM @ 100% efficiency: | |
| HYDRAULICS - Hydraulic oil cooler - Number of fins: | 10 per inch (3.94 per cm) |
| ENGINE - Horsepower @ 2500 RPM – SAE J1349 - Gross: | 74 hp (55 kW) |
| DIMENSIONS - Ground clearance – bottom of belly pan: | 8.0 in (0.20 m) |
| PERFORMANCE SPECS - Cycle times - Raise: | 4.5 sec |
| DIMENSIONS - Overall length with low profile bucket: | |
| DRIVETRAIN - Drive pump controls: | Servo-assist mechanical | Electro-hydraulic |
| DIMENSIONS - Overall operating height with foundry/excavating bucket : | 159.7 in (4.06 m) |
| PERFORMANCE SPECS - Cycle times - Dump: | 2.6 sec |
| DRIVETRAIN - Drive motors - Max. torque @ 5,000 psi (345 bar): | |
| ENGINE - Engine speeds RPM - Rated – full load: | 2500 |
| HYDRAULICS - Hydraulic filter: | Beta (4) = 75/spin-on |
| DIMENSIONS - Clearance circle with 66 in (1.68 m) foundry/excavating bucket in carry position: | |
| ELECTRICAL - Alternator: | 120 amp |
| LIFT GEOMETRY - Type: | Vertical Lift |
