CASE SR210B

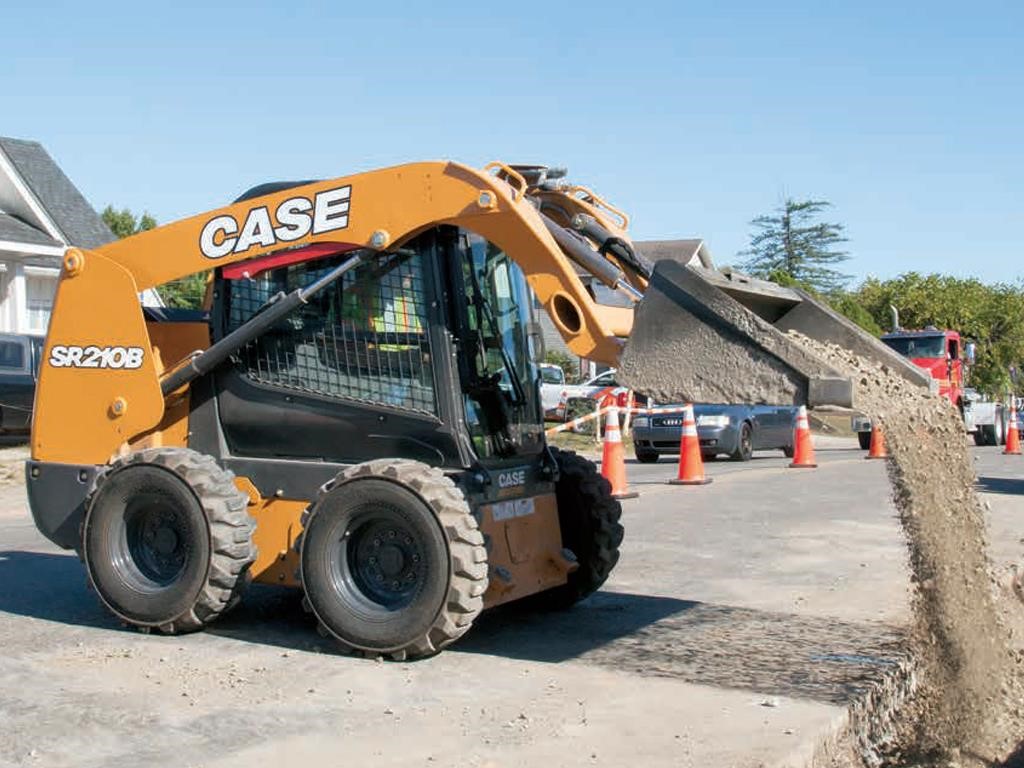

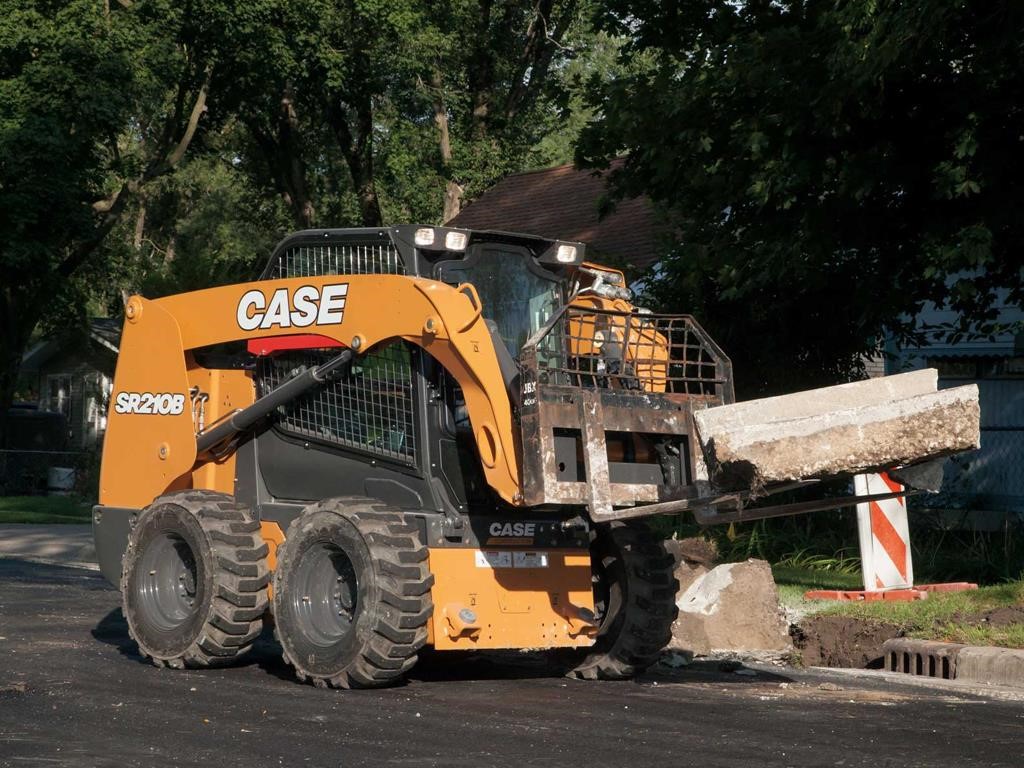

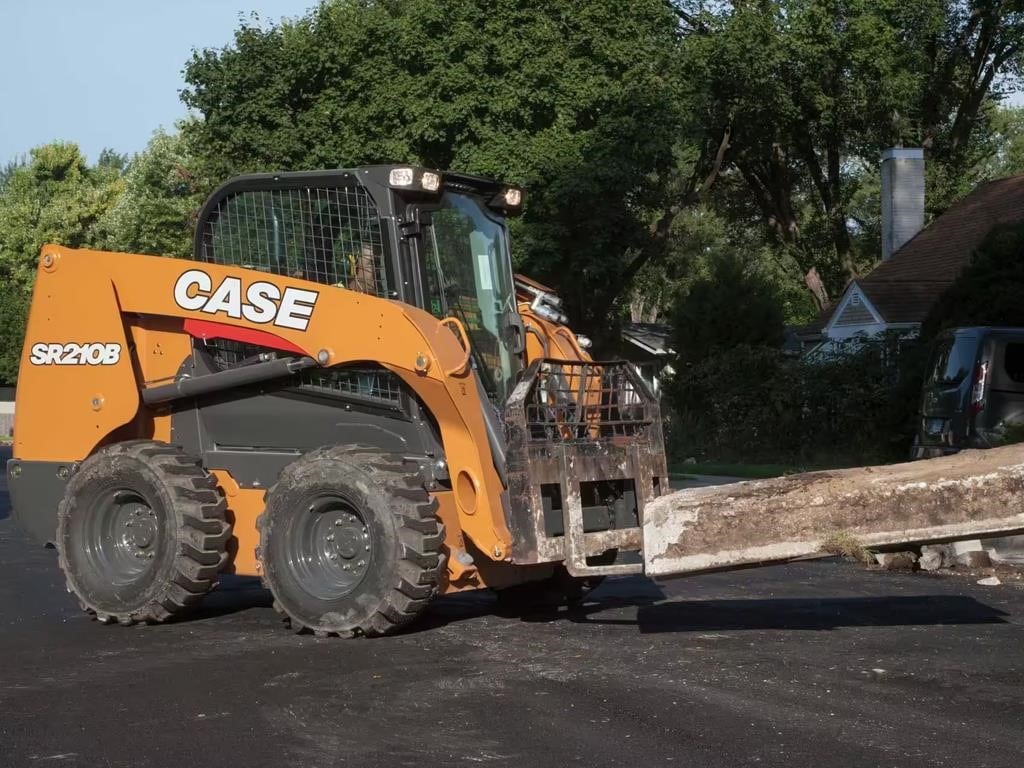

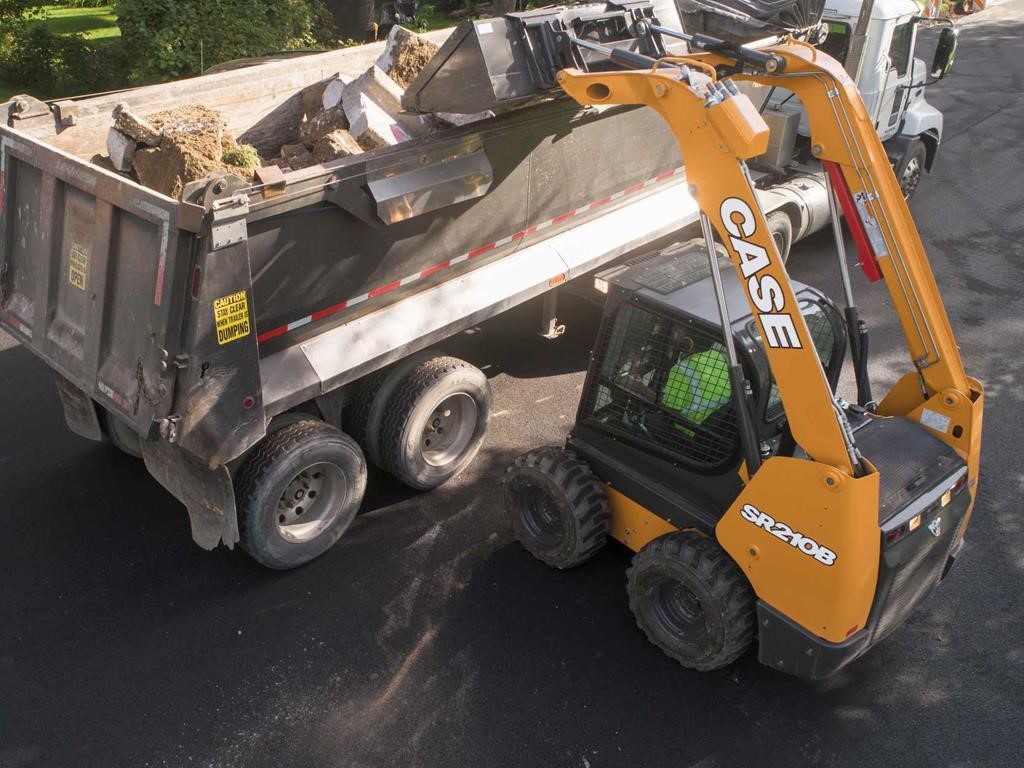

CASE SR210B—SKID STEER LOADER
The SR210B is an extremely popular medium-frame skid steer that looks and feels compact, but offers operators the performance of a larger machine – greater torque, breakout force and auxiliary hydraulic performance than comparably sized machines — all accomplished at 74 horsepower to leverage completely maintenance-free Tier 4 Final emissions solutions with no diesel particulate filter (DPF) or fluids to add.
B SERIES SKID STEER LOADERS
The CASE B Series skid steers build on more than 50 years of engineering and field experience to provide the most intuitive operator experience and comfortable working environment ever built into a CASE skid steer — including an eight-inch LCD multi-function display and simple electro-hydraulic controls. The design simplifies operation and puts more power and control into the hands of the operator. Match that with productivity-enhancing horsepower and torque, powerful auxiliary hydraulics and industry-leading visibility — and CASE B Series skid steers allow you to get more done every day.
FEATURES
VISIBILITY AND COMFORT
CASE skid steers feature industry-leading visibility with a backup camera (operational in both forward and reverse), cab-wide rearview mirror, large front and side windows, a low entry threshold for easy entry and greater visibility down to the bucket, a low sloping rear hood and 360-degree lighting. Each model features one of the industry’s widest cabs, and control handles provide more comfortable operation throughout the day. Redesigned controls, cupholders and air vents further create more legroom and comfort.
OPTIMAL CONTROL
CASE skid steers are available in electro-hydraulic, mechanical and mechanical hand and foot configurations. Electro-hydraulic models with the 8-inch LCD multi-function display give operators the most control, with easy switching between ISO and H operating patterns, the ability to save operator profiles and application settings, and the flexibility to set total machine responsiveness to low, medium or high — or to independently set loader arm and drive response to meet exact operator preference.
PRODUCTIVITY AND PERFORMANCE
The SR210B is an all-around performer at 2,100 pounds rated operating capacity (2,200 pounds with optional counterweights), with standard (3,050 psi and 24.2 gpm) and high-flow (3,050 psi and 33.2) auxiliary hydraulics that provide greater attachment performance compared to smaller skid steers. Bucket breakout force of 7,270 pounds makes it an excellent groundwork machine, and a long/stable wheelbase provides excellent performance on varied terrain.
EASE OF OWNERSHIP
All critical checks and service points are grouped at the rear of the machine for easy access, and the 8-inch LCD multi-function display provides the operator with real-time data on machine operation and performance. At 74 horsepower, the SR210B features a maintenance-free Tier 4 Final emissions solution that requires no fluids and no lifetime filter service or replacement (no diesel particulate filter (DPF).
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
• ROPS / FOPS Level 1 canopy w/ side screens
• Keyed start ignition
• Tilt ROPS / FOPS
• Rear window w/ emergency escape
• Suspension Seat, vinyl w/ 2 in (51 mm) retractable 3 point lap seat belt
• Hand and foot throttle
• Alarm package – back-up and horn
• Rearview mirror
• Headliner
• Dome Light
• Top window
• Cup holder
• 12V Power plug socket
• Foot rest
• Seat pocket
• Padded seat bar w/ integral armrests
• Loader control lockout system
• Electric parking brake control
• Operator’s compartment floor cleanout
• Proportional auxiliary hydraulic control – on joystick
• Advanced Instrument Cluster w/ digital hour meter, tachometer, fuel level LCD bar graph w/ alarm, diagnostic features and security lockout
WARNING LIGHTS WITH ALARMS
• Engine coolant temperature
• Engine oil pressure
• Engine malfunction
• Hydraulic charge pressure
• Hydraulic filter restriction
• Hydraulic oil temperature:
o Critical system stop
o Engine system
o Hydraulic system
o Electrical and diagnostic system
WARNING ALARMS
• Battery voltage – plus display
• Oil service
INDICATOR LIGHT
• Engine preheat
• Parking brake
• Seat bar reminder
ENGINE
• FPT F5H FL463 A*G001
• 207 CID (3.4 L) Turbo
• Tier 4 Final Certified
• High Pressure Common Rail (HPCR) fuel injection
• Horsepower:
o Gross: 74 hp (55 kW)
o Net: 68 hp (51 kW)
o Peak torque: 232 lb·ft (314 N·m)
• 120 amp alternator
• Dual element air cleaner
• Organic Acid Technology (OAT)
• Anti-freeze solution to -34º F
• Fuel tank – 19.5 gal (U.S.)
• Over and under radiator and oil cooler
• 3-stack after cooler/radiator/oil cooler configuration
• Glow plugs
• Integral engine oil cooler
• Fuel filter with water trap
• 1,000 CCA 12V battery
• Master electrical disconnect
DRIVETRAIN
• 2-speed hydrostatic four wheel drive
• ASA #80 drive chain
• SAHR disc parking brake
HYDRAULICS
• Auxiliary hydraulics: @ 3,050 psi (210 bar) – 24.2 gpm (91.5 L/min)
• 6 micron oil filtration system
• 3-spool loader control valve
• Auxiliary hydraulic disconnects, ISOflat-face – connect-under-pressure with case drain
• Hydraulic circuit pedal lock
• Auxiliary function lockout override
• Loader lift lockout override
• Heavy-duty hydraulic oil cooler
• Loader arm float position
• Loader function lockout system
LOADER
• Manual attachment coupler
• Vertical lift geometry
• Loader lift arm support strut
• In-cab loader lock
TIRES
• 10 X 16.5 Heavy duty
OTHER STANDARD FEATURES
• Halogen lights – 2 front, 2 side, 2 rear flood
• Pre-wired for rotating beacon
• Lockable service access hood
• Single-point daily service
• Rear tail lights
• Remote oil drain
• Remote oil and fuel filters
• Block heater
• Debris ingression sealing
• Mounting points for add-on counterweights
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
• Enclosed cab:
o Fully sealed and pressurized – FSP
o Glass door with wiper and washer
o Sliding side windows – removable
o Heater and air conditioner
o AM / FM Bluetooth radio with 2 speakers
o Keyless start ignition
• 8 in Color LCD Display
• Economy Mode (auto idle shutdown)
• Auto Engine Protection Shutdown
• Electro-hydraulic controls:
o For drive / steering, loader functions
o Switchable between H and ISO patterns
o Adjustable sensitivity of controls
• Mechanical hand controls
• Hand and foot controls:
o Hand controls the loader drive function and foot controls the bucket and boom
• Deluxe cloth, air suspension seat, with heater and lumbar support
• Demolition cab door with polycarbonate
• FOPS level 2
• Ignition Timeout
• Machine Settings User Access Levels
• Operator Security Codes
HYDRAULICS
• High-flow auxiliary hydraulics – combined: @ 3,050 psi (210 bar) – 33.2 gpm (125.7 L/min)
• Second auxiliary hydraulics
• Hydraulic one-way self-leveling
• Ride control
LOADER
• Hydraulic attachment coupler
DRIVETRAIN
• Creep Speed Mode
OTHER
• Language decals
• Buckets
• Bolt-on bucket cutting edges
• Special paint
• Offsite service arrangement
• Telematics
FACTORY SUPPLIED ATTACHMENTS
• Add-on counterweights
• Road lights
• Rotating beacon
• Four-corner LED strobe
SERVICE PARTS
• 3 inch (76.2 mm) retractable seat belt
• Bolt-on heavy-duty bucket teeth
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
| DIMENSIONS - Maximum dump angle: | 39.6° |
|---|---|
| ENGINE - Radiator - Rows of tubes x columns: | 43 x 3 |
| ENGINE - Pump operating angle ratings - Bucket Down : | 45° |
| HYDRAULICS - Implement pump type: | Gear |
| HYDRAULICS - Hydraulic lines - Tubing: | 37° JIC Flare |
| DRIVETRAIN - Charge pressure: | Direct mechanical: 360 psi (24.5 bar) | Electro-hydraulic: 362 psi (24.5 bar) |
| PERFORMANCE SPECS - Breakout forces @ 3,150 psi (217 bar)* - Bucket cylinders : | 7,270 lb (32.3 kN) |
| DIMENSIONS - Clearance circle without bucket: | 51.6 in (1.31 m) |
| SERVICE CAPACITIES - Chain tanks – per side: | 6.9 gal (26.0 L) |
| HYDRAULICS - Lift cylinders - Bore diameter: | 2.50 in (63.5 mm) |
| ENGINE - Fuel: | #2 Diesel |
| ENGINE - Horsepower @ 2500 RPM – SAE J1349 - Net: | 68 hp (51 kW) |
| DRIVETRAIN - Drive motors - Max. Displacement: | 28.7 in³ (470 cm³) |
| ENGINE - Engine speeds RPM - High idle – no load: | 2500 +/- 25 |
| DRIVETRAIN - System relief pressure: | 5,220 psi (360 bar) |
| HYDRAULICS - Hydraulic lines - Loop hoses: | SAE 100 R19 |
| DIMENSIONS - Maximum attachment rollback - Bucket on ground : | 31.0° |
| DRIVETRAIN - Drive motors - High Speed Displacement: | 17.2 in³ (282 cm³) |
| ENGINE - Engine lubrication pump: | Rotor pump w/ deep sump pan, plate cooler and pressurized under-piston nozzles |
| ENGINE - Cooling: | Liquid |
| OPERATING WEIGHT - Unit equipped w/ open cab; 165 lb operator; 72 in Dirt & Foundry bucket; full of fuel; 12 x 16.5 tires: | 6,970 lb (3 160 kg) |
| ENGINE - Bore/Stroke: | 3.9 x 4.3 in (99 x 110 mm) |
| DRIVETRAIN - Drive motors - Max. torque @ 5,000 psi (345 bar): | |
| ENGINE - Water pump - Style: | Centrifugal |
| SERVICE CAPACITIES - Fuel tank: | 19.5 gal (73.8 L) |
| HYDRAULICS - Displacement: | |
| PERFORMANCE SPECS - Tipping load*: | 4,200 lb (1 905 kg) |
| ELECTRICAL - Alternator: | 120 amp |
| ENGINE - Radiator - Core type: | All aluminum |
| DRIVETRAIN - Displacement: | Direct mechanical: 2.81 in³ (46 cm³) | Electro-hydraulic: 2.75 in³ (45 cm³) |
| DRIVETRAIN - Drive chain - Size: | ASA #100 |
| DRIVETRAIN - Drive motors - Motor torque @ max. displacement and relief pressure, calculated @ 5,220 psi (360 bar): | 1,987 lb·ft (2 694 N·m) |
| PERFORMANCE SPECS - *Measured using 72 in (1.83 m) foundry/excavating bucket.: | |
| DIMENSIONS - Overall operating height with low profile bucket : | 158.3 in (4.05 m) |
| DIMENSIONS - Height to Top of ROPS: | 78.7 in (2.00 m) |
| HYDRAULICS - Hydraulic filter: | Beta (4) = 75/spin-on |
| DIMENSIONS - Clearance circle with 66 in (1.68 m) extended low profile on ground: | |
| ENGINE - Exhaust aftertreatment: | Diesel Oxidation Catalyst – DOC |
| DRIVETRAIN - Pump to engine ratio: | 1:1 |
| ENGINE - Engine speeds RPM - Rated – full load: | 2500 |
| DIMENSIONS - Angle of departure: | 25.0° |
| SERVICE CAPACITIES - Engine oil w/ filter: | 10.0 qt (9.4 L) |
| OPERATING WEIGHT - Unit equipped w/ open cab; 165 lb operator; 60 in Dirt & Foundry bucket; full of fuel; 10 x 16.5 tires: | |
| ENGINE - Model: | FPT F5H FL463 A*G001 |
| ENGINE - Pump operating angle ratings - Bucket up : | 35° |
| ENGINE - Radiator - Cap pressure: | 16 +/- 2 psi (1.10 +/- 0.14 bar) |
| ENGINE - Pump operating angle ratings - Side to side : | 45° |
| DRIVETRAIN - Travel speed - High Range: | 10.5 mph (16.9 kph) |
| SERVICE CAPACITIES - Hydraulic system - Total: | 8.5 gal (32.2 L) |
| HYDRAULICS - Hydraulic oil cooler - Number of fins: | 10 per inch (3.94 per cm) |
| DIMENSIONS - Overall length with foundry/excavating bucket on ground: | 129.6 in (3.29 m) |
| DIMENSIONS - Height to Bottom of level bucket, fully raised: | 116.1 in (2.95 m) |
| HYDRAULICS - Optional high-flow @ rated engine RPM @ 100% efficiency: | 33.2 gpm (125.7 L/min) |
| HYDRAULICS - Hydraulic oil cooler - Number of tube rows: | |
| DRIVETRAIN - Drive motors - Motor RPM @ high idle and 97% efficiency: | 2-speed 355 |
| OPERATING WEIGHT - Shipping weight: | 6,670 lb (3 025 kg) |
| ELECTRICAL - Starter: | 4.29 hp (3.2 kW) |
| DIMENSIONS - Clearance circle with 60 in (1.52 m) low profile bucket on ground: | |
| DIMENSIONS - Dump reach at maximum height with low profile bucket: | 23.4 in (0.60 m) @ 39.6° |
| PERFORMANCE SPECS - Breakout forces @ 3,150 psi (217 bar)* - Lift cylinders – tip limit : | 4,570 lb (20.3 kN) |
| DIMENSIONS - Dump height with low profile bucket: | 95.6 in (2.43 m) @ 39.6° |
| ENGINE - Horsepower @ 2500 RPM – SAE J1349 - Gross: | 74 hp (55 kW) |
| PERFORMANCE SPECS - Cycle times - Roll back: | 1.7 sec |
| DRIVETRAIN - Axles - Torque: | |
| DIMENSIONS - Rear axle to bumper: | 36.4 in (0.92 m) |
| HYDRAULICS - Bucket cylinders - Bore diameter: | 2.75 in (69.9 mm) |
| DRIVETRAIN - Axles - Diameter: | 2.44 in (61.9 mm) |
| DRIVETRAIN - Parking brake - Engagement: | Depress on/off brake button on handle or instrument panel, raise seat bar, get off seat or stop engine. |
| PERFORMANCE SPECS - Cycle times - Raise: | 3.6 sec |
| DRIVETRAIN - Travel speed - Low Range: | 7.1 mph (11.4 kph) |
| ropstype: | Open |
| DRIVETRAIN - Final drive: | Single-reduction chain drive |
| HYDRAULICS - Lift cylinders - Rod diameter: | 1.75 in (44.5 mm) |
| DIMENSIONS - Clearance circle with 60 in (1.52 m) foundry/excavating bucket in carry position: | |
| ENGINE - Air intake: | Turbocharged w/ waste gate and external cooled EGR |
| HYDRAULICS - Lift cylinders - Closed length: | 45.59 in (1 158.0 mm) |
| DIMENSIONS - Overall operating height with low profile extended bucket : | 163.2 in (4.15 m) |
| DIMENSIONS - Clearance circle with 66 in (1.68 m) foundry/excavating bucket in carry position: | |
| DIMENSIONS - Overall length with low profile bucket: | 133.7 in (3.40 m) |
| DIMENSIONS - Ground clearance – bottom of belly pan: | 8.0 in (0.20 m) |
| DIMENSIONS - Over the tire width spec tires: | 69.1 in (1.76 m) |
| DIMENSIONS - Height to Bucket hinge pin : | 123.0 in (3.12 m) |
| DIMENSIONS - Tread over gauge with spec tires: | 56.9 in (1.45 m) |
| ENGINE - Peak torque @ 1400 RPM: | 232 lb·ft (314 N·m) |
| HYDRAULICS - Loader control valve - Pressure: | 3,050 psi (210 bar) |
| PERFORMANCE SPECS - Rated operating capacity – ROC* - w/ additional counterweight : | 2,200 lb (998 kg) |
| ENGINE - Fuel filter - Pre-filter: | Beta (30) = 200/spin-on |
| DRIVETRAIN - Drive pump controls: | Direct mechanical | Electro-hydraulic |
| LIFT GEOMETRY - Type: | Radial Lift |
| HYDRAULICS - Loader control valve - Type: | 3 spool/open center/series - series |
| PERFORMANCE SPECS - Cycle times - Lower: | 1.8 sec |
| SERVICE CAPACITIES - Hydraulic system - Reservoir: | 7.0 gal (26.5 L) |
| ENGINE - Cylinders: | 4 |
| DIMENSIONS - Wheelbase: | 44.4 in (1.13 m) |
| ENGINE - Displacement: | 207 in³ (3.4 L) |
| HYDRAULICS - Hydraulic oil cooler - Area: | 137.5 in² (890 cm²) |
| ENGINE - Fan - Diameter: | 20.4 in (518 mm) |
| DRIVETRAIN - Parking brake - Type: | Spring-applied, hydraulic release multiple disc. |
| HYDRAULICS - Bucket cylinders - Rod diameter: | 1.38 in (34.9 mm) |
| ENGINE - Water pump - Flow: | 29 gpm (110 L/min) |
| ENGINE - Emissions Certification: | Tier 4 Final |
| DIMENSIONS - Overall length without attachment with coupler: | 105.1 in (2.67 m) |
| DRIVETRAIN - Drive chain - Tensile strength: | 30,000 lb (133.4 kN) |
| PERFORMANCE SPECS - Rated operating capacity – ROC* - 50% of tipping load : | 2,100 lb (955 kg) |
| SERVICE CAPACITIES - Diesel Exhaust Fluid (DEF) Tank: | |
| DIMENSIONS - Clearance circle with 72 in (1.83 m) extended low profile on ground: | 88.3 in (2.24 m) |
| HYDRAULICS - Displacement - High-Flow Aux.: | 0.84 in³ (13.8 cm³) |
| HYDRAULICS - Port relief pressures - Bucket curl: | 3,770 psi (260 bar) |
| HYDRAULICS - Lift cylinders - Stroke: | 31.69 in (804.9 mm) |
| ENGINE - Fan - Ratio: | 0.96:1 standard, 1.1:1 high-flow |
| DRIVETRAIN - Axles - Length: | 15.7 in (399.0 mm) |
| HYDRAULICS - Port relief pressures - Bucket dump: | 1,160 psi (80 bar) |
| PERFORMANCE SPECS - Cycle times - Dump: | 2.2 sec |
| HYDRAULICS - Bucket cylinders - Stroke: | 16.14 in (410.0 mm) |
| DIMENSIONS - Clearance circle with 66 in (1.68 m) low profile bucket on ground: | |
| HYDRAULICS - Standard flow @ rated engine RPM @ 100% efficiency: | 24.2 gpm (91.5 L/min) |
| ENGINE - Radiator - Core size area: | 2.77 ft² (0.257 m²) |
| DRIVETRAIN - Axles - Torque @ max. displacement and relief pressure: | 5,957 lb·ft (8 077 N·m) |
| ENGINE - Engine speeds RPM - Low idle: | 1150 +/- 25 |
| HYDRAULICS - Bucket cylinders - Closed length: | 24.02 in (610.0 mm) |
| HYDRAULICS - Displacement - Standard Aux.: | 2.23 in³ (36.6 cm³) |
| ENGINE - Fuel injection: | Direct, high pressure common rail – HPCR |
| DRIVETRAIN - Flow @ rated engine RPM @ 97% efficiency: | Direct mechanical: 29.4 gpm (111 L/min) | Electro-hydraulic: 28.8 gpm (109 L/min) |
| DIMENSIONS - Clearance circle with 72 in (1.83 m) low profile bucket on ground: | 83.7 in (2.13 m) |
| DIMENSIONS - Overall operating height with foundry/excavating bucket : | 153.3 in (3.92 m) |
| DIMENSIONS - Clearance circle rear: | 62.9 in (1.60 m) |
| OPERATING WEIGHT - Unit equipped w/ open cab; 165 lb operator; 66 in Dirt & Foundry bucket; full of fuel; 10 x 16.5 tires: | |
| DIMENSIONS - Clearance circle with 72 in (1.83 m) foundry/excavating bucket in carry position: | 80.1 in (2.03 m) |
| DIMENSIONS - Maximum attachment rollback - Bucket at full height : | 98.6° |
| ENGINE - Fuel filter - Main filter: | Beta (4) = 20/spin-on |
| ENGINE - Type: | Diesel 4-stroke, Turbo. D.I. |
| HYDRAULICS - Port relief pressures - Loader raise: | 3,263 psi (225 bar) |
| HYDRAULICS - Hydraulic oil cooler - Number of tube rows x columns: | 9 x 1 |
| DIMENSIONS - Dump height with foundry/excavating bucket: | 98.2 in (2.50 m) @ 39.6° |
| DIMENSIONS - Overall length with low profile extended bucket: | 138.8 in (3.53 m) |
| DIMENSIONS - Clearance circle with 60 in (1.52 m) extended low profile on ground: | |
| ELECTRICAL - Battery: | 12-volt low-maintenance 1,000 cold-cranking amps @ 0° F (-18° C°) |
