CASE SR160B

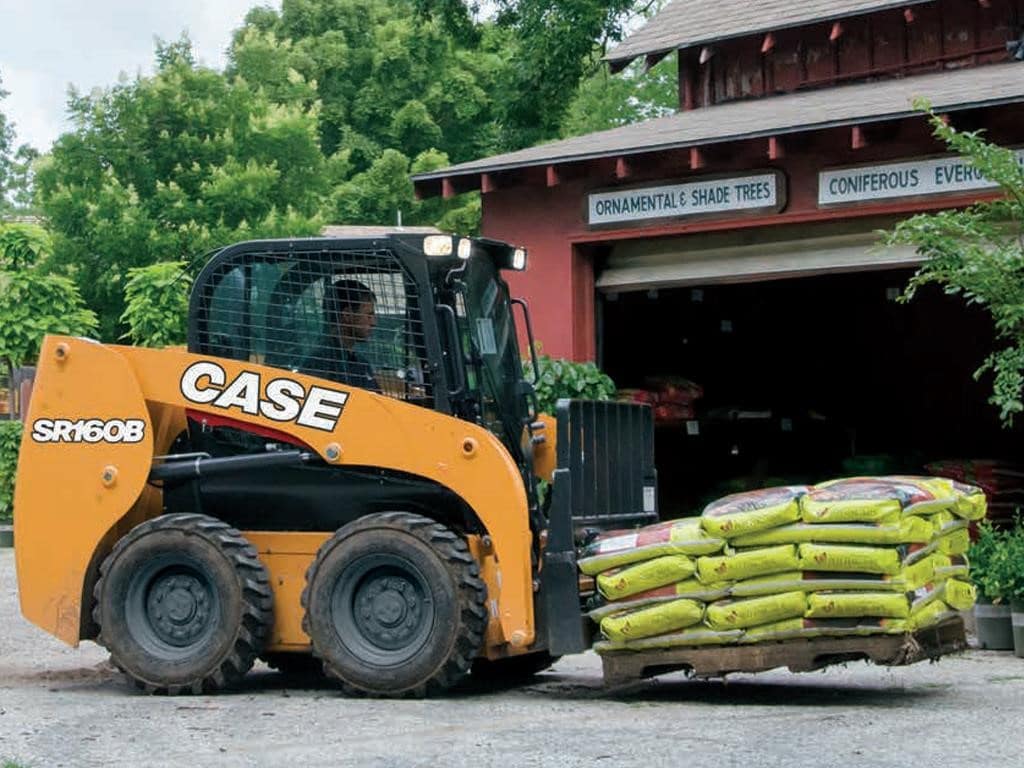

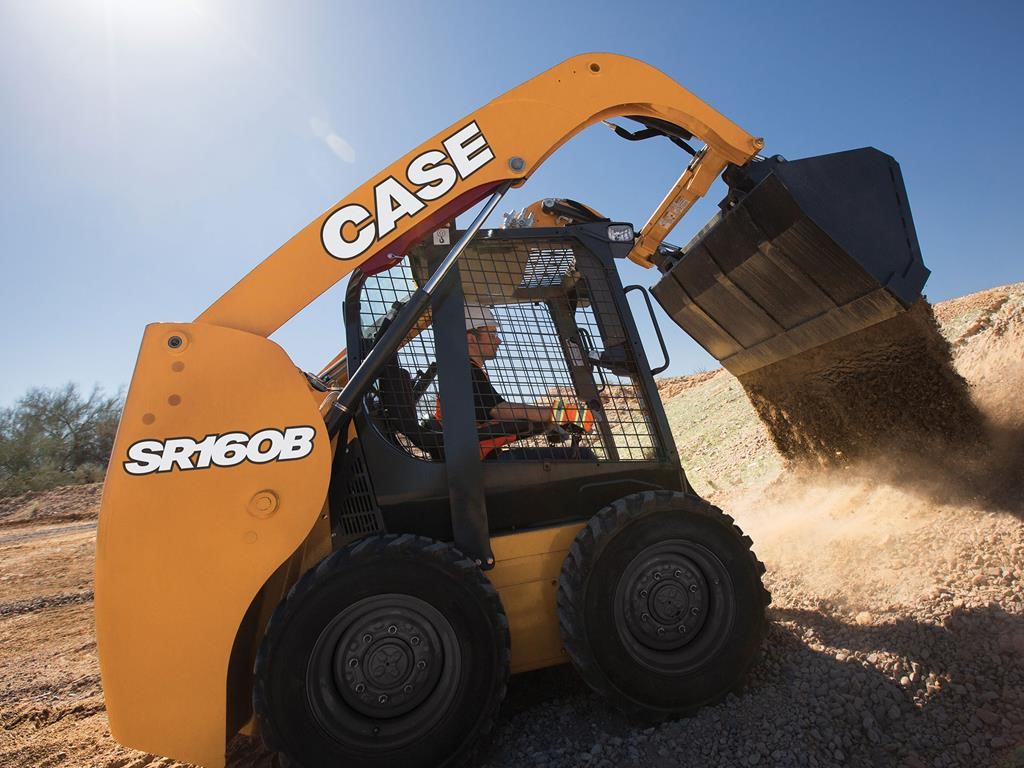

CASE SR160B—SKID STEER LOADER
The SR160B is easy to own, operate and maintain. It’s light (5,645 pounds), short (just over six-feet tall at the top of the ROPS), narrow (at five-feet width) and compact for easy transportation and access to tight jobsites — all while retaining trademark CASE stability and low total cost of ownership.
B SERIES SKID STEER LOADERS
The CASE B Series skid steers build on more than 50 years of engineering and field experience to provide the most intuitive operator experience and comfortable working environment ever built into a CASE skid steer — including an eight-inch LCD multi-function display and simple electro-hydraulic controls. The design simplifies operation and puts more power and control into the hands of the operator. Match that with productivity-enhancing horsepower and torque, powerful auxiliary hydraulics and industry-leading visibility — and CASE B Series skid steers allow you to get more done every day.
FEATURES
VISIBILITY AND COMFORT
CASE skid steers feature industry-leading visibility, and the SR160B offers a wide and comfortable cab for all-day performance.
OPTIMAL CONTROL
The CASE SR160B comes standard with mechanical controls and optional hand-and-foot controls for owners/operators who prefer that configuration.
PRODUCTIVITY AND PERFORMANCE
The SR160B offers 1,600-pounds of rated operating capacity (1,700 pounds with optional counterweights), 60 horsepower and auxiliary hydraulics for basic attachment use.
EASE OF OWNERSHIP
All critical checks and service points are grouped at the rear of the machine for easy access. The SR160B features a diesel particulate filter (DPF) to meet Tier 4 Final emissions standards — a good solution for the machine size, typical application, engine layout and total cost of the machine.
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
• ROPS / FOPS Level 1 canopy w/ side screens
• Keyed start ignition
• Tilt ROPS / FOPS
• Rear window w/ emergency escape
• Suspension Seat, vinyl w/ 2 in (51 mm) retractable 3 point lap seat belt
• Hand and foot throttle
• Alarm package – back-up and horn
• Rearview mirror
• Headliner
• Dome Light
• Top window
• Cup holder
• 12V Power plug socket
• Foot rest
• Seat pocket
• Padded seat bar w/ integral armrests
• Loader control lockout system
• Electric parking brake control
• Operator’s compartment floor cleanout
• Proportional auxiliary hydraulic control – on joystick
• Advanced Instrument Cluster w/ digital hour meter, tachometer, fuel level LCD bar graph w/ alarm, diagnostic features and security lockout
WARNING LIGHTS WITH ALARMS
• Engine coolant temperature
• Engine oil pressure
• Engine malfunction
• Hydraulic charge pressure
• Hydraulic filter restriction
• Hydraulic oil temperature:
o Critical system stop
o Engine system
o Hydraulic system
o Electrical and diagnostic system
WARNING ALARMS
• Battery voltage – plus display
• Oil service
INDICATOR LIGHT
• Engine preheat
• Parking brake
• Seat bar reminder
ENGINE
• Perkins/ISM N844LT-F-45SL diesel
• 135.2 CID (2.2 L) Turbo
• Tier 4 Final Certified
• Spark Arresting Diesel Particulate Filter (DPF) muffler
• Charged Air Cooler (CAC)
• Indirect fuel injection
• Horsepower:
o Gross: 60 hp (44.7 kW)
o Net: 57 hp (42.4 kW)
o Peak torque: 139 lb·ft (188 N·m)
• 120 amp alternator
• Dual element air cleaner
• Organic Acid Technology (OAT)
• Anti-freeze solution to -34º F
• Fuel tank – 16 gal (U.S.)
• Over and under radiator and oil cooler
• Single plane, top and bottom oil cooler/radiator configuration
• Glow plugs
• Integral engine oil cooler
• Fuel filter with water trap
• 925 CCA 12V battery
• Master electrical disconnect
DRIVETRAIN
• 1-speed hydrostatic four wheel drive
• ASA #80 drive chain
• SAHR disc parking brake
HYDRAULICS
• Auxiliary hydraulics: @ 3,050 psi (210 bar) – 18.4 gpm (69.7 L/min)
• 6 micron oil filtration system
• 3-spool loader control valve
• Auxiliary hydraulic disconnects, ISO flat-face – connect-under-pressure with case drain
• Hydraulic circuit pedal lock
• Auxiliary function lockout override
• Loader lift lockout override
• Heavy-duty hydraulic oil cooler
• Loader arm float position
• Loader function lockout system
LOADER
• Manual attachment coupler
• Radial lift geometry
• Loader lift arm support strut
TIRES
• 10 X 16.5 Heavy duty
OTHER STANDARD FEATURES
• Halogen lights – 2 front, 2 side, 2 rear flood
• Pre-wired for rotating beacon
• Lockable service access hood
• Single-point daily service
• Rear tail lights
• Remote oil drain
• Remote oil and fuel filters
• Block heater
• Debris ingression sealing
• Mounting points for add-on counterweights
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
• Enclosed cab:
o Fully sealed and pressurized – FSP
o Glass door with wiper and washer
o Sliding side windows – removable
o AM / FM Bluetooth radio with 2 speakers
o Keyless start ignition
o Control lockout system
• Mechanical hand controls
• Hand and foot controls:
o Hand controls the loader drive function and foot controls the bucket and boom
• Deluxe cloth, air suspension seat, with heater and lumbar support
• Demolition cab door with polycarbonate
• FOPS level 2
HYDRAULICS
• Second auxiliary hydraulics
• Hydraulic one-way self-leveling
• Ride control
LOADER
• Hydraulic attachment coupler
OTHER
• Language decals
• Buckets
• Bolt-on bucket cutting edges
• Special paint
• Offsite service arrangement
• Telematics
FACTORY SUPPLIED ATTACHMENTS
• Add-on counterweights
• Road lights
• Rotating beacon
• Four-corner LED strobe
SERVICE PARTS
• 3 inch (76.2 mm) retractable seat belt
• Bolt-on heavy-duty bucket teeth
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
| PERFORMANCE SPECS - Cycle times - Dump: | 2.0 sec |
|---|---|
| ENGINE - Pump operating angle ratings - Bucket Down : | 35° |
| DRIVETRAIN - Parking brake - Type: | Spring-applied, hydraulic release multiple disc. |
| DIMENSIONS - Height to Bottom of level bucket, fully raised: | 105.6 in (2.68 m) |
| DIMENSIONS - Overall operating height with low profile bucket : | 146.9 in (3.73 m) |
| DRIVETRAIN - Pump to engine ratio: | 1:1 |
| SERVICE CAPACITIES - Diesel Exhaust Fluid (DEF) Tank: | |
| DRIVETRAIN - Drive motors - Motor RPM @ high idle and 97% efficiency: | 313 |
| HYDRAULICS - Port relief pressures - Bucket dump: | 1,160 psi (80 bar) |
| ENGINE - Exhaust aftertreatment: | Diesel Particulate Filter – DPF |
| DIMENSIONS - Dump height with low profile bucket: | 84.8 in (2.15 m) @ 40.2° |
| ropstype: | Open |
| PERFORMANCE SPECS - Breakout forces @ 3,150 psi (217 bar)* - Bucket cylinders : | 5,270 lb (23.4 kN) |
| DRIVETRAIN - Flow @ rated engine RPM @ 97% efficiency: | 25.1 gpm (95 L/min) |
| OPERATING WEIGHT - Unit equipped w/ open cab; 165 lb operator; 60 in Dirt & Foundry bucket; full of fuel; 10 x 16.5 tires : | 5,645 lb (2 560 kg) |
| DRIVETRAIN - Axles - Diameter: | 2.0 in (50.8 mm) |
| ENGINE - Model: | Perkins/ISM N844LT-F-45SL |
| HYDRAULICS - Port relief pressures - Loader raise: | 3,263 psi (225 bar) |
| DIMENSIONS - Overall length with foundry/excavating bucket on ground: | 119.2 in (3.03 m) |
| DIMENSIONS - Clearance circle with 60 in (1.52 m) foundry/excavating bucket in carry position: | 73.3 in (1.86 m) |
| ENGINE - Engine speeds RPM - Rated – full load: | 2800 |
| ENGINE - Water pump - Style: | Centrifugal |
| DIMENSIONS - Overall operating height with foundry/excavating bucket : | 141.4 in (3.59 m) |
| DRIVETRAIN - Drive motors - Max. torque @ 5,000 psi (345 bar): | 1,315 lb·ft (1 783 N·m) |
| ENGINE - Cooling: | Liquid |
| DIMENSIONS - Tread over gauge with spec tires: | 49.2 in (1.25 m) |
| ENGINE - Horsepower @ 2800 RPM – SAE J1349 - Gross: | 60 hp (44.7 kW) |
| DIMENSIONS - Clearance circle with 72 in (1.83 m) extended low profile on ground: | |
| ENGINE - Engine speeds RPM - Low idle: | 1200 +/- 50 |
| DRIVETRAIN - System relief pressure: | 5,000 psi (345 bar) |
| HYDRAULICS - Lift cylinders - Rod diameter: | 1.38 in (34.9 mm) |
| DIMENSIONS - Overall operating height with low profile extended bucket : | 152.0 in (3.86 m) |
| PERFORMANCE SPECS - Rated operating capacity – ROC* - w/ additional counterweight : | 1,700 lb (771 kg) |
| ENGINE - Radiator - Rows of tubes x columns: | 43 x 3 |
| DIMENSIONS - Clearance circle with 60 in (1.52 m) extended low profile on ground: | |
| PERFORMANCE SPECS - Breakout forces @ 3,150 psi (217 bar)* - Lift cylinders – tip limit : | 3,310 lb (14.7 kN) |
| ENGINE - Air intake: | Turbocharged w/ waste gate and external cooled EGR |
| HYDRAULICS - Hydraulic lines - Loop hoses: | SAE 100 R19 |
| HYDRAULICS - Hydraulic oil cooler - Area: | 130.7 in² (843.2 cm²) |
| DIMENSIONS - Over the tire width spec tires: | 59.8 in (1.52 m) |
| DIMENSIONS - Clearance circle without bucket: | 48.7 in (1.24 m) |
| DIMENSIONS - Overall length with low profile bucket: | 125.0 in (3.18 m) |
| PERFORMANCE SPECS - Cycle times - Roll back: | 1.4 sec |
| SERVICE CAPACITIES - Engine oil w/ filter: | 7.5 qt (7.1 L) |
| ENGINE - Bore/Stroke: | 3.31 x 3.94 in (84 x 100 mm) |
| DIMENSIONS - Wheelbase: | 37.0 in (0.94 m) |
| ENGINE - Fuel injection: | Indirect |
| HYDRAULICS - Port relief pressures - Bucket curl: | 3,770 psi (260 bar) |
| ENGINE - Fuel filter - Main filter: | 10 micron/spin-on |
| DIMENSIONS - Clearance circle with 66 in (1.68 m) extended low profile on ground: | |
| ENGINE - Fuel: | #2 Diesel |
| DIMENSIONS - Dump reach at maximum height with low profile bucket: | 22.7 in (0.58 m) @ 40.2° |
| ENGINE - Horsepower @ 2800 RPM – SAE J1349 - Net: | 57 hp (42.4 kW) |
| DRIVETRAIN - Final drive: | Single-reduction chain drive |
| DIMENSIONS - Clearance circle with 60 in (1.52 m) low profile bucket on ground: | 83.1 in (2.11 m) |
| HYDRAULICS - Displacement: | 1.52 in³ (24.9 cm³) |
| HYDRAULICS - Lift cylinders - Stroke: | 25.40 in (645.0 mm) |
| ENGINE - Type: | Diesel 4-stroke, turbocharged |
| DIMENSIONS - Angle of departure: | 22.0° |
| DRIVETRAIN - Charge pressure: | 360 psi (24.5 bar) |
| HYDRAULICS - Lift cylinders - Bore diameter: | 2.25 in (57.2 mm) |
| DIMENSIONS - Rear axle to bumper: | 33.8 in (0.86 m) |
| PERFORMANCE SPECS - Cycle times - Lower: | 2.2 sec |
| DRIVETRAIN - Parking brake - Engagement: | Depress on/off brake button on handle or instrument panel, raise seat bar, get off seat or stop engine. |
| DIMENSIONS - Clearance circle rear: | 56.4 in (1.43 m) |
| DRIVETRAIN - Travel speed: | 7.4 mph (11.9 kph) |
| ENGINE - Displacement: | 135.2 in³ (2.2 L) |
| PERFORMANCE SPECS - Note: | *Measured using 60 in (1.52 m) foundry/excavating bucket. |
| ENGINE - Pump operating angle ratings - Bucket up : | 35° |
| DRIVETRAIN - Displacement: | 2.14 in³ (35 cm³) |
| DIMENSIONS - Height to Top of ROPS: | 75.5 in (1.92 m) |
| HYDRAULICS - Hydraulic lines - Tubing: | 37° JIC Flare |
| DRIVETRAIN - Drive chain - Tensile strength: | 21,000 lb (93.4 kN) |
| ENGINE - Cylinders: | 4 |
| ENGINE - Fuel filter - Pre-filter: | 14 micron/in line |
| DIMENSIONS - Clearance circle with 72 in (1.83 m) low profile bucket on ground: | |
| HYDRAULICS - Loader control valve - Type: | 3 spool/open center/series - series |
| HYDRAULICS - Bucket cylinders - Closed length: | 23.38 in (594.0 mm) |
| DRIVETRAIN - Axles - Length: | 13.2 in (346.0 mm) |
| SERVICE CAPACITIES - Chain tanks – per side: | 1.65 gal (6.5 L) |
| HYDRAULICS - Bucket cylinders - Bore diameter: | 2.50 in (63.5 mm) |
| ENGINE - Emissions Certification: | Tier 4 Final |
| DRIVETRAIN - Drive pump controls: | Direct mechanical |
| OPERATING WEIGHT - Shipping weight: | 5,210 lb (2 370 kg) |
| ENGINE - Water pump - Flow: | 14.7 gpm (55.5 L/min) |
| DIMENSIONS - Maximum dump angle: | 40.2° |
| DIMENSIONS - Ground clearance – bottom of belly pan: | 7.0 in (0.18 m) |
| DIMENSIONS - Clearance circle with 72 in (1.83 m) foundry/excavating bucket in carry position: | |
| LIFT GEOMETRY - Type: | Radial Lift |
| HYDRAULICS - Loader control valve - Pressure: | 3,050 psi (210 bar) |
| DIMENSIONS - Maximum attachment rollback - Bucket at full height : | 95.2° |
| HYDRAULICS - Hydraulic oil cooler - Number of tube rows x columns: | 9 x 1 |
| ENGINE - Radiator - Core type: | All aluminum |
| HYDRAULICS - Hydraulic oil cooler - Number of fins: | 10 per inch (3.94 per cm) |
| ELECTRICAL - Alternator: | 120 amp |
| ENGINE - Peak torque @ 1800 RPM: | 139 lb·ft (188 N·m) |
| DIMENSIONS - Clearance circle with 66 in (1.68 m) low profile bucket on ground: | |
| HYDRAULICS - Hydraulic filter: | Beta (4) = 75/spin-on |
| ELECTRICAL - Battery: | 12-volt low-maintenance 925 cold-cranking amps @ 0° F (-18° C°) |
| HYDRAULICS - Lift cylinders - Closed length: | 38.94 in (989.0 mm) |
| SERVICE CAPACITIES - Fuel tank: | 16.0 gal (60.5 L) |
| DIMENSIONS - Height to Bucket hinge pin : | 112.0 in (2.85 m) |
| HYDRAULICS - Bucket cylinders - Stroke: | 14.57 in (370.1 mm) |
| HYDRAULICS - Implement pump type: | Gear |
| DIMENSIONS - Dump height with foundry/excavating bucket: | 88.4 in (2.25 m) @ 40.2° |
| DIMENSIONS - Maximum attachment rollback - Bucket on ground : | 26.1° |
| ENGINE - Radiator - Cap pressure: | 16 +/- 2 psi (1.10 +/- 0.14 bar) |
| DRIVETRAIN - Axles - Torque: | 4,381 lb·ft (5 940 N·m) |
| DIMENSIONS - Clearance circle with 66 in (1.68 m) foundry/excavating bucket in carry position: | |
| PERFORMANCE SPECS - Cycle times - Raise: | 3.5 sec |
| ENGINE - Fan - Ratio: | 0.89:1 |
| HYDRAULICS - Bucket cylinders - Rod diameter: | 1.38 in (35.0 mm) |
| DIMENSIONS - Overall length without attachment with coupler: | 95.9 in (2.44 m) |
| DIMENSIONS - Overall length with low profile extended bucket: | 129.8 in (3.30 m) |
| HYDRAULICS - Standard flow @ rated engine RPM @ 100% efficiency : | 18.4 gpm (69.7 L/min) |
| ELECTRICAL - Starter: | 2.95 hp (2.2 kW) |
| ENGINE - Engine speeds RPM - High idle – no load: | 2825 +/- 25 |
| SERVICE CAPACITIES - Hydraulic system - Reservoir: | 4.0 gal (15.1 L) |
| ENGINE - Fan - Diameter: | 17.7 in (450 mm) |
| DRIVETRAIN - Drive chain - Size: | ASA #80 |
| DRIVETRAIN - Drive motors - Displacement: | 19.8 in³ (325 cm³) |
| ENGINE - Engine lubrication pump: | Pressure feed w/ Trichoid pump |
| SERVICE CAPACITIES - Hydraulic system - Total: | 7.71 gal (29.2 L) |
| PERFORMANCE SPECS - Tipping load*: | 3,200 lb (1 455 kg) |
| ENGINE - Radiator - Core size area: | 2.77 ft² (0.257 m²) |
| PERFORMANCE SPECS - Rated operating capacity – ROC* - 50% of tipping load : | 1,600 lb (726 kg) |
| ENGINE - Pump operating angle ratings - Side to side : | 35° |
