VENTRAC KX523

KX523 SNOW BLOWER

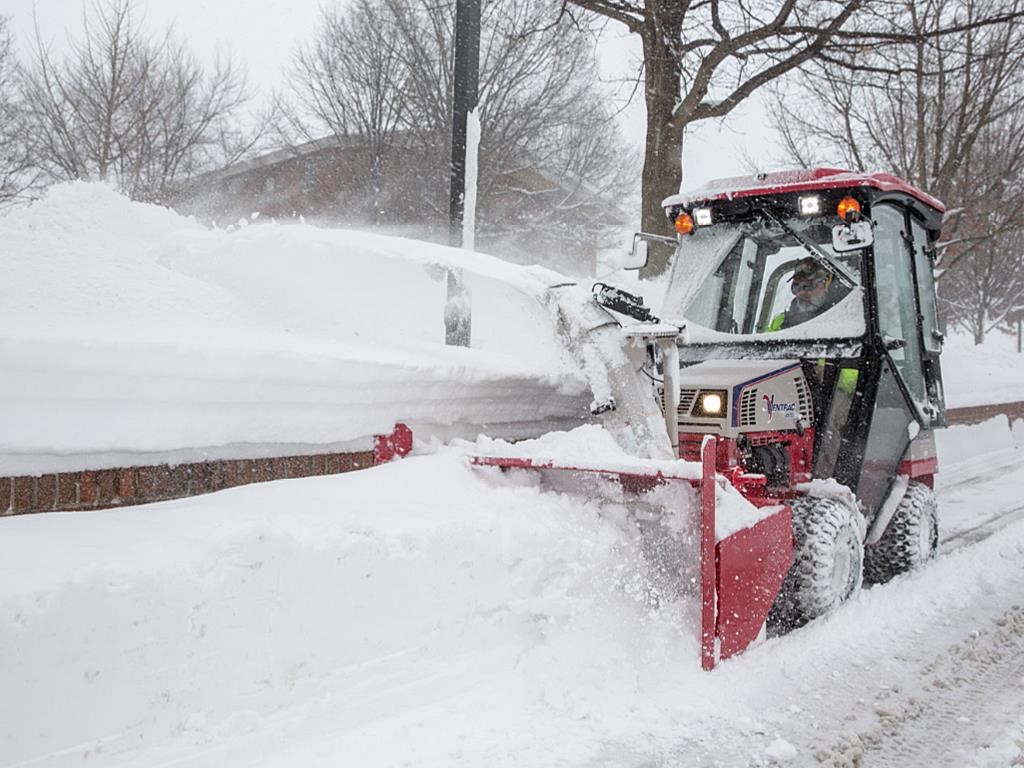

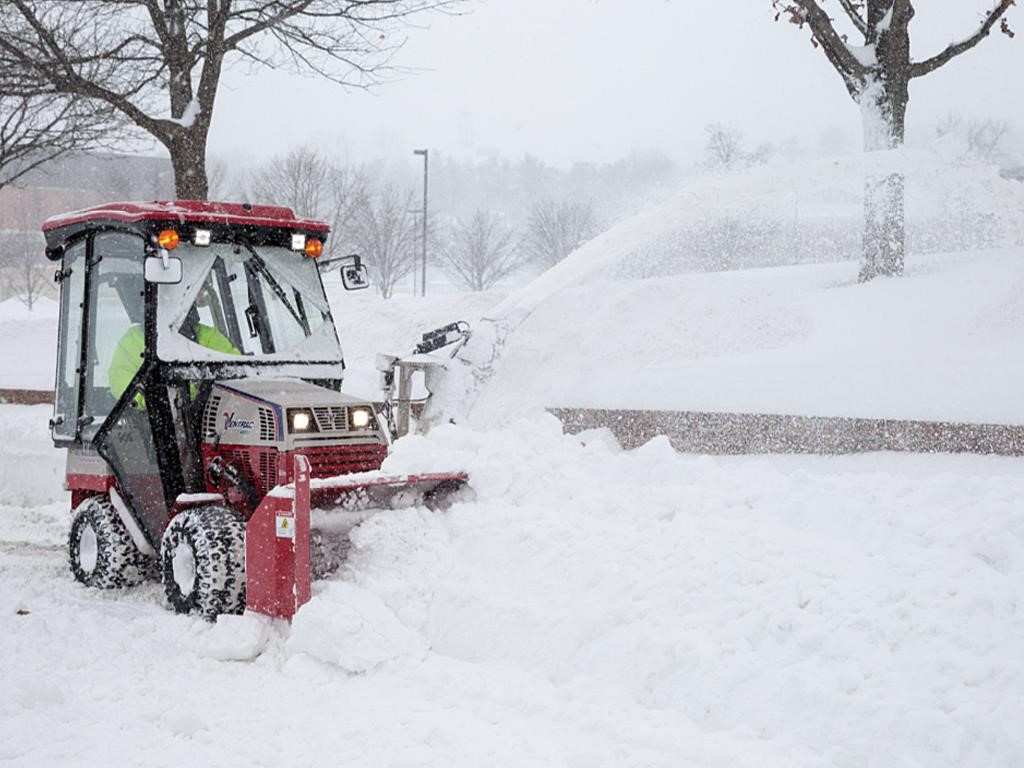

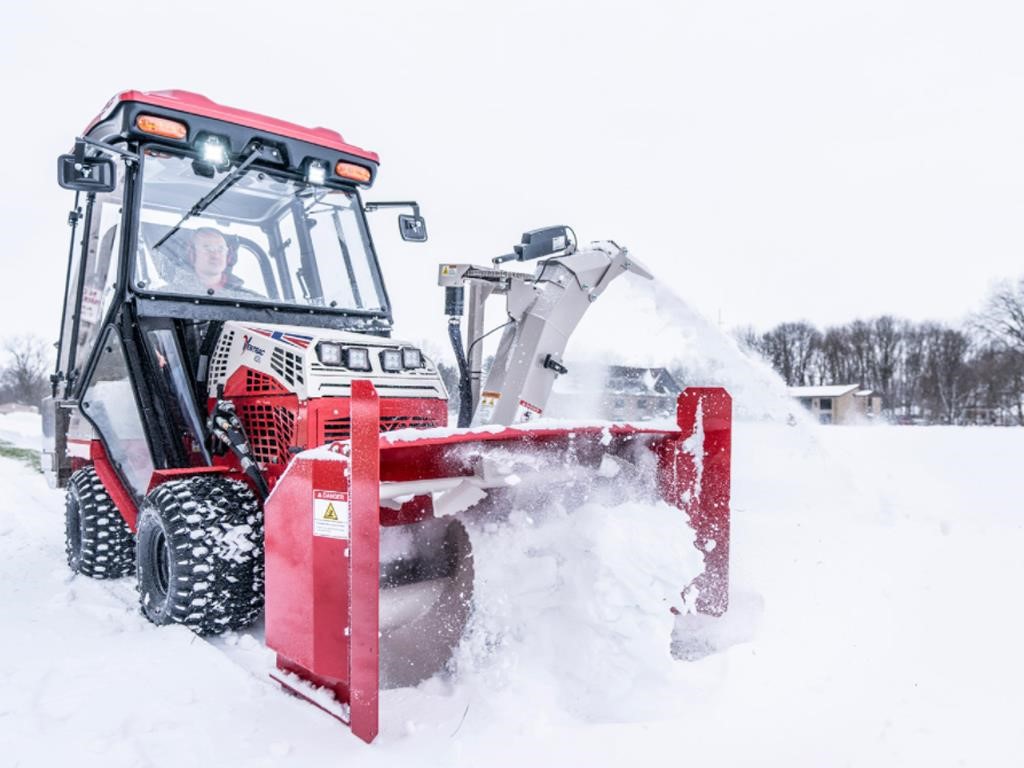

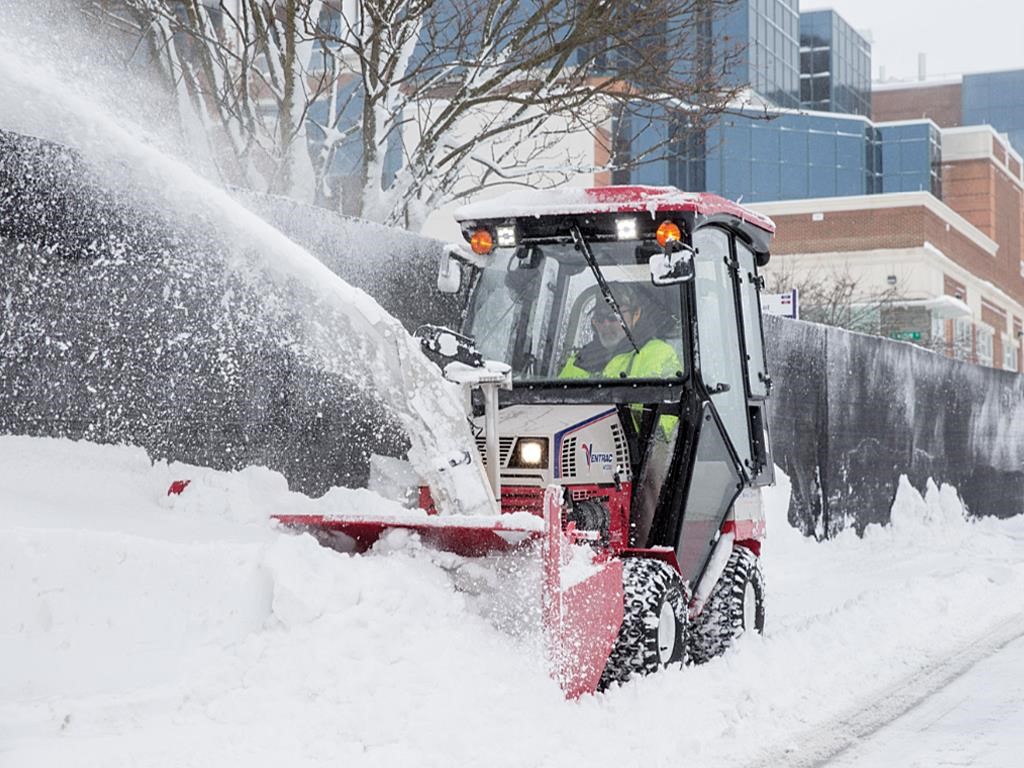

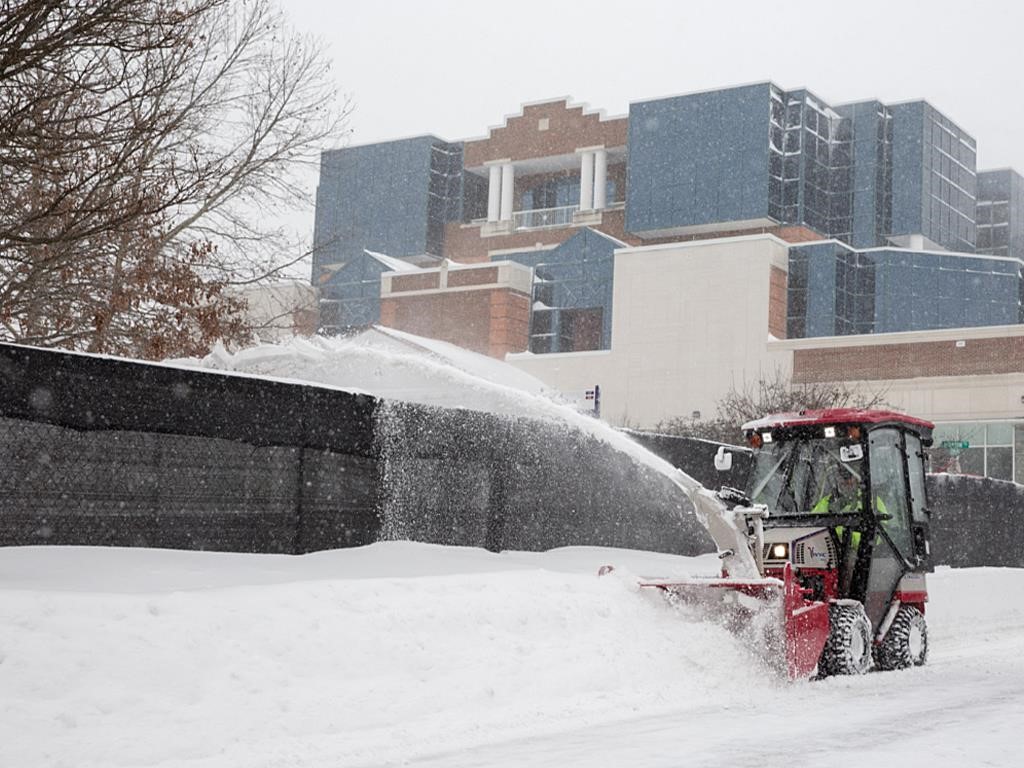

Ventrac Snow Blowers are built for commercial snow clearing operations of sidewalks, driveways, and other areas. Available in width options of 48” and 52”, these two stage snow blowers feature a 16” diameter solid auger for best snow transfer, a large 20” diameter fan, and the ability to launch snow at distances up to 40 feet. Standard features include adjustable cast iron skid shoe discs at the rear, high carbon hardened steel shoes at the side, and a reversible high carbon hardened steel cutting edge.

The hydraulically activated discharge chute can rotate 220 degrees, all from the convenience of the operator’s seat, using Ventrac’s exclusive S.D.L.A. control system. Chute deflection is manually adjustable and an electric chute deflection controller is optional.

STANDARD FEATURES

• 2-Stage System

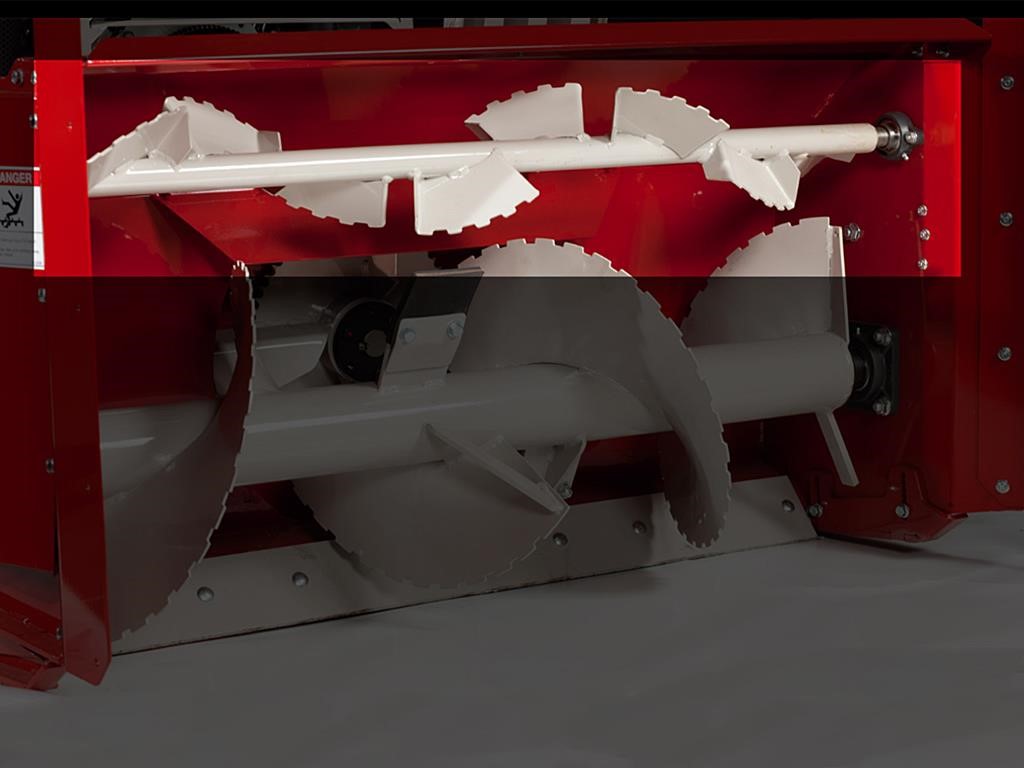

• Double spiral serrated auger

• Double hinged chute deflector with optional electric actuator

• Standard hydraulic controlled

• 220-degree rotation discharge chute

• Extra heavy-duty shaft and bearings

• Chute guard quick release rubber latches

• Chute liners to reduce snow leakage

• Front crossbar protection bumper

• Cleanup stick for dislodging clogged snow

• Ventrac Mount System

OPTIONAL ACCESSORIES

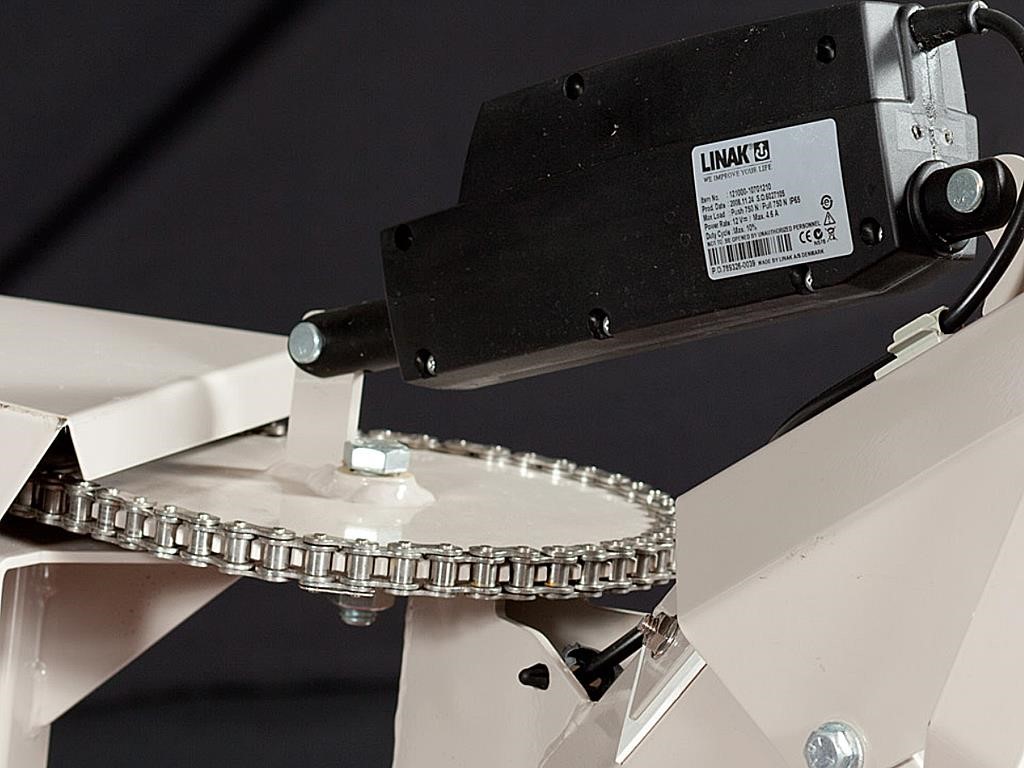

• 12 Volt Chute Actuator (requires 12 Volt Switch/Plug Kit)

• Deep Snow Auger Kit

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
