GRAVELY PROTURN 352

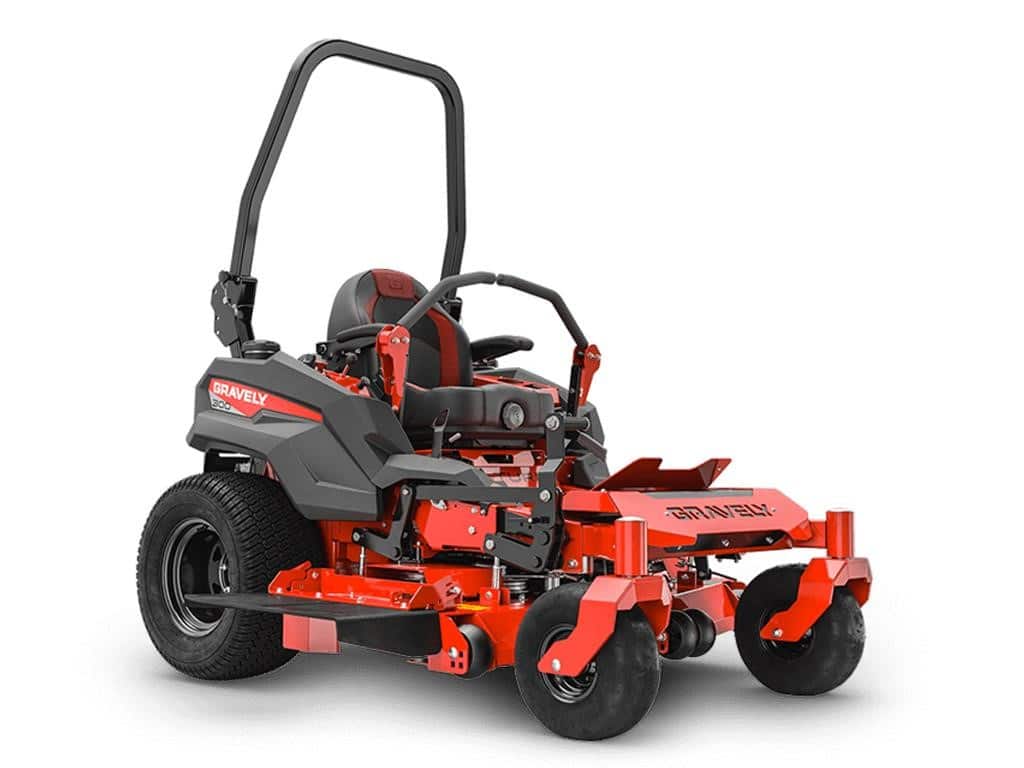

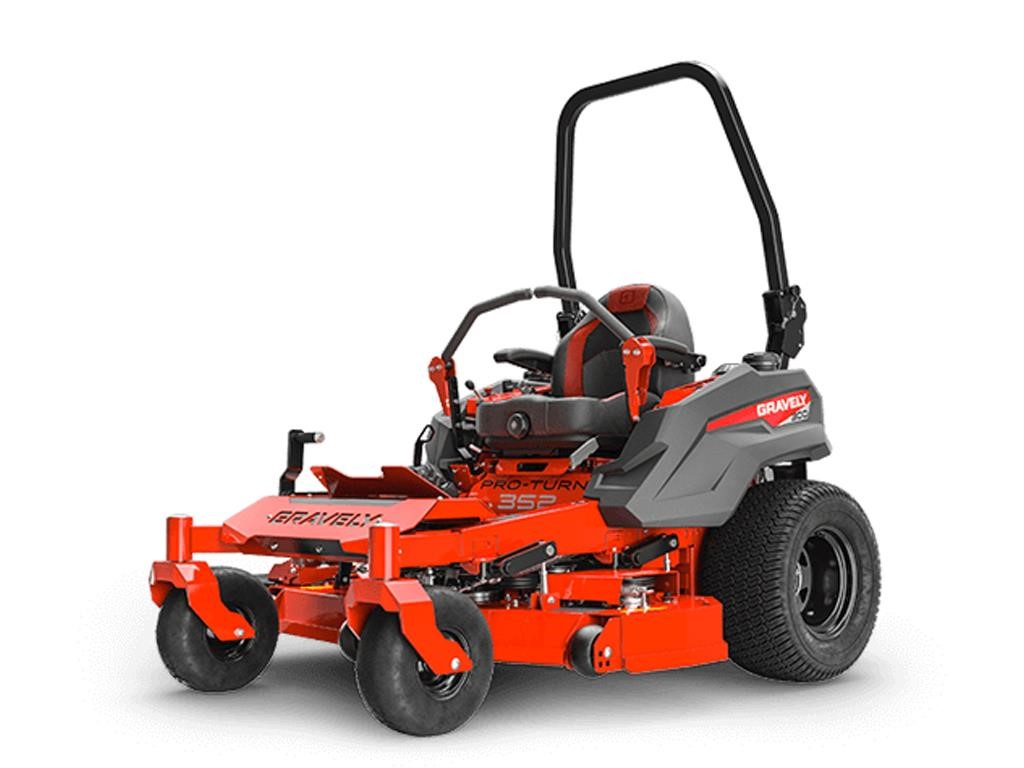

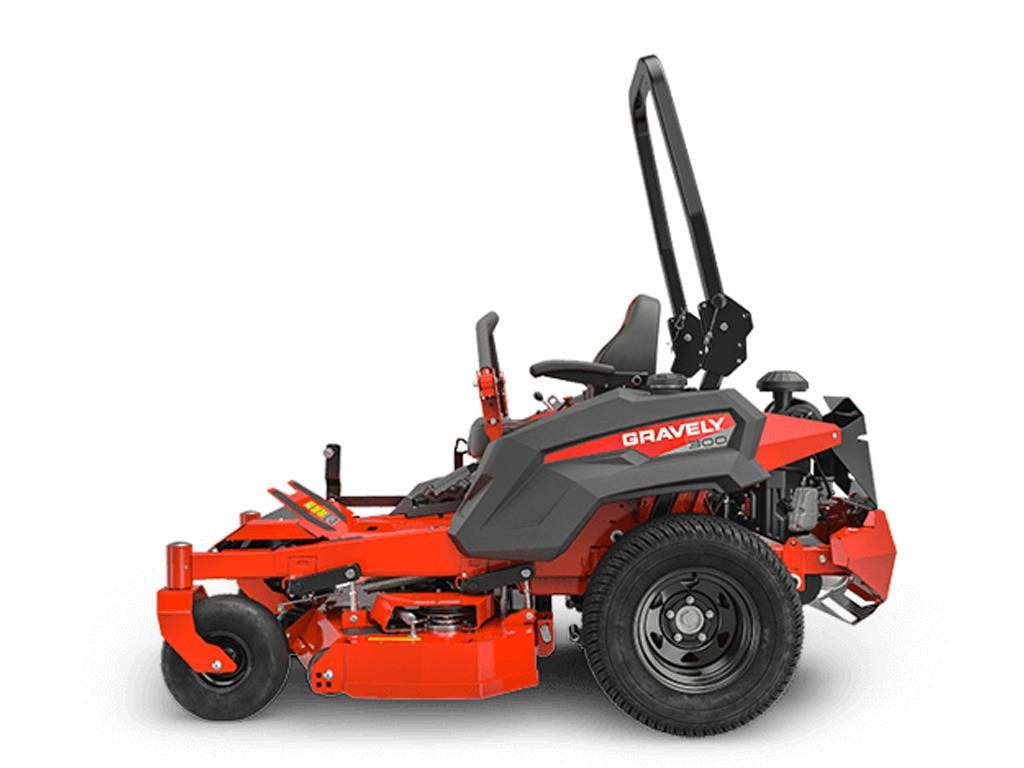

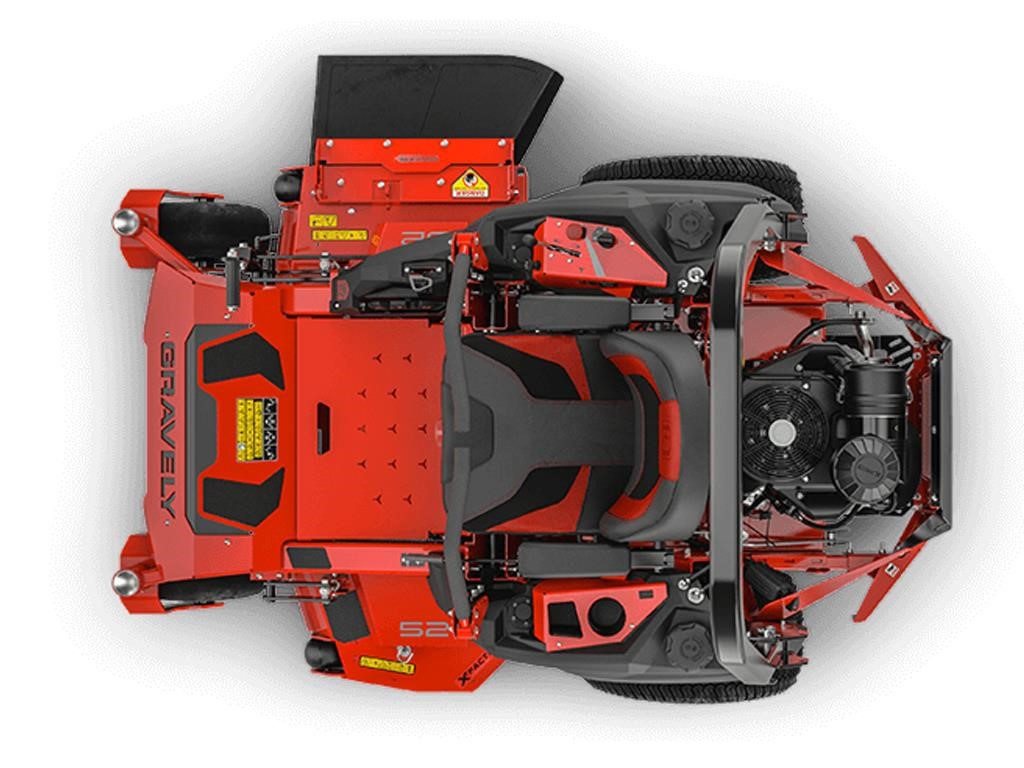

GRAVELY PRO-TURN 352–ZERO TURN LAWN MOWER
COMFORT AND DURABILITY, YARD AFTER YARD AFTER YARD AFTER YARD…
Introducing the Pro-Turn® 300. A newly designed, hard-working mower built to keep you comfortable from dawn to dusk. This is mowing to the next level thanks to its innovative features and superior cutting performance.
FEATURES
COMFORTABLE SEAT
High back seat has lumbar support and padded armrests. Red double stitching gives a high-end look with black, dark grey, and red accents.
FULLY WELDED TUBULAR FRAME
Its wide front rail distributes weight for superior balance. Also supports the deck lift for easy engagement.
PARKER HTJ TRANSAXLES
They have a 12cc pump and deliver a top speed of 11mph. Filters are easily accessed from the rear for easy maintenance.
X-FACTOR® 3
Made with 7-gauge steel and specially designed for better grass dispersion thanks to its larger discharge opening, integrated baffles, and sloped front end. Reinforced spindle mounts protect blade operation while the six recessed anti-scalp wheels protect the turf on uneven terrain. Its flip-up rubber chute makes it easy to drive through gates and around obstacles. A 5/8” leading edge provides extra protection to the shell while stabilizer links keep vibration to a minimum. Includes a limited lifetime warranty.
DIAL HEIGHT ADJUSTMENT
The dial wheel allows easy height adjustment between one and five inches. Toolless adjustable foot pedal with internal assist springs helps lift the deck with little effort.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Specifications
| Horsepower | 22 HP |
|---|---|
| Ground Speed (Approx. MPH) (fwd/Rev) | 11 MPH / 5 MPH |
| Model Number | 992521 |
| Engine | KAWASAKI FX691V |
| Fuel Capacity | 12.5 GAL |
| Drive System | PARKER HTJ TRANSMISSION |
| Displacement | 726 CC |
Deck
| Deck Construction | X-FACTOR® 3 DECK |
|---|---|
| Blade Tip Speed | 18,000 FPM |
| Cutting Width | 52 IN. |
| Spindle Housing Material | FORGED ALUMINUM |
| Spindle Bearings | BALL BEARING |
| Deck Material | 7 GA. STEEL WITH .25 IN. SPINDLE REINFORCEMENT |
| Deck Engagement | OGURA GT2.75 |
| Number of Spindles | 3 |
| Cutting Heights | 1.0 IN. - 5.5 IN. |
| Cutting Positions | 19 |
Warranty
| Unit | 5 YEAR/1250 HOUR COMMERCIAL/NO HOUR LIMIT FIRST 2 YEARS |
|---|---|
| Deck Shell & Frame | LIMITED LIFETIME |
Wheels
| Rear | 24 X 12-16 BIAS PLY TURF |
|---|---|
| Front | SMOOTH 15 X 6-6 PNEUMATIC |
| Front Axle | FIXED, GREASEABLE CASTER FORK TUBES |
Machine
| Length | 84 IN. |
|---|---|
| Weight | 1320 LBS. |
| Width W/ Chute | 67 IN. |
| Width W/O Chute | 55 IN. |
| Height (w/ ROPS EXT/DOWN) | 76.0 IN. /47.8 IN. |
| Height W/ROPS Up |
Features
| Seat | SUSPENSION PLUSH SEAT WITH ARM RESTS |
|---|---|
| Foldable ROPS | STANDARD |
