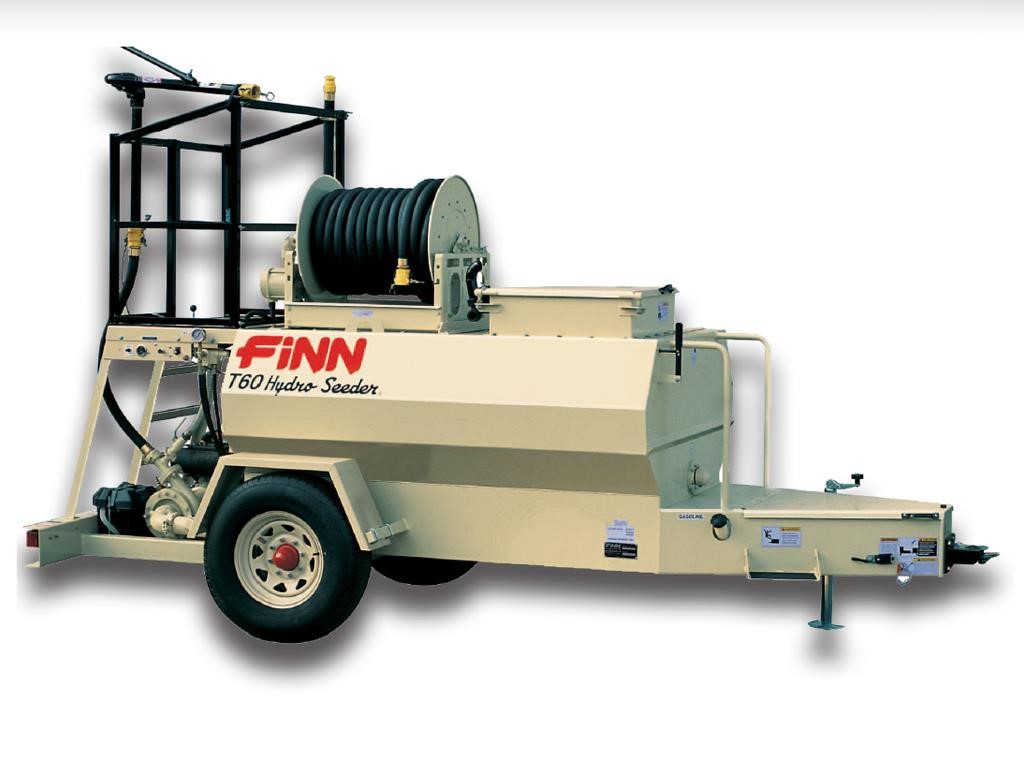

FINN T60

T60 — FINN HYDROSEEDER® 600 GALLON WORKING CAPACITY TANK

The FINN T60 Series II is the perfect 600-gallon HydroSeeder for the landscaper or contractor that requires a fast and economical solution for seeding jobs. FINN developed HydroSeeder technology in 1953. We’ve been the industry leader in quality and innovation ever since. With the FINN T60, you don’t have to settle for less than proven and reliable FINN quality to tackle a wide range of demanding hydroseeding applications. With coverage up to 7200 square feet per load you don’t have to settle for less than proven and reliable FINN quality to tackle a wide range of demanding hydroseeding applications.

FEATURES AND BENEFITS

• Top designed 600-gallon capacity steel tank that covers up to 7200 square feet per load with seed, fertilizer and mulch in one simple step

• Clean, operator friendly design with a low machine profile allowing for easy material loading and excellent stability

• Large toolbox in the hitch perfect for storing hose and nozzles

• FINN designed centrifugal pump driven by an in-line common shaft clutch with no high-cost maintenance couplings, drive belts or hydraulic components

• Pump configuration dramatically increases output and operating pressure

• Discharge distance up to 90 feet from end of the tower

• Optimum mixing capabilities featuring hydraulically controlled paddle agitation and liquid recirculation with convenient operator controls at both the front and rear of the unit

TOP DESIGN & PERFORMANCE.

The FINN T60 Series II HydroSeeder features a clean, operator-friendly design. For optimum mixing efficiency the T60 Series II features hydraulically controlled paddle agitation with convenient operator controls at both the front and rear of the unit. A low machine profile allows for easy material loading and excellent stability. A large tool box in the hitch can be used for storing hose and nozzles.

HIGHLY EFFICIENT. WIDELY APPLIED.

Become a one-man seeding and mulching crew. The T60 Series II covers up to 7,200 square feet per load with seed, fertilizer, and mulch in a simple, one-step process. Residential and commercial properties, sports fields, apartments, condominiums, and golf courses are all ideal ground for a T60 Series II application.

POWERFULLY DRIVEN.

The T60 Series II boasts a powerful centrifugal slurry pump, driven by an in-line common shaft clutch with no high-cost maintenance couplings, drive belts or hydraulic components. This configuration dramatically increases output and operating pressure.

WHO USES THE T60 HYDROSEEDER®?

The T60 HydroSeeder is perfect for the small to mid-size hydroseeding projects on residential and commercial properties, sports fields, apartment and condominium complexes, golf courses, parks and more.

With the versatile T60 you can do professional quality hydroseeding, fiber mulching, fertilizing, straw tacking, foliar feeding, dust control, remote watering and a number of applications efficiently and cost effectively. The T60 HydroSeeder readily doubles as a first response firefighter, portable wash-down rig or mini water carrier. It also has the power to mix and apply a wide variety of liquid, powdered and solid consumables for landscape, soil building, erosion control, cleaning, and industrial uses.

As the world leader for over 80 years in the design and manufacture of innovative, quality equipment for the green industry, FINN is committed to your complete satisfaction.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.

Technical Specifications

TANK SIZE600 gallon (2,270 liter) liquid capacity | 500 gallon (1,890 liter) working capacity
NOZZLES(1) narrow fan, (1) wide fan, (1) long distance
ENGINE SAFETY SYSTEMLow oil pressure shutoff
HITCH2 5/16” (5.87 cm) ball or heavy-duty lunette eye, Includes large storage area
PUMP DRIVEDirect drive through electric clutch, pump drive is independent of agitator operation
EMPTY WEIGHTT60T - 2,770 lbs. (1,257 kg) | T60S - 2,170 lbs. (985 kg)
BRAKESElectric with break-away switch
DISCHARGE DISTANCEUp to 90 ft. (27 m) from end of discharge tower
TRAILER AXLES
PUMPCentrifugal 3” x 1 1/2” (7.5 cm x 3.75 cm), 65 GPM @ 75 psi (245 lpm @ 5.3 kg/cm2), 3/4” (1.9 cm) solid clearance, adjustable
**Working weights are approximate and do not include stored materials
FUEL TANK CAPACITY8.2 gallon (31 liter)
MATERIAL CAPACITY1,550 lbs. (703 kg) granular solids, 200 - 250 lbs. (91 - 113 kg) fiber mulch
*Loads per acre based on an application rate of 1500 lbs. mulch/acre
HITCH WEIGHTApprox. 1,300 lbs. (590 kg) max load
LOADS PER ACRE*6
WORKING WEIGHT**T60T - 7,770 lbs. (3,525 kg) | T60S - 7,170 lbs. (3,253 kg)
POWERKohler CH730, 23.5 hp (17.5 kw), 2 cylinder, OHV, air cooled gas
AGITATOR DRIVEReversible, variable speed hydraulic motor (0-110 rpm), with control lever at front and rear of unit
TIRESST225/90D16 bias ply tires, load range E
AGITATIONMechanical paddle agitation and liquid recirculation
LIGHTSD.O.T., including marker, identification lights, and license plate bracket
