NEW HOLLAND WORKMASTER 70

NEW HOLLAND WORKMASTER™ UTILITY 50 – 70 SERIES — WORKMASTER 70

New Holland salutes a generation of doers by introducing a new line of tractors with a familiar name – WORKMASTER™. Popular in the 1960s, the original WORKMASTER models were known for their dependability and value. Today, it’s no different. Whether you’re mowing, moving, baling or loading, new WORKMASTER tractors work hard, are easy to afford, and at the end of the day, deliver the satisfaction of a job well done.

A WIDE SELECTION OF IMPLEMENTS AND ATTACHMENTS

Besides being the best utility tractor for the money, WORKMASTER tractors help you accomplish more with matching New Holland attachments and implements. Add a loader, rotary cutter, backhoe, blade and more to increase your productivity.

TOUGH AND RELIABLE

Rugged construction and simple drivelines help make WORKMASTER tractors the dependable, economical choice.

CLEAN AND FUEL-EFFICIENT

Turbocharged, direct injected, common rail engines save fuel and meet strict Tier 4B Final emissions requirements with a system that’s completely automatic.

2WD OR 4WD

For added grip and performance in slippery and challenging conditions, upgrade to the 4WD front axle with limited slip, front differential lock.

THREE HEAVY-DUTY MODELS

WORKMASTER models at 53, 60 and 70 horsepower serve as ideal mid-size tractors for municipalities, landscapers, grounds crews, farmers and ag lifestylers.

THE POWER BEHIND A JOB WELL DONE

Ample power and a durable design make routine chores and ambitious projects easy. Three WORKMASTER™ models let you choose between 53, 60 or 70 engine horsepower, that offer a quiet start-up and smooth, fuel-efficient operation. Tier IV emission compliant engines protect the environment and give you the flexibility to run on B7 biodiesel blends.

EXACTLY WHAT YOU NEED

You’ll find the speeds you need to match any task in the new WORKMASTER™ tractors. Just like an automobile, gears are arranged in a simple pattern, and the WORKMASTER 50, 60 and 70 offer a convenient 8 x 8 synchronized shuttle that lets you easily flip from forward to reverse and back again. With operation this smooth, you’ll cruise through chores and be ready to tackle your next big project.

BUILT TO DO WHAT TRACTORS DO BEST

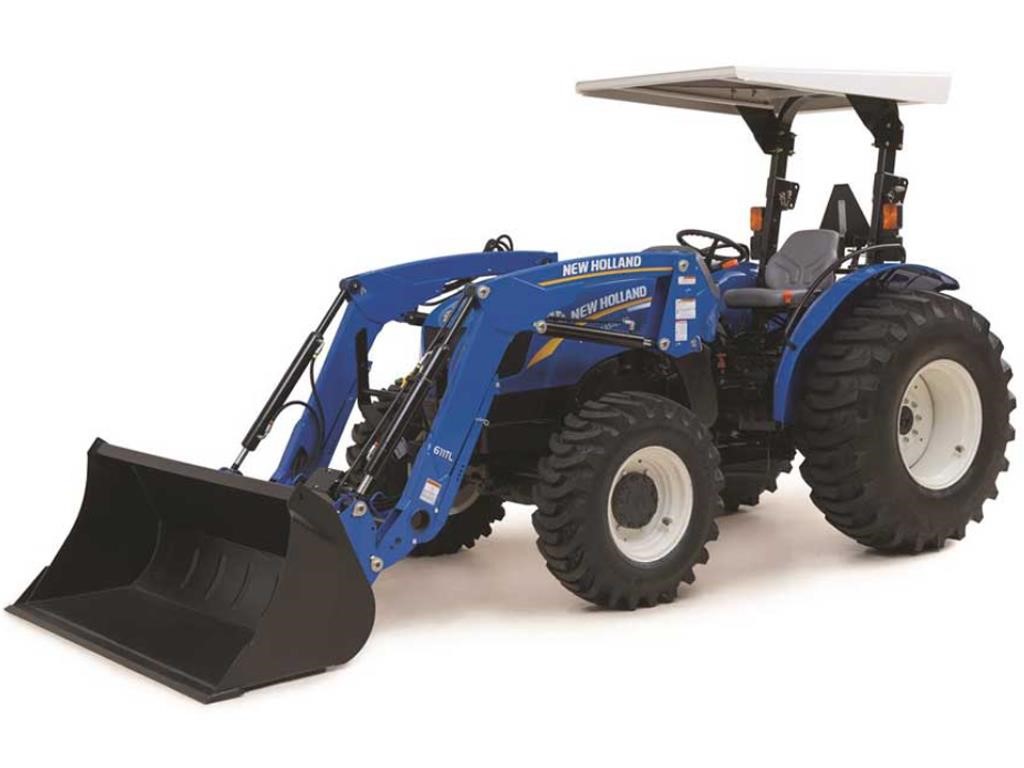

Heavy-duty loader work and tough three-point implement applications are all in a day’s work for the WORKMASTER™.

THE RIGHT FIT

Climb aboard and you’ll see what a difference attention to detail makes. From the clear path to the seat, to the easy-to-master controls, the WORKMASTER™ is designed to make long days in the saddle comfortable and more productive.

SERVICE IN A SNAP

It doesn’t get any easier than this. Convenient checkpoints let you stay on top of routine maintenance.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

Engine - Fuel tank capacity [gal (L)]: 17.2 (65)
Hydraulics - Implement pump capacity [gpm (lpm)]: 12 (45)
General - ROPS: Foldable
Hydraulics - Steering & services system [gpm (lpm)]: 5.5 (21)
Electrical - Battery capacity (cold cranking amps): 720
Hydraulics - Total maximum tractor flow [gpm (lpm)]: 17.5 (66)
Engine - PTO horsepower [hp (kW)]: 62 (46)
Dimensions - Shipping width [in (mm)]: 77.5 (1970)
Engine - Displacement [cu.in (L)]: 136 (2.2)
Engine - Gross engine power [hp (kW)]: 70 (52)
Dimensions - Shipping length [in (mm)]: 2WD: 129.5 (3290) | 4WD: 134 (3404)
Brakes - Service brakes: Mechanical multi-plate wet disc
Transmission - Optional Rear Tire: 18.4-24 (R4), FWD
Transmission - Standard Rear Tire: 14.9-28 (R1)
Engine - Rated speed (rpm): 2600
Rear 3Point Hitch - Position control, draft sensing: One lever, standard mechanical draft control
horsepower: 70
Engine - Standards: 4B final
Rear 3Point Hitch - OECD lift capacity @ 24" behind ball ends [lbs (kg)]: 2,701 (1225)
Transmission - Traction clutch: Dry, 11" (279.4 mm) diameter, organic plate
Electrical - Accessory power outlets: Standard equipment, 7-pin implement outlet
PTO Type - Rear PTO: 540 RPM Standard / 540/540E Economy optional
Dimensions - Shipping height [in (mm)]: 97.6 (2479)
Front Axle - FWD clutch engagement: Mechanical, FWD
Engine - Air Filter: 2 - stage
Engine - Make: FPT - R753
Rear 3Point Hitch - Category: II/I
Electrical - Alternator: 75
PTO Type - PTO type: Independent Mechanical Engagement
Dimensions - Shipping weight [lbs (kg)]: 2WD: 4,442 (2015) | 4WD: 5,059 (2995)
Brakes - Parking brake: Engage hand-lever, press brake pedals to lock service brakes
Engine - Fuel type: Direct Injection /Common Rail
Hydraulics - System type: Open center, fixed displacement gear pump
Transmission - 8x8 synchro shuttle: 8Fx8R Synchronized Shuttle with synchronized gears and non-synchronized ranges
Hydraulics - Remote valves: Open center, float detent available for #1, 1 or 2 FIO or DIA
horsepowerUnit: horsepower
Rear Axle - Rear differential lock: Mechanical foot pedal engagement
Electrical - Lighting: 2 halogen headlights, 2 halogen corning worklights, flashing safety lights/turn signals
drive: MFWD
Engine - # Cylinders / Aspiration: 3, Turbo
