AVANT ASPHALT GRINDER – A432621

AVANT A432621–ASPHALT GRINDER

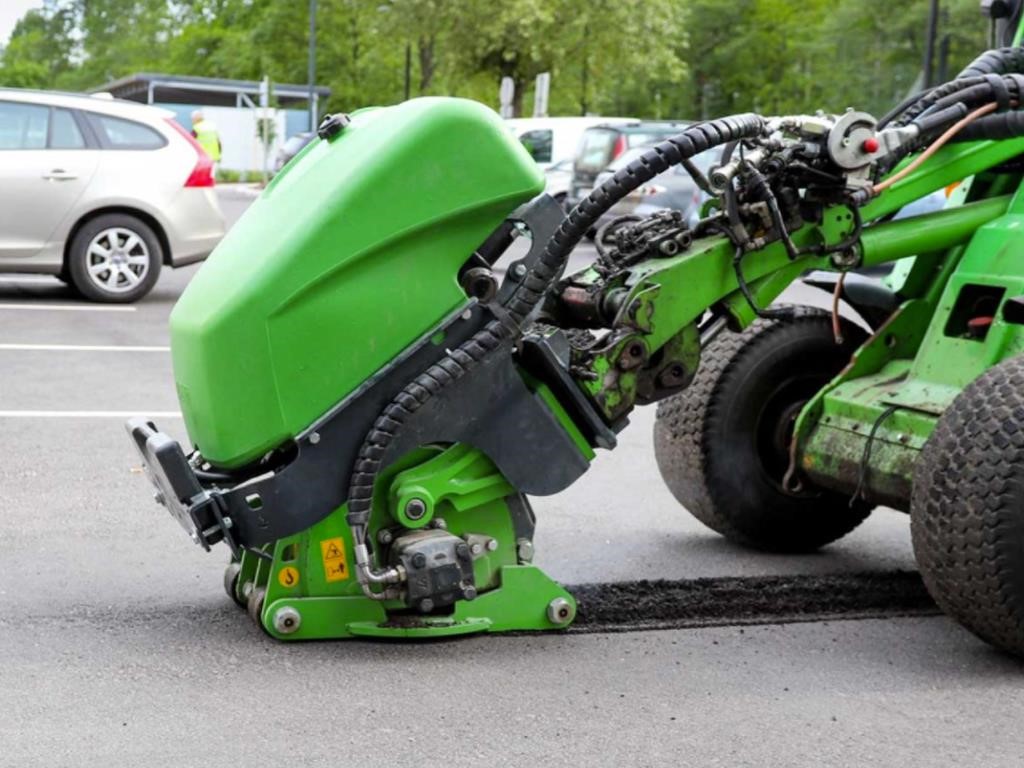

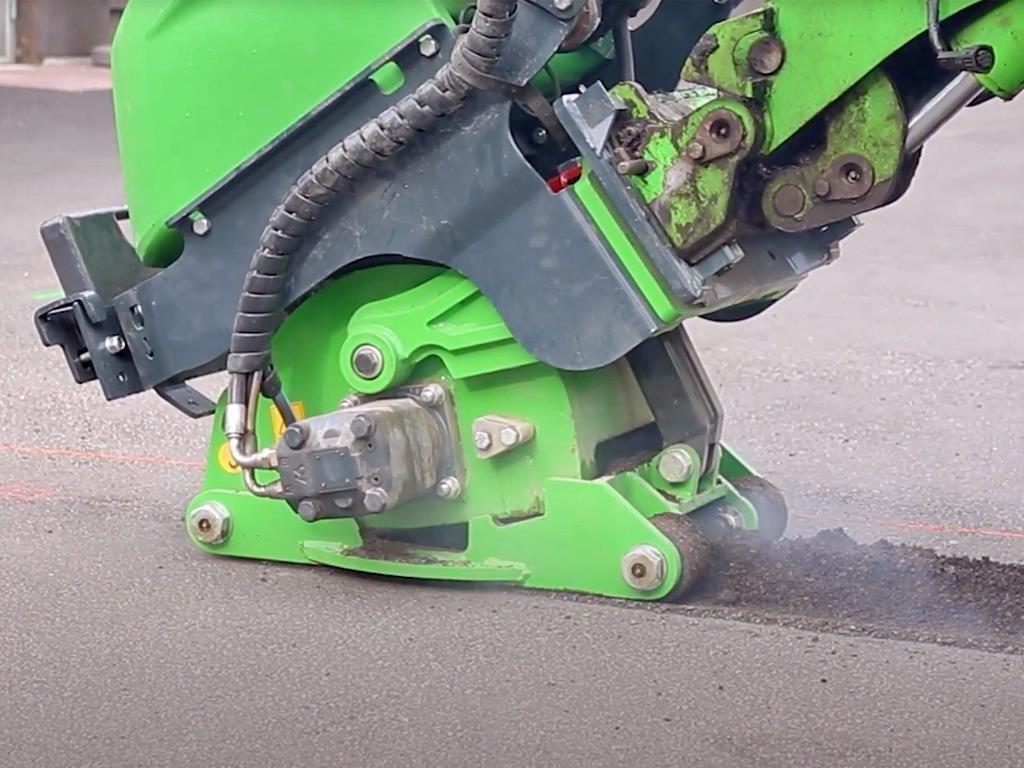

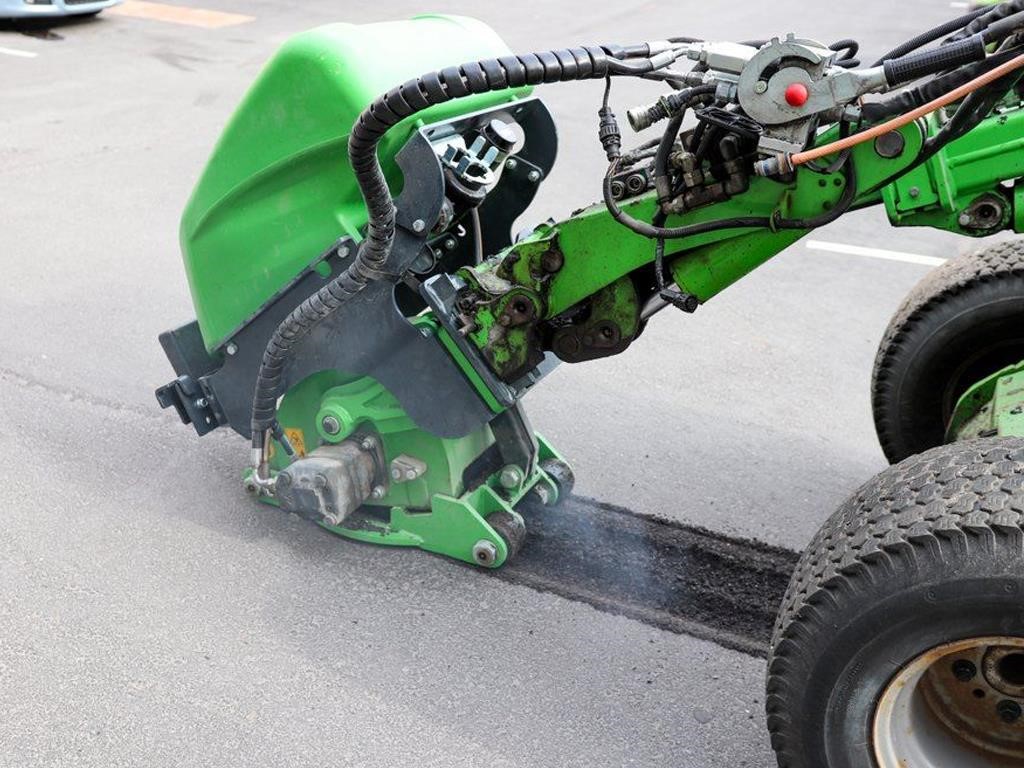

The strong and efficient asphalt grinder (also called cold planer) is an ideal attachment for asphalt road and pavement repairs and utility jobs. It grinds away the asphalt surface up to 3.1 in depth, making repair of potholes, utility cuts, small overlays, and edge repairs fast and easy.

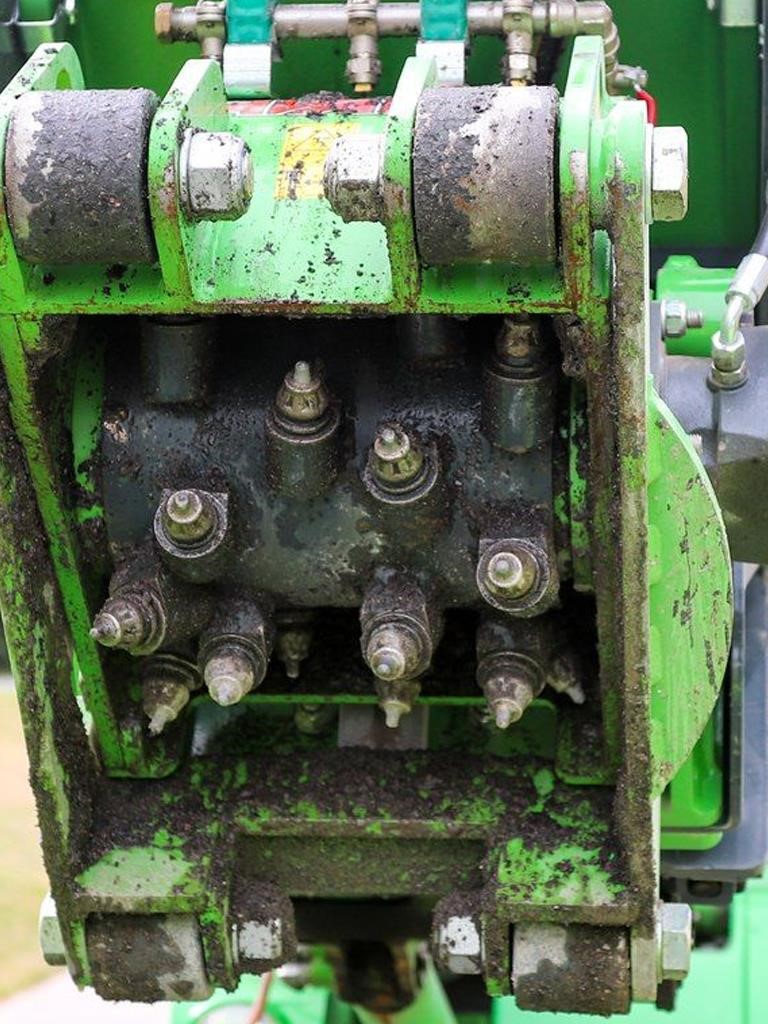

Different types of teeth are available for grinding of asphalt or concrete.

A water spraying system is available as an option. It is mounted on top of the planer and is equipped with 15.9-gal water tank and nozzle bar (same as on Avant collecting broom), membrane pump and strainer filter. Also, 3 pcs Avant 64 lb counterweights can be mounted on the water tank support frame to add weight when grinding hard asphalt, etc. material.

If a side shift is needed, the hydraulic side shift adapter A37235 is available as an option. It requires the optional second auxiliary hydraulics front outlet on the loader.

FEATURES

• Efficient grinder for asphalt road and pavement repairs and utility jobs

• Different type of teeth available

• Hydraulic side shift adapter and water spraying system for dust binding available as an option

OPTIONAL WATER SPRAYING SYSTEM

• Mounts on top of the grinder

• Water tank 15.9 gal + nozzle bar (same as on Avant 59.1 in collecting broom & bucket broom), membrane pump & strainer filter

• Max. 3 pcs Avant 64 lb counterweights A35957 can be mounted on the water tank support frame

• Product no. A37386
