CASE 221F

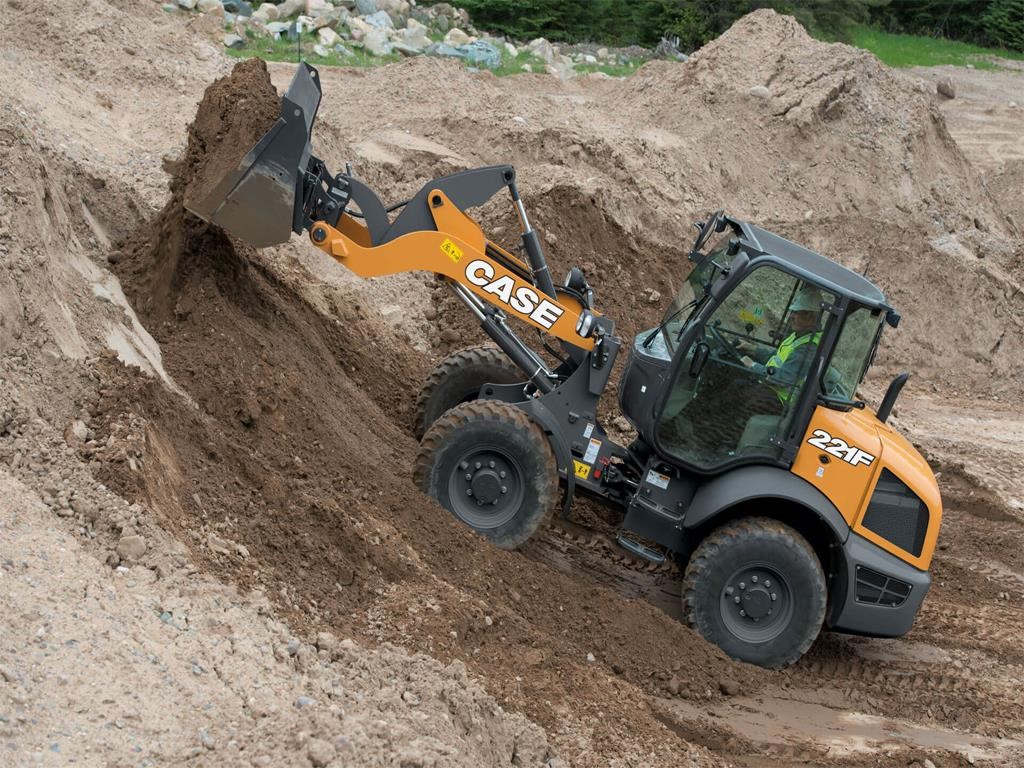

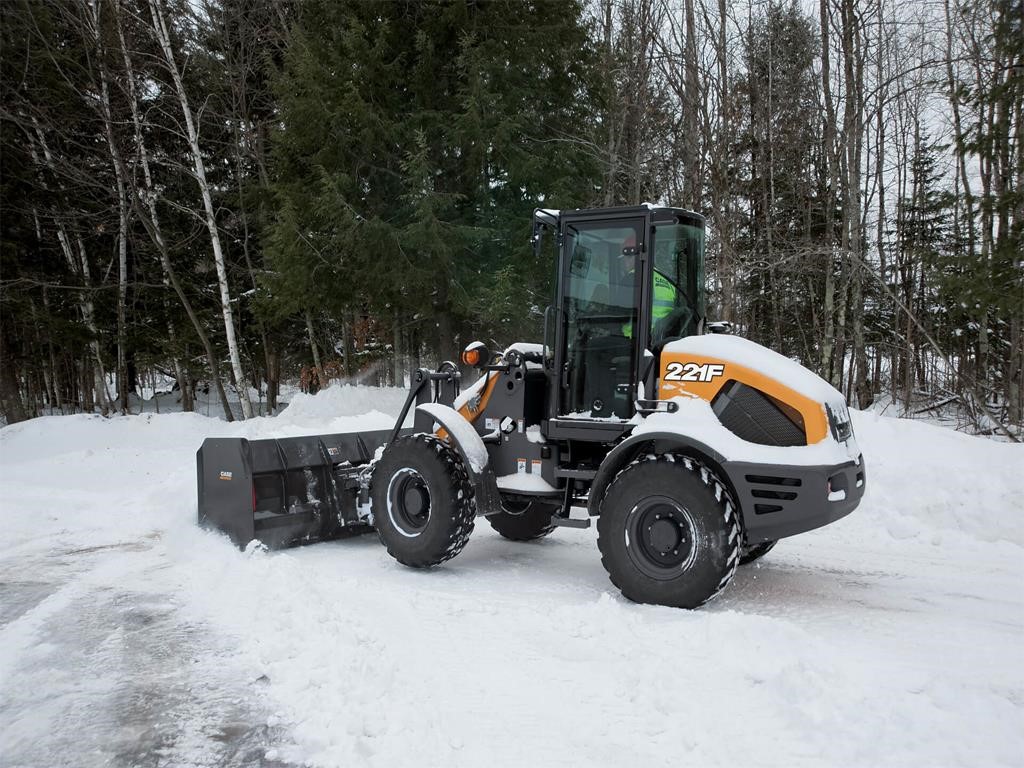

CASE 221F—COMPACT WHEEL LOADER
The 221F Compact Wheel Loader is designed to do more on the job while requiring less from you. A strong, compact frame with Z-Bar linkage improves stability for greater leverage and load control while a Tier 4 emission solution helps meet emissions regulations without additional maintenance needs. Many other features provide more speed back into the pile, greater precision in close quarters, better material retention and enhanced attachment compatibility thanks to a standard skid steer coupler. All, of course, with the durability you expect from CASE.
COMPACT WHEEL LOADERS
Compact machines with super-sized features. CASE compact wheel loaders pick up where skid steers leave off in lift capacity, ground clearance, cab height/visibility and application versatility. Multiple linkage, a hydraulic coupler, axle options combined with Ride Control™ and a maintenance-free Tier 4 emissions solution add versatility and performance capacities when you need them the most. CASE compact wheel loaders set the standard for exceptional performance, unrestricted visibility and outstanding comfort.
FEATURES
PRODUCTIVITY
With a lower center of gravity and Z-bar linkage, the 221F has improved lifting power and breakout force. The suspension has been enhanced with a 20-degree oscillating rear axle that works independently of the cab for greater operator comfort and load control. High speed axle options provide travel speeds up to 21.8 MPH (35 KM/H), including HS limited slip axles which provides on-demand traction in loose or uneven terrain, Powering the 221F is a gear pump with a choice two flow outputs, standard 85l/min or the High Flow pump producing 130 l/min. The high-flow pump and creep speed transmission are perfectly matched for demanding applications like snow-blowing or cold planning. A proportional loader control gives operators even greater command. Plus, Connect Under Pressure (CUP) manifolds and a hydraulic coupler make switch out quick and easy.
FUEL EFFICIENCY
The 221F features a maintenance-free Tier 4 emission solution. This means no regeneration downtime, no Diesel Particulate Filters (DPFs) to replace, no extreme exhaust temperatures, no after-treatment fluids to add. Just get in and go. It’s the best match for versatile, on-the-go machines of this size.
COMFORT AND VISIBILITY
F Series cab offers more space, greater all-around visibility, and an intuitive control interface to simplify operation. With Creep Speed, Return-to-Dig and Ride Control™, air suspension seat, and Bluetooth radio options, it’s even easier to maximize productivity throughout the day. LED worklights helps keep production levels high and safe, even in low-light conditions.
SERVICEABILITY
With a tilt-up hood and friendlier access to daily checkpoints, the F Series Compact Wheel Loaders were redesigned to simplify serviceability. Radiators, filters, hydraulics and the engine are all easily accessible so routine maintenance can be done in a matter of minutes.
STANDARD EQUIPMENT
OPERATOR ENVIRONMENT
• ROPS: ISO 3471: 2,008 lb (6 800 kg)
• Base and Deluxe Cab w/ heater
• Key start
• Articulated power steering w/ tilt column
• Full adjustable cloth suspension seat
• Foot throttle
• Single joystick w/ electronic speed shift control F/N/R switch and proportional loader control
• Cup holder
• Retractable seat belt
• Storage tray on Deluxe Cab
• Sun screen – front, Opening side window
• Dome light
• Wipers – front and rear
• 12-volt auxiliary power
• Lighter cigar and ashtray
• Pocket cellular phone
• Coat hook
• External rearview mirrors
• Loader control lockout
• Electronic information center
• Displays/Gauges:
o Vehicle speed
o Hourmeter
o Floating functionality on
o Clock
o Vehicle directions
o Gear number engaged
o PM Catalyst icons
• Indicator lights:
o Main hydraulic enabled
o Turn light – left and right
o Rear work lamps
o Work lamps
o Main high beam
o Side lights
o Stop
o Warning signal
o Rabbit
o Hand brake
o Brake fluid level
o Quick coupler on
o Ride Control on
o Creep speed
o PM Catalyst
o Low fuel level
o Clogging air filter
o Engine oil pressure
o Glow plug
o Alternator changing
• Audible alarms:
o Caution alarm
o Critical alarm
o Backup alarm
• Horn
NOTE: If equipped w/ option
ENGINE
• FPT F5H FL463 A
• Fuel filter with water trap
• Dual element air cleaner
LOADER
• Z-Bar:
o Z-Bar loader linkage
o Single control for lift and tilt
o Positive hold float
o Hydraulic attachment coupler: Skid steer compatible/horizontal pin compatible
DRIVETRAIN
• 4-wheel drive
• Open – front and rear axles
• Hydrostatic transmission
• Single joystick with electronic speed shift control F/N/R switch and proportional loader control
• Outboard planetary axles
• Hydraulic wet disc brakes
• Mechanical parking brake
HYDRAULICS
• 3-spool loader control valve
• 3 Diagnostic quick couplers
• Adjustable electro hydraulic (EH) loader controls Smooth, moderate & aggressive settings for both lift and tilt responsiveness:
o Return to Dig
o Hydraulic skid steer compatible coupler
o Connect under pressure connectors
o Remote drain of hydraulic oil
o Aux. Hydraulic drain line coupling
• Auxiliary flow 22.5 gpm @ 3,336 psi (85 l/min @ 230 bar)
OTHER
• Front and rear fenders
• Lights:
o 2 Front driving headlights – high/low beam
o 2 Rear flood lights
o 2 Stop tail lights and backup light
o Front and rear turn signal/flash
• Drawbar pin
• Articulation locking pin
• Tie-down and Lift-up point – front and rear
• Backup alarm
• Tool box
• Rotating beacon
• Wired for radio
• Bucket position indicator
• Front electrical socket for powered attachments
OPTIONAL EQUIPMENT
OPERATOR ENVIRONMENT
• Creep speed 0 – 3.1 mph (5 kph)
• TeleScop adjustable steering column on Deluxe Cab
• Canopy cab
• Limited slip – front and rear axles
• 100% lock – front and rear axles
• Horizontal pin coupler
• Air conditioning
• Radio ready antenna and speakers
LOADER
• Optional High flow:
o Max. 34.3 gpm @ 2500 RPM @ 2,901 psi
o (Max. 130 L/min @ 2500 RPM @ 20 000 kPa)
• Buckets – see performance data:
o General purpose standard
o General purpose light material
o 4-IN-1®
• STD forks
• Auto Ride Control
• Cold weather with Block Heater – Two 680 CCA batters and Low-temp Hytran oil
TIRES
• 14.5-20MPT-04 MITAS
• 365/80 R20 SPT9 L2(DL.)
• 365/70 R18 SPT9 L2 DUNL. – Standard
• 12.5-20 MPT10 PR L2 GDY.
• 12.5-20 10PRMPT04TBL MITAS
• 365/80 R20 EM MITAS
• 365/70 R18 EM MITAS
OTHER
• CASE SiteWatch Telematics
• LED work lights, 2 front and 2 Rear
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
| DRIVETRAIN - Front axles: Planetary ratio : | 6.00 |
|---|---|
| DIMENSIONS - Ground clearance under shaft: | 17.3 in (440 mm) |
| DRIVETRAIN - Travel speeds 2nd High: | Forward: 11.4 mph (18.3 kph) | Reverse: 11.4 mph (18.3 kph) |
| DIMENSIONS - Height to top of ROPS cab: | 103.4 in (2 627 mm) |
| ENGINE - Type: | 4-stroke |
| DRIVETRAIN - Gear box HS: 1st ratio: | 2.75 |
| DIMENSIONS - Width overall without bucket: | 73.2 in (1 860 mm) |
| OTHER SPECIFICATIONS - Dump cylinder Rod diameter: | Z-Bar: 2.25 in (57.1 mm) |
| ENGINE - Engine speeds Rated speed – full load RPM: | 2500 |
| ENGINE - Engine pump operating angle ratings fore and aft: | Rated 35° |
| DRIVETRAIN - Differential: | Open standard/limited slip optional |
| SERVICE CAPACITIES - Fuel tank: | 22.7 gal (86.0 L) |
| HYDRAULICS - Loader control valve: | Open-center, Hydraulic Loader Control w/ single lever includes: Forward/Neutral/Reverse switch, Floating switch, Low/High Travel mode switch, Auxiliary Function Roller |
| OTHER SPECIFICATIONS - Cycle time: Dump w/ rated bucket load: | Z-Bar: 1.7 sec |
| ELECTRICAL - Batteries: | 95 AHR, 900 CCA |
| ENGINE - Maximum torque @ 1400 RPM: Net: | 227 lb·ft (308 N·m) per SAE J1349 |
| OTHER SPECIFICATIONS - Loader: | Z-Bar: Z-Bar loader linkage; Single control for lift and tilt; Positive hold float; Hydraulic attachment coupler: Skid steer compatible/horizontal pin compatible |
| DRIVETRAIN - Pump relief: | 6,092 psi (42 000 kPa) |
| DIMENSIONS - Turning radius – outside: | 157.0 in (3 987 mm) |
| SERVICE CAPACITIES - Front axle: | 2.3 gal (8.7 L) |
| ENGINE - Air filter: | Dry type element w/ warning restriction indicator |
| OTHER SPECIFICATIONS - Dump cylinder: | |
| DRIVETRAIN - Gear box HS: 2nd ratio: | 1.16 |
| DRIVETRAIN - Planetaries: | Outboard |
| HYDRAULICS - Pump – steering/implement: | Open-centered pressure/flow compensated |
| OTHER SPECIFICATIONS - Lift cylinder Stroke: | Z-Bar: 29.57 in (751.0 mm) |
| ENGINE - Lubrication/cooling oil pump: Style: | Integral |
| ENGINE - Engine speeds High idle – no load RPM: | 2500 |
| DIMENSIONS - Rear axle oscillation – total: | 20° |
| ENGINE - Exhaust aftertreatment: | Cooled Exhaust Gas Recirculation (CEGR) w/ Diesel Oxidation Catalyst (DOC) |
| ENGINE - Radiator: Core type: | All aluminum |
| ELECTRICAL - Voltage: | 12 Volts |
| HYDRAULICS - Fixed gear type: Optional high flow: | Max. 34.3 gpm @ 2,901 psi (Max. 130 L/min @ 230 bar) |
| DIMENSIONS - Ground clearence under axles: | 12.5 in (317 mm) |
| SERVICE CAPACITIES - Hydraulic system: Reservoir: | 10.6 gal (40.0 L) |
| DIMENSIONS - Wheelbase: | 87.6 in (2 225 mm) |
| OTHER SPECIFICATIONS - Cycle time: Lower – empty : | Z-Bar: 3.8 sec |
| SERVICE CAPACITIES - Hydraulic system: Total: | 14.0 gal (53.0 L) |
| DRIVETRAIN - Service brakes: | Master cylinder hydraulically actuated, wet disc on front axle |
| DRIVETRAIN - Transmission : | Hydrostatic transmission |
| SERVICE CAPACITIES - Cooling*: | 3.4 gal (13.0 L) |
| DIMENSIONS - Width centerline tread: | 59.1 in (1 500 mm) |
| DIMENSIONS - Turning angle from center: | 40° |
| ENGINE - Displacement: | 207 in³ (3.4 L) |
| DIMENSIONS - Angle of departure: | 27° |
| HYDRAULICS - Filtration: | 15-micron, full flow replaceable cartridges on return line |
| HYDRAULICS - Loader auxiliary steering: | Hydraulic orbital center-pivot articulating w/ on-demand oil flow |
| OTHER SPECIFICATIONS - Cycle time: Raise w/ rated bucket load: | Z-Bar: 5.8 sec |
| ENGINE - Fuel filter: | Spin on, Beta (4) = 20 |
| ENGINE - Engine pump operating angle ratings side to side: | Rated 35° |
| HYDRAULICS - Main relief pressure: | 3,336 psi (23 000 kPa) |
| ENGINE - Engine oil Pump: | Rotor Pump w/ deep sump pan, plate cooled & pressurized under piston nozzles |
| HYDRAULICS - Fixed gear type: Standard flow: | Max. 22.5 gpm @ 3,626 psi (Max. 85 L/min @ 230 bar) |
| ENGINE - Fan: Style: | Direct drive |
| ELECTRICAL - Alternator: | 120 amp |
| DRIVETRAIN - Front axles: Differential ratio : | 3.67 |
| DRIVETRAIN - Parking brakes: | Mechanical, caliper on front axle |
| ENGINE - Horsepower @ 2500 RPM: Gross: | 74 hp (55 kW) per SAE J1349 |
| DRIVETRAIN - Gear box: 1st ratio: | 2.46 |
| DRIVETRAIN - Front axles: Final axle ratio: | 22.00 |
| ENGINE - Fuel: | Diesel |
| SERVICE CAPACITIES - Rear axle: | 2.6 gal (10.0 L) |
| ropstype: | Enclosed |
| ENGINE - Model: | FPT F5H FL463 A |
| OPERATING WEIGHT - Including optional counterweight: | |
| ENGINE - Engine speeds Low idle RPM: | 950 |
| OTHER SPECIFICATIONS - Lift cylinder Bore diameter: | Z-Bar: 3.25 in (82.5 mm) |
| ENGINE - Horsepower @ 2500 RPM: Net: | 70 hp (52 kW) per SAE J1349 |
| OTHER SPECIFICATIONS - Dump cylinder Stroke: | Z-Bar: 19.96 in (507.0 mm) |
| DRIVETRAIN - Pump flow @ 2500 RPM: | 37.0 gpm (140 L/min) |
| ENGINE - Fuel injection: | High pressure, common rail injection |
| DRIVETRAIN - Travel speeds 1st Low: | Forward: 3.3 mph (5.3 kph) | Reverse: 3.3 mph (5.3 kph) |
| DRIVETRAIN - Travel speeds 3rd High: | Forward: 18.6 mph (30.0 kph) | Reverse: 18.6 mph (30.0 kph) |
| OTHER SPECIFICATIONS - Dump cylinder Bore diameter: | Z-Bar: 3.49 in (88.7 mm) |
| ENGINE - Bore/Stroke: | 3.9 x 4.3 in (99 x 110 mm) |
| SERVICE CAPACITIES - Note: *1.72 gal (6.5 L) antifreeze + 1.72 gal (6.5 L) water.: | |
| OPERATING WEIGHT - Standard: | Z-Bar: Unit equipped w/ ROPS/FOPS cab w/ heater, standard counterweight, 365/70 R18 Dunlop Tires, front and rear fenders, 1.2 yd³ (0.9 m³) general purpose bucket w/ edge, full fuel, 165 lb (75 kg) operator: 12,547 lb (5 691 kg) |
| OTHER SPECIFICATIONS - Lift cylinder Rod diameter: | Z-Bar: 1.97 in (50.0 mm) |
| SERVICE CAPACITIES - Engine oil w/ filter: | 1.8 gal (7.0 L) |
| ENGINE - Maximum torque @ 1400 RPM: Gross: | 232 lb·ft (314 N·m) per SAE J1349 |
| ENGINE - Engine oil Pump operating angle ratings: Oil filtration: | Spin on, full flow |
| DIMENSIONS - Turning angle total angle: | 80° |
| OTHER SPECIFICATIONS - Lift cylinder: | Z-Bar: Two (2) |
| ENGINE - Cylinders: | 4 |
| ENGINE - Emissions Certification: | Tier 4 Final |
