CASE TV450B

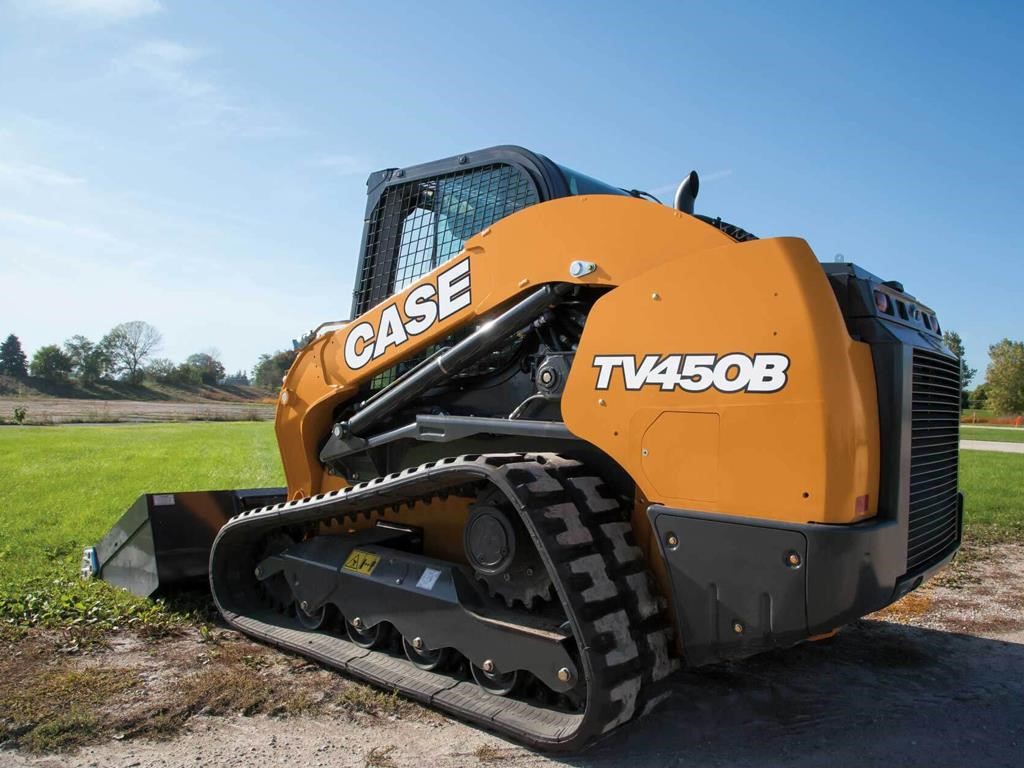

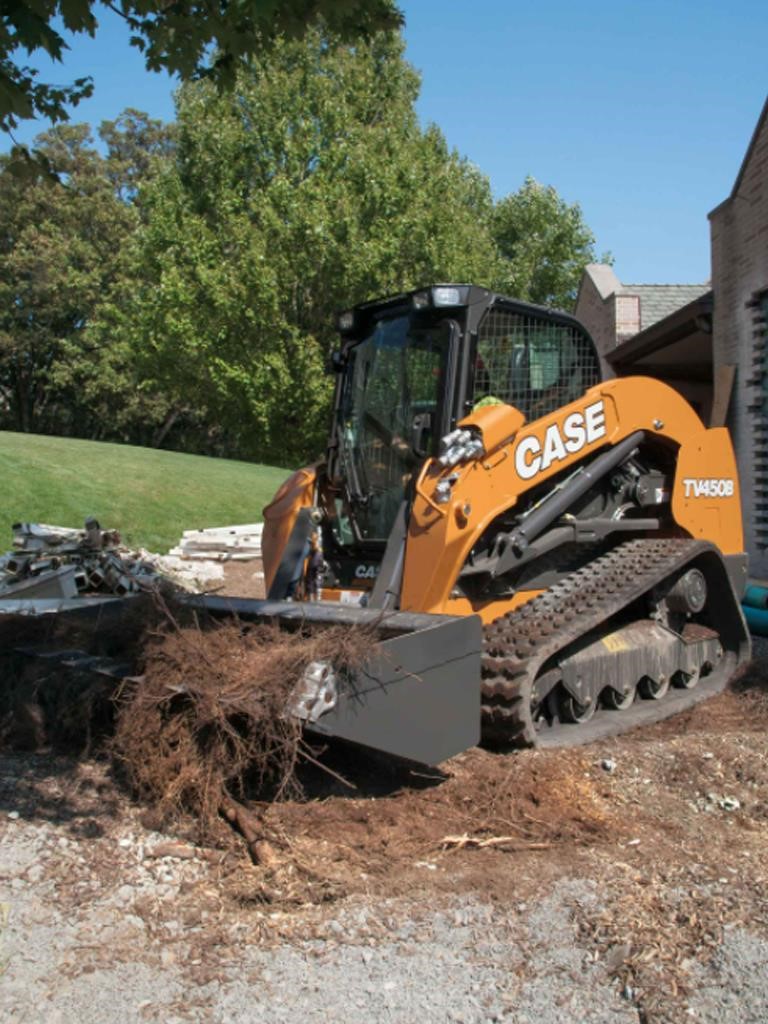

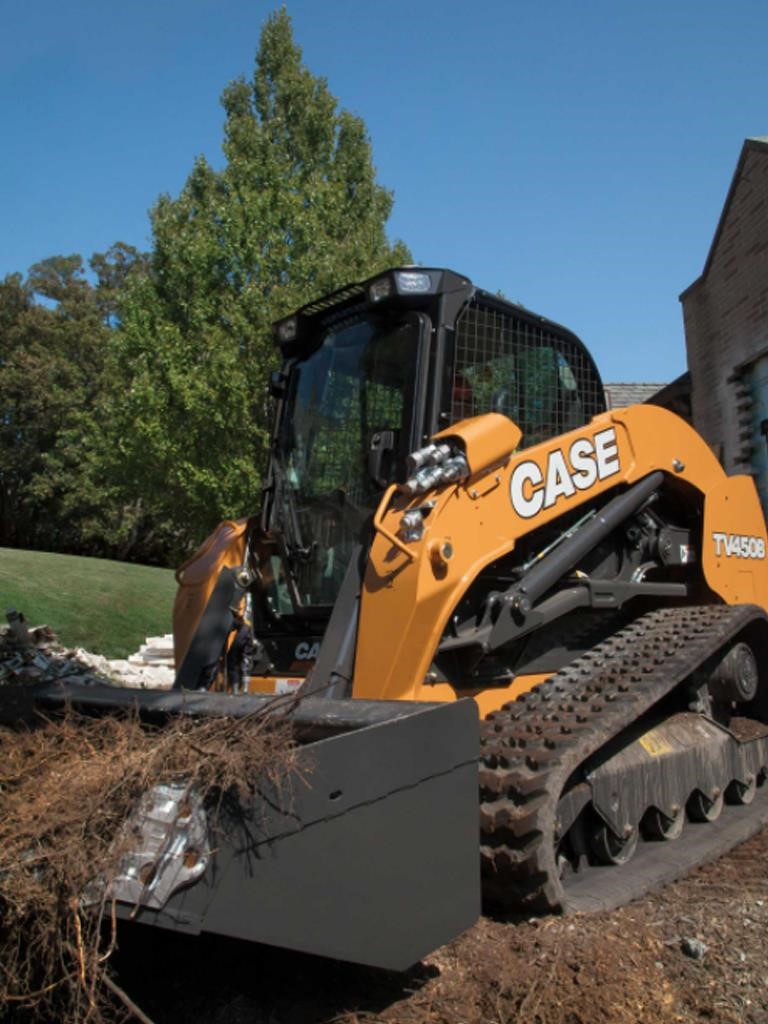

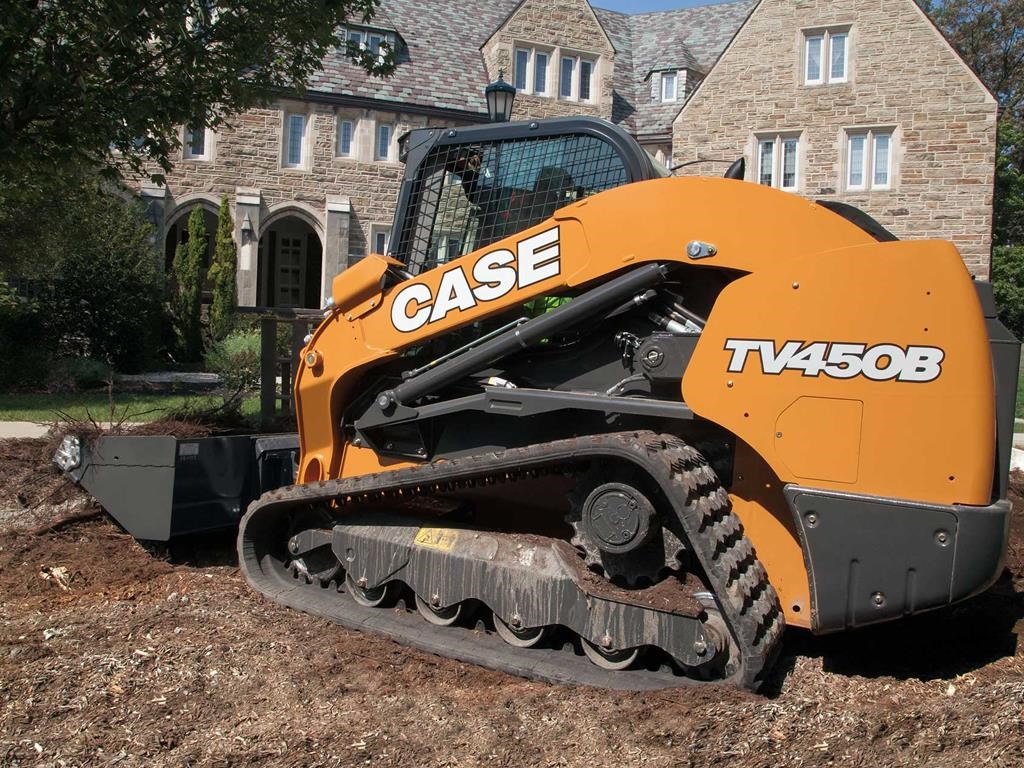

CASE – TV450B − COMPACT TRACK LOADER

The TV450B is the largest and most powerful CTL in the CASE lineup, allowing contractors to lift and load more, run more powerful attachments, and be more productive when working against the clock. The 4,500-pound rated operating capacity at 50 percent tipping load, matched with high bucket and lift cylinder breakout forces, as well as an extremely powerful enhanced high-flow auxiliary hydraulics option, makes the CASE TV450B your next low ground pressure/high performing workhorse.

FEATURES

VISIBILITY AND COMFORT

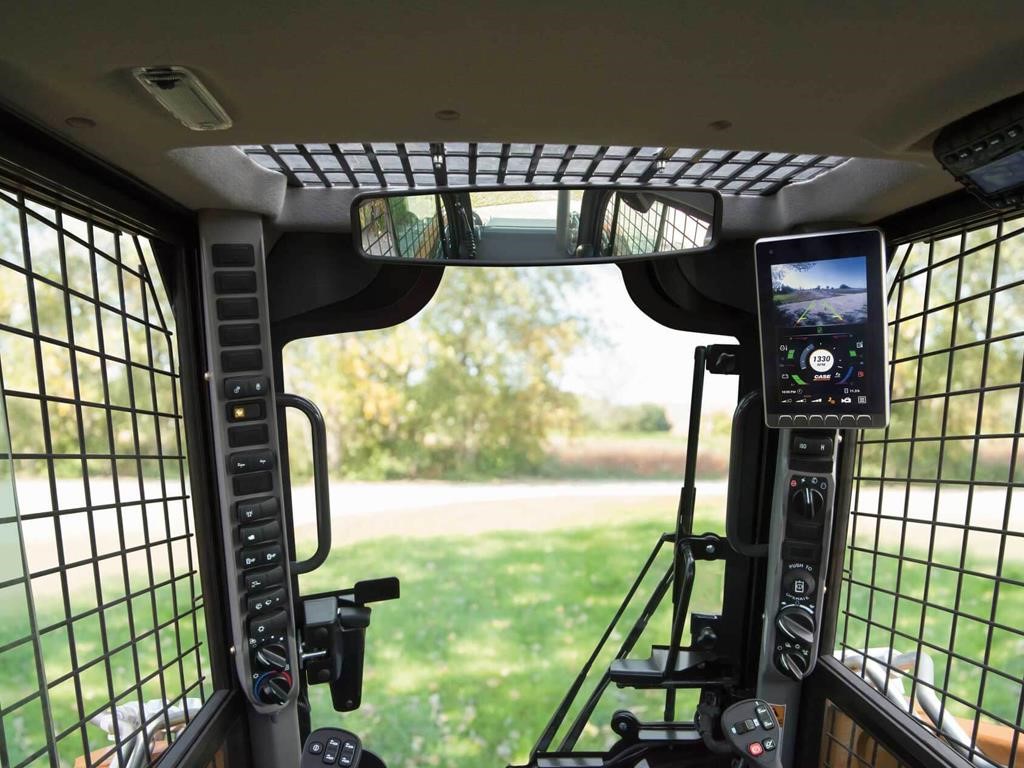

CASE CTLs feature industry-leading visibility with a new backup camera (operational in both forward and reverse), cab-wide rearview mirror, large front and side windows, a low entry threshold for easy entry and greater visibility down to the bucket, a low sloping rear hood and 360-degree lighting. CASE CTLs feature one of the industry’s widest cabs and new control handles that provide more comfortable operation throughout the day. Redesigned controls, cupholders and air vents further create more legroom and comfort.

OPTIMAL CONTROL

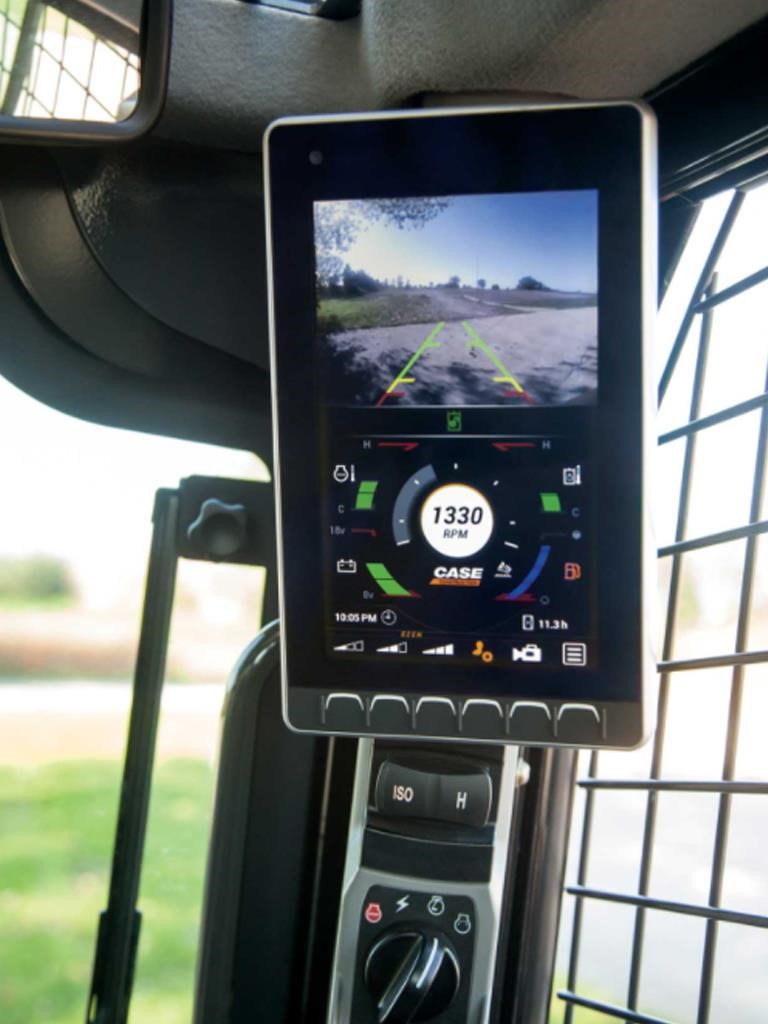

CASE compact track loaders are available in electro-hydraulic, mechanical and mechanical hand and foot configurations. New electro-hydraulic models with the all-new 8-inch LCD multi-function display give operators the most control, with easy switching between ISO and H operating patterns, the ability to save operator profiles and application settings, and the flexibility to set total machine responsiveness to low, medium or high — or to independently set loader arm and drive response to meet exact operator preference.

PRODUCTIVITY AND PERFORMANCE

A machine of this size and power requires a tale of the tape: 4,500-pound rated operating capacity; 9,188-pound bucket breakout force; a hinge pin height of almost 12 feet; enhanced high flow hydraulics that pump 35 gpm at a whopping 4,000 psi for hardcore attachments such as mulchers and cold planers. The TV450B is built for high performance, production-level working environments that require strength, power and efficiency.

EASE OF OWNERSHIP

All critical checks and service points are grouped at the rear of the machine for easy access, and the all-new 8-inch LCD multi-function display provides the operator with real-time data on machine operation and performance. The machine features a selective catalytic reduction (SCR) emissions solution that requires no regular maintenance — simply fill up the diesel exhaust fluid (DEF) tank as needed!

STANDARD EQUIPMENT

OPERATOR ENVIRONMENT

• ROPS/FOPS Level 1 canopy w/ side screens

• Keyed start ignition

• Tilt ROPS/FOPS

• Rear window w/ emergency escape

• Suspension Seat, vinyl w/ 2 in (51 mm) retractable 3 point lap seat belt

• Hand and foot throttles

• Alarm package – back-up and horn

• Rearview mirror

• Headliner

• Dome Light

• Top window

• Cup holder

• 12V Power plug socket

• Foot rest

• Seat pocket

• Padded seat bar w/ integral armrests

• Loader control lockout system

• Electric parking brake control

• Operator’s compartment floor cleanout

• Proportional auxiliary hydraulic control – on joystick

• Advanced Instrument Cluster w/ digital hour meter, tachometer, Fuel level LCD bar graph w/ alarm, diagnostic features and security lockout

• Electrohydraulic controls: For drive/steering, loader functions, Switchable between H and ISO patterns, Adjustable sensitivity of controls.

• Warning lights with alarms: Engine coolant temperature, Engine oil pressure, Engine malfunction, Hydraulic charge pressure, Hydraulic filter restriction

• Hydraulic oil temperature: Critical system stop, Engine system, Hydraulic system, Electrical and diagnostic system

• Warning alarms: Battery voltage – plus display, Oil service

• Indicator light: Engine preheat, Parking brake, Seat bar reminder

ENGINE

• Dual element air cleaner

• Organic Acid Technology (OAT)

• Anti-freeze solution to -34º F

• Fuel tank – 25.5 gal (U.S.)

• Over and under radiator and oil cooler

• 3-stack after cooler/radiator/oil cooler configuration

• Glow plugs

• Integral engine oil cooler

• Fuel filter with water trap

• 1,000 CCA 12V battery

• Master electrical disconnect

• Jump start terminal

DRIVETRAIN

• 2-speed hydrostatic four wheel drive

• SAHR disc parking brake

HYDRAULICS

• Auxiliary hydraulics: @ 3,450 psi (238 bar) – 24.2 gpm (91.5 L/min)

• 6 micron oil filtration system

• 3-spool loader control valve

• Auxiliary hydraulic disconnects, ISO flat-face – connect-under-pressure with case drain

• Hydraulic circuit pedal lock

• Auxiliary function lockout override

• Loader lift lockout override

• Heavy-duty hydraulic oil cooler

• Loader arm float position

• Loader function lockout system

LOADER

• Manual attachment coupler

• Vertical lift geometry

• Loader lift arm support strut

• SAE operating load: 3,150 lbs

• Tipping load: 9,000 lbs

TRACKS

• Rubber Tracks

OTHER STANDARD FEATURES

• Halogen lights – 2 front, 2 side, 2 rear flood

• Pre-wired for rotating beacon

• Lockable service access hood

• Single-point daily servicing

• Rear tail lights

• Remote oil and fuel filters

• Block heater

• Debris ingression sealing

• Mounting points for add-on counterweights

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
