CASE SL35TR

CASE SMALL ARTICULATED LOADER — SL35 TR

THE ALL-NEW CASE SMALL ARTICULATED LOADERS

Introducing a full line of small articulated wheel loaders built to help you load, sweep, rake, hammer, plow and lift your business to the next level. These do-anything, go-anywhere, construction-grade machines are easy to operate and give you the versatility and capability to take on more and bigger jobs. Find the one that will fit your operation.

MAKE QUICK WORK OF ALL KINDS OF WORK

Here’s a line of machines that will help you tackle the job that’s in front of you. Then you can switch out the attachment and load, sweep, plane, auger or hammer your way through whatever comes next. Introducing the versatile, business-building, construction-grade CASE SL Series small articulated loaders. The compact size and articulated configuration not only allow you to use your pickup and trailer to transport from jobsite to jobsite, they also give you the ability to maneuver in tight spaces like small backyards. The horsepower and lifting capacity are ample. With 70+ available attachments and optional 14-pin electric connector, this one machine will do the work of many. There’s also an electric model for indoor tasks. They’re all easy to operate. And with the know-how and support of CASE backing you, you’ll head out with confidence to any job. What do you want to get done today?

NIMBLE

The new CASE SL Series small articulated loaders are narrower, lighter, with less overall length, making them easy to transport with a regular pick-up and a trailer and easy to use in tight spaces.

OPERATOR-FIRST DESIGN

A simple operator station offers 360-degree visibility and the machine drives like a utility tractor with a steering wheel and loader control. It’s designed to make operators feel comfortable instantly, and stay that way for hours.

70+ ATTACHMENTS

We offer a wealth of attachments, and with the standard CII coupler on our smaller SAL machines, you get even more options with easy access to non-CASE attachments. Our larger SAL machines use SAE couplers offering attachment compatibility with skid steer loaders and compact track loaders.

CONSTRUCTION-GRADE SERVICE

You’re not buying from a lawn-and-garden dealer when you go with CASE. You get the full service and support of the CASE dealer network, which has the qualified technicians and agility you need to limit downtime if there’s ever an issue.

TELESCOPIC REACH

Several models feature telescoping arms for added reach when loading trucks or moving material from high areas. These can serve as a replacement for telehandlers.

FORWARD ARTICULATION

Unlike competitive units with rear articulation, several CASE models put the operator station on the front section, allowing for larger cab size and easier entry/exit. It also allows the operator to work alongside walls and see where the machine is going. On top of that, it makes the cab more stable with zero cab swing compared to others with rear articulation.

CLEAN, QUIET, ELECTRIC POWER

The SL22 EV small articulated loader gives you the option of adding an electric model to your stable. With zero on-site emissions, it’s perfect for indoor work and any noise-sensitive environment. Also, for bidding on the growing number of contracts where EV machinery is required.

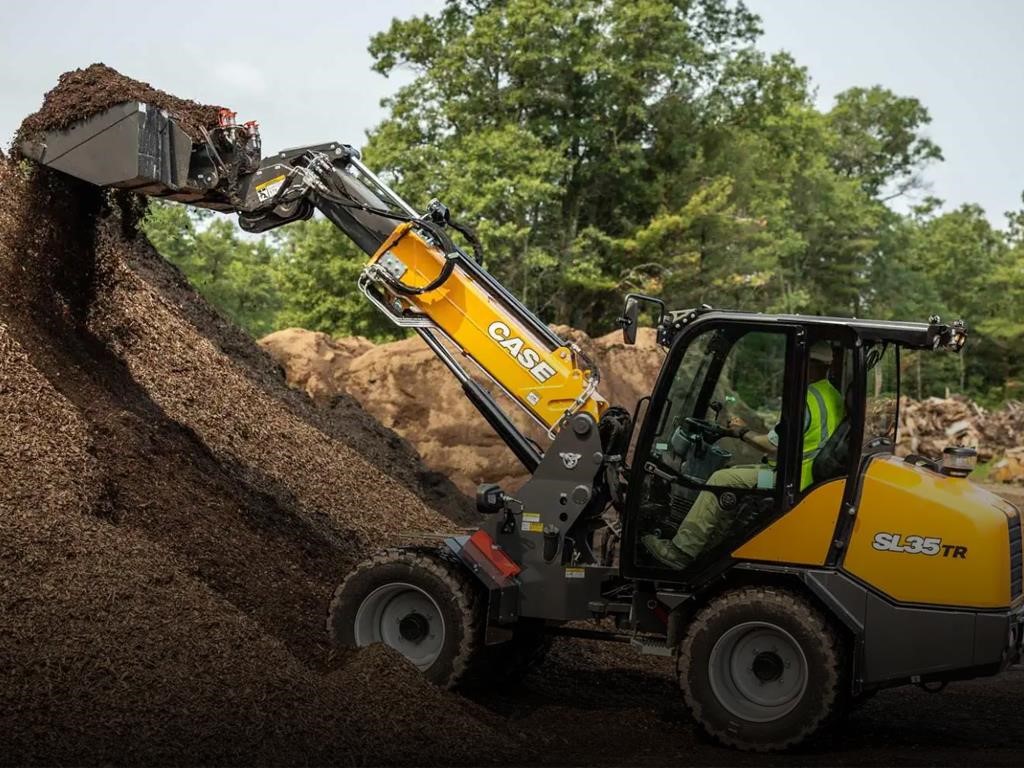

SL35 TR SMALL ARTICULATED LOADER

The meatiest machine in our small articulated loader line is the CASE SL35 TR. And it’s designed to help you feast on all kinds of jobs. It boasts an operating weight of 8,818 lbs., lifting capacity of 5,500 lbs. (telescopic boom retracted) and kicks out 65 hp – big output for its class. It wastes little time at a site, with travel speeds of up to 18.6 mph. This model has a telescopic boom that reaches nearly 170”, making taller stacking and offloading heights attainable. And with the optional 14-pin electric connector, you have the attachment capabilities of a larger machine, along with the working abilities of a larger outfit.

FEATURES CASE SL35 TR

TELESCOPING BOOM

The SL35 TR features a telescoping arm for added reach when loading trucks or moving material from high areas.

BIG POWER

65 hp and a lifting capacity of 5,500 lbs. (telescopic boom retracted) means you have plenty of job-crushing muscle on tap when you need it.

AVAILABLE CAB WITH HVAC

Optional HVAC gives the operator the ultimate environment to work in – winter, spring, summer and fall.

SUPERIOR VISIBILITY AND TRAVEL SPEEDS

Get behind the wheel of the SL35 TR and you’ll be impressed with what you see and how fast it will get you from A to B.

FORWARD ARTICULATION

Unlike competitive units with rear articulation, the SL35 TR puts the operator station on the front section, allowing for larger cab size and easier entry/exit. It also allows the operator to work alongside walls and see where the machine is going. On top of that, it makes the cab more stable with zero cab swing compared to others with rear articulation.

STANDARD EQUIPMENT

OPERATOR ENVIRONMENT

• ROPS/FOPS safety roof

• Safety entry bar

• Key start

• Non-suspension vinyl seat

• Armrests

• Retractable seat belt

• Exterior mirrors

ENGINE

• Diesel Oxygen Catalyst

• Diesel Particulate Filter

• Glow plug starting aid

• Engine block heater

• Locking fuel cap

• Cyclone air filter

DRIVETRAIN

• Hydrostatic 4-wheel drive

• FNR control on joystick

• Electrical differential lock axles

• Drum brakes

HYDRAULICS

• 3-spool main control valve

• 1x dual acting auxiliary hydraulics

• Attachment case drain return

• Hydraulic self-level function

• Hose rupture protection on lift cylinder

• Oil cooler

LOADER

• Telescopic reach loader arm

• Loader lift arm support strut

• SSL compatible attachment coupler, hydraulic powered

• Additional counterweights

ELECTRICAL

• 12-volt system

• 77 AHR, 780 CCA battery

• 60 A alternator

• 1 boom work light

• 2 front cab work lights

• Anti-theft protection with access code

• Battery disconnect switch

OTHER STANDARD FEATURES

• Recovery Hook

• Backup alarm

• Horn

OPTIONAL EQUIPMENT

OPERATOR ENVIRONMENT

• Enclosed cab with HVAC

ENGINE

• Hand throttle

DRIVETRAIN

• Pro inching creep control

HYDRAULICS

• 2x dual acting auxiliary hydraulics

• Auxiliary hydraulic hold function

• Continuous flow auxiliary hydraulics

• Hydraulic boom suspension (ride control)

ELECTRICAL

• 2 cab rear work lights

• 14-pin electrical auxiliary connection

• Rotating beacon light

• Strobe light

OTHER

• English, Spanish, or French Operator Manual

WARRANTY

• Base warranty coverage: 2-Year/1,000-Hour

• Full Machine Limited Warranty

• Electric power train warranty coverage: 3-year/3,000 Hour Limited Warranty (EV models only)

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
